Shure SLXD15/DL4B Wireless DuraPlex Omni Lavalier Mic System (L57: 650- 693 MHz)

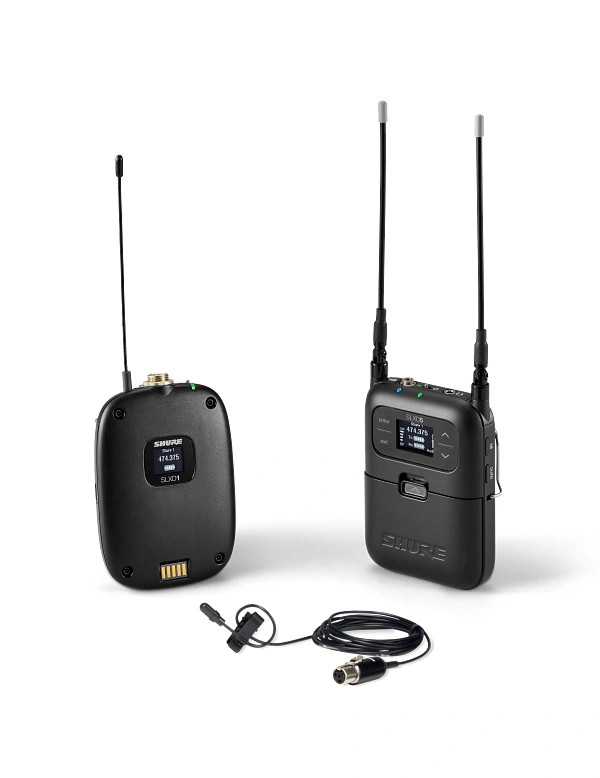

The Shure SLXD15/DL4B Wireless DuraPlex Omni Lavalier Mic System is designed to provide videographers, journalists, documentary makers, and content producers with a reliable wireless lavalier microphone system. It offers impeccable digital sound quality and ease of setup, even when using multiple microphones on set. The system revolves around a durable, single-channel receiver which can be conveniently mounted on a camera or used in an audio bag. It boasts a comprehensive range of features that guarantee professional-grade, broadcast-ready audio for filmmakers and creators who have high standards. This particular configuration includes a bodypack transmitter and a DL4 DuraPlex omnidirectional lavalier microphone in black.
Specs
Wireless Technology | Digital UHF |
Included Transmitters | 1 x Bodypack with Microphone |
Diversity | True Digital Diversity |
Max Operating Range | 328' / 100 m |
Receiver Type | Camera-Mount |
Microphone Type | Lavalier |
Polar Pattern | Cardioid |
System | |
Wireless Technology | Digital UHF |
Number of RF Channel Frequencies | 1760 |
Included Transmitters | 1 x Bodypack with Microphone |
Diversity | True Digital Diversity |
RF Frequency Band | L57: 650- 693 MHz |
RF Bandwidth | 43 MHz |
Frequency Step Size | 25 kHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 328' / 100 m |
Max Transmitters per Band | 32 |
Built-In Recorder | No |
Timecode Support | Yes |
Mobile App Compatible | No |
Sample Rate/Resolution | 24-Bit |
Latency | 3.2 ms |
Dynamic Range | 118 dBA (Typical) |
Encryption | No |
THD | <0.02 % |
Receiver | |
Receiver Type | Camera-Mount |
Mounting Options | Shoe-Mount (with Included Hardware) |
Antenna | 2 x 1/4 Wave Flexible Whip, Fixed (Front-Mount) |
Number of Audio Channels | 1 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Balanced Mic/Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
Audio Output Level | 1/8" / 3.5 mm Output: +15 dB (Line Level, Balanced) |
Phantom Power Protection | No |
Frequency Response | 20 Hz to 20 kHz +1/-2 dB (Dependant on Mic) |
Network I/O | No |
USB/Lightning Connectivity | 1 x USB-C Female (Bus Power, Charging) |
USB Class-Compliant | No, USB Charging/Power Only |
Impedance | 1/8" / 3.5 mm Output: 450 Ohms (Balanced) |
Spurious | Rejection: >75 dB |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Included) 1 x Shure SB903 (Not Included) |
Approx. Battery Life | 5.5 Hours |
Display & Indicators | OLED (AF Level, Battery Status, Channel, Frequency, Group, Menu Navigation, Metering, Multifunction, Output Level, RF Level, Sync, Transmitter Battery Status) |
Housing | Aluminium |
Operating Temperature | 0 to 122°F / -17 to 50°C |
Storage Temperature | -20 to 165°F / -28 to 73°C |
Dimensions | 2.7 x 4.2 x 1" / 68 x 107 x 25.3 mm |
Weight | 0.4 lb / 182 g |
Transmitter | |
Transmitter Type | Bodypack with Microphone |
RF Output Power | 1 / 10 mW |
Audio I/O | 1 x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking) |
Pad | No |
Muting | Off/On Switch |
Audio Input Level | 8.2 dBV (Max) |
Auto-Level Control | No |
Gain Range | 0 +21 dB |
Signal Processing | No |
Frequency Response | 20 Hz to 20 kHz |
Sync Method | IR |
Antenna | 1/4 Wave External, Fixed |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) 1 x Shure SB903 (Not Included) |
Battery Charging Time | 1.25 to 5.5 Hours |
Approx. Battery Life | 8 Hours (Lithium Shure SB903) |
USB/Lightning I/O | No |
Display & Indicators | LCD (Battery Status, Channel, Group) |
Housing | ABS, Plastic |
Operating Temperature | 0 to 122°F / -17 to 50°C |
Storage Temperature | -20 to 165°F / -28 to 73°C |
Dimensions | 2.7 x 3.9 x 1" / 68 x 98 x 25.5 mm |
Weight | 3.1 oz / 89 g |
Microphone | |
Microphone Type | Lavalier |
Colour | Black |
Sound Field | Mono |
Capsule | MEMS |
Polar Pattern | Cardioid |
Frequency Range | 20 Hz to 20 kHz |
SNR | 63 dB |
Equivalent Noise Level | 31 dB A-Weighted |
Maximum SPL | 132 dB SPL |
THD | < 1% |
Sensitivity | -42.5 dBV/Pa |
CMRR | No |
Dynamic Range | 101 dB |
Output Connector | 1 x TA4F/Mini-XLR 4-Pin Female Unbalanced |
Cable Length | 5.48' / 1.67 m |
Operating Voltage | 5 V |
Operating Current Consumption | 220 µA |
Length | 0.6" / 14.5 mm |
Diameter | 0.2" / 5.2 mm |
Weight | 0.5 oz / 15 g |
In the Box
- Shure SLXD15/DL4B Digital Camera-Mount Wireless DuraPlex Omni Lavalier Mic System (L57: 650- 693 MHz)
- Shure SLXD5 Digital Camera-Mount Wireless Microphone Receiver (L57: 650- 693 MHz)
- Shure SLXD1 Digital Wireless Bodypack Transmitter (L57: 650- 693 MHz)
- Shure DL4 DuraPlex Omnidirectional Miniature Lavalier Microphone for Bodypack Transmitters (Black, TA4F)
- Camera Shoe Mount
- Windscreen
- Lapel Clip
- 3.5mm TRS Cable for Camera
- AA Battery
- Barcode: 72696
- UPC Barcode: 42406761628
- Supplier Code: SLXD15-DL4B
