Overview

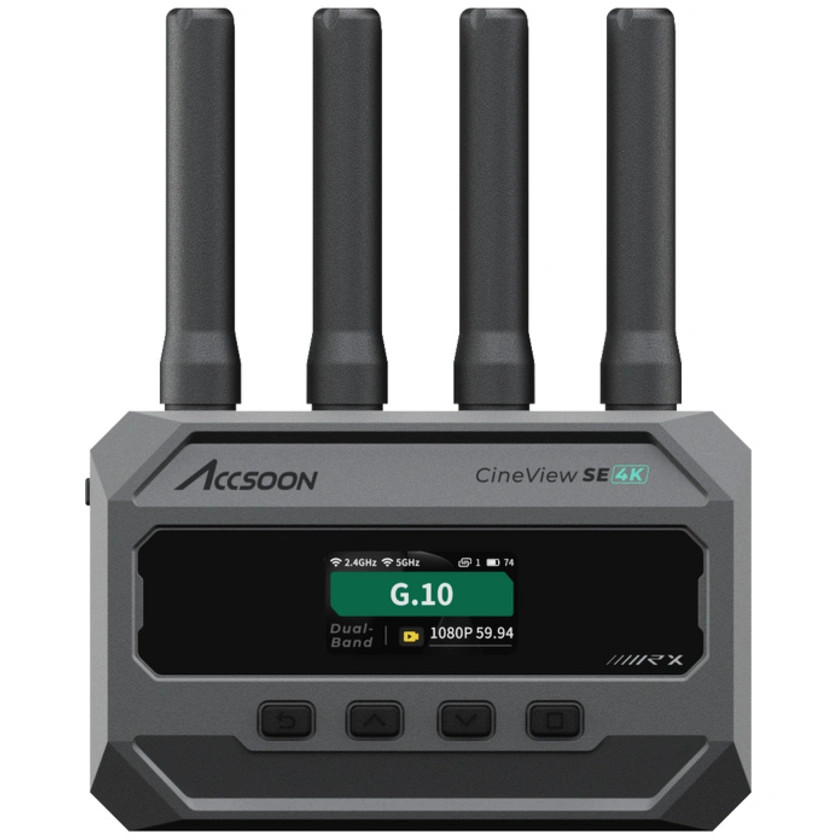

The Accsoon CineView SE 4K Receiver is a professional wireless video receiving unit designed to deliver reliable UHD 4K30 monitoring performance. Built for demanding production environments, it wirelessly receives high-quality video and audio signals and outputs them via HDMI, 3G-SDI, or USB to professional monitors and mobile devices.
Using Accsoon’s patented Dual Band technology, the receiver operates across both 2.4 GHz and 5 GHz frequencies to maintain a stable connection even in complex RF environments. With a transmission range of up to 400 m (line of sight) and latency below 50 ms at 1080p, it ensures smooth and responsive monitoring on set.
The compact, fanless aluminium design enables silent operation, making it ideal for interviews, studio production, and other noise-sensitive applications.
Core Features
- Receives UHD 4K30 wireless video transmission.
- Dual-band 2.4 GHz and 5 GHz signal stability.
- Up to 400 m range with low-latency performance.
- HDMI and 3G-SDI video outputs.
- USB-C video output for wired mobile monitoring.
- Supports embedded HDMI and SDI audio.
- Fanless aerospace-grade aluminium housing.
- NP-F battery or DC power compatibility.
4K Monitoring & Output Flexibility
The CineView SE 4K Receiver supports HDMI output up to UHD 4K30 and 3G-SDI output up to 1080p60, ensuring compatibility with professional field monitors, production displays, and switchers.
Video and audio are transmitted using Accsoon’s proprietary RTMS 4.0 protocol, designed to deliver stable performance and smooth image quality in demanding production environments.
USB-C Monitoring & Mobile Integration
The integrated USB-C video output enables wired monitoring to iOS and Android devices, providing close to zero-latency performance. This connection also supports simultaneous mobile device charging via USB-C or Lightning, making it ideal for extended shooting sessions.
The receiver is compatible with CineView SE 4K transmitters as well as other supported Accsoon transmitters operating with the RTMS 4.0 protocol.
Design & Power
Measuring approximately 11 x 3.27 x 7.4 cm (antennas excluded) and weighing 245 g (without antennas), the receiver is compact and lightweight for seamless rig integration.
Power options include NP-F550, NP-F750, and NP-F970 batteries or DC input (7.4 to 16.8 V). Average power consumption is approximately 4.4 W. The unit operates reliably in temperatures from -10 to 40°C.
General
| Protocol | Proprietary RTMS 4.0 |
| Transmission Range | Up to 400 m (Line of Sight) |
| Latency | 1080p < 50 ms 4K < 100 ms |
| Operating Temperature | -10 to 40°C |
| Power Consumption | 4.4 W (Average) |
Video & Audio
| Video Output Port | 1x HDMI, 1x 3G-SDI, 1x USB Video Out |
| HDMI Output Format | UHD 4K: 23.98/24/25/29.97/30p 1080p: 23.98/24/25/29.97/30/50/59.94/60p |
| SDI Output Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60p Level A |
| Audio Output | 1x HDMI Embedded, 1x SDI Embedded |
Power
| DC Port | 5.5 mm x 2.1 mm (Center Positive) |
| DC Voltage | 7.4 to 16.8 V |
| Battery Compatibility | NP-F550, NP-F750, NP-F970 |
Physical
| Dimensions (Antennas Excluded) | 11 x 3.27 x 7.4 cm |
| Weight (Antennas Excluded) | 245 g |
What's Included
- Accsoon CineView SE 4K Receiver
- 4 x Antennas
- Cold Shoe Mount Adapter
- Allen Key
- Barcode: 88561
- UPC Barcode: 607609770657
- Supplier Code: WIT10-RX
