Overview

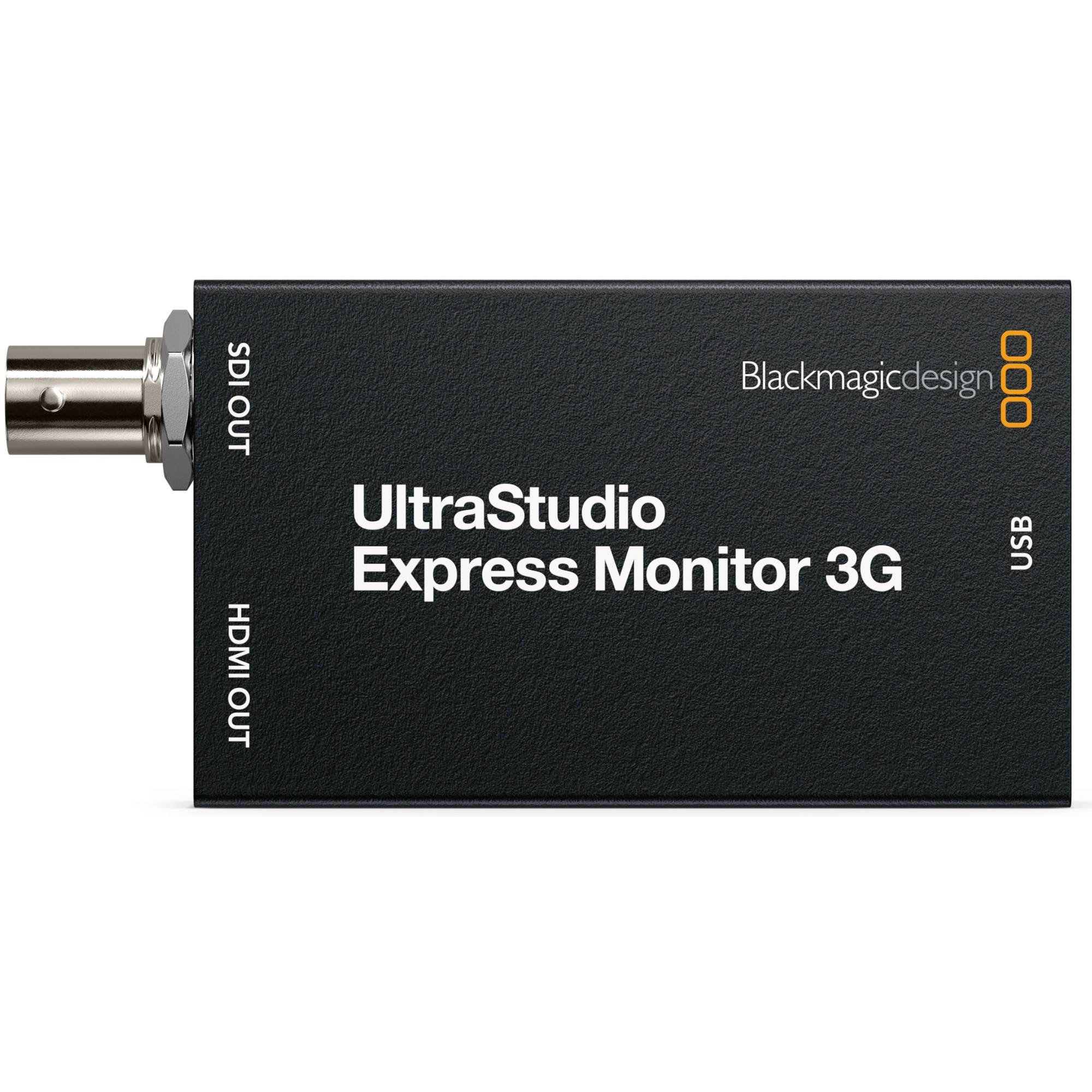

The Blackmagic Design UltraStudio Express Monitor 3G Playback Device is an ultra-portable playback device that outputs footage from your computer to an external monitor, TV, or projector using SDI or HDMI. Designed for editors who need accurate, delay-free playback while working, it connects through your computer's Thunderbolt 4 port and supports resolutions up to 1080p60. Like its Recorder counterpart, it draws power directly from the connected computer's USB-C port, and broad codec support, including Apple ProRes, Avid DNxHD, and 10-bit uncompressed signals, means it works smoothly across a wide range of existing edit workflows.
Delay-Free External Monitoring
Editing against a large-screen TV, projector, or SDI or HDMI monitor lets you judge colour, framing, and detail accurately, without relying on a computer display alone.
Wide Codec and Software Support
The playback device works with all popular video editing software, including DaVinci Resolve, and supports uncompressed and compressed 10-bit 4:2:2 YUV or RGB signals alongside common SD and HD standards up to 1080p60. It runs on Windows, macOS, and Linux computers with a Thunderbolt 4 connection.
Compact, Bus-Powered Design
Powered entirely via its USB-C connector from an attached computer, the pocket-sized device needs no separate power adapter, making it easy to pack for on-location or studio work.
Inputs/Outputs
| System Connection | USB-C (Thunderbolt) |
| Video I/O | Input: USB-C Thunderbolt 4 Female Output: BNC (3G-SDI) Female, HDMI 1.3 Female |
Format Support
| Video Resolution | BNC Output (10-Bit 4:2:2 RGB and YUV): 1920 x 1080p up to 60 fps HDMI Output (10-Bit 4:2:2 RGB and YUV): 1920 x 1080p up to 60 fps |
| Embedded Audio | HDMI/SDI |
Hardware
| OS Compatibility | Windows, macOS, Linux |
Power
| Power I/O | USB-C Input |
What's Included
- Blackmagic Design UltraStudio Express Monitor 3G Playback Device
- Barcode: 91990
- Supplier Code: BDLKULSDMBEXMON3G
