What's New on the Sony FX5

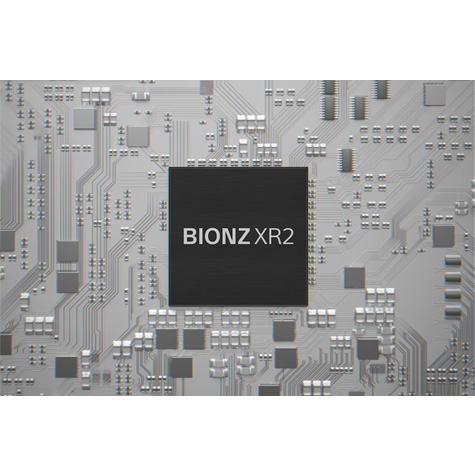

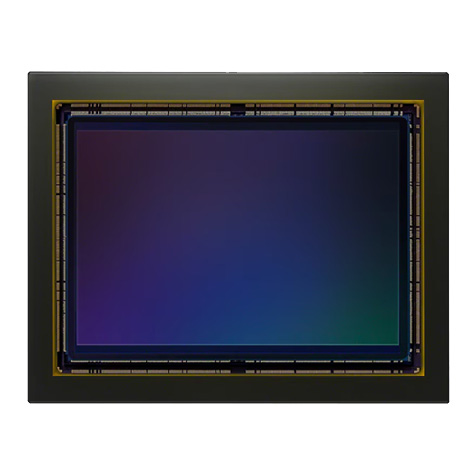

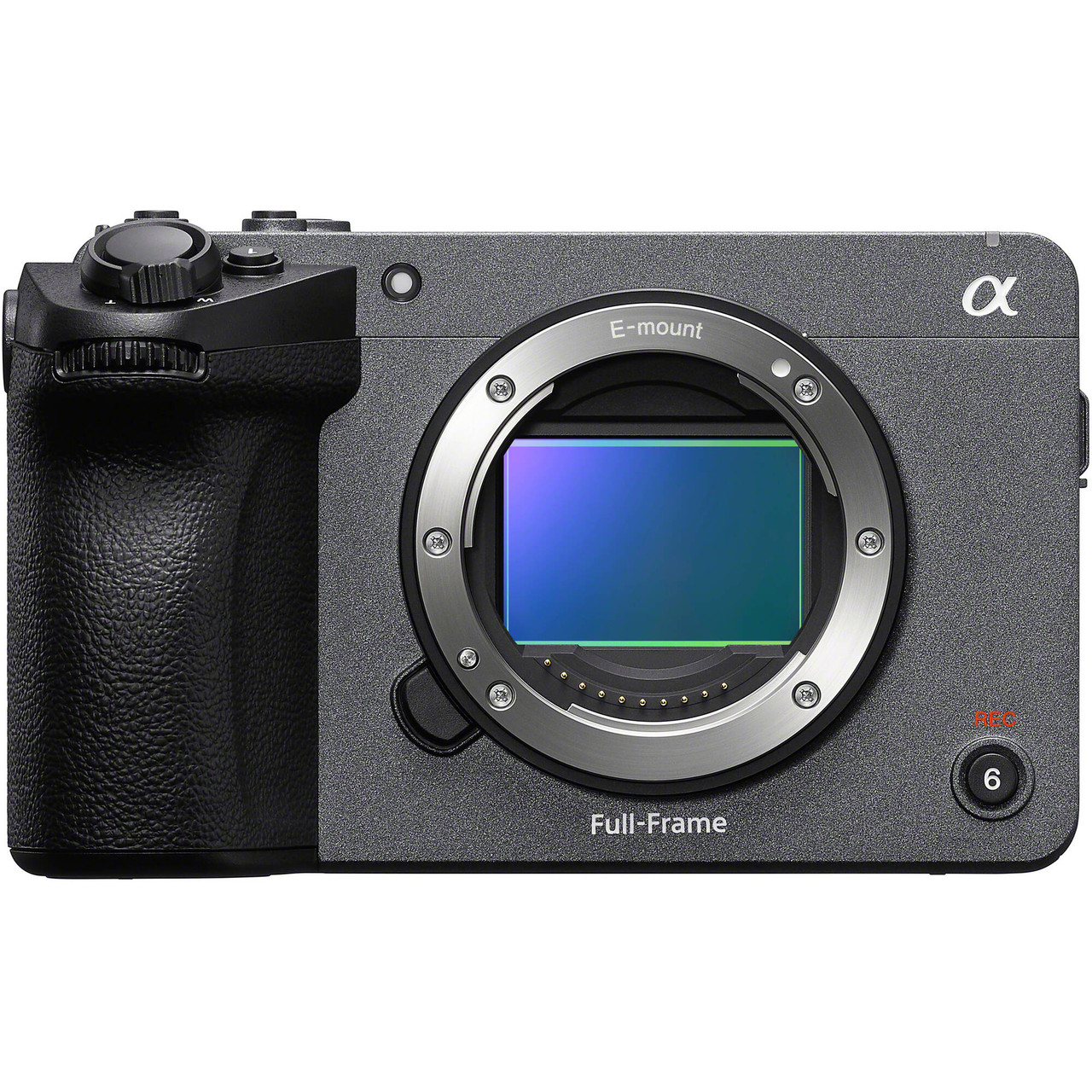

At the core of the FX5 is a newly developed full-frame, fully stacked Exmor RS CMOS sensor paired with Sony's latest BIONZ XR2 processor and a dedicated AI processing unit. Stacking the sensor is what unlocks nearly everything else on this camera: faster readout, reduced rolling shutter, and headroom for the frame rates and internal raw recording the FX3 could never do.

A few standout specs:

• 15+ stops of dynamic range in S-Log3, with Dual Gain Shooting pushing that even further for smoother gradation and cleaner shadows.

• Three base ISOs (800, 4000, and 12800), a first for the FX series, giving you a clean, low-noise option whether you're shooting in daylight, dim interiors, or near darkness.

• Open Gate recording, also a first for FX5's line, capturing the full 3:2 sensor area so you have maximum flexibility to reframe for widescreen, vertical, or anamorphic delivery in post.

• Internal 16-bit X-OCN raw recording, Sony's proprietary scene-linear raw codec, so you get raw-quality images without strapping an external recorder to the top of the camera.

• 5K up to 60fps, 4.5K up to 120fps, and FHD up to 240fps, with a firmware update planned for 2027 adding higher-resolution high-frame-rate X-OCN and 3:2 XAVC S-I recording.

• AI-driven autofocus with human pose estimation and Real-Time Tracking, plus Auto Tracing White Balance that blends visible and IR light data for more accurate color under mixed lighting.

• Improved 5-axis in-body stabilization, roughly doubling the roll correction range of the previous system, along with a new Dynamic Active Mode for steadier handheld footage.

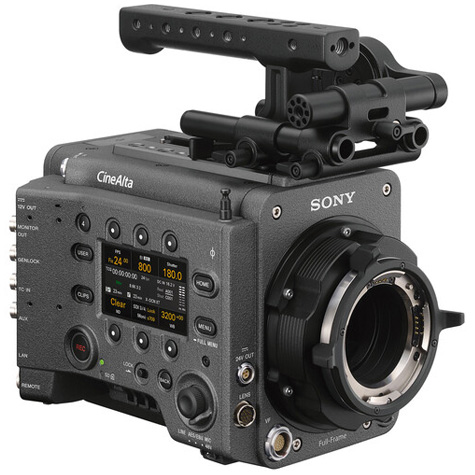

• A larger 3.5-inch, 2.76-million-dot articulating monitor and a menu system shared with the FX6 and CineAlta line, so switching between cameras on set feels seamless.

• Two USB-C ports supporting timecode input and USB Power Delivery, plus a wired LAN port for remote control and stable networking on professional sets.

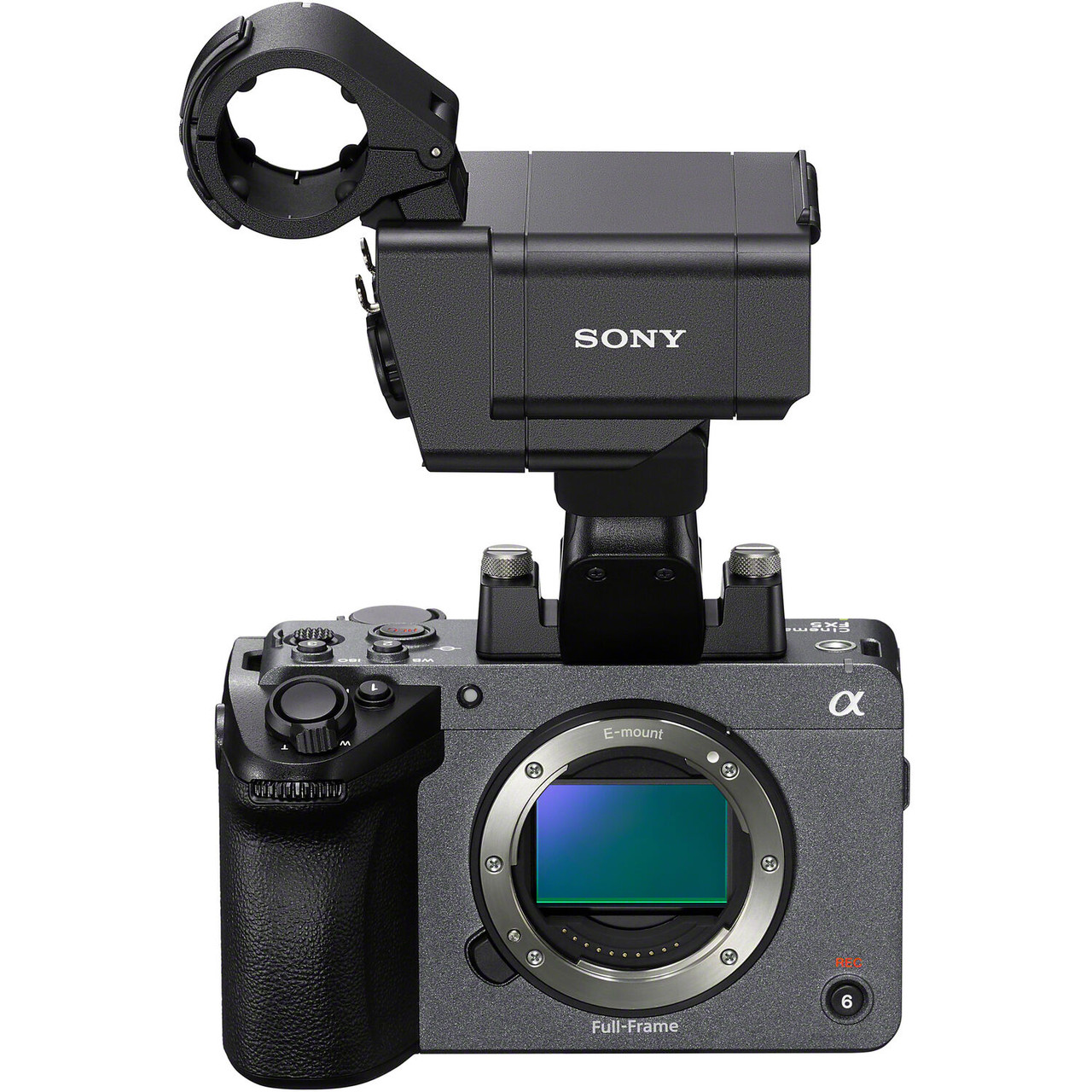

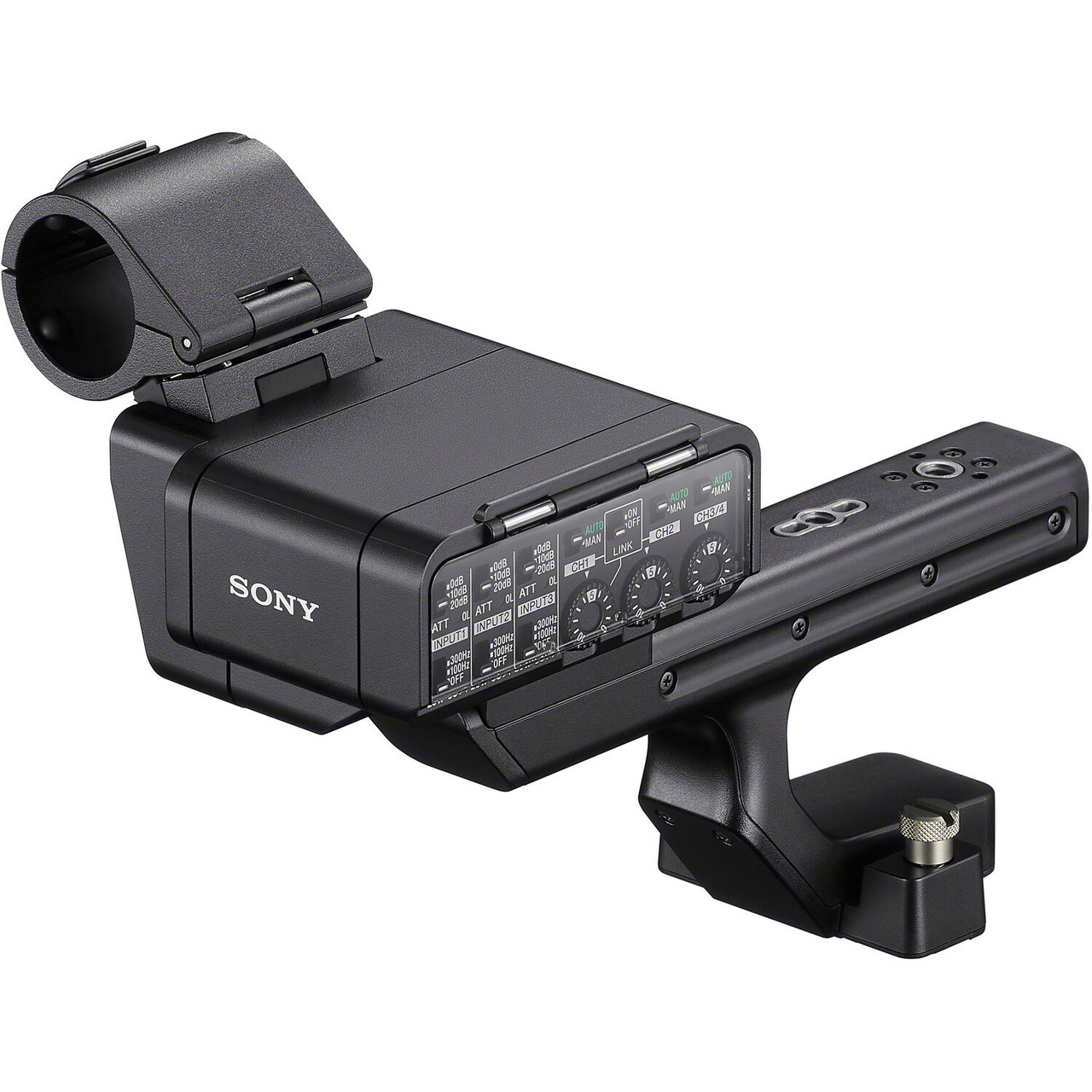

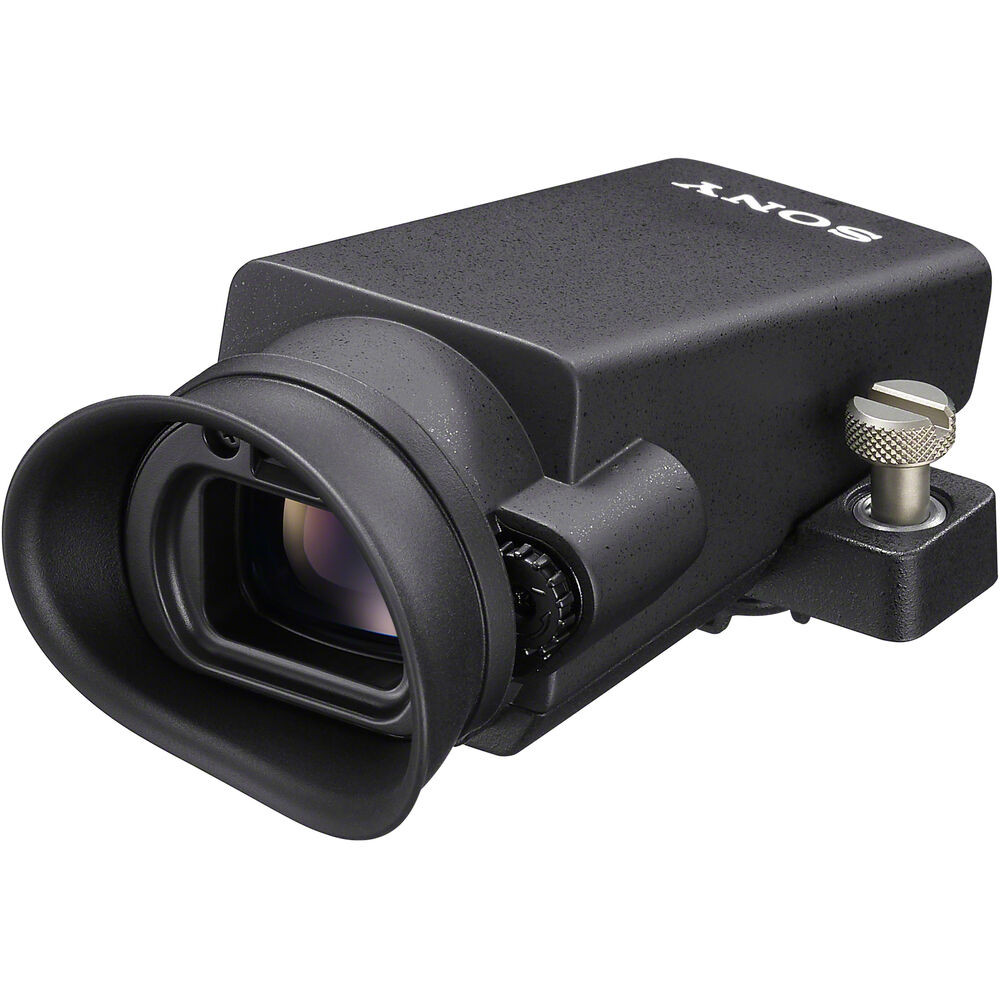

The FX5 also ships alongside two optional accessories: a detachable 0.58-inch OLED viewfinder (DVF-EL1) and an XLR handle unit (XLR-H2) that records up to 4 channels at 96kHz/32-bit float directly through the Multi Interface Shoe.

The ILME-FX5B body is arriving mid-August at $9999, and the bundle with the XLR handle unit (ILME-FX5) will run $11199

Cinematographers Claudio Miranda (Top Gun: Maverick, F1 The Movie) and director Gareth Edwards (The Creator, Rogue One, Jurassic World: Rebirth) both put the FX5 through its paces ahead of launch, praising its combination of image quality and mobility in a genuinely compact, run-and-gun body.

Early hands-on testing has also focused heavily on the new sensor itself. Reviewers testing the FX5's dynamic range and rolling shutter performance have confirmed that while it's still a conventional rolling shutter (not global), the stacked design pushes readout speed well beyond the already-fast FX3, which is what makes 5K60 open gate and internal raw recording possible in the first place.

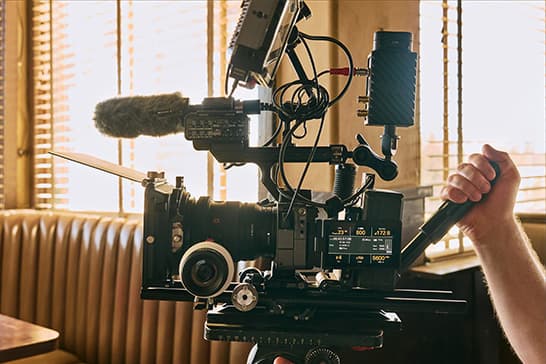

Building Your FX5 Rig: What You Actually Need

A camera announcement is only half the story. The FX5 slots directly into an existing FX3 accessory ecosystem, but it also opens the door to some serious upgrades if you're building it out for professional cine work. Here's how we'd approach it, category by category.

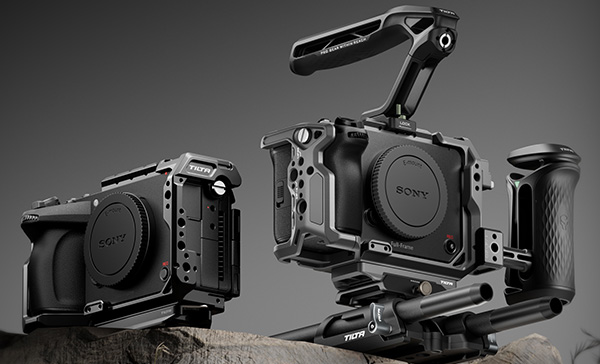

Camera Cages

If you're planning to rig out your FX5 with matte boxes, top handles, and follow focus systems, you'll want a cage. Tilta and SmallRig FX5 cages are already here. Based on early previews, expect a similar form factor and mounting layout to the existing FX3 cages, so if you already own FX3 rigging accessories, most of that ecosystem should carry over. We'll have the Tilta and SmallRig cage in stock as soon as it ships.

Power: Batteries and V-Mount

The FX5 uses Sony's new NP-SA100 battery, rated at 2670mAh, about 1.3x the capacity of the older NP-FZ100. There's currently no third-party equivalent available, so plan on picking up a few genuine Sony SA100 batteries as your baseline power solution, especially for longer shoots or run-and-gun days where swapping cards and batteries needs to be fast.

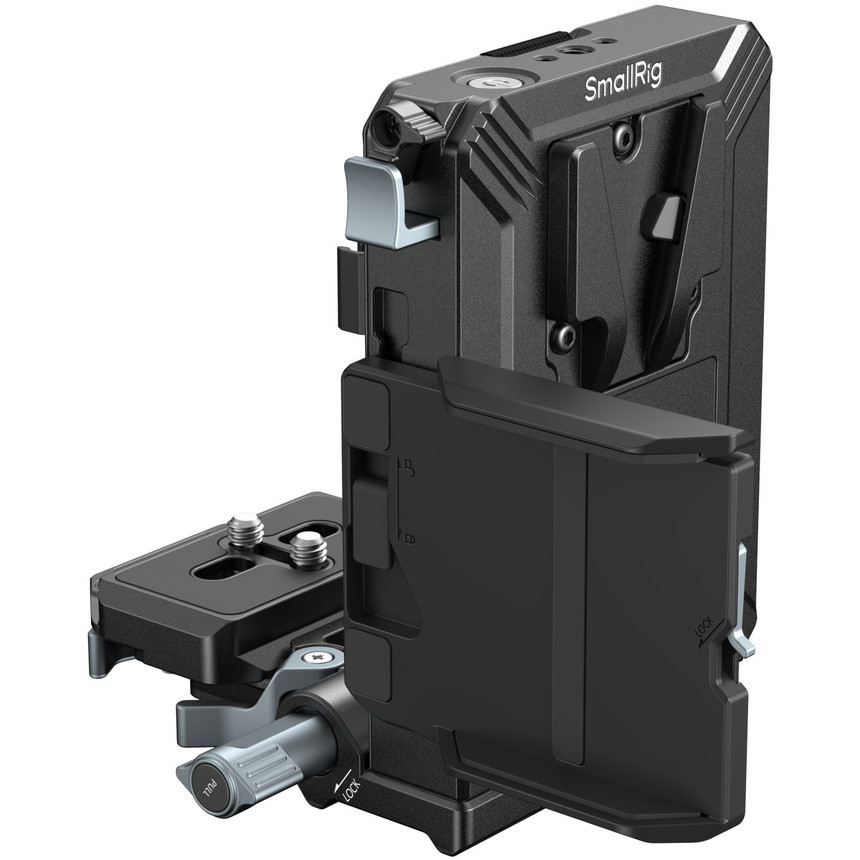

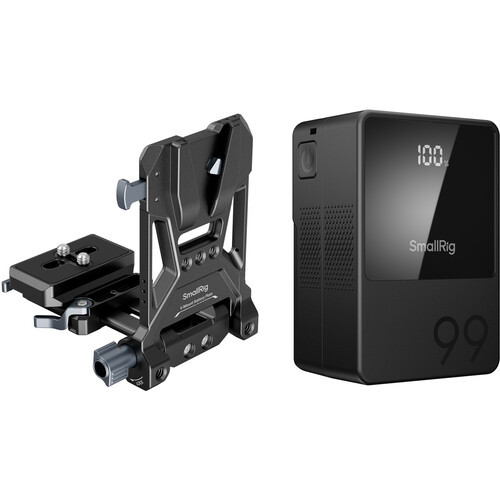

If you're building out a full rig with an EVF, XLR handle, monitor, and wireless video, a single V-mount battery is the simpler and more reliable path. With the FX5's USB-C Power Delivery input, one V-mount plate can power the entire rig, camera and accessories included, instead of juggling multiple battery types across different components.

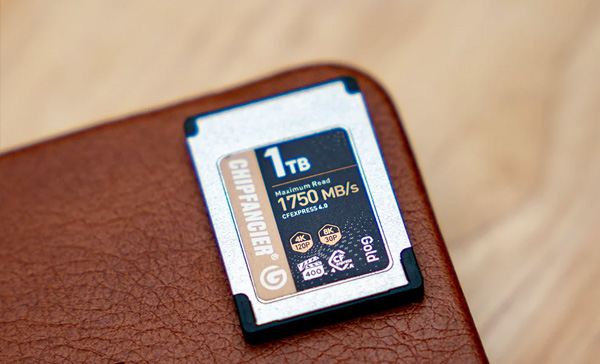

Memory Cards: Why CFexpress Type A

The FX5 uses CFexpress Type A cards, and for good reason: Type A currently offers the best value per gigabyte of any format that can keep up with the FX5's higher bitrate modes, especially once you're recording internal X-OCN raw or high frame rate open gate. It also happens to be the format with the most brand variety on the market right now, so you've got real choice on price and capacity rather than being locked into one manufacturer. We stock a full range of Type A cards across capacities and speed ratings, so you can match your card to your bitrate needs without overspending on headroom you won't use.

Lenses: GM Glass and Cine Options

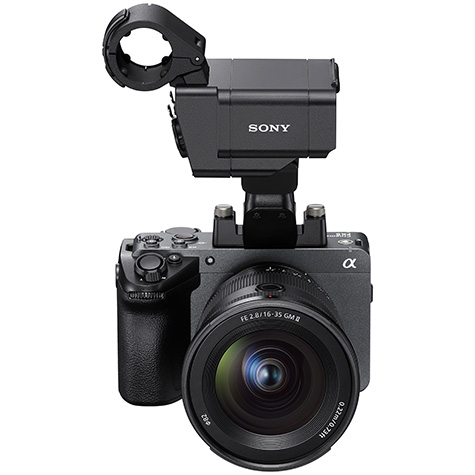

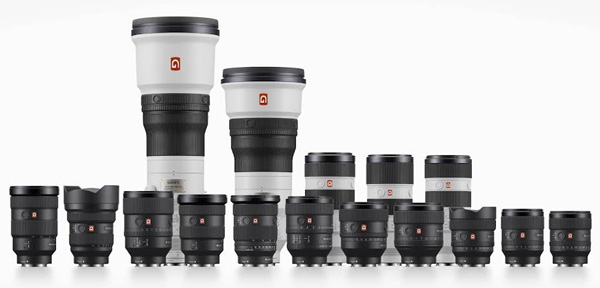

Sony's own G Master lenses remain the best all-around choice for FX5 owners. They're competitively priced, cover every focal length you'd want in prime or zoom form, and autofocus flawlessly with the FX5's tracking system, which matters if you're running lean crews without a dedicated focus puller.

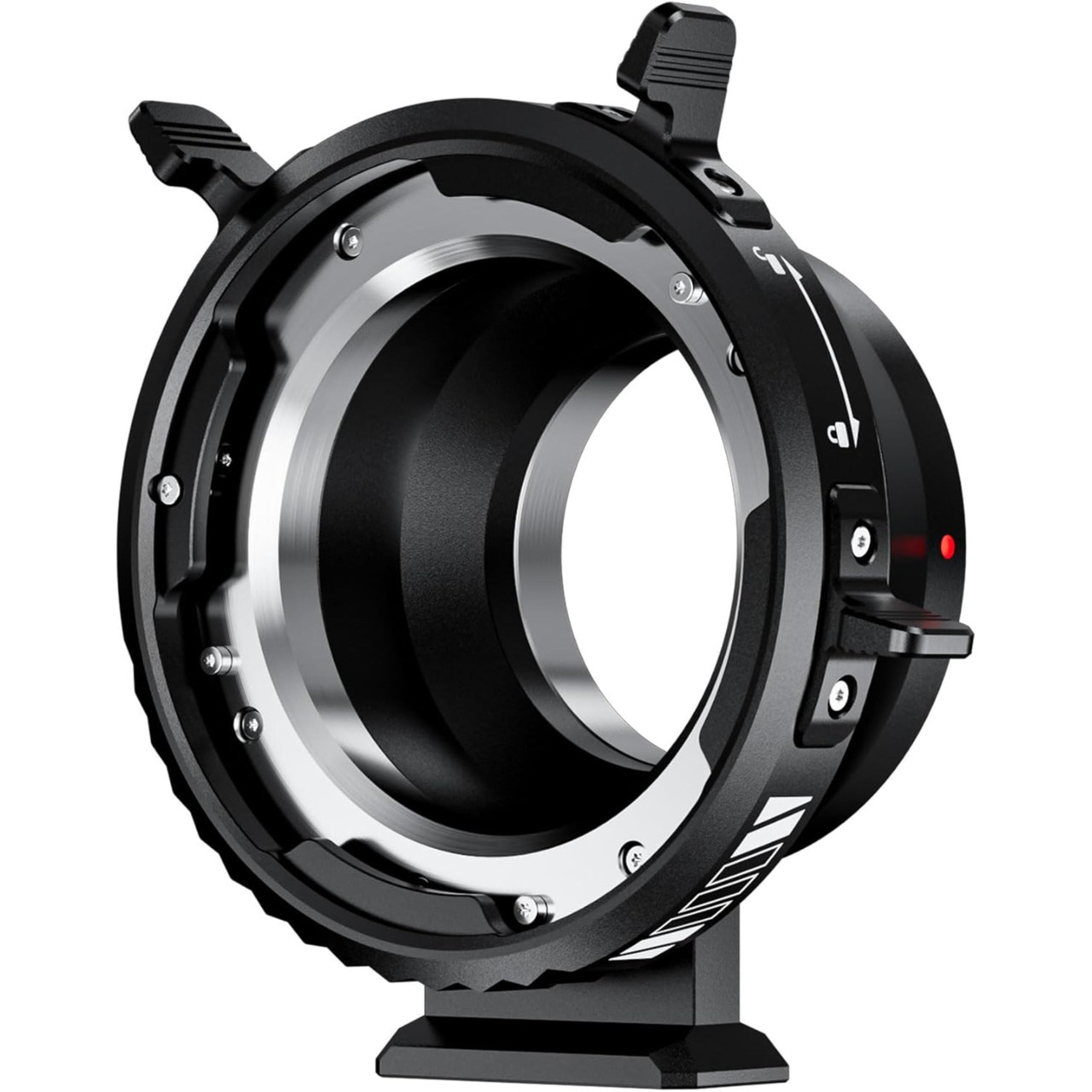

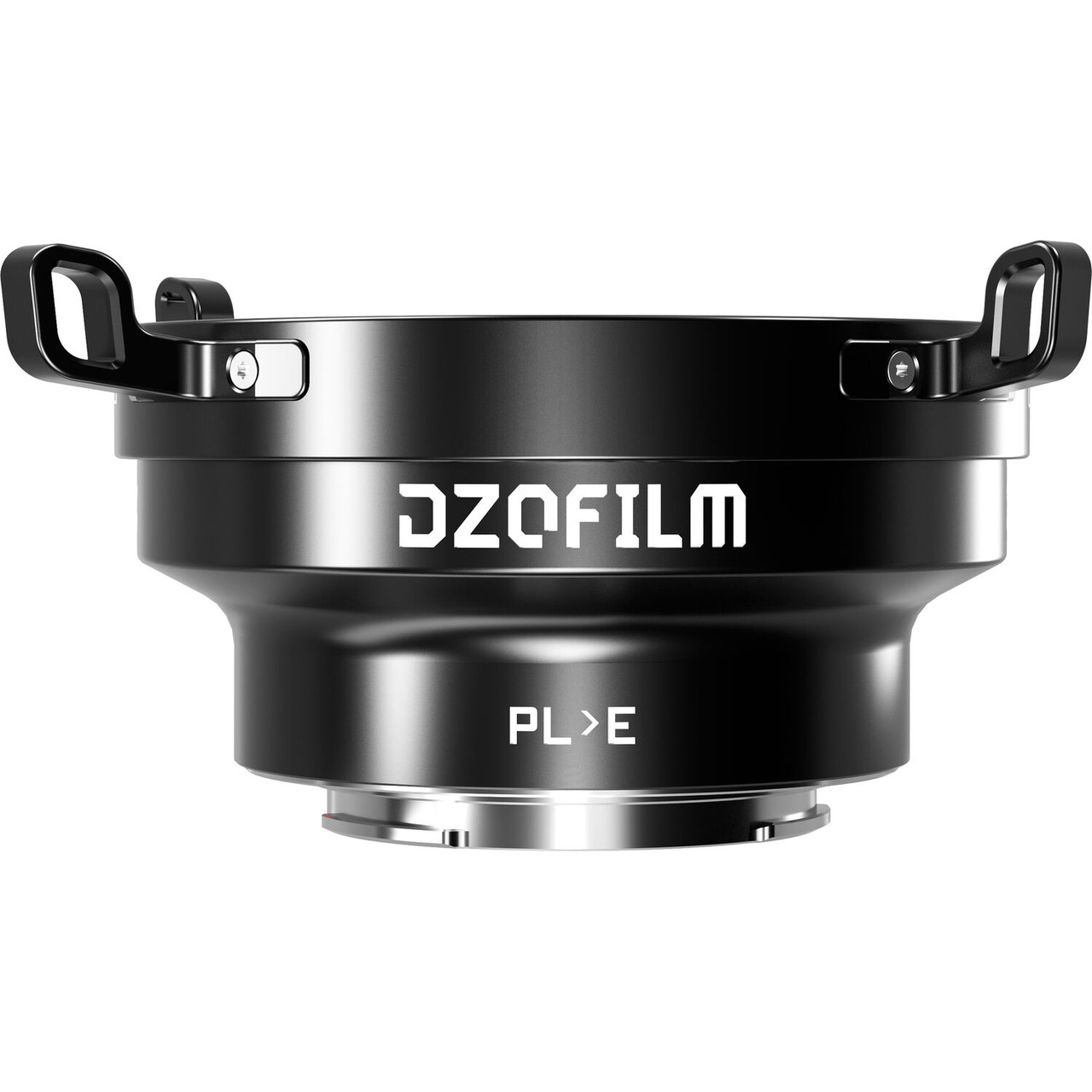

But if you want the image to really stand out, look at dedicated cine lenses from DZOFILM, Blazar, and 7Artisans. They offer de-clicked manual iris rings, consistent front diameters for easy filter and follow-focus use, and a more distinct rendering than photo-oriented glass. For an even more filmic look, anamorphic lenses are worth exploring, and with a PL to E-mount adapter, you can run PL-mount anamorphics directly on the FX5, pairing perfectly with its built-in de-squeeze function for anamorphic ratios up to 2.0x. We carry a curated set of cine and anamorphic options to fit different budgets and looks.

Filtration: VND Adapters and Magnetic Filter Kits

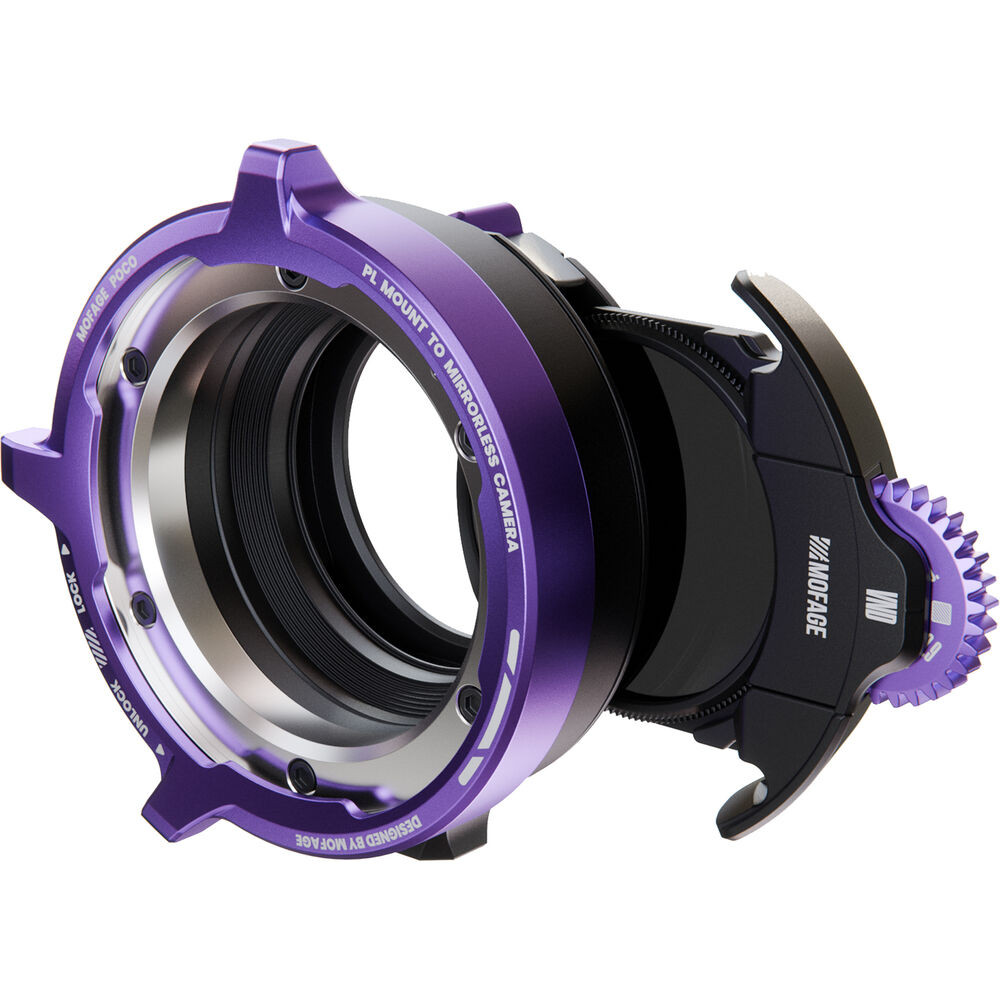

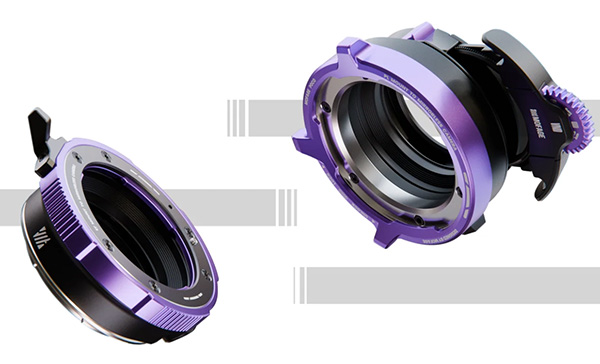

No built-in ND on the FX5 isn't a dealbreaker. The Mofage POCO II is a PL to E-mount adapter with a built-in rear variable ND filter, letting you control exposure without a bulky matte box and swappable ND set, ideal if you're running PL cine or anamorphic glass.

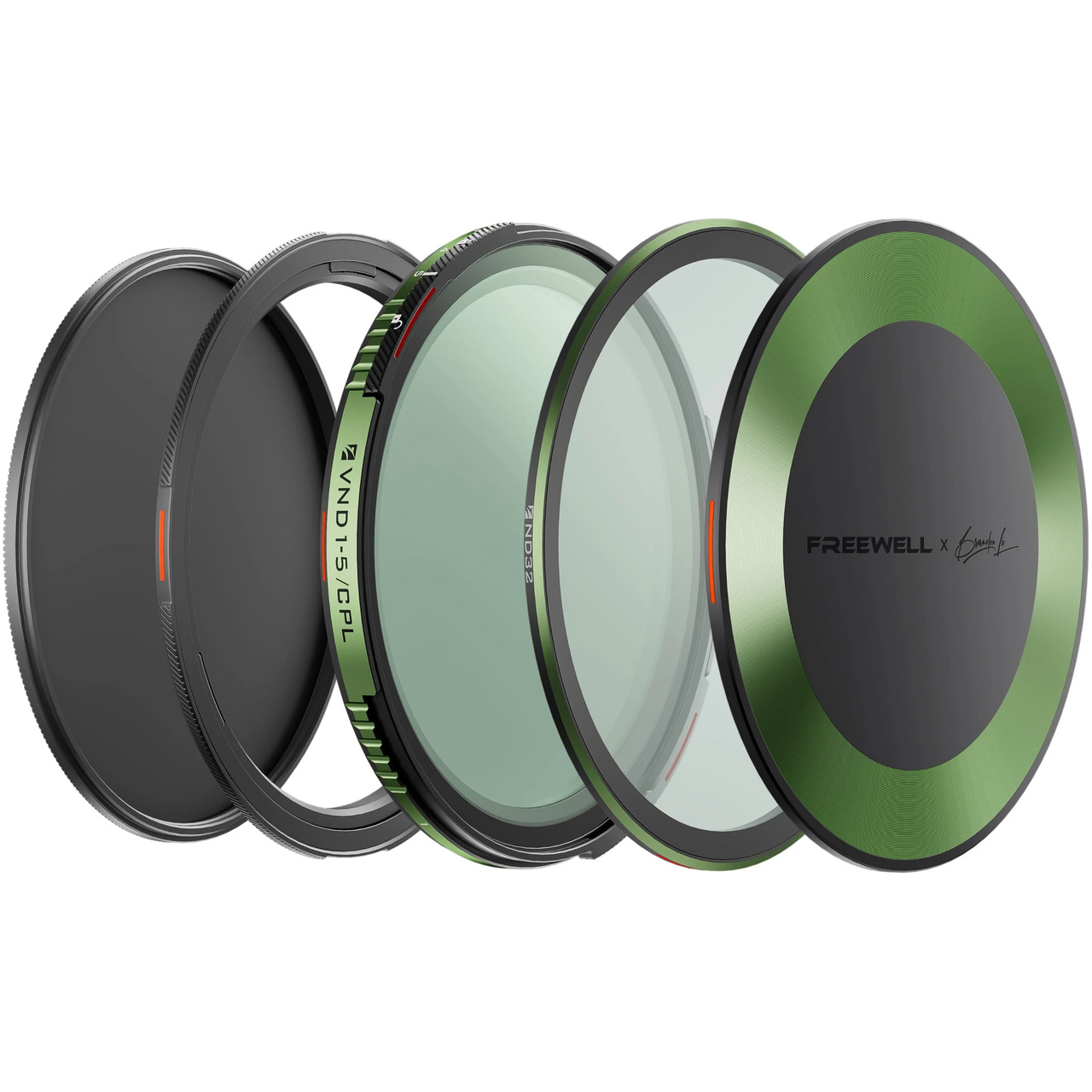

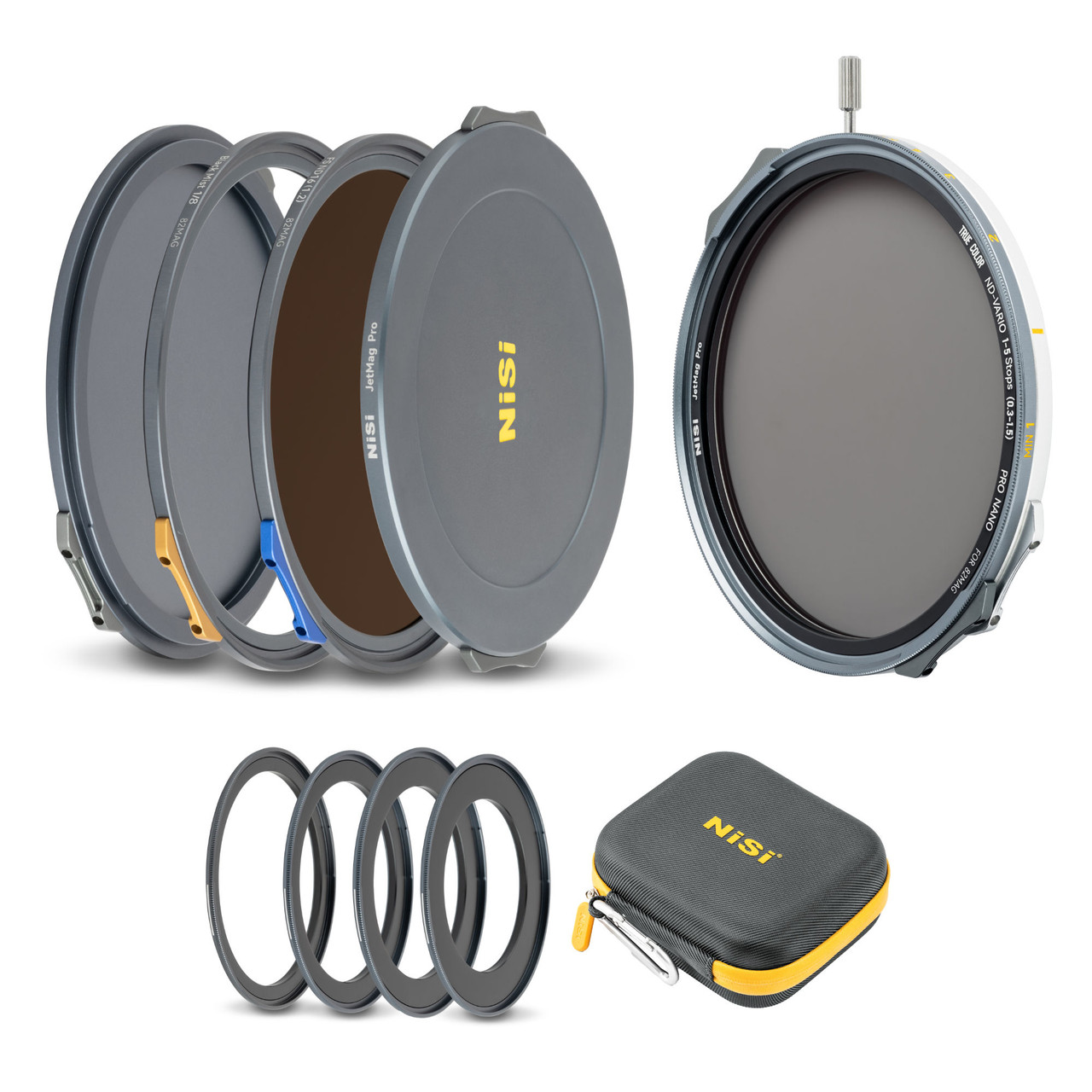

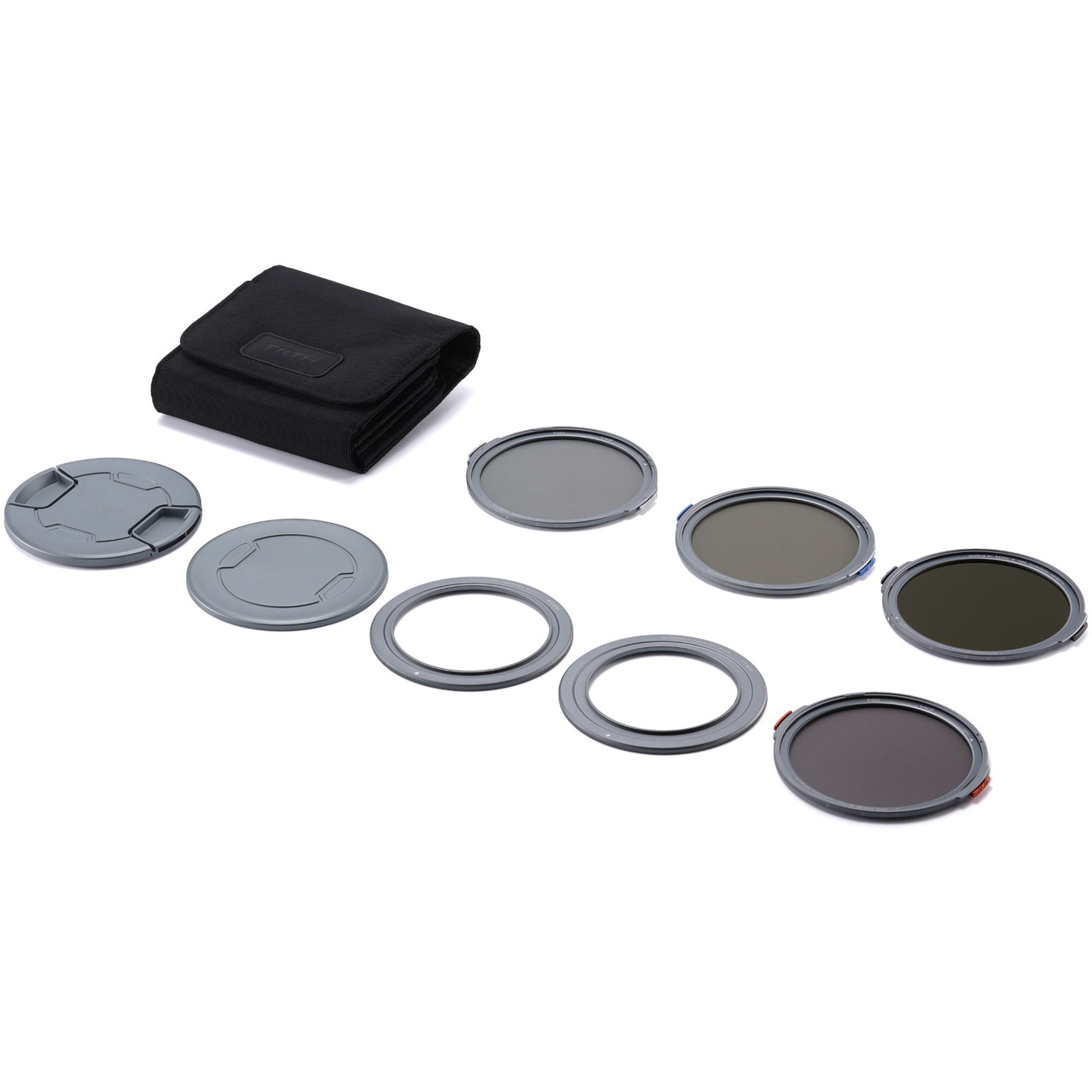

For E-mount photo and cine lenses, magnetic filter kits have become the go-to solution for fast-moving shoots. Freewell, Nisi, and Tilta all make magnetic ND and VND kits that snap on and off in seconds, letting you adjust exposure or swap in a polarizer without unscrewing anything mid-shot. We stock kits from all three brands so you can match filter size and system to whichever lenses you're running on the FX5.

Why Shop the FX5 Setup at Photogear

The FX5 isn't just a camera purchase, it's a system, and arguably the entry point into Sony's next generation of Cinema Line cameras. Between cages, batteries, memory, lenses, and filtration, getting the right combination of gear matters as much as the camera body itself, and it's an investment that should hold up as this platform expands. Photogear carries the full range of Sony Cine accessories alongside third-party cages, cine lenses, adapters, and filter systems built specifically for cameras like the FX5, so you can build your entire rig in one place instead of piecing it together across a dozen different retailers.

We're also making the upgrade easier on your wallet. Trade in any camera toward an FX5 purchase and get a $1,000 trade-in bonus on top of the trade-in value of your used gear, meaning $1,000 off your new FX5 in addition to whatever we pay you for your old body. It's one of the simplest ways to offset the cost of stepping into this new generation of Cinema Line cameras.

Have questions about which lenses or accessories fit your FX5 workflow, or want a quote on your trade-in? Reach out to our team, we're happy to help you spec out a rig that fits your budget and your shoots.
