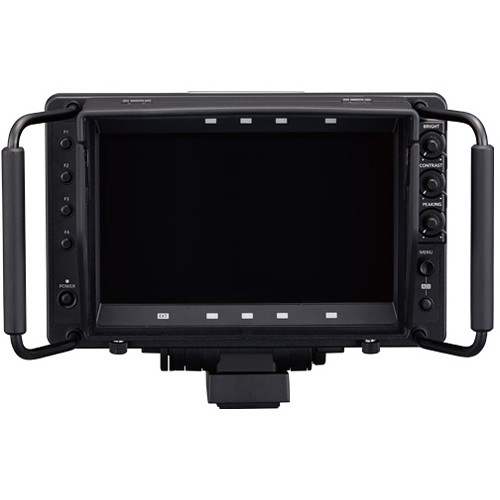

The 9” LCD Color Viewfinder from Panasonic Is equipped with tilt mechanism and extensive functions such as focus assist and external video input.
Panasonic AK-HVF100GJ Specs
| Display Panel | 9.0" / 23 cm |
| Number of Pixels | 1920 x 1080 (FHD) |
| Display Colors | Approximately 16.77 million colors |
| Operation | Power, Menu, Select (F1/F2/F3/F4), Bright, Contrast, Peaking, Input |
| Connector | Camera I/F: 1 x D-Sub, 29-pin SDI In: 1 x BNC DC In: 1 x XLR, 4-pin |
| Supported Signals | Cam: 1080i: 59.94/50 SDI: 1080p: 59.94/50 1080i: 59.94/50i 720p: 59.94/50 |
| Power Supply | 12 VDC (supplied from camera or XLR) |
| Power Consumption | 18 W |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity | 10 to 85% (no condensation) |
| Dimensions | 13.4 x 9.21 x 7.62" / 34.0 x 23.4 x 19.3 cm, not including hood 13.4 x 9.21 x 9.12" / 34.0 x 23.4 x 23.1 cm, including hood |
| Weight | 5.73 lb / 2.6 kg. without hood 6.61 lb / 3.0 kg. with hood |
- Panasonic 9" LCD Color Viewfinder with Tilt
- Hood
- Barcode: 40732
- Supplier Code: AK-HVF100GJ
