Overview
The CineTreak Touch-S 4-Ch HDMI/SDI UHD 4K Video Switcher with 10" Touchscreen Display is a professional live production and streaming switcher designed for multi-camera broadcasts, live events, education, houses of worship, and content creation. Featuring a large 10" touchscreen interface, T-bar control, UHD 4K input support, dual RTMP streaming, and integrated PTZ camera control, it provides an intuitive all-in-one solution for modern production workflows.
Supporting up to UHD 4K60 input signals, the Touch-S combines advanced switching, live streaming, recording, playback, and monitoring capabilities in a durable aluminum chassis. With HDMI and SDI connectivity, multiview monitoring, keying effects, and simultaneous streaming to multiple platforms, it delivers the flexibility required for professional live productions.
Core Features
- Supports four selectable HDMI or SDI video inputs plus auxiliary and background sources.
- Features a responsive 10" touchscreen interface with landscape and portrait display modes.
- Supports UHD 4K60 video inputs for high-quality live production workflows.
- Streams simultaneously to two platforms using independent RTMP stream settings.
- Provides chroma key, luma key, logo overlays, picture-in-picture, and picture-out-picture effects.
- Offers VISCA PTZ camera control and wireless remote operation from computers and mobile devices.
- Records program output to external media and enables instant playback of recorded clips.
- Includes SDI, HDMI, USB-C, and network outputs for flexible streaming and production workflows.

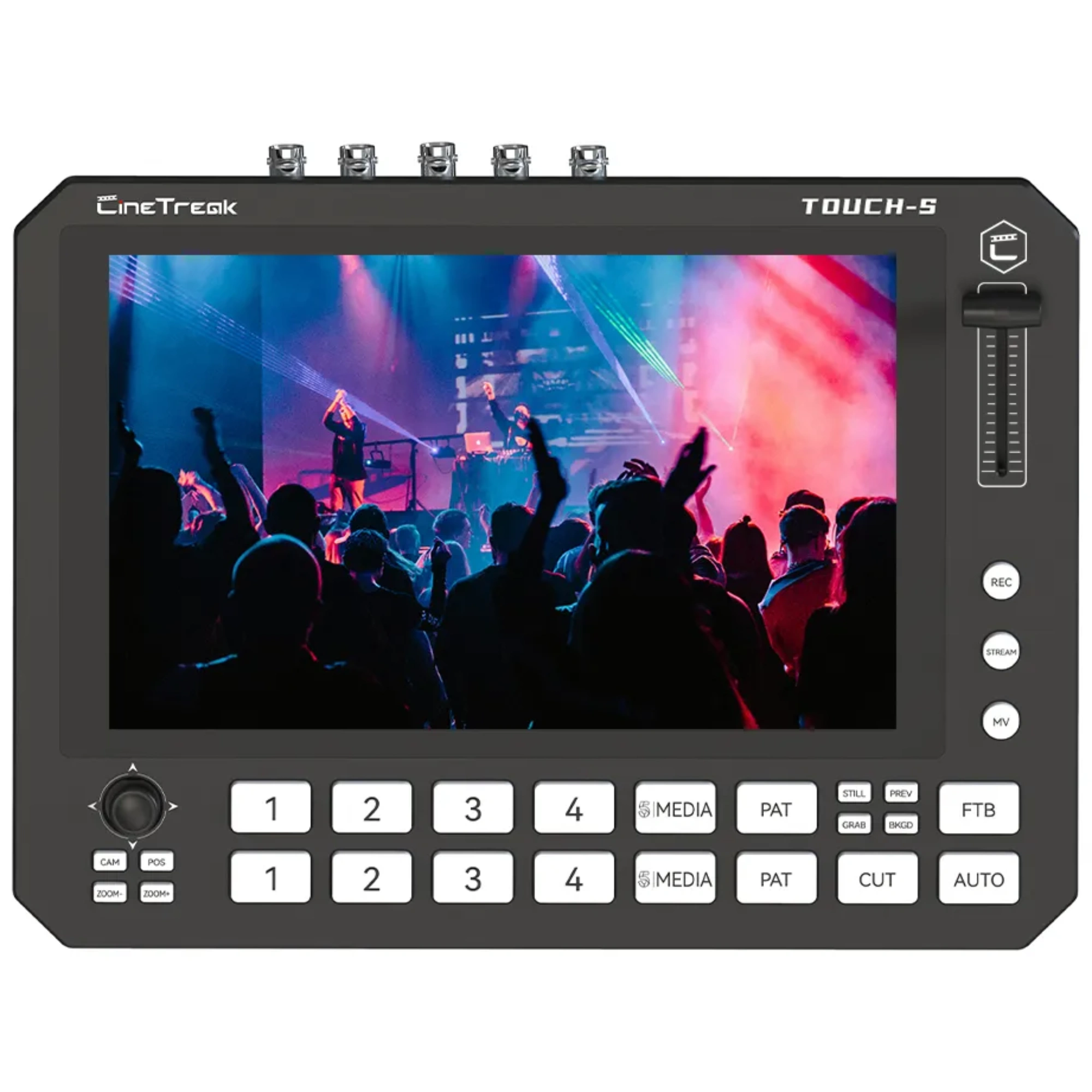

10" Touchscreen Workflow
The large touchscreen display provides direct access to switching, monitoring, streaming, and camera controls. Combined with the integrated T-bar and physical controls, operators can manage productions efficiently from a single interface.
Dual RTMP Streaming
Broadcast to two streaming destinations simultaneously with independent configuration settings for each stream. This enables efficient multi-platform distribution without additional streaming hardware.
PTZ Camera Integration
Built-in VISCA support allows direct control of compatible PTZ cameras, while wireless IP control enables operation from PCs, smartphones, and tablets for enhanced production flexibility.
Recording and Playback
Capture program output directly to supported storage media and instantly replay highlights, clips, and pre-recorded content during live productions.
Mix Effects
| Available M/E Layers | 8 M/E |
| Effect Types | Graphic Transition Chroma Key Luma Key |
| Downstream Keys | 1x Chroma, Luma, DVE 2x Overlay |
Processing
| Switching Type | Pushbutton Software T-Bar Touchscreen |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Color Processing | RGB 10-Bit 4:2:2 YCbCr YUV |

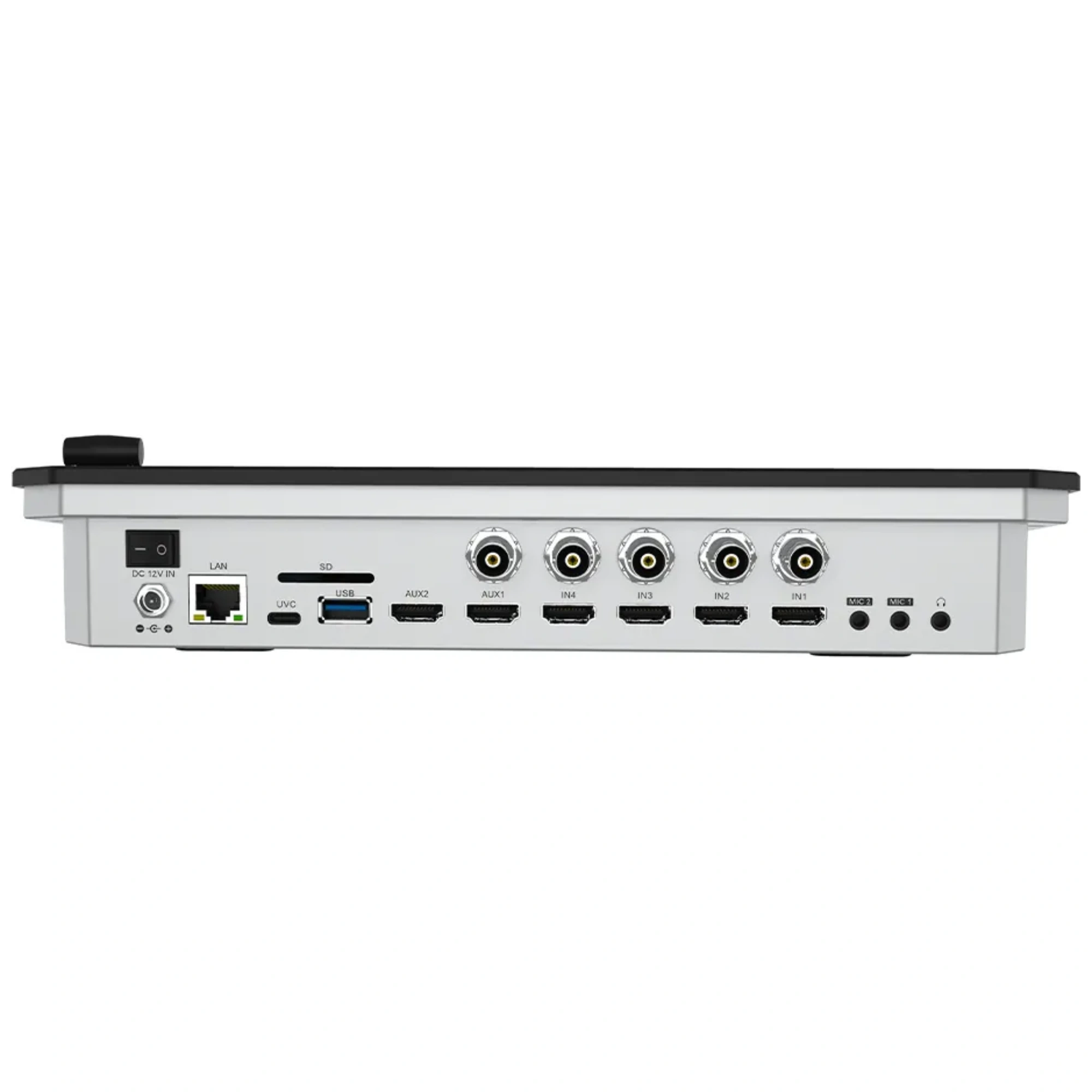

Inputs/Outputs
| Video Inputs | 4x HDMI 4x 3G-SDI (BNC) |
| Audio Inputs | 2x 3.5 mm TRS Stereo Female |
| Video Outputs | 1x 3G-SDI Program (BNC) 2x HDMI 1x USB-C 3.1 1x RJ45 |
| Audio Outputs | 1x 3.5 mm TRS Stereo |
| Other I/O | 1x RJ45 LAN 1x USB-A Input |
| Multiview Output | 8-Way Multiview |
Video Formats
| Input Video Formats | HDMI / SDI: UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/60 fps |
| Output Video Formats | HDMI: 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps USB-C: 1080p up to 60 fps |
| IP Video | 1920 x 1080 at 60p Encoding |
| IP Audio | Encoding |
| Simultaneous Streams | 2 |
Recording
| Recording Media | 1x SD Card (Type Not Specified) |
Display
| Display Size | 10" |
Power
| Power Input | 1x Barrel Input (7 to 24 VDC at 2 A) |
| Power Consumption | 18 W |
General
| Wireless | No |
| Operating Conditions | 0 to 50°C |
| Storage Conditions | -30 to 70°C |
| Dimensions | 29.5 x 22.4 x 6.2 cm |
| Weight | 1.45 kg |
What's Included
- CineTreak Touch-S 4-Ch HDMI/SDI UHD 4K Video Switcher with 10" Touchscreen Display
- 12 VDC 2A Power Adapter
- USB-A to USB-C USB 3.1 Cable
- Barcode: 91128
- Supplier Code: Touch-S
