Overview
The Deity Microphones DLTX Kit (Global) is a complete wireless audio system for film and video production, pairing the Theos DLTX bodypack transmitter with the D2RX THEOS receiver and a W.Lav Pro lavalier microphone. Built around Deity's Global OneBand UHF technology, the kit delivers broadcast-grade wireless audio with an onboard 32-bit float recorder as a safety net, all housed in a CNC-milled aluminum chassis for daily production use.
Global OneBand UHF Transmission
The transmitter operates across an ultra wideband digital UHF spectrum from 550 to 960 MHz, with up to 100mW of RF output and Global OneBand technology for reliable frequency coverage wherever you're shooting.
Onboard 32-Bit Float Recording
A built-in analogue limiter and 32-bit float recorder capture a backup track directly to a microSD card of up to 512GB, protecting the take even if the wireless link drops out.
Wireless Timecode Sync
The transmitter syncs timecode wirelessly from a Deity TC-1 or JAM device via its 3-pin input, keeping multi-camera setups frame-accurate without an extra cable run.
Dual-Channel D2RX Receiver

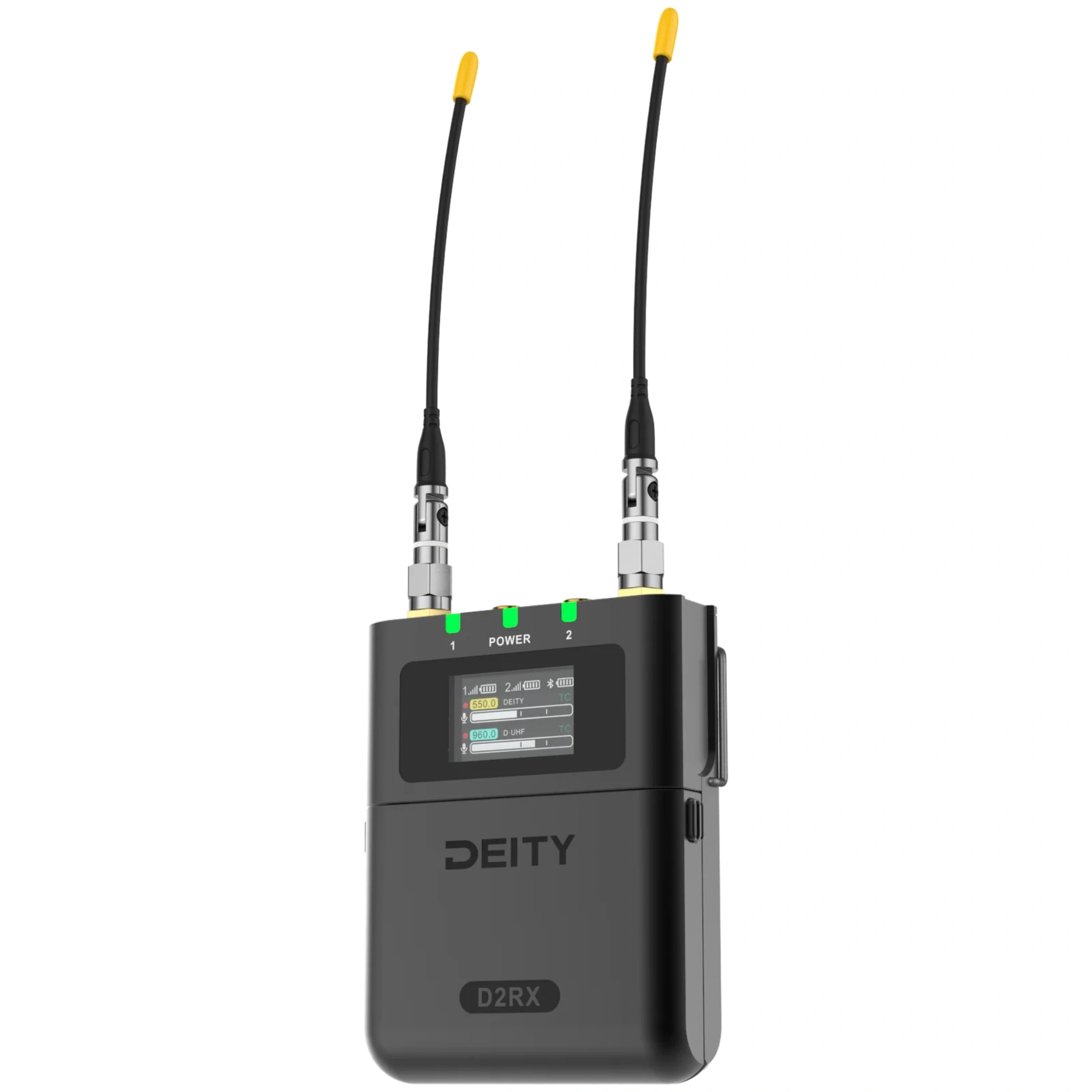

The D2RX THEOS Receiver is a professional-grade wireless receiver built for the THEOS ecosystem, with monitoring and frequency management to match.
- Dual balanced outputs, or stereo unbalanced, or headphone monitoring.
- Built-in full-color frequency scanner.
- Automatically sends frequencies to the paired transmitter.
- Stores up to 10 spare frequencies for quick recall.
IP57 Waterproof Lavalier Mic

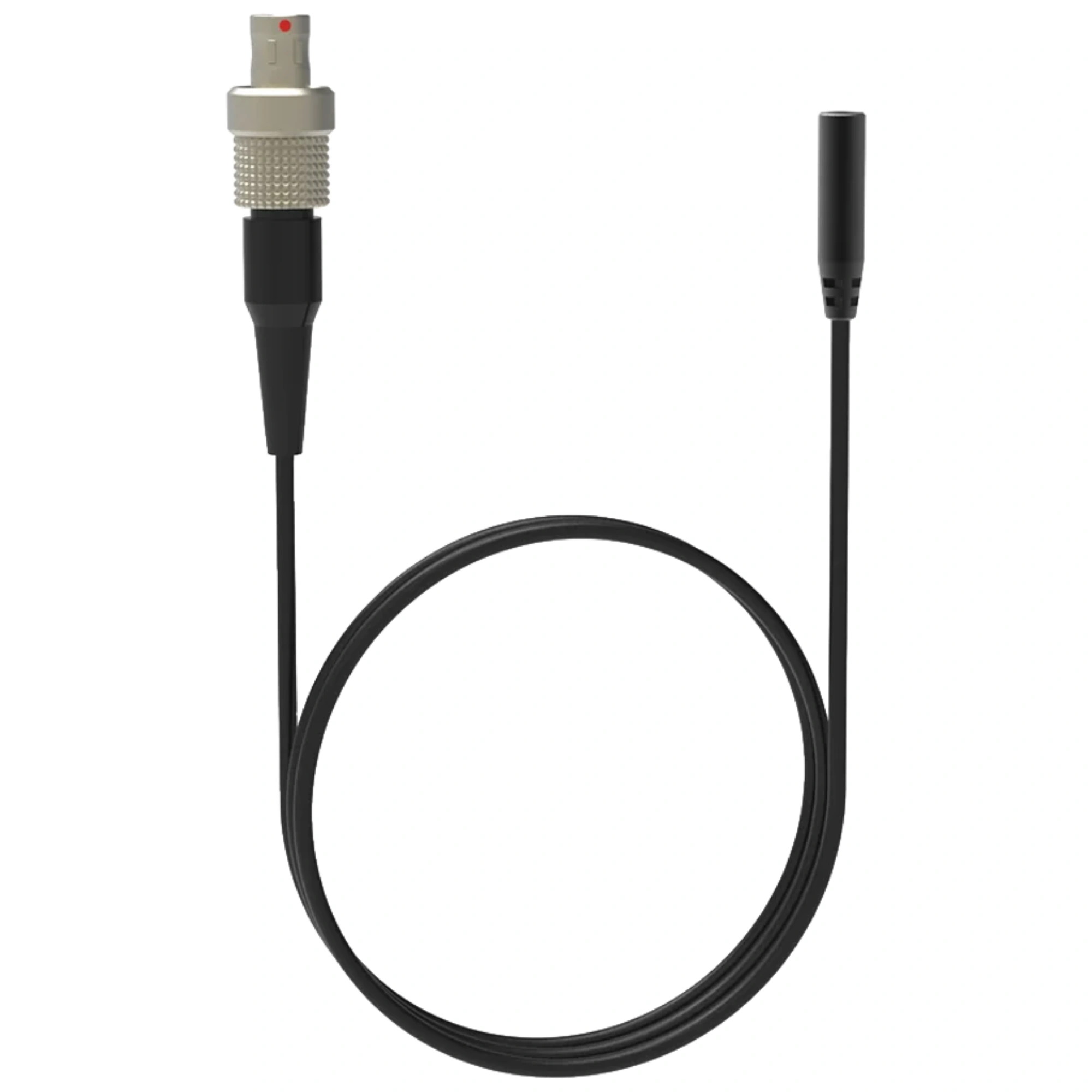

The included W.Lav Pro is a miniature IP57 waterproof lavalier microphone with a 3-pin LEMO connector, built to deliver crisp, natural speech reproduction even in challenging outdoor conditions.
Extended Battery Life with USB-C Backup
The transmitter runs up to 14 hours from 2x AA batteries, and supports USB-C for external power when a longer shoot day calls for it.
Additional Benefits
- Both the transmitter and receiver feature a rugged CNC-milled aluminum chassis built for daily production use.

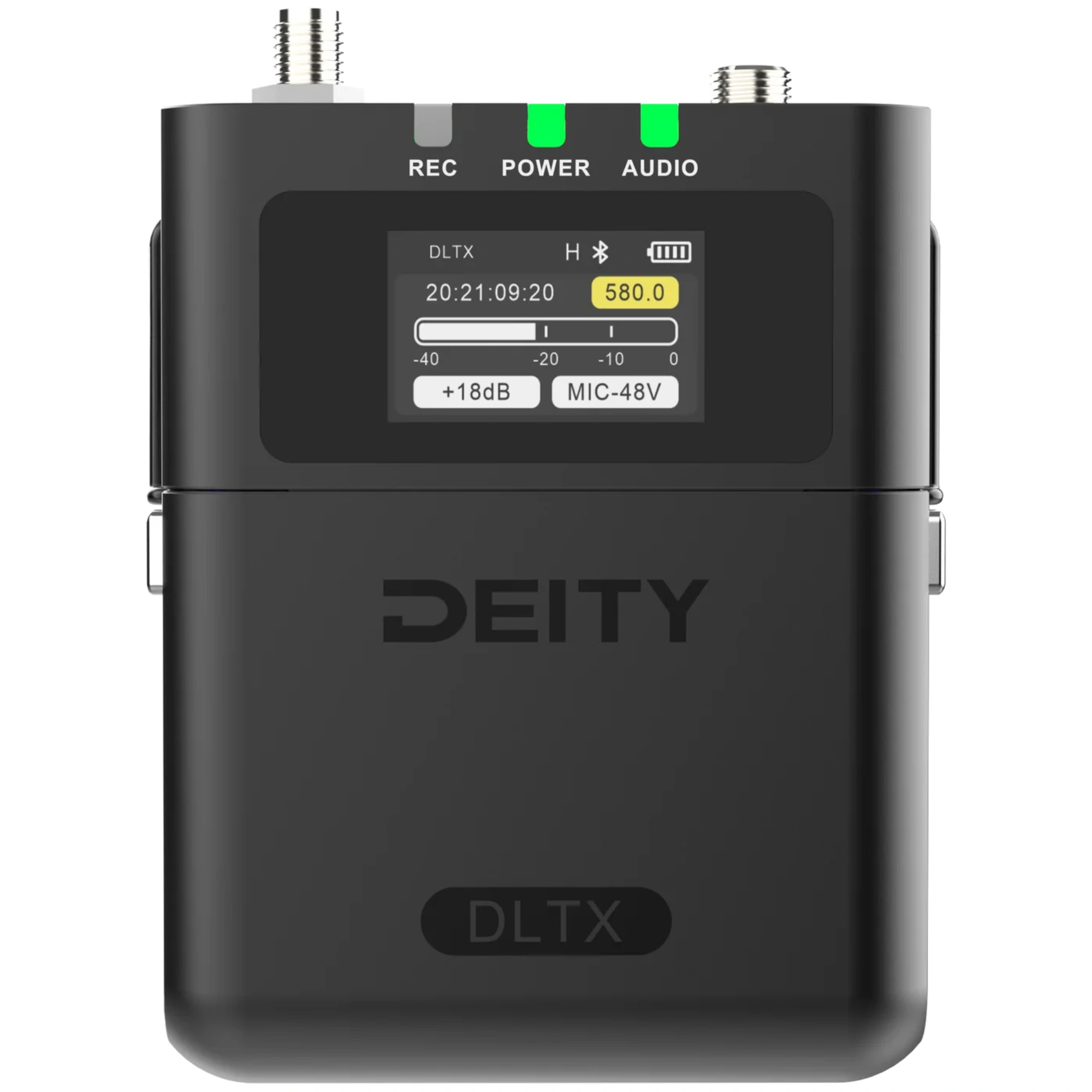

- A full-color LCD screen on the transmitter keeps key settings visible at a glance.
- SMA antenna ports let the antennas be replaced or upgraded in the field.
- Both units can be remotely controlled via the Sidus Audio app for on-the-fly adjustments.
- The complete kit ships in a dedicated Deity Safe Case (Mini) for organised, protected transport between jobs.
General
| Frequency Range | 550 to 960 MHz (Global OneBand) |
| Recording | 32-Bit Float, Saved to microSD Card Up To 512GB (Transmitter) |
| Timecode Sync | Wireless, via Deity TC-1 or JAM, 3-Pin Input (Transmitter) |
| Remote App Control | Sidus Audio App (Transmitter and Receiver) |
| Lavalier Microphone | W.Lav Pro, IP57 Waterproof, 3-Pin LEMO Connector |
Physical
| Dimensions | Receiver (D2RX): 89.47 x 66.81 x 20.06 mm |
| Materials | CNC-Milled Aluminum Chassis (Transmitter and Receiver) |
| Display | Full-Color LCD Screen (Transmitter) |
Inputs/Outputs
| Audio Input | 3-Pin LEMO (Transmitter) |
| Audio Output | Dual Balanced, or Stereo Unbalanced, or Headphones (Receiver) |
| Antenna Ports | SMA (Transmitter) |
| Power Input | USB-C, External Power Support (Transmitter) |
Power
| Phantom Power | 48V (Transmitter) |
| Battery Life | Up to 14 Hours, 2x AA Batteries (Transmitter) |

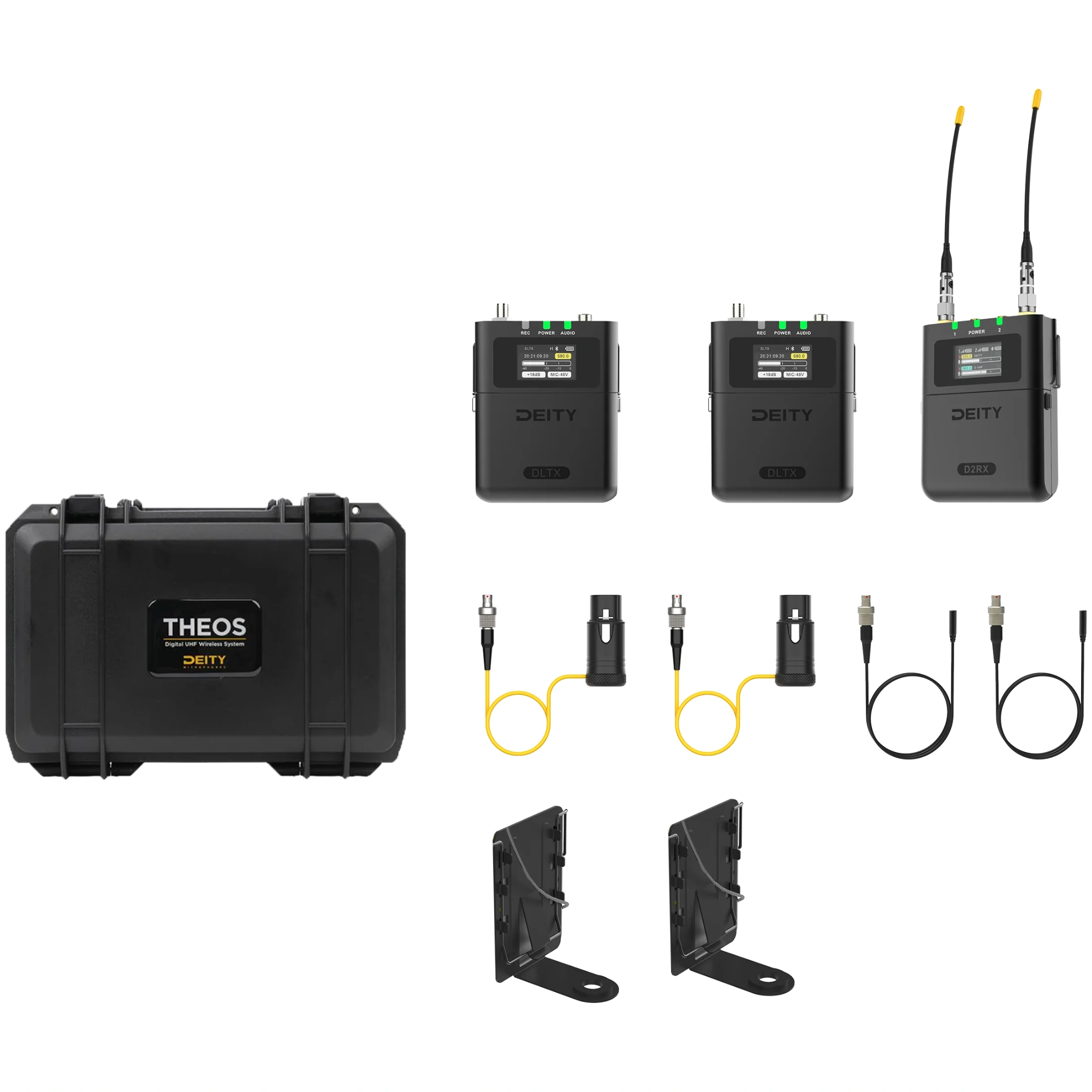

What's Included
- Deity Microphones DLTX Kit (Global)
- Deity D2RX Receiver
- 2 x Deity DLTX Transmitter
- 2 x Deity W.Lav Pro (3-Pin Lemo, Black)

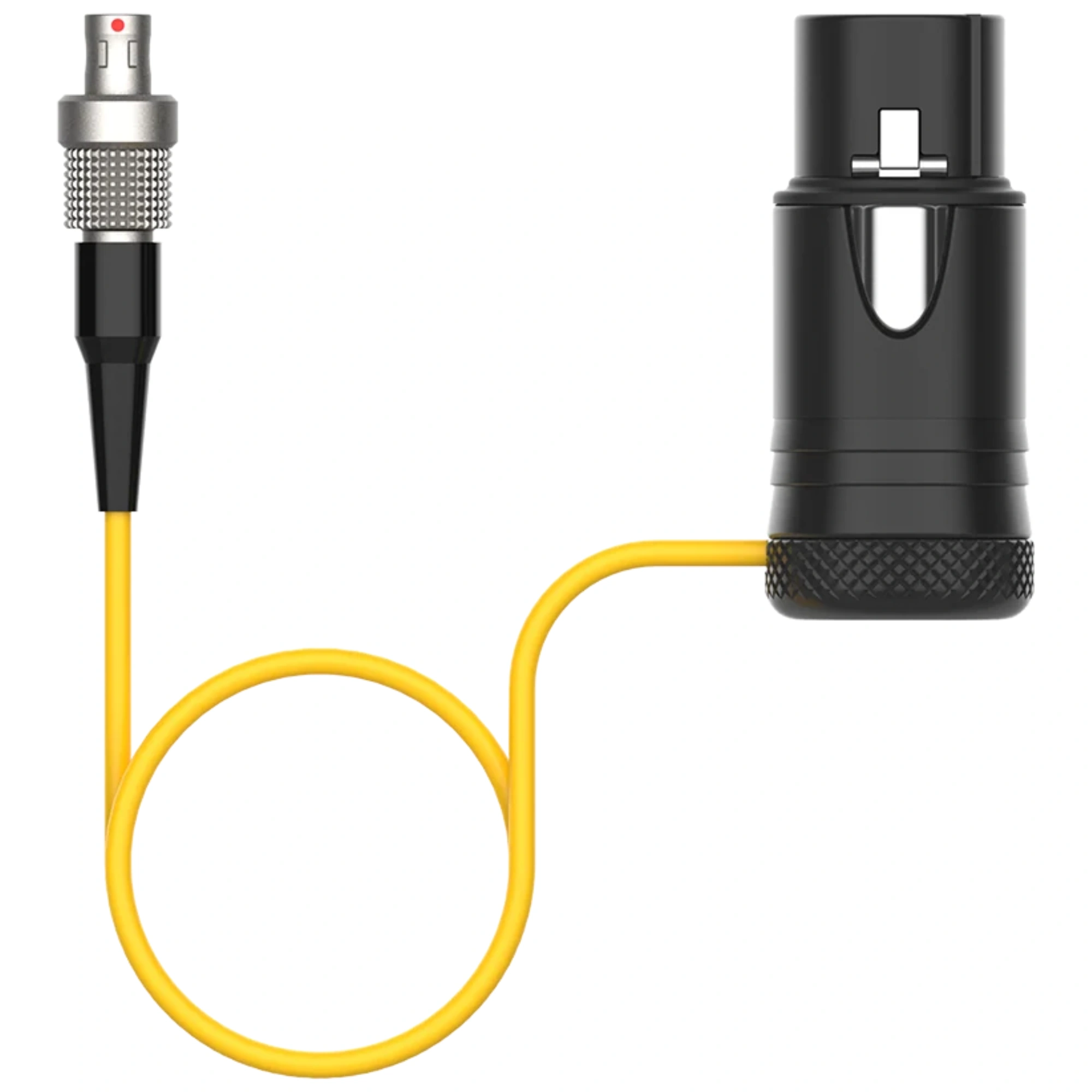

- 2 x 3-Pin Lemo to Female XLR (L3 Link)

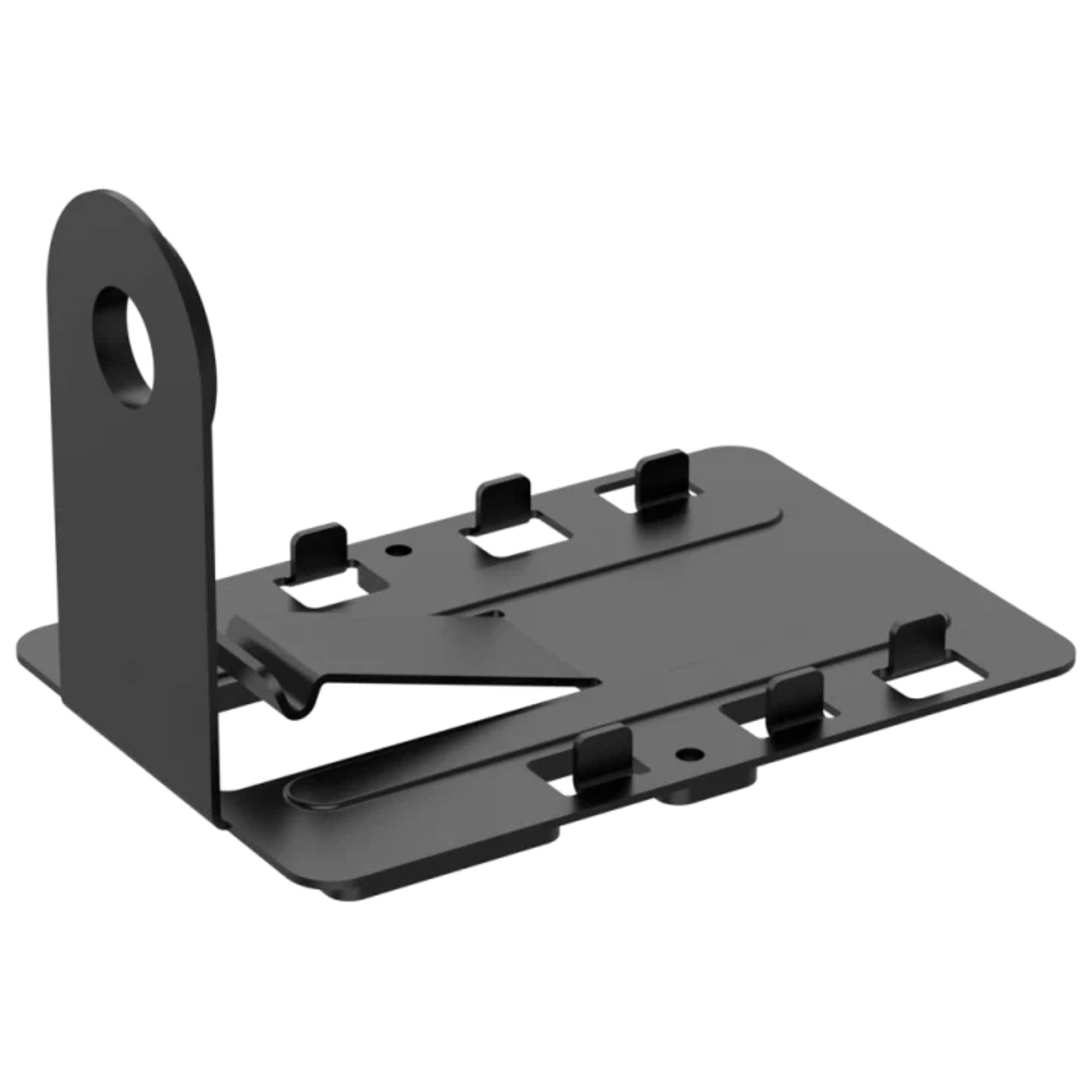

- 2 x Theos Boom Pole Quick Release

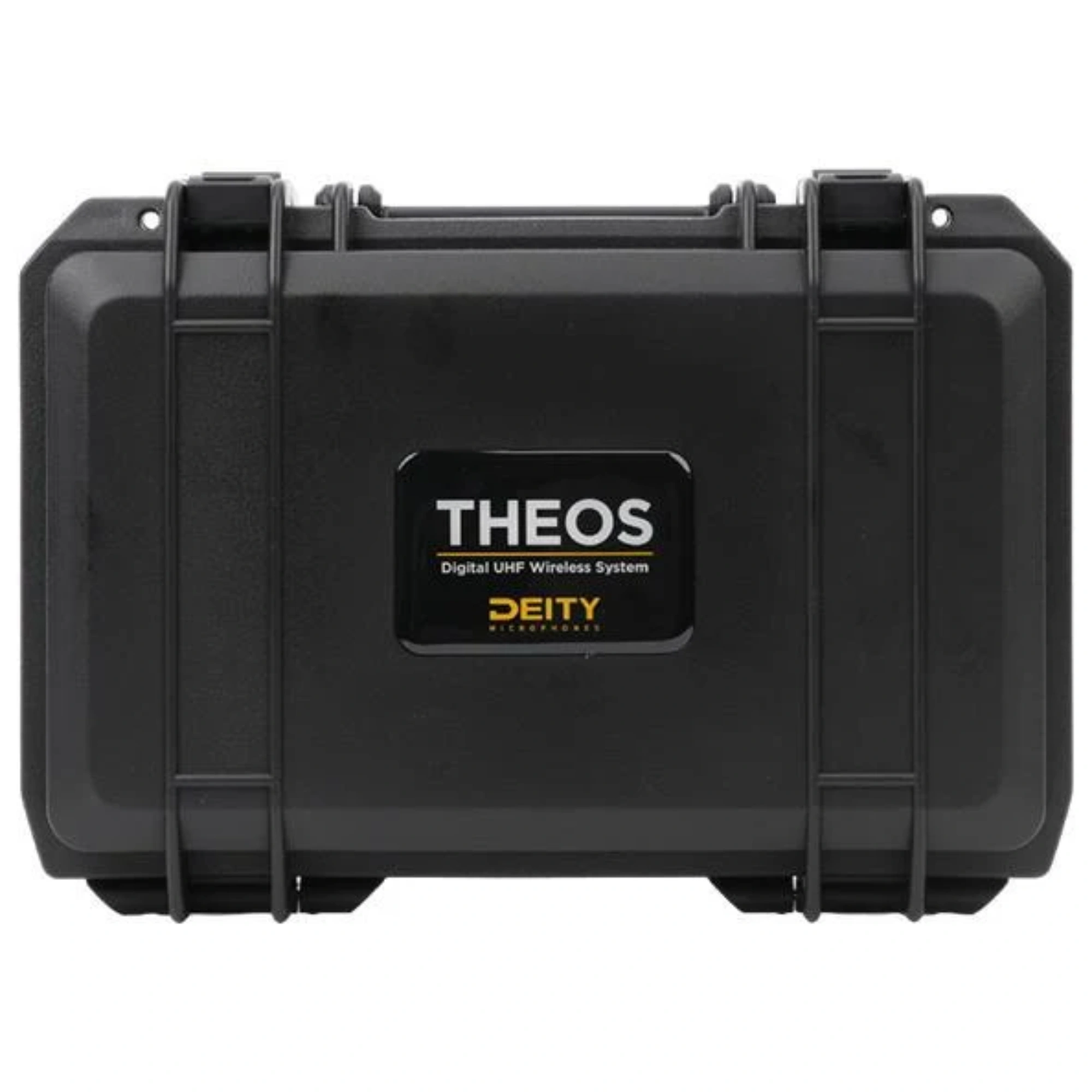

- Deity Safe Case (Mini)
- 3 x Belt Clip
- 2 x RX-Link 3.5mm TRS to XLR Cable
- 4 x UHF-RA Antenna
- 4 x UHF-TA Antenna
- 2 x MicroSD Card (64GB)
- Cold Shoe Mount
- Barcode: 89865
- Supplier Code: DP040A0446
