Overview

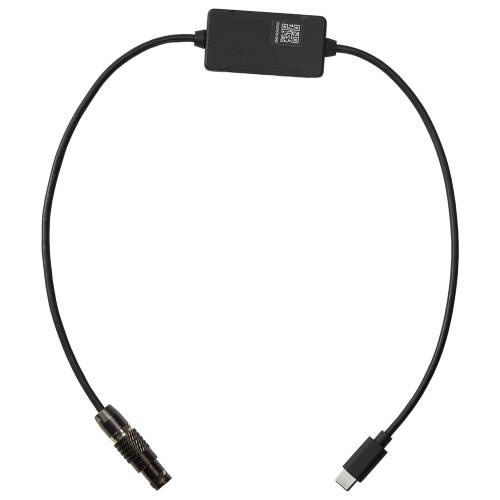

The DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) connects the DJI SDR Transmission 2 Transceiver to DJI Master Wheels and Ronin 2, allowing Master Wheels to control Ronin 2 while enabling the gimbal to power the transceiver.
Extended RS Series Gimbal Control
If a compatible DJI RS series gimbal, including the RS 5, RS 4 Pro, RS 4, or RS 3 Pro, is connected to the transceiver as transmitter, Master Wheels can also control that gimbal. Using it with the RS 4 Pro, RS 4, or RS 3 Pro requires the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to CAN), sold separately.
Remote Video Recording Control
If the gimbal is connected to a camera, Master Wheels can remotely start or stop video recording on the camera. Remote camera control requires an additional Multi-Camera Control Cable to connect the gimbal and camera.
Compatibility:
- DJI SDR Transmission 2 Transceiver
- DJI Master Wheels
- Ronin 2
- DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro (RS 4 Pro/RS 4/RS 3 Pro require the additional Gimbal Control Cable)
Inputs/Outputs
| Connector 1 | USB-C |

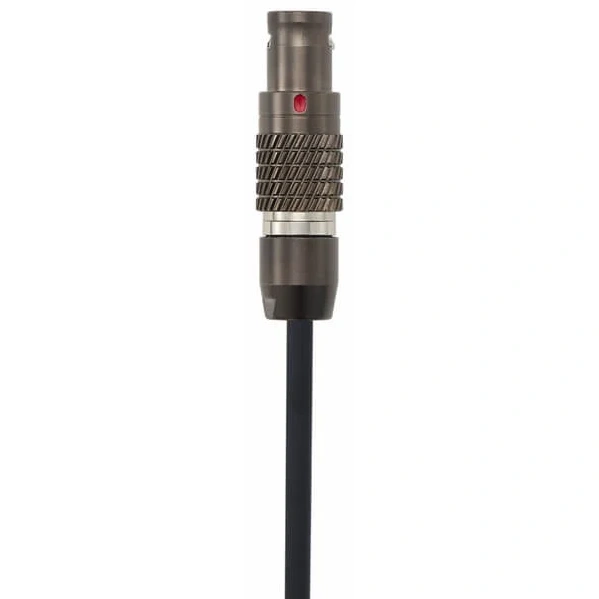

| Connector 2 | 4-Pin |
| Function | Gimbal Control Data, Transceiver Power |
General
| Length | 50 cm |
What's Included
- DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin)
- Barcode: 93283
- UPC Barcode: 190021182943
- Supplier Code: 190021182943
