Overview

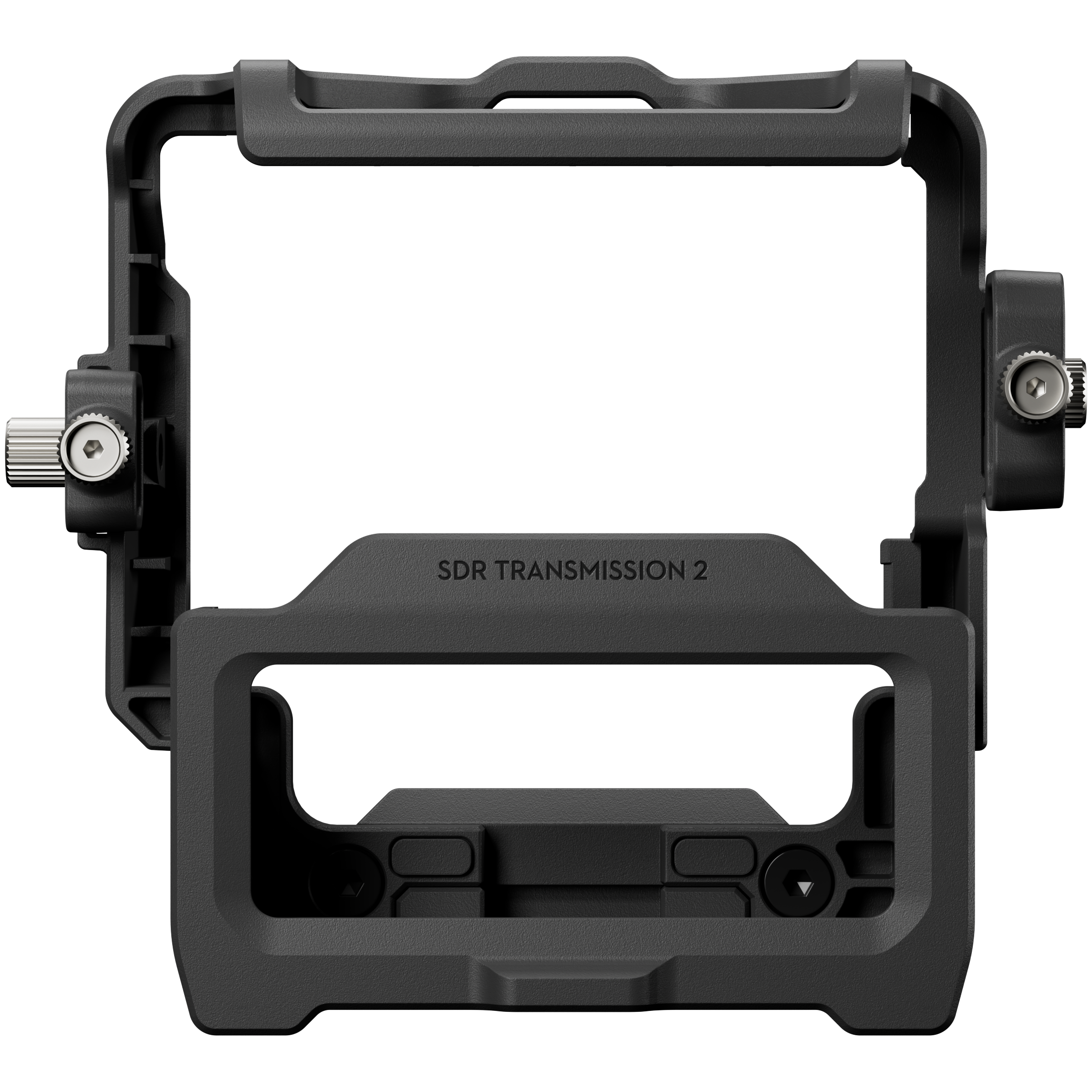

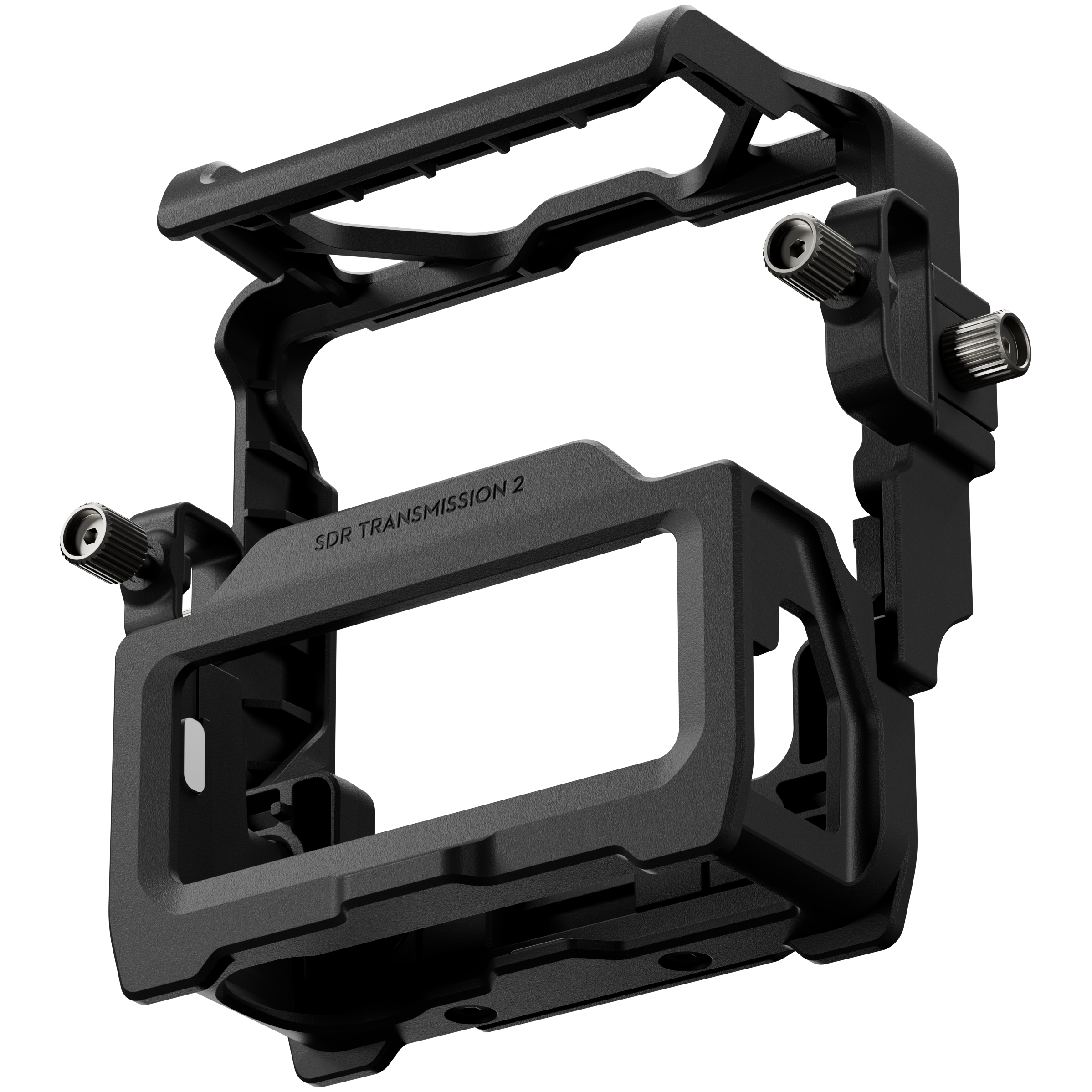

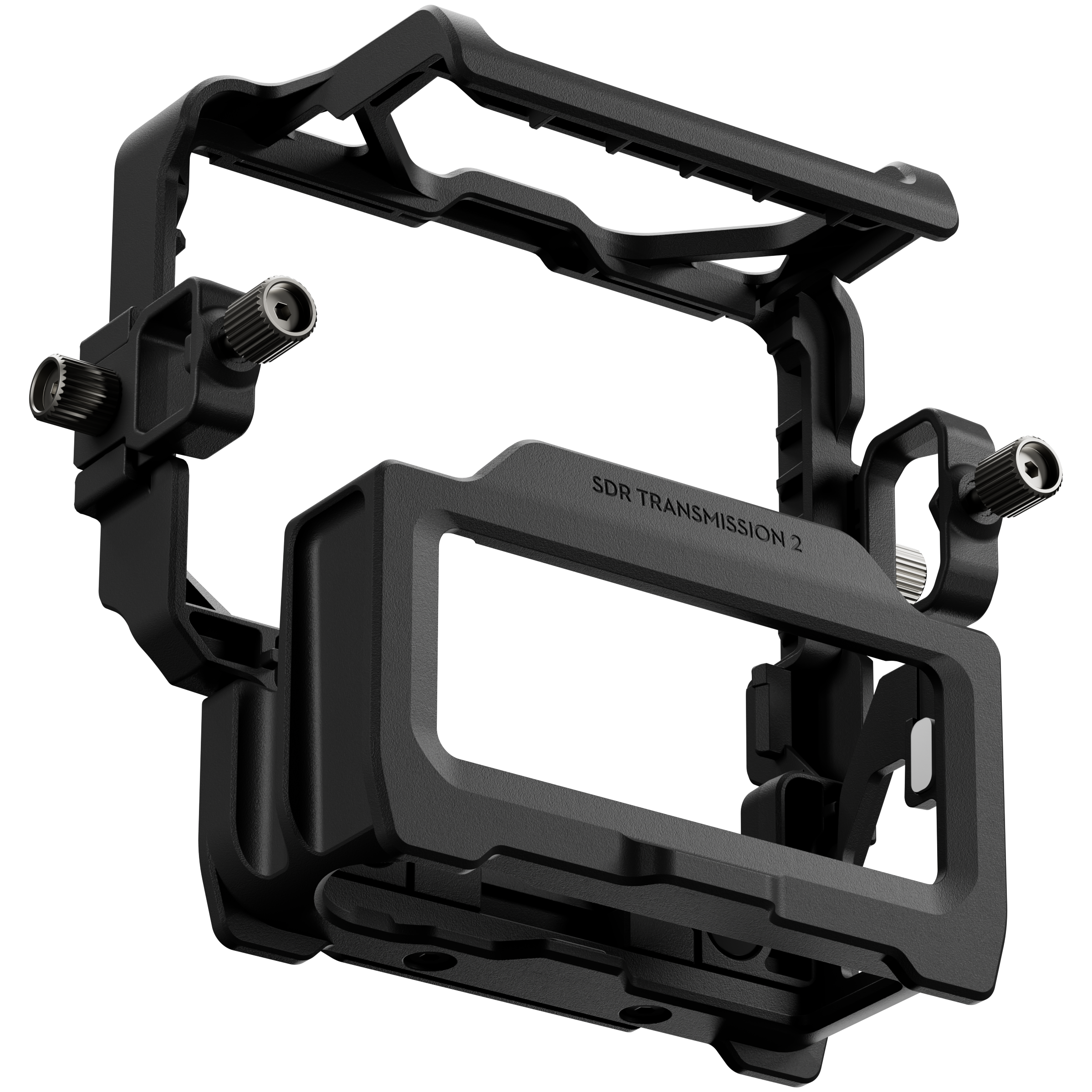

The DJI Transceiver Cage for SDR Transmission 2 provides physical protection and multiple threaded mounting points for the DJI SDR Transmission 2 Transceiver and its Expansion Plate. HDMI and USB-C cable clamps prevent disconnections, so it easily handles high-intensity scenarios like off-road car shoots.
NATO Port & Threaded Mounting
A NATO port, two 1/4"-20 screw holes, and a 3/8"-16 screw hole give the cage multiple ways to lock firmly onto a wide range of gimbals and rigs.
Cable Clamps Prevent Disconnections
HDMI and USB-C cable clamps hold connections secure, keeping the transceiver protected and connected during high-intensity, high-vibration scenarios like off-road car shoots.
Compatibility:
- DJI SDR Transmission 2 Transceiver
- DJI SDR Transmission 2 Expansion Plate (SDI/HDMI/USB-C)
Physical
| Dimensions | 124 x 110 x 49 mm (L x W x H) |
| Weight | Approx. 91 g |
| Mounting | NATO Port 2x 1/4"-20 Screw Hole 3/8"-16 Screw Hole HDMI Cable Clamp USB-C Cable Clamp |
Environmental
| Operating Temperature | -10 to 40°C |
What's Included
- DJI Transceiver Cage for SDR Transmission 2
- Ball-End Hex Key (2 mm)
- Barcode: 93280
- UPC Barcode: 190021173774
- Supplier Code: 190021173774
