Overview

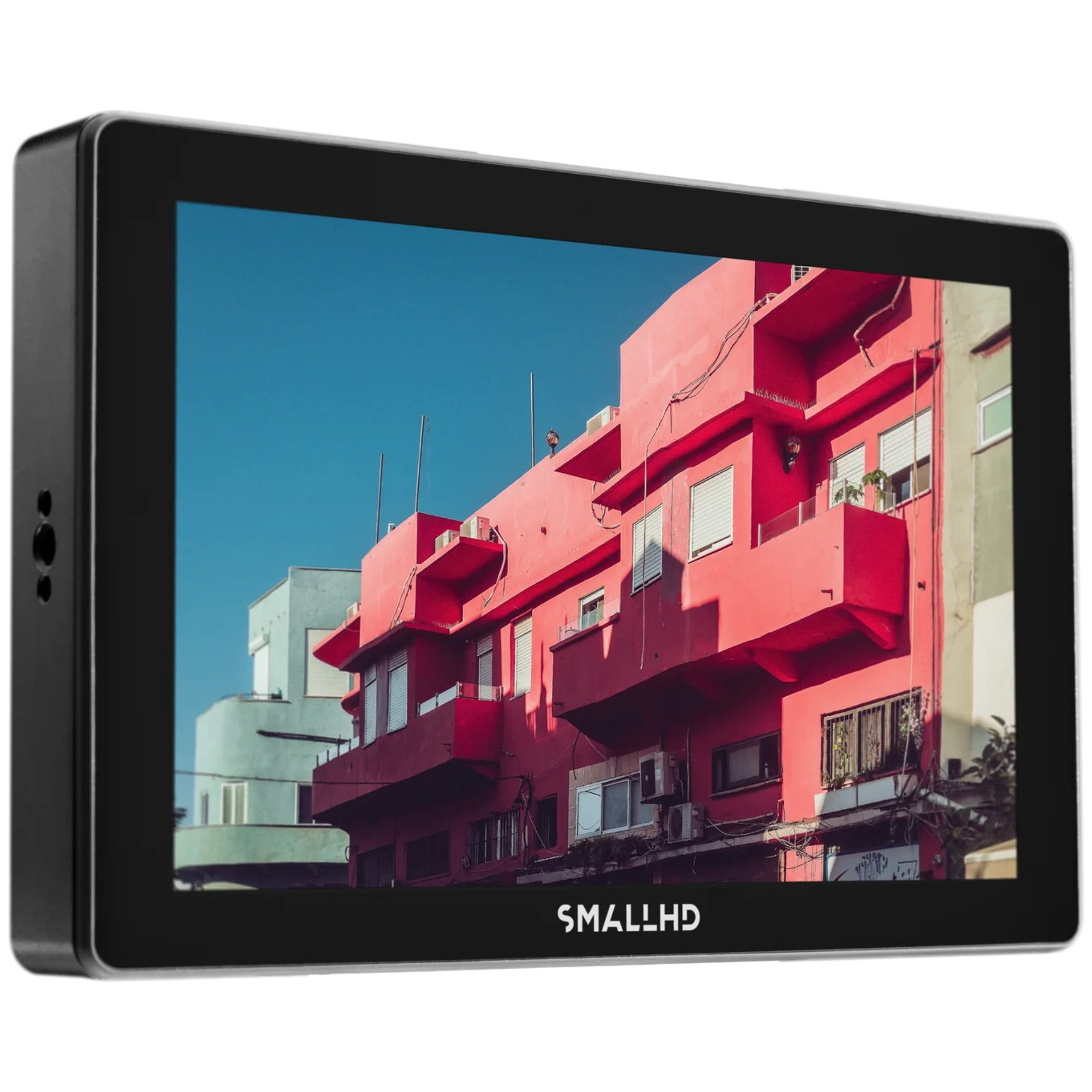

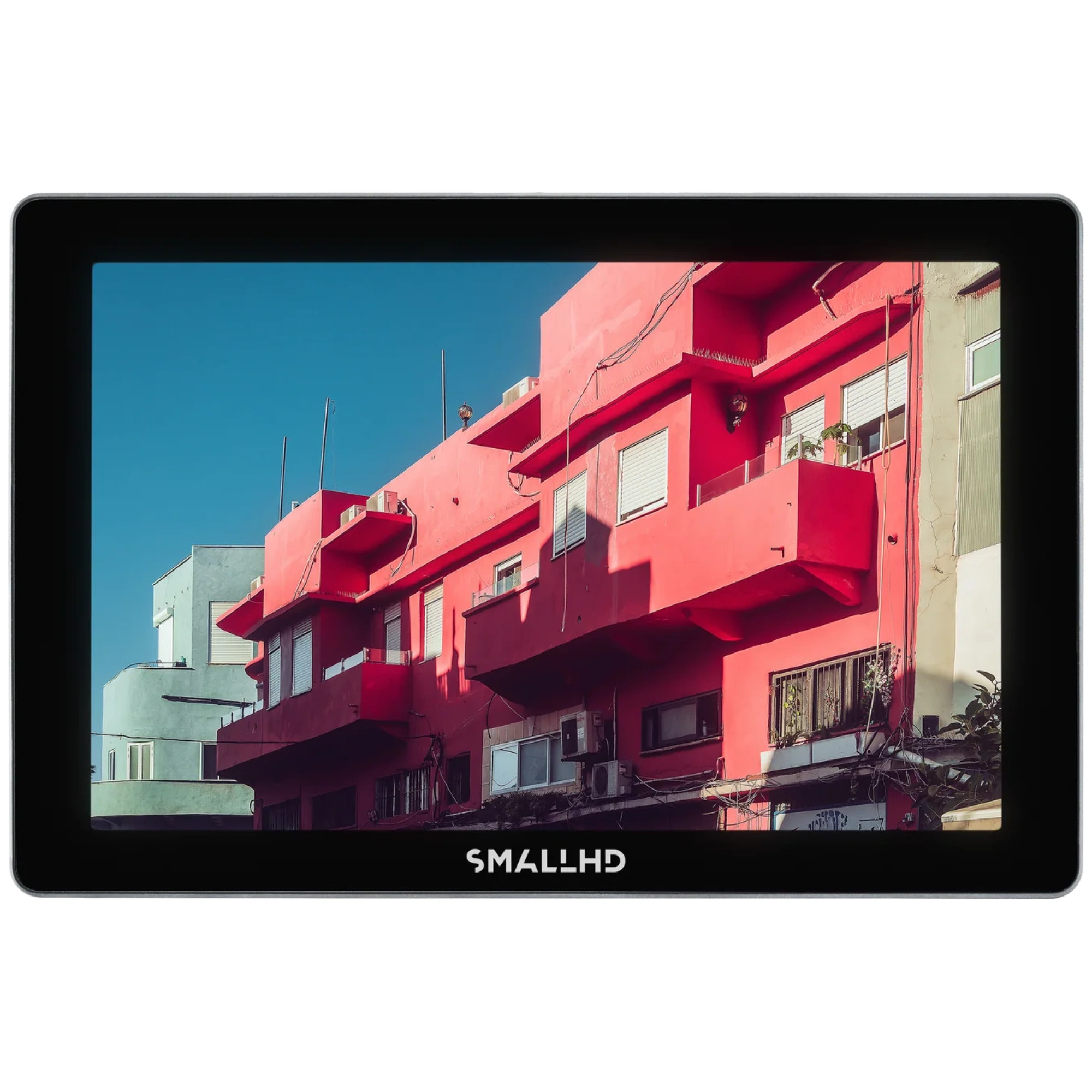

The SmallHD Cine 7 Touchscreen On-Camera Monitor is a professional 7" field monitor built for filmmakers, cinematographers, and video production crews who require a bright and colour-accurate monitoring solution on set. Its 1920 x 1200 touchscreen IPS LCD panel delivers 1800 cd/m² brightness for reliable outdoor viewing, while 10-bit colour support and full DCI-P3 coverage provide accurate image representation for critical monitoring applications.
Designed for flexible production workflows, the Cine 7 supports HDMI and 3G-SDI input/output connectivity with integrated HDMI-to-SDI and SDI-to-HDMI cross conversion. SmallHD’s intuitive PageOS 4 interface provides fast access to professional monitoring tools including waveform, RGB parade, vectorscope, false colour, and focus peaking, while the included dual L-series battery plate enables hot-swappable power for uninterrupted operation during demanding shoots.
Core Features
- Features a 7" 1920 x 1200 touchscreen IPS LCD display with 1800 cd/m² brightness for daylight viewing.
- Supports HDMI and 3G-SDI video input and output connections with cross conversion functionality.
- Provides professional monitoring tools including waveform, RGB parade, vectorscope, histogram, false colour, and focus peaking.
- Includes dual L-series battery support with hot-swapping capability for uninterrupted operation.

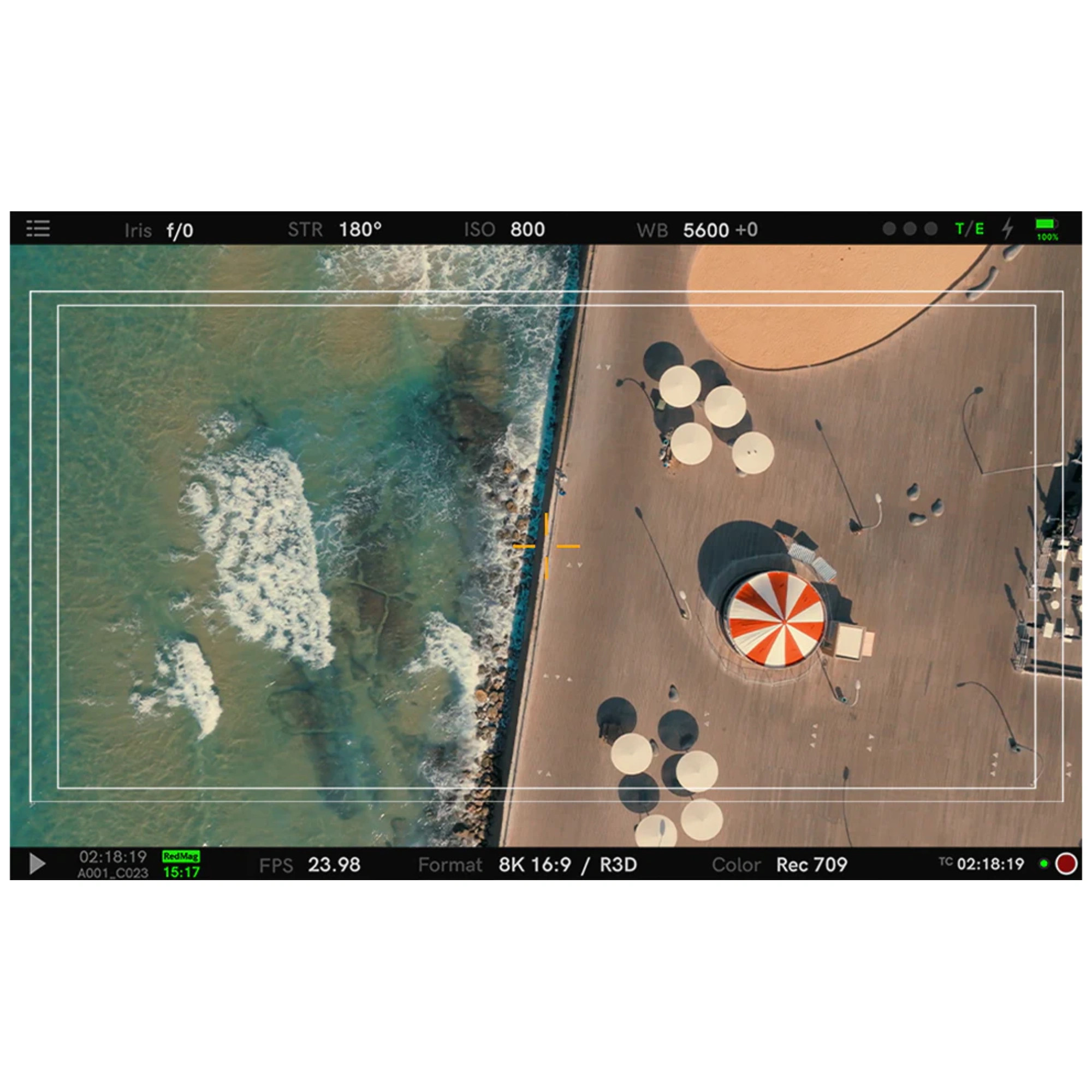

- Utilises SmallHD PageOS 4 for customisable monitoring pages and streamlined touchscreen operation.
- Supports custom LUT import via SD card or USB storage for on-set colour management.
- Offers multiple 1/4"-20 mounting points for flexible rig integration.
Advanced Monitoring Tools

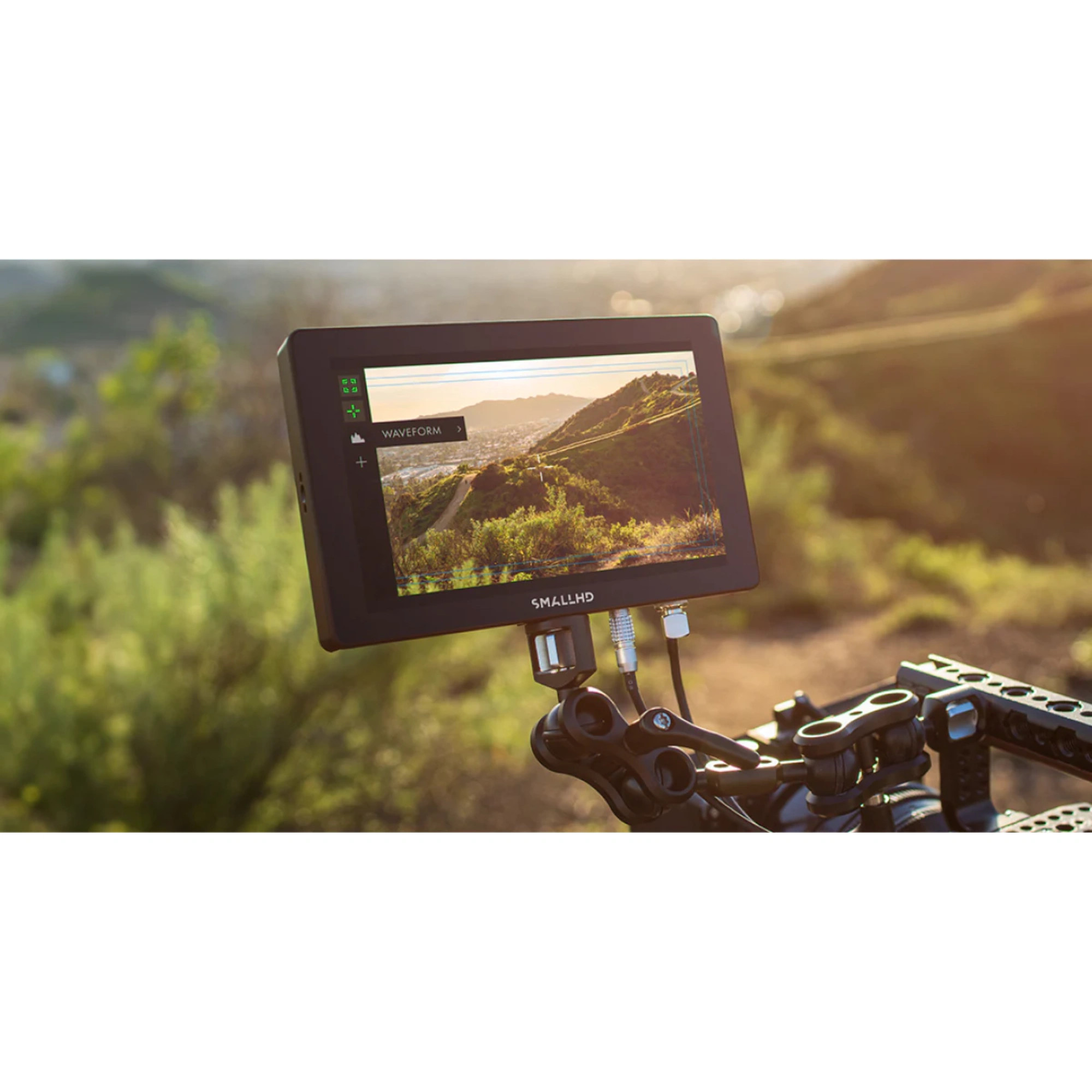

The Cine 7 includes a comprehensive suite of exposure and focus assist tools suitable for professional cinematography workflows. Monitoring functions include waveform monitoring with region-of-interest highlighting, RGB parade, vectorscope, dual zebra, histogram, pixel zoom, anamorphic de-squeeze, false colour, and customisable focus peaking.
Flexible Connectivity

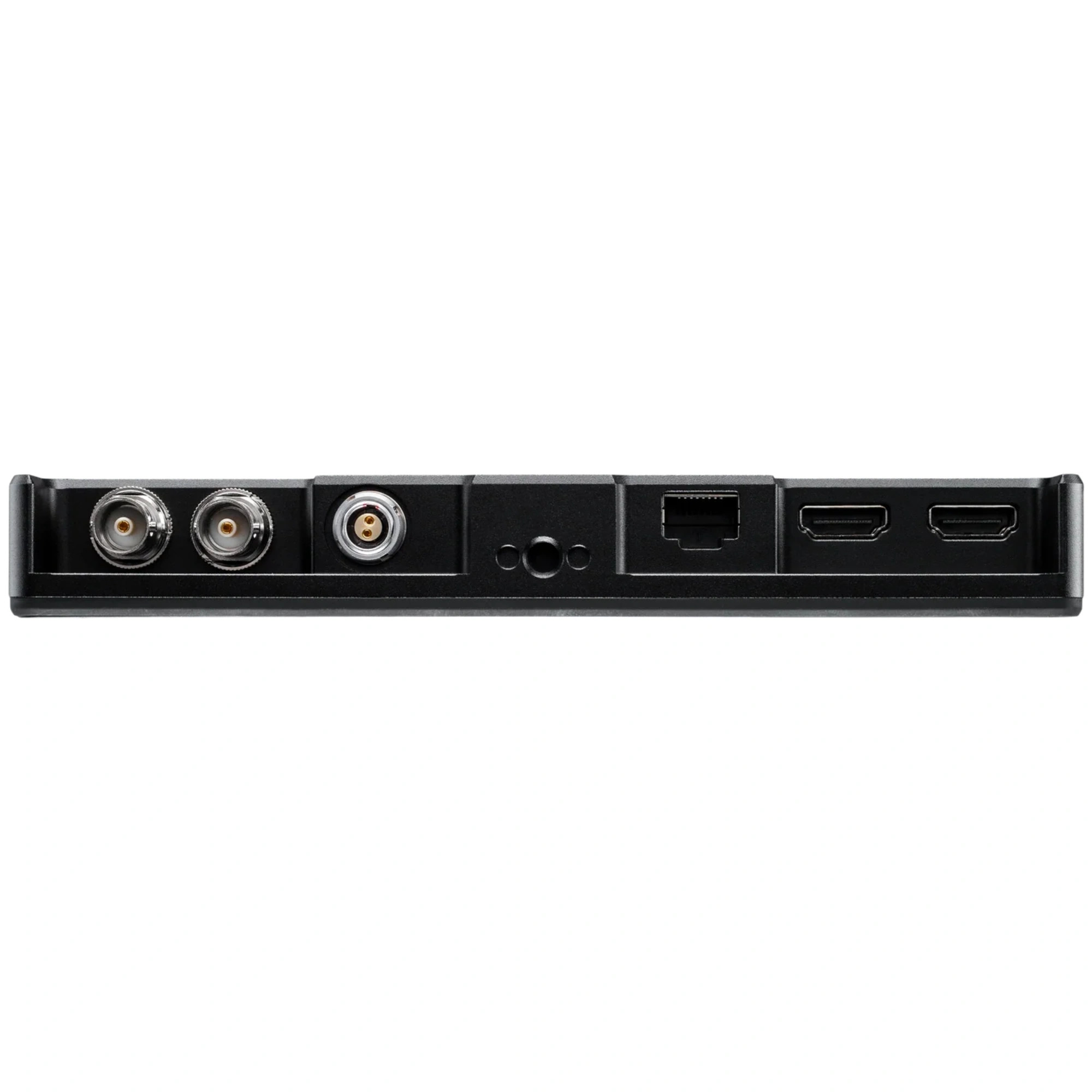

The monitor supports both HDMI and 3G-SDI workflows with full-size HDMI input/output and dedicated SDI input/output ports. Cross conversion between HDMI and SDI enables integration into mixed-camera production environments without additional converters.
Production-Ready Design

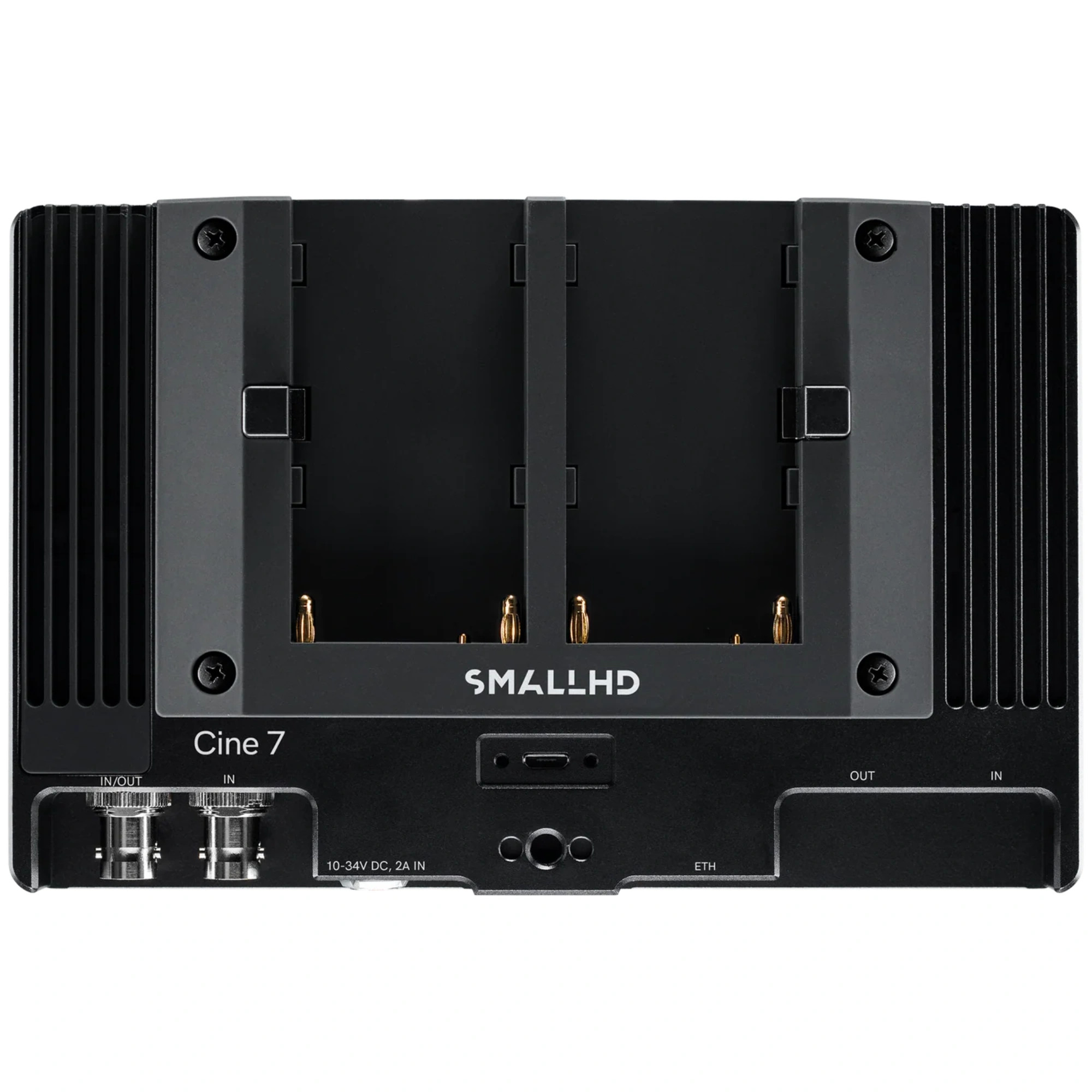

Built for demanding production environments, the Cine 7 features a slim and lightweight form factor with a rugged housing and multiple mounting points. The swappable dual L-series battery plate enables hot-swapping batteries during operation, helping maintain continuous power on set.
Display
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 1800 cd/m² |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (10-Bit) |
| HDR Support | No |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze False Color Focus Peaking Histogram Pixel-to-Pixel Zoom RGB Parade Vectorscope Waveform Zebra |
Inputs/Outputs
| Video I/O | 1x HDMI Input 1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Input/Output |
| Embedded Audio | HDMI: 8-Channel SDI: 8-Channel |
| Audio I/O | 1x 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x LEMO 2-Pin (34 VDC) Input |
| Other I/O | 1x Micro-USB 2.0 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [LUT Upload Only] |
Format Support
| HDMI Video Format | 8/10/12/16-Bit 4:4:4/4:2:2 YCC 1080p up to 60 fps 1080i up to 120 fps 720p up to 120 fps 576p up to 200 fps 480p up to 240 fps |
| SDI Video Format | 10-Bit 4:2:2 YCC 1080p up to 60 fps 1080PsF support 1080i up to 120 fps 720p up to 60 fps |
| Video Signal Conversion | SDI to HDMI HDMI to SDI |
Power
| Input Power | 6 to 16 VDC at 2.5 A |
| Battery | 2x L-Series Mount on Fixed Plate |
Mounting

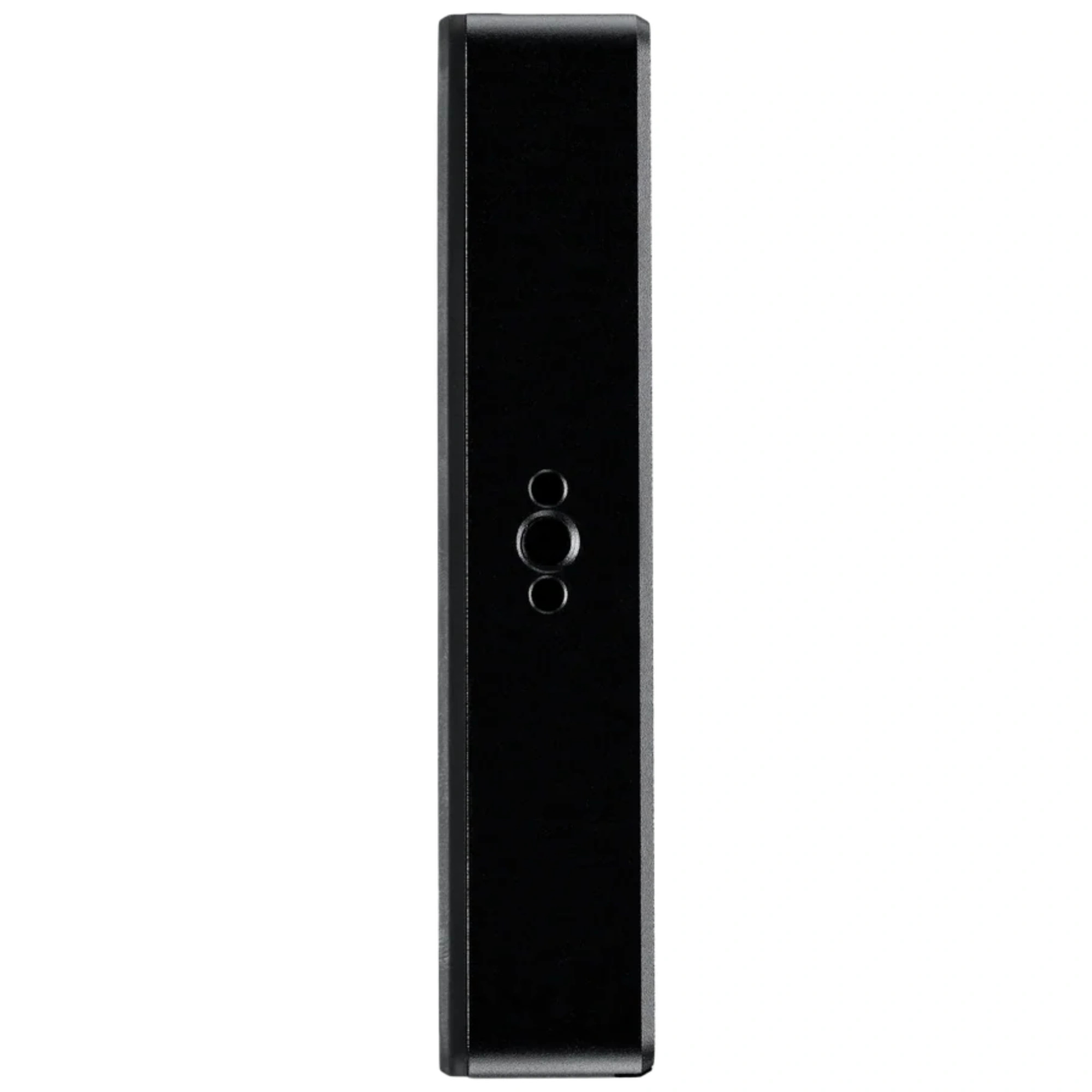

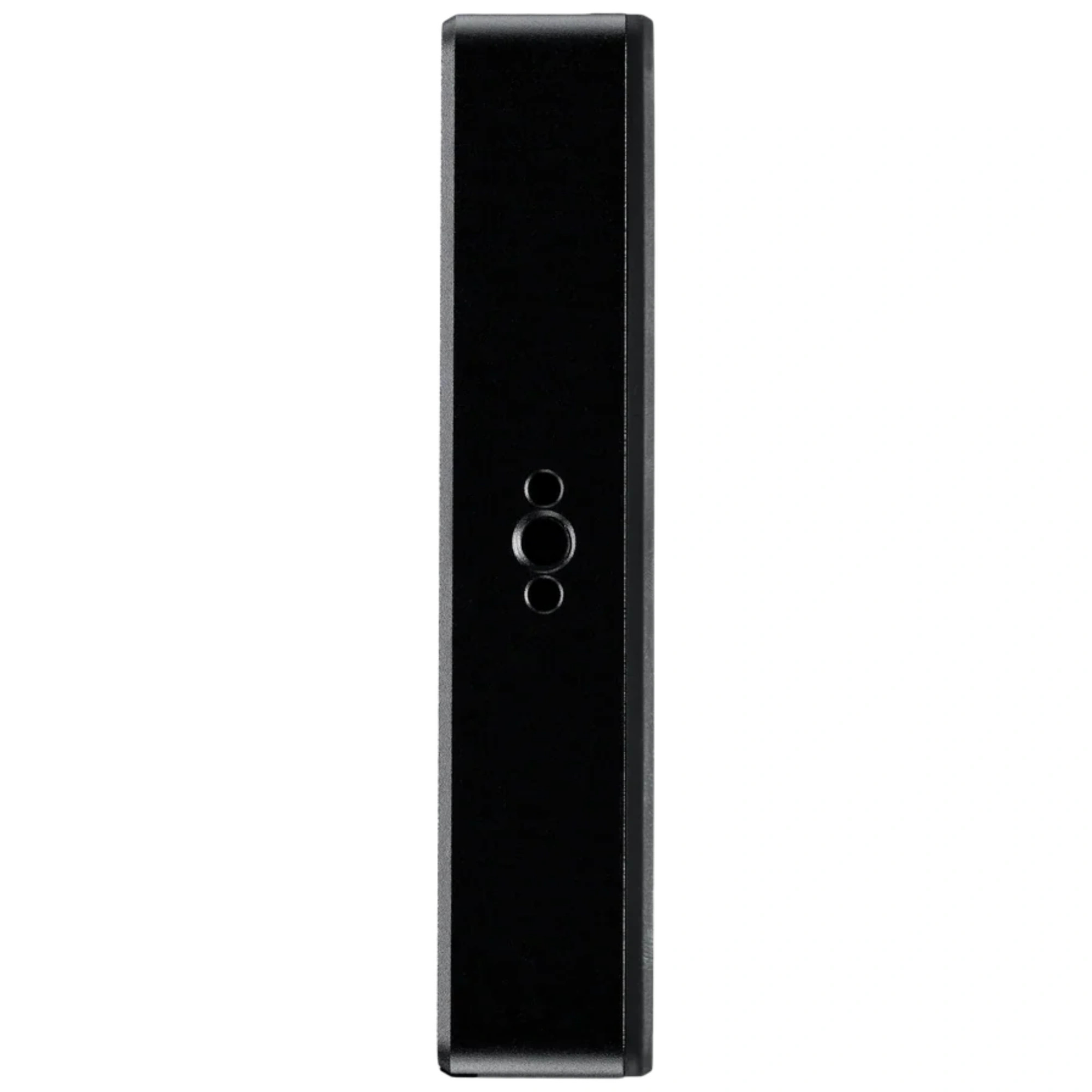

| Tripod/Accessory Mounting | Top/Left/Right/Back 1x 1/4"-20 Female |
General
| Environmental Resistance | No |
| Operating Conditions | -1 to 37°C |
| Storage Conditions | -17 to 48°C |
| Dimensions | 18 x 11.9 x 3.3 cm |
| Weight | 567 g |
What's Included
- SmallHD Cine 7 Touchscreen On-Camera Monitor
- Barcode: 53287
- UPC Barcode: 811786030842
- Supplier Code: 33.1.MON-CINE-7
