SmallRig 5228 V-Mount Battery Mount Plate

Overview

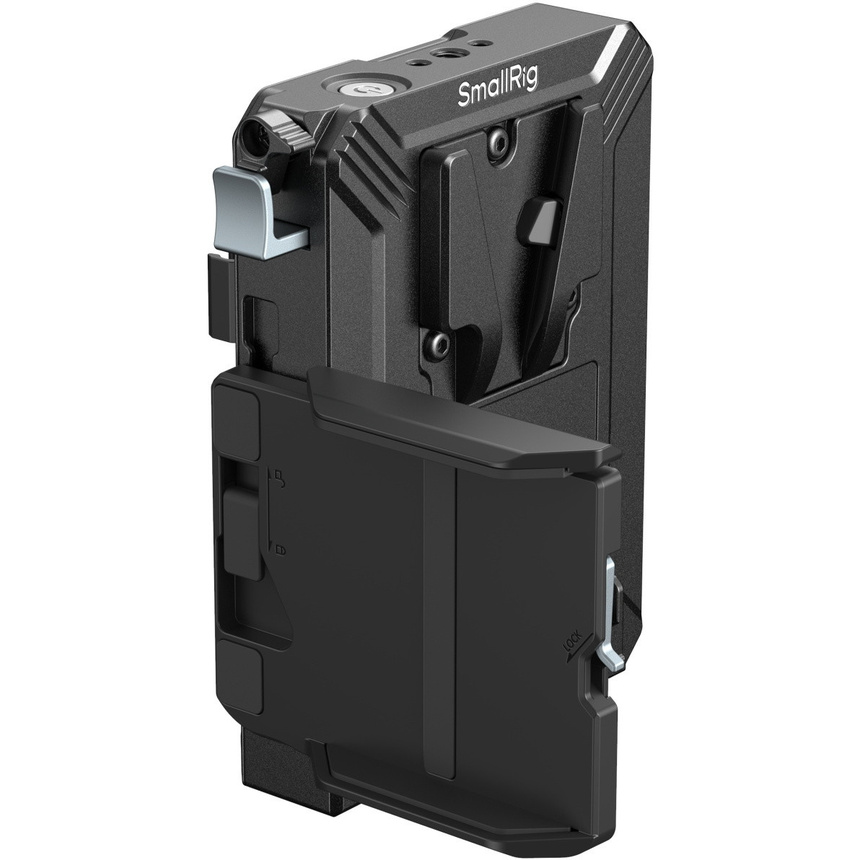

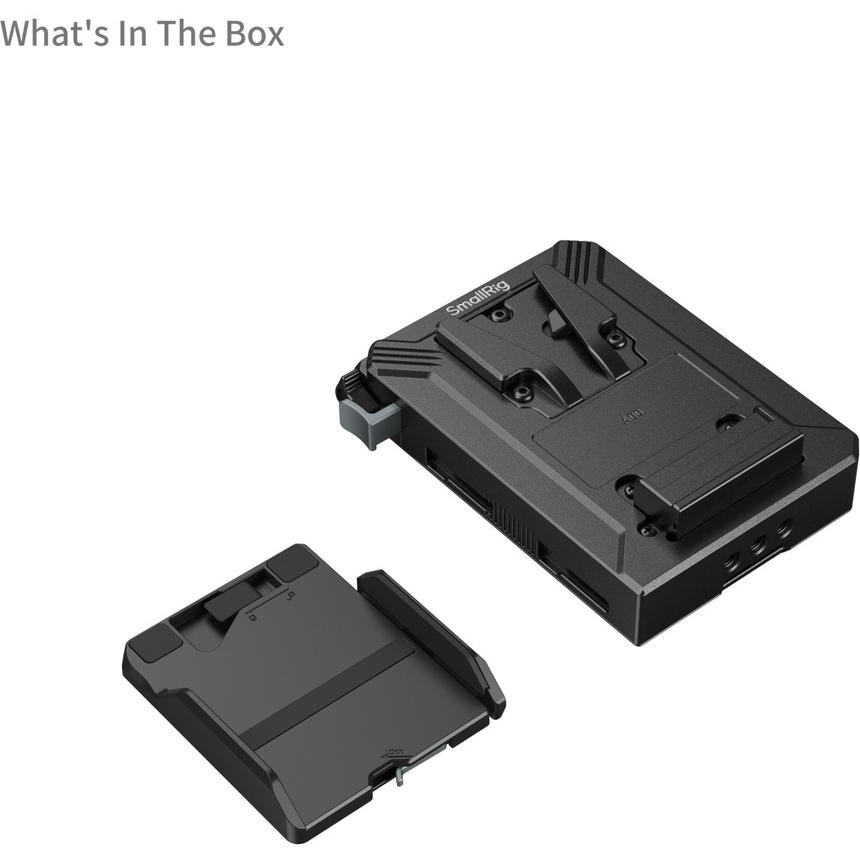

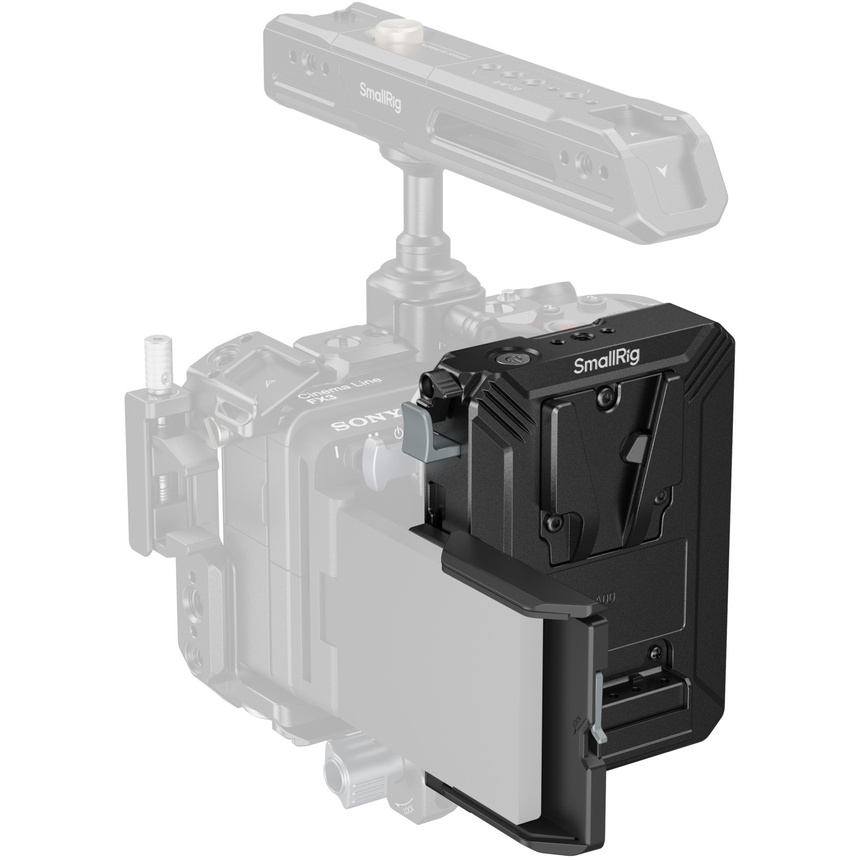

The SmallRig 5228 V-Mount Battery Mount Plate is designed for rigs with non-powered V-mount plates, such as models 4505 / 4064B / 4063B, enabling multi-device power distribution and swift battery swaps. The kit includes a V-mount battery plate and an LCD screen protector, facilitating seamless power supply.

Core Features

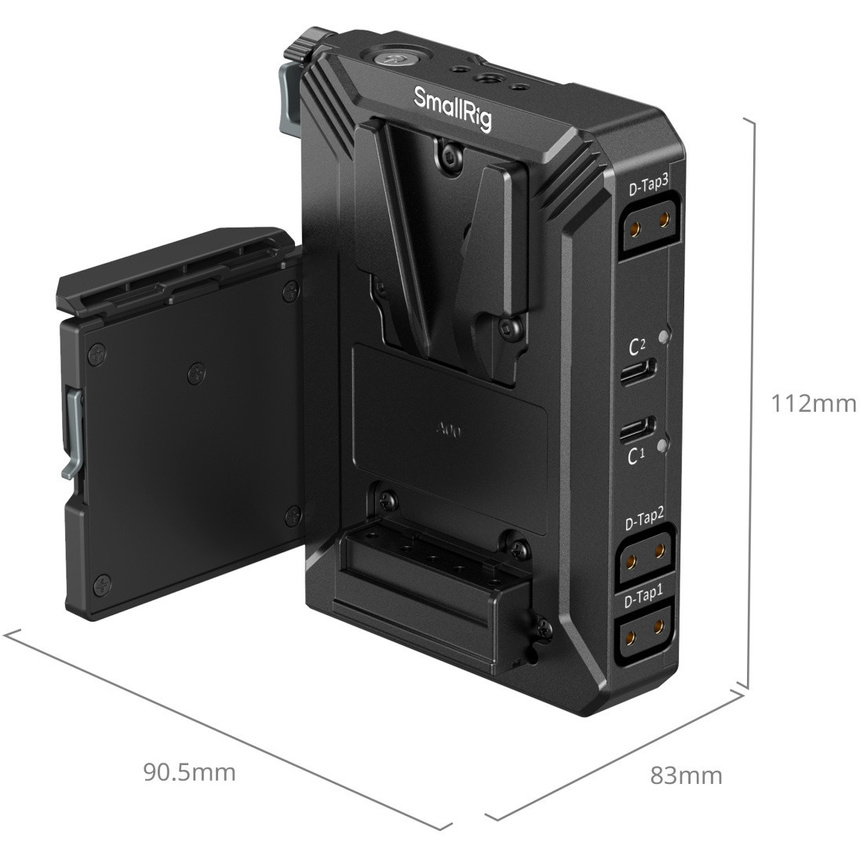

Strategically positioned power outputs on the V-mount battery plate, including D-Tap and USB-C, enable simultaneous power supply to multiple devices without interfering with camera or top handle operation. The USB-C port supports up to 65W PD input, allowing it to function as a V-mount battery charger.

LCD Screen Protector

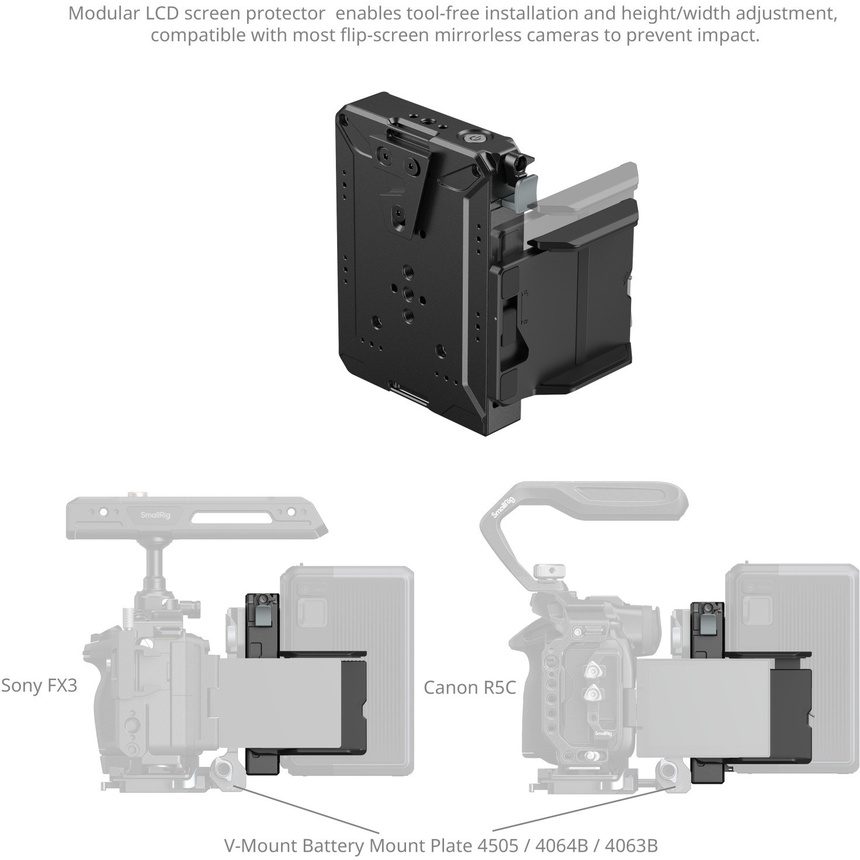

The modular LCD screen protector features tool-free height and width adjustment, fitting most flip-screen mirrorless cameras while protecting against impacts.

Safety and Compatibility

Battery Release Button

The battery release button features a trigger safety lever with customizable engagement, preventing accidental disengagement for secure operation.

Accessory Attachment

The V-mount plate is equipped with multiple 1/4"-20 threaded and locating holes, facilitating the attachment of accessories such as magic arms (ID3238B/3873) for wireless transmitters and professional setups.

Notes

• When using the LCD screen protector, the battery plate can accommodate V-mount batteries up to 80mm in width. Compatible SmallRig V-mount batteries: 3579B / 4871 / 4872 / 3580B / 4929 / 4930 / 4292 / 4974 / 4608 / 4984 / 3581B / 4293.
• If the V-mount battery cannot be properly installed, the trigger safety lever may be engaged. To install the battery properly, first disengage the trigger safety lever.
• After use or when not in use for a long period of time, please remove the V-mount battery or press and hold the power switch button for 3 seconds to cut off the output function.
