Teradek Ace Micro TX USB-C Wireless Video Transmitter

Teradek Ace Micro TX USB-C Wireless Video Transmitter

SKU:
53.10-2246

Key Features

  • 4Kp30 Uncompressed Video to 150m
  • Single USB-C for Video and Comms
  • Cross-Compatible with Bolt/Ace
  • Turns iPhone into Wireless Camera
  • Under 1 Millisecond Latency
  • Connects up to 6 Receivers
  • Auto 5GHz/6GHz Channel Switching
  • AES-256 Encrypted Signal
  • Compact Milled Aluminum Body
  • Internal Antennas, Quick-Pair Button

Teradek

$1,199.00

Or buy now, pay later with:

after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

The Teradek Ace Micro TX USB-C Wireless Video Transmitter is Teradek's smallest zero-delay wireless video transmitter yet, built to share up to 4Kp30 uncompressed video with up to six receivers at ranges up to 150m. Powered by the same BB3 chipset used across the Bolt and Ace wireless ecosystem, it operates over 5GHz and 6GHz frequencies with under 1 millisecond of latency, making it a natural fit for camera operators, video villages and multi-camera monitoring setups who need broadcast-grade, near-instant wireless video from a single USB-C connection.

Single USB-C Connection

Ace Micro TX is designed to support a wide range of zero-delay workflows through a single USB-C connection, consolidating power, video and communication into one cable for the simplest possible cable management on set.

Direct Connection to DP Alt Mode Cameras

Connect directly to cameras that support DisplayPort Alt Mode over USB-C, including the Blackmagic URSA Cine and PYXIS, for a streamlined setup with no extra adapters or converters needed.

Turns Your iPhone into a Wireless Camera

For the first time, Ace Micro TX transforms an iPhone into a professional wireless camera. Simply mount the TX, connect via USB-C, and transmit zero-delay video straight from your preferred camera app, seamlessly integrating your iPhone into an existing Teradek wireless video ecosystem. External USB power is required.

Cross-Compatible with the Bolt and Ace Ecosystem

Thanks to a shared BB3 chipset, Ace Micro TX is cross-compatible with Bolt 4K, Bolt 6, Bolt 7 and Ace 750 systems, so it can slot straight into an existing wireless video setup without needing to replace receivers already in your kit.

Automatic Interference-Free Channel Selection

Ace Micro TX automatically detects and selects the 5GHz or 6GHz RF channel with the least interference, then uses Auto-Frequency Switching to maintain a clean, reliable signal throughout a shoot.

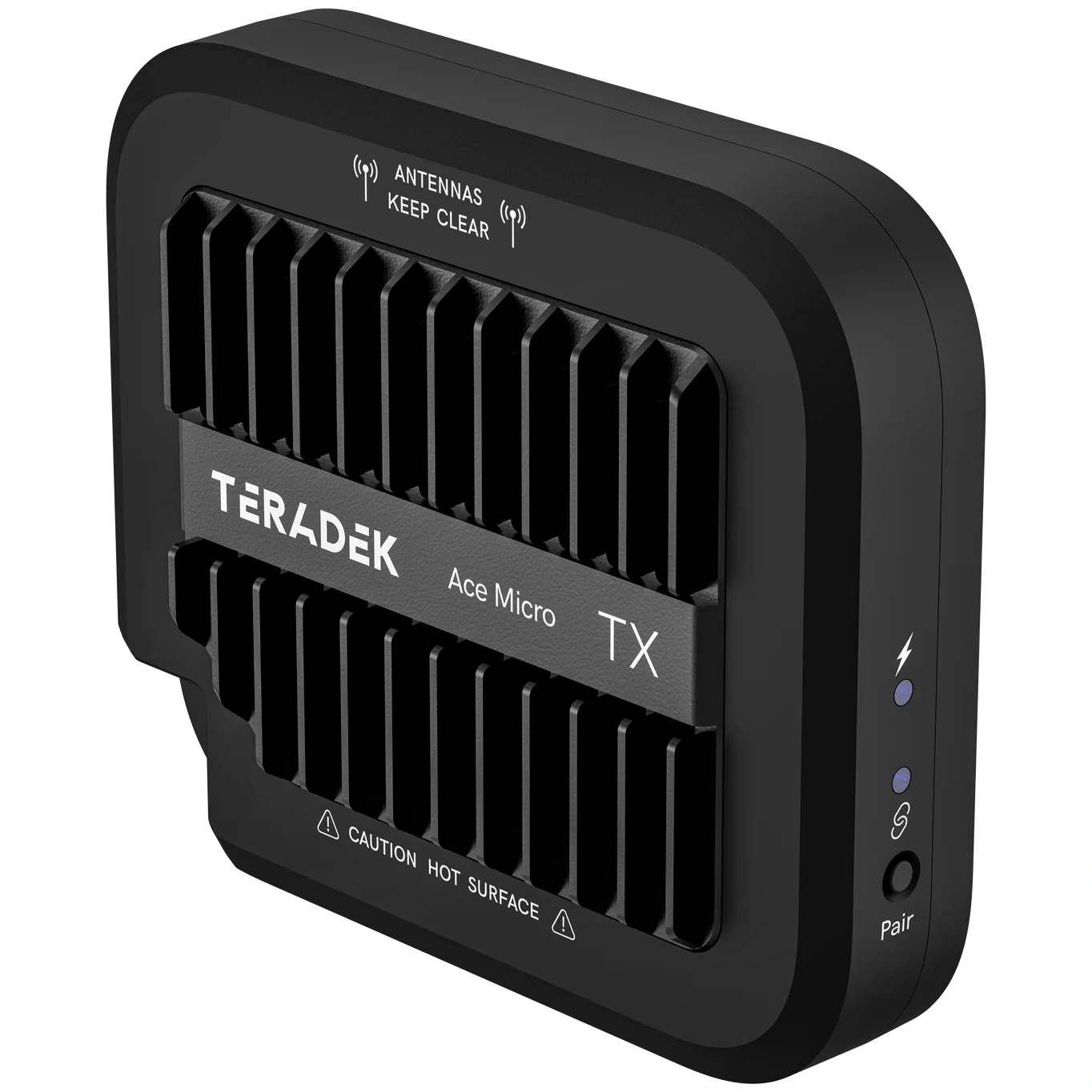

Compact, Mountable Hardware

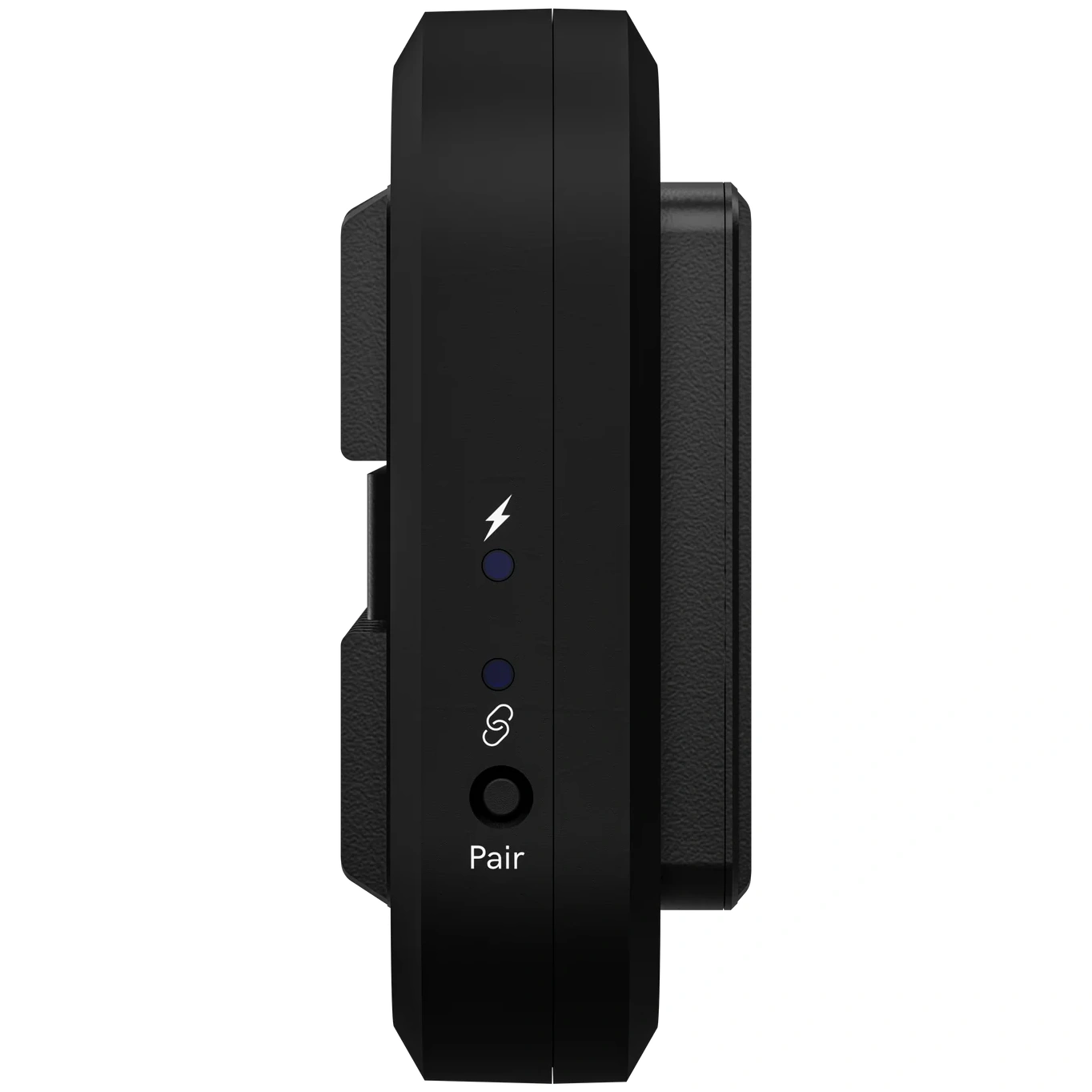

  • Internal antennas and a quick-pairing button for fast setup
  • LED indicators for power and link status

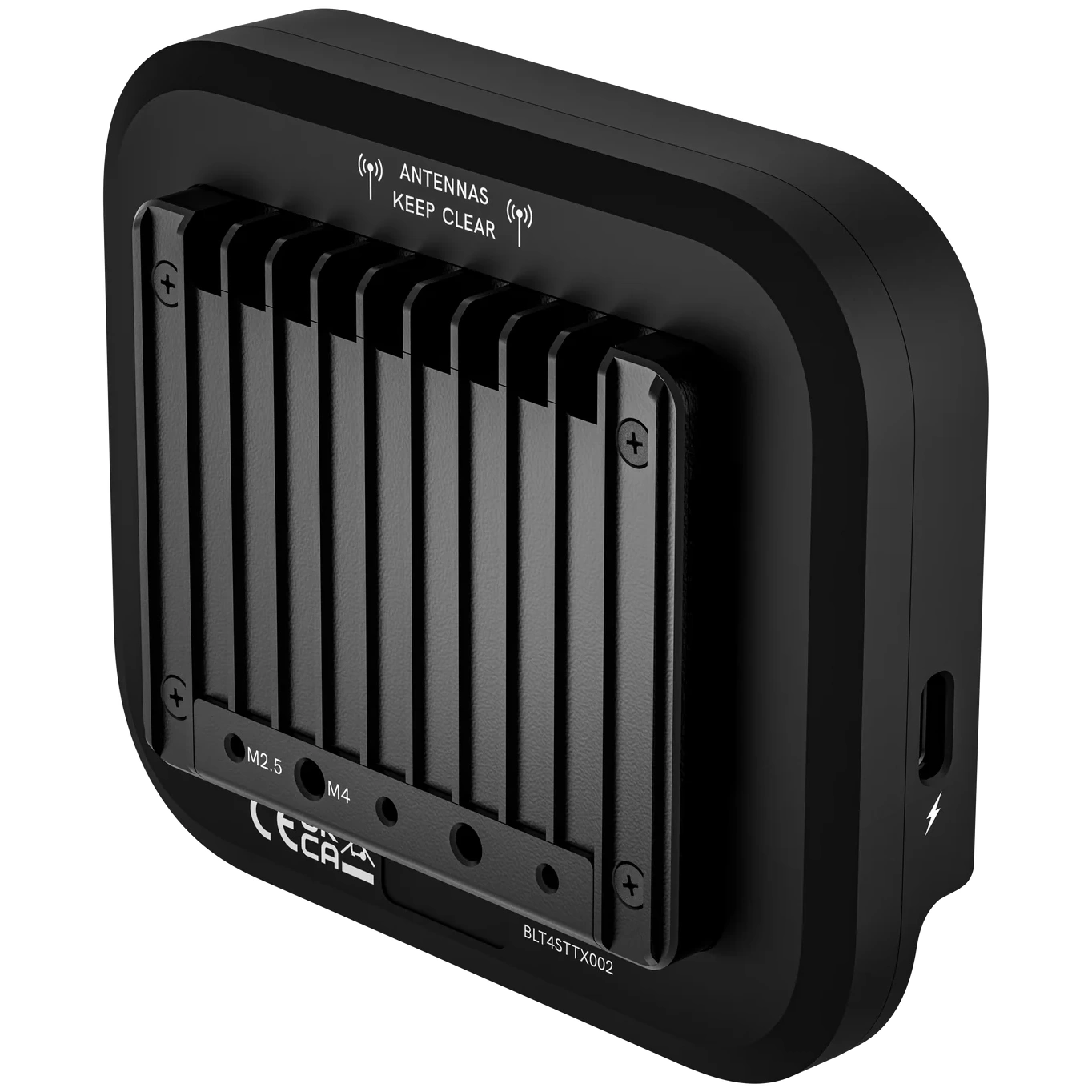

  • M3 and M2.5 mounting points for horizontal or vertical rigging

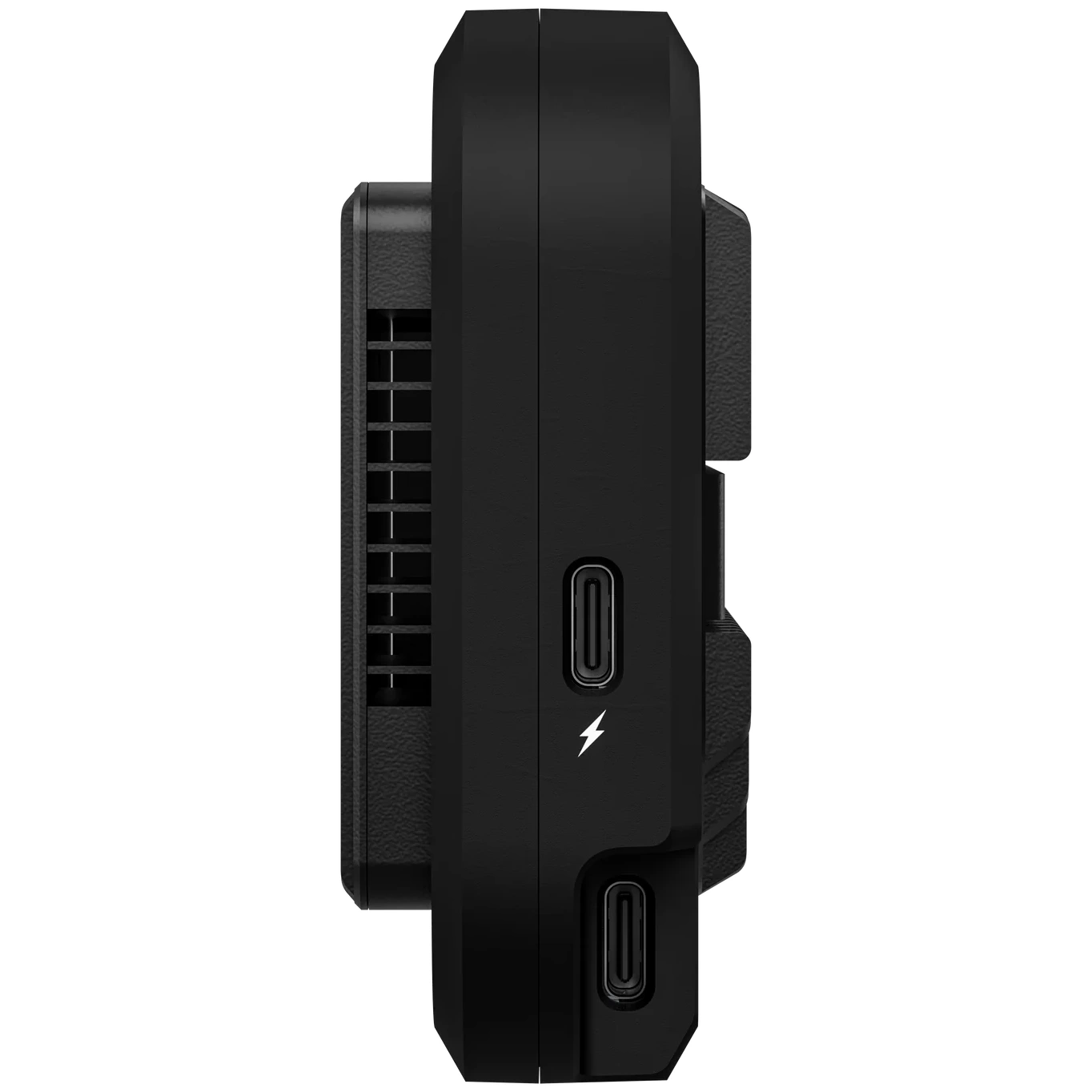

  • Secondary USB-C port for pass-through power

Inputs/Outputs

Antenna I/ONo
Video I/OUSB-C (DisplayPort Alt Mode) Input
Embedded AudioDisplayPort Alt Mode
Audio I/O2-Channel Input (Embedded via DisplayPort Alt Mode)
Power I/O USB-C Power Port
USB-C DP-Alt Port
EncryptionAES-256, RSA-1024 Key Exchange

Wireless

Wireless5 GHz / 6 GHz Radio/RF
CompatibilityACE, Bolt 4K, Bolt 6 and Bolt 7 Systems
Wireless RangeUp to 150m (Line of Sight)
Frequency Range Non-DFS Frequencies: 5.190 to 5.230 GHz, 5.755 to 5.795 GHz, 5.945 to 6.425 GHz
DFS Frequencies: 5.270 to 5.670 GHz
RF Channel SelectionAutomatic
Latency<0.001 sec
RF Power10 dBm EIRP
Multi-Receiver Support1 Transmitter to up to 6 Receivers
Noise RejectionCoexists with Wi-Fi and 5GHz Cordless Phones
Mobile App Compatible Yes: Bolt Manager Desktop App (Firmware Updates)
Also via SmallHD Monitor or Smartphone (Control)

Format Support

Video Format 4K: 23.98/24/25/29.97/30p
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
480p: 59.94
576p: 50
Color SamplingRGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-Bit
Wireless Video CompressionVisually Lossless
Audio Format48kHz 24-Bit PCM

Power

BatteryNone (External USB Power Required)
Power Consumption5 W

Mounting

Tripod/Accessory MountingM4 Threaded Holes, 20mm Spacing

General

Status DisplayLED Indicators (Power and Link Status)
Operating Conditions0 to 40°C
Material of ConstructionAluminum
Dimensions95 x 82 x 28 mm (W x H x D)
Weight170 g

What's Included

  • Teradek Ace Micro TX USB-C Wireless Video Transmitter
  • USB-C Right Angle to USB-C Right Angle Cable (0.3 m)
  • USB-C Right Angle to USB-C Right Angle Cable (0.46 m)
  • Wooden Camera Bolt-On Accessory Plate Adapter (RA, M4)
  • Barcode: 93288
  • UPC Barcode: 810156142567
  • Supplier Code: 53.10-2246
