Overview

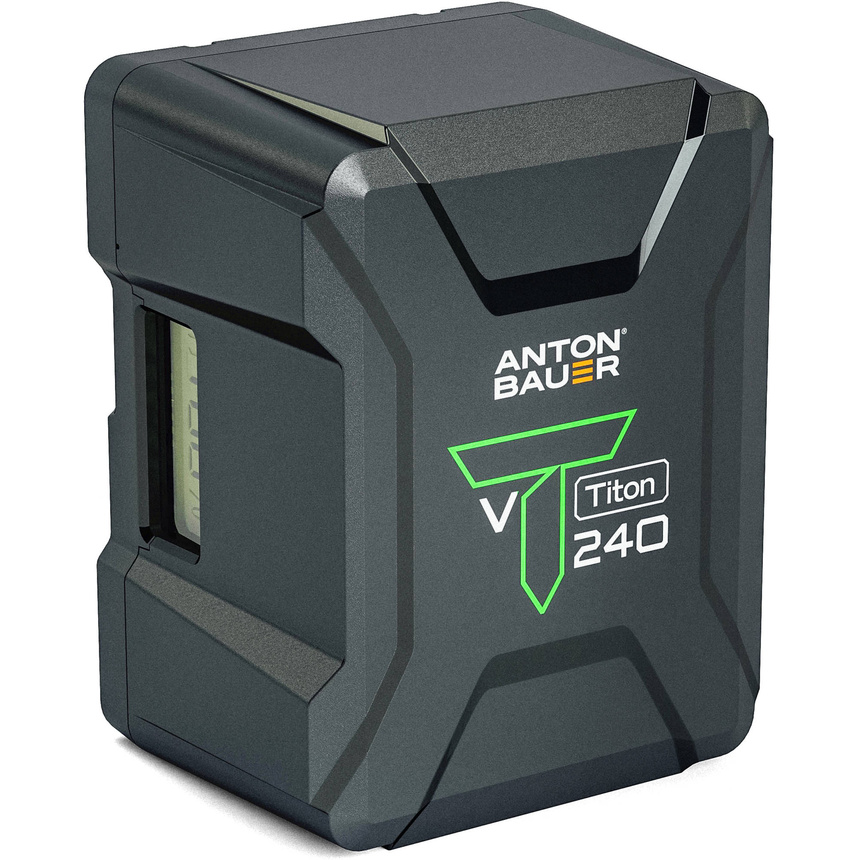

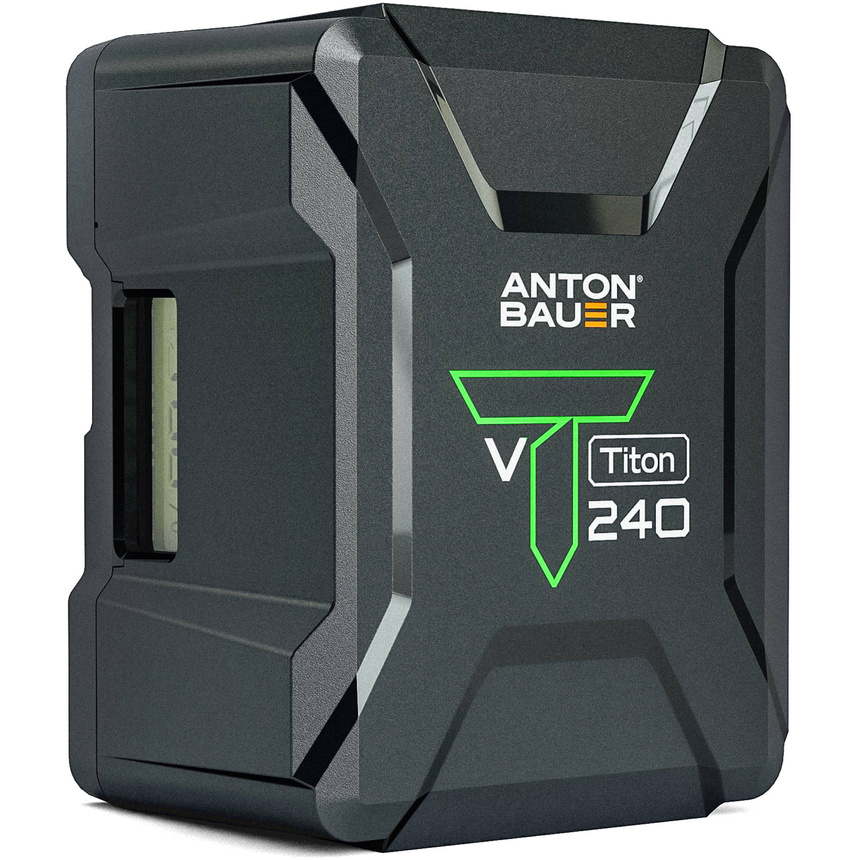

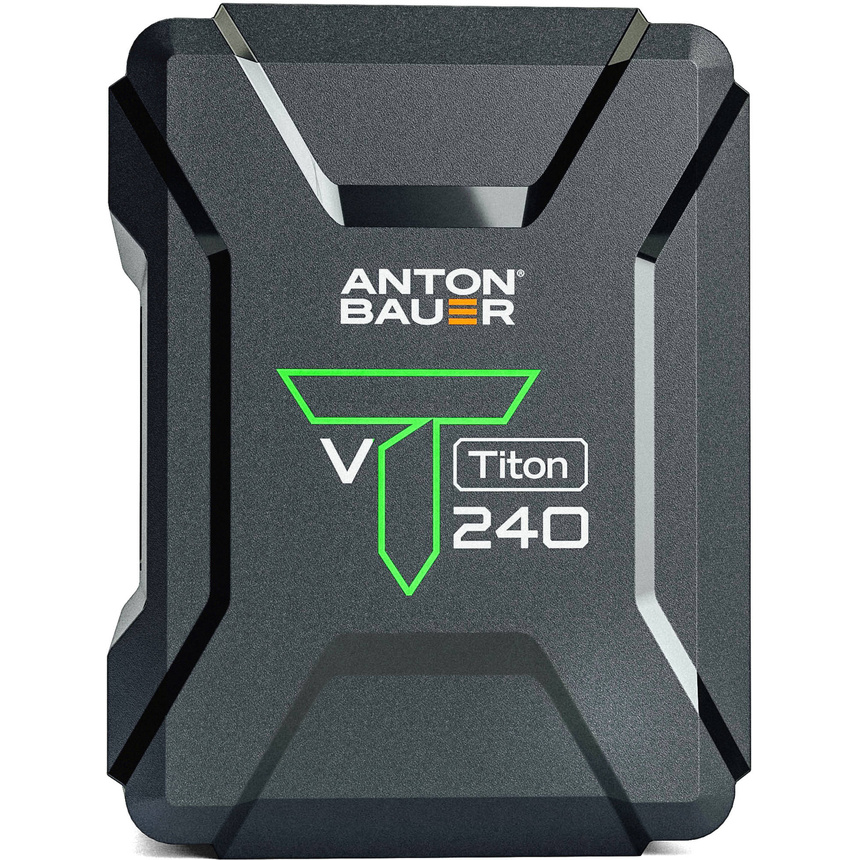

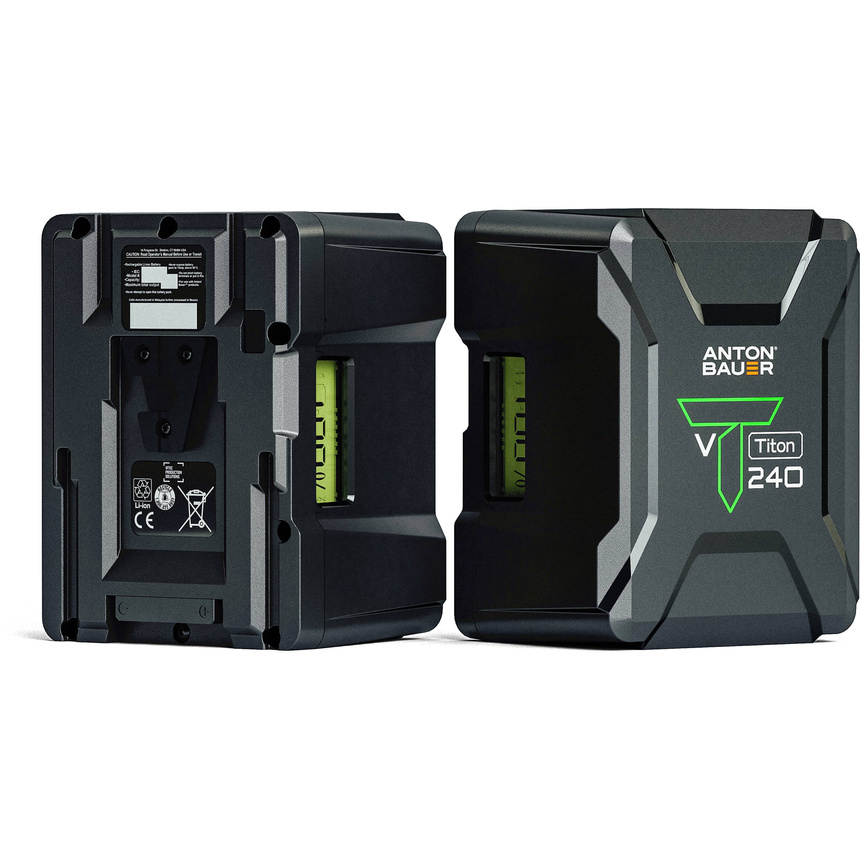

The Anton Bauer Titon 240 238Wh 14.4V Battery is robust yet relatively lightweight, offering extended power in a more compact design compared to its 190Wh Digital Series predecessor. Ideal for fast-paced shooting, sports, and live streaming, this battery efficiently powers your V-mount camera, light, and/or accessories without adding unnecessary weight.
Core Features
The battery features an LCD screen that accurately displays the remaining battery time in minutes. It also factors in the power drawn from the P-Tap and USB Type-A ports, providing comprehensive calculations.
- Continuous draw of up to 10 amps
- Supports peaks of up to 12.5 amps for up to five seconds
Furthermore, the P-Tap and USB ports enable you to power essential accessories on your mirrorless, DSLR, or 14.4V camera rig.
Specifications
| Mount / Series Type | V-Mount |
| Chemistry | Lithium-Ion |
| Battery Capacity | 238 Wh |
| Output Voltage | 14.4 VDC |
| Maximum Load | 10 A, 12.5 A (Peak) |
| Accessory I/O | 1x D-Tap / P-Tap Output, 1x USB-A Output |
| USB Output | 5 V |
| Operating Temperature | -20 to 60°C |
| Dimensions (W x H x D) | 9.91 x 13.21 x 8.13 cm |
| Weight | 1.34 kg |
What's Included
- Anton Bauer Titon 240 238Wh 14.4V Battery (V-Mount)
- Barcode: 83560
- UPC Barcode: 5060520686011
- Supplier Code: 8675-0160
