Overview

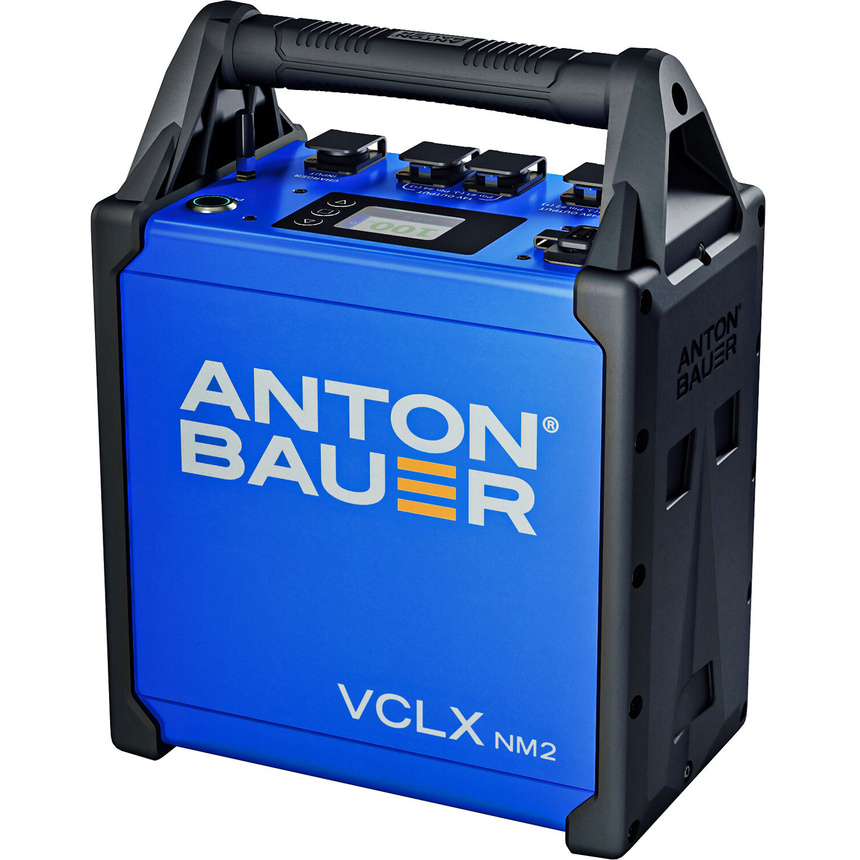

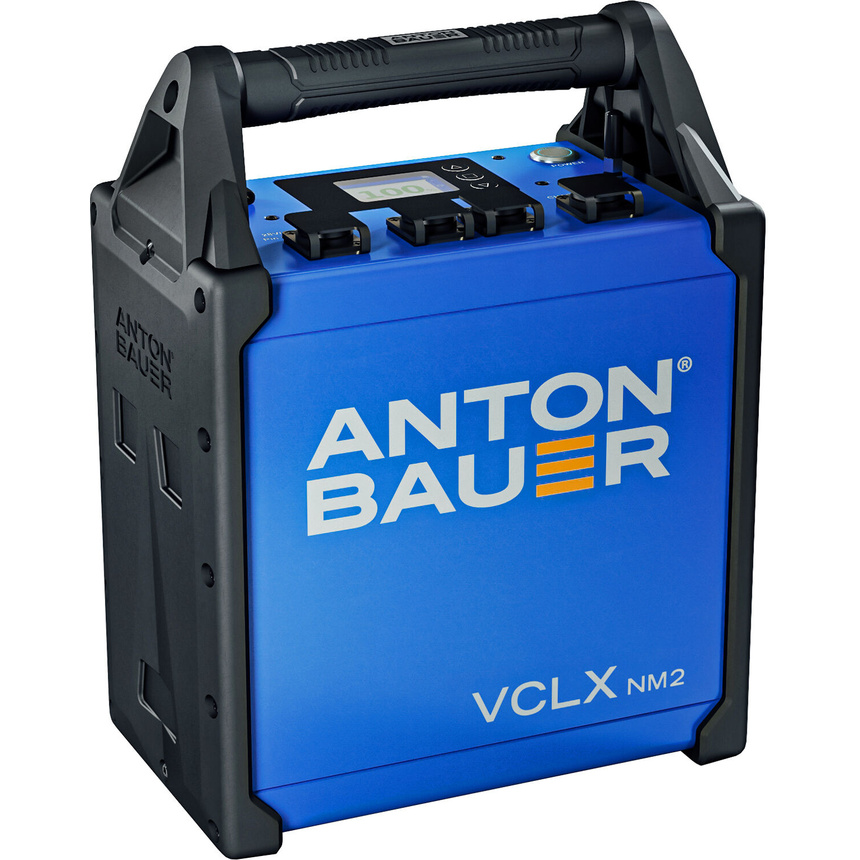

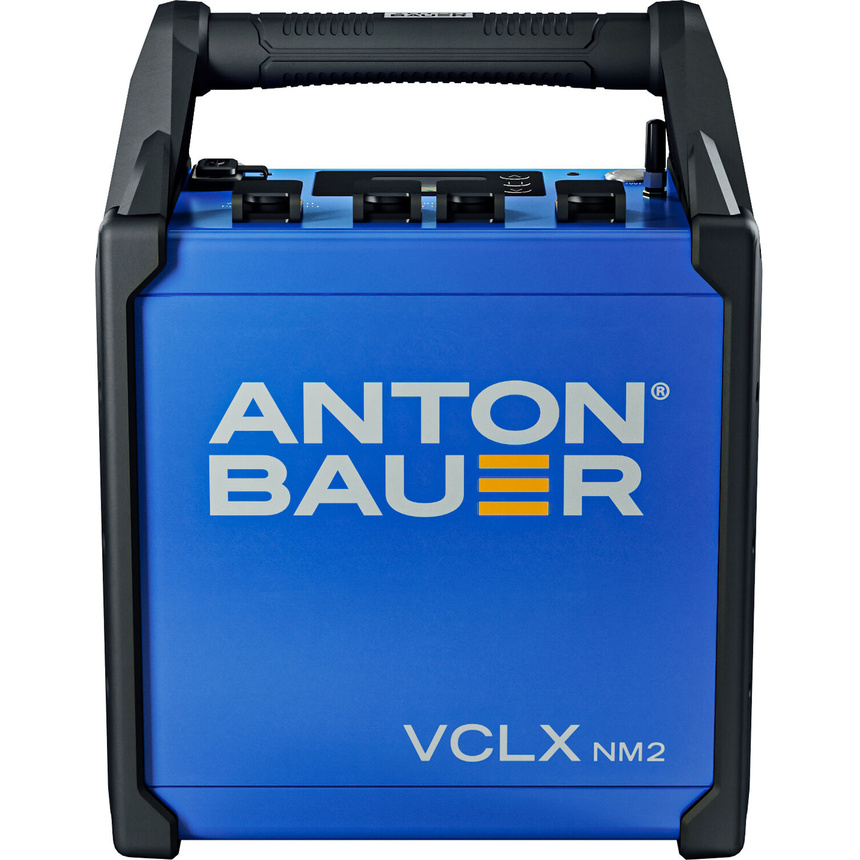

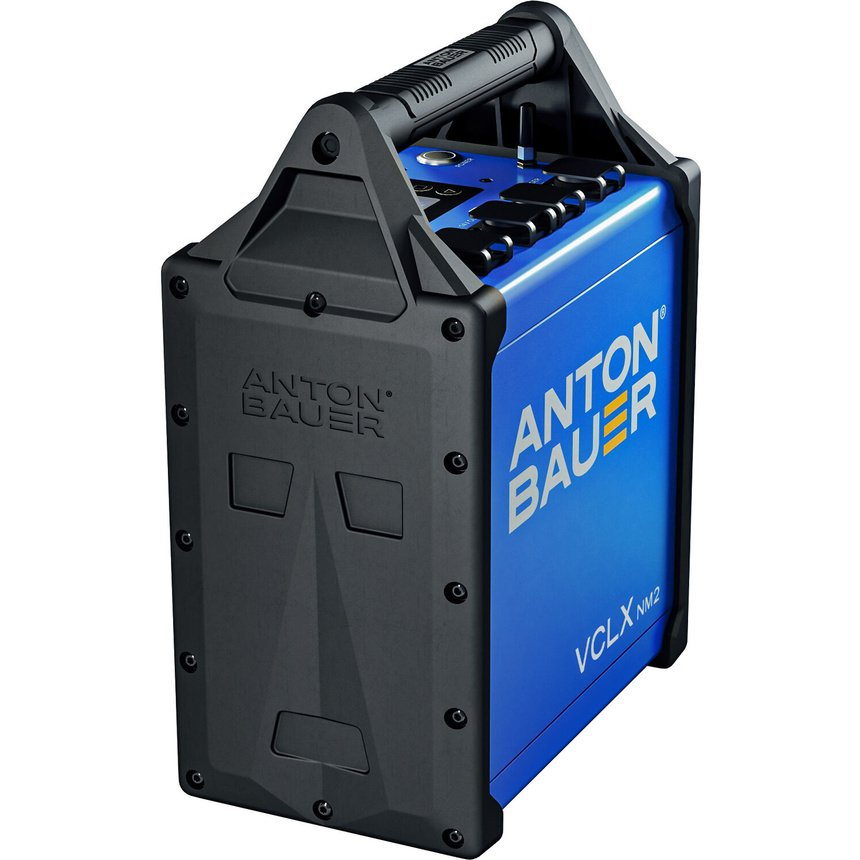

The Anton Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery is a reliable power source offering long-lasting performance. It features dual 14.4V outputs and a switchable 28/48V output, catering to diverse camera needs. Designed for high-current applications, it provides dual simultaneous outputs through two 4-pin XLR connectors for 14.4V and one 3-pin XLR connector for 28/48V output.
Core Features
This battery is compatible with the VCLX 2 charger (not included) to ensure maximum power efficiency. It features an onboard computer that maintains continuous communication with the charger, exchanging information such as battery age, self-discharge, charge/discharge rate, cell imbalance, and past charge/discharge cycles.
Monitoring & Display

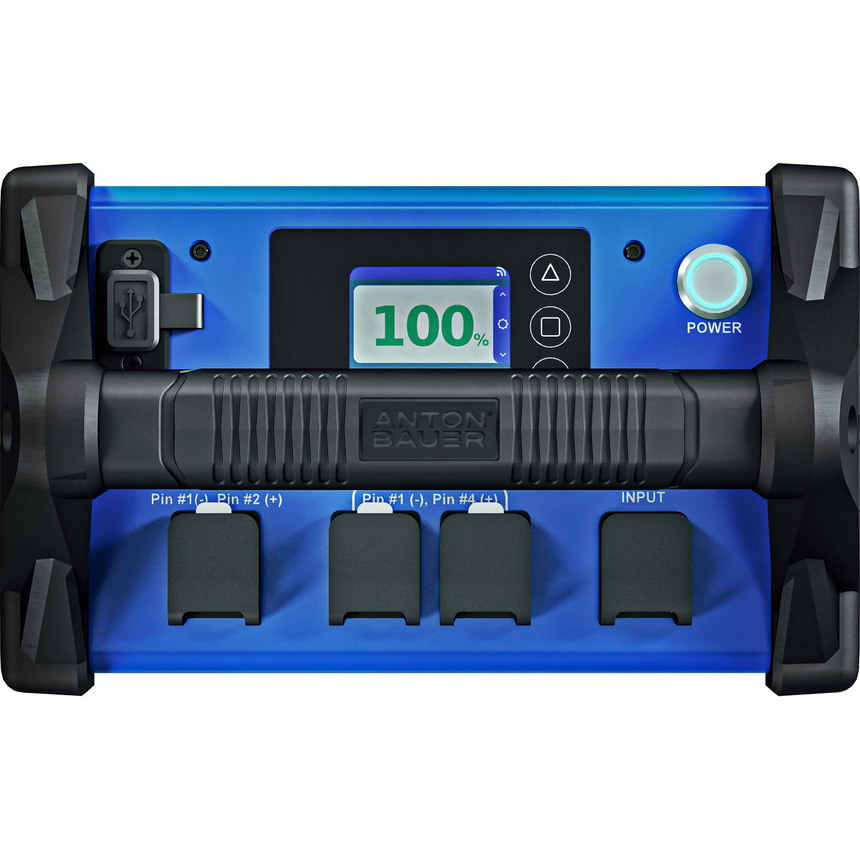

The battery is equipped with an LCD screen that accurately displays the remaining battery capacity percentage at all times, allowing for easy monitoring of power levels during camera operation.
Specifications
| Range | Cine |
| Chemistry | Nickel Metal Hydride |
| Voltage | Multi |
| Capacity | 600 Wh |
| Max load | 700 W |
| Power tap | No |
| USB | Yes |
| Weight | 13.30 kg |
| Dimensions | 25.5 x 33 x 15.3 cm |
| XLR Connector | Yes |
| XLR Inputs | Yes |
| Camera Interface | 2 X 4-Pin XLR (14.4v), 1 X 3-Pin XLR (28v or 48V) |
| Max current | 24 Amps |
What's Included
- Anton/Bauer VCLX NM2 NiMH 600Wh Free-Standing Battery
- Barcode: 83566
- UPC Barcode: 5060896404677
- Supplier Code: 8675-0174
