DJI Ronin Tethered Control Handle

SKU: CP.RN.00000097.01
(No reviews yet) Write a Review

$559.00
Key Features
  • For When Ronin-S Is Mounted on Jib, Etc.
  • Works with DJI Ronin-S Universal Mount
  • Allows 16.4' Remote Control
  • Ports for Additional Accessories

If the product is showing in stock, we'll ship it out the same day if the order is placed before 2pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Frequently bought together:

Description

Overview



The DJI Tethered Control Handle for Ronin-S is designed to work together with the optional Ronin-S Universal Mount in order to control the Ronin-S gimbal remotely. When you have the gimbal head of the Ronin-S attached to a camera support such as a jib or a cable cam, the Tethered Control Handle can be used to control it from up to 16.4' away, which is the length of the included control cable. One end of the control cable plugs into the DC port on the Tethered Control Handle and the other end connects to the DC port of the Ronin-S Universal Mount. A second DC port is provided on the handle for connecting accessories such as a monitor.

The Tethered Control Handle attaches to the gimbal's handle, which remains unused when the gimbal head is attached to a camera support, and it gets its power from the handle. For additional ease of use, the gimbal handle can in turn be mounted on a mini tripod.

The Ronin-S focus wheel and command unit can also be mounted on the Tethered Control Handle, attaching to the provided 8-pin port. Additionally, a rosette mount, cold shoe mount, and 3/8"-16 port are provided for attaching various other accessories.

Note:
The optional DJI Ronin-S Universal Mount is required.



Controls / Ports

  • Joystick
  • Trigger
  • Camera control button
  • M button
  • Lever
  • CAN bus port
  • Rosette mount, cold shoe, and 3/8"-16 port for attaching various accessories
  • Sleep button
  • 8-pin port for attaching the focus wheel and command unit of the Ronin-S
  • Two DC output ports (13-17V, 3A); the second one can be used for connecting a monitor
  • Profile LED indicators
View AllClose

SPECS

Cable Length 16.4' / 5 m
Connections 2 x 13-17 VDC, 3 A Output
1 x CAN Bus Port
1 x 8-Pin Port
Mount Types 1 x Rosette Mount
1 x Cold Shoe
1 x 3/8"-16 Female
Weight Tethered Control Handle:
8.8 oz / 250 g

Control Cable:
7.1 oz / 202 g
View AllClose

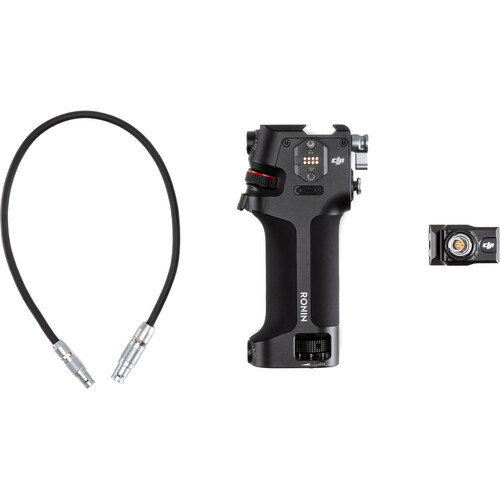

IN THE BOX

Control Cable (30 cm) × 1

Tethered Control Handle × 1

Expansion Port × 1

View AllClose

INFO

  • Supplier Code: RNS24
