Overview

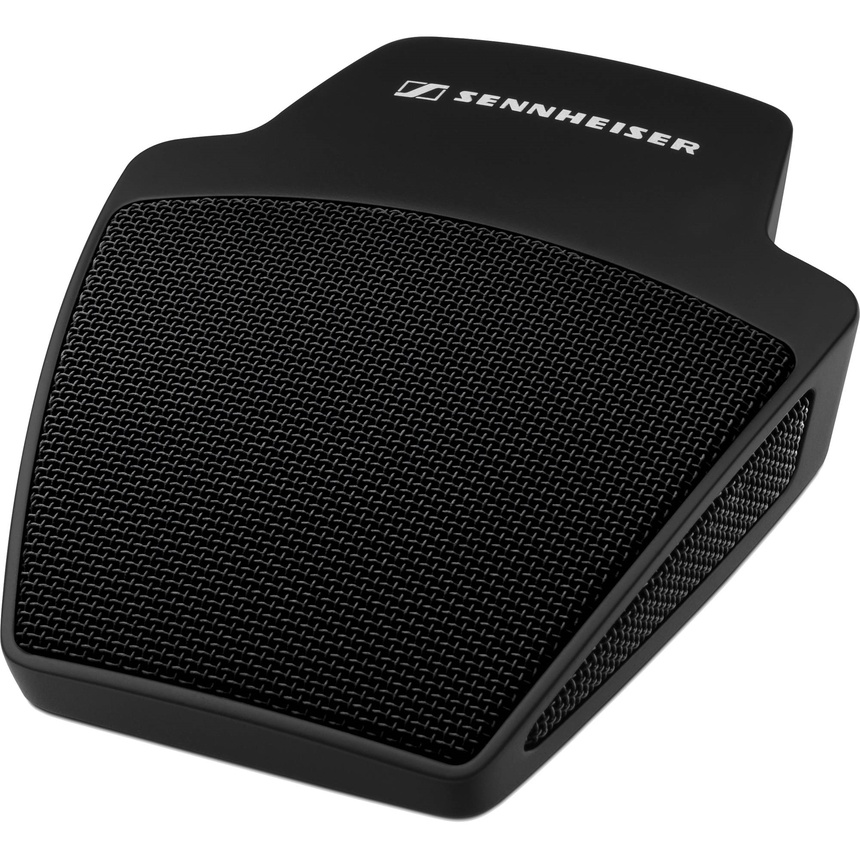

The black Sennheiser MEB 114 is a cardioid boundary microphone designed for accurate and intelligible speech reproduction in meetings, conferences, and presentations. It can be placed temporarily on a table or permanently mounted.
Core Features
Its cardioid polar pattern rejects sound from behind the capsule, providing a more focused pickup zone. With a wide frequency range of 40 Hz to 20 kHz and a high maximum SPL of 140 dB, it delivers clear audio free of distortion. The MEB 114 terminates to a mini-XLR jack and includes a 3-meter mini-XLR to XLR 3-pin cable for connection to a mixer or microphone preamp. The mic operates on 24 to 48V phantom power and requires no batteries.
Key Features
- The cardioid polar pattern has a wide directional characteristic, rejecting sound from the rear of the microphone.
- Unobtrusive boundary microphone allows for surface installation in tables or ceiling tiles.
- Can be installed permanently or used as a portable mobile microphone.
- Wide frequency response and high maximum SPL ensure accurate and distortion-free sound.
- Includes mini-XLR to XLR 3-pin for compatibility with standard microphone preamps.
Specifications
| Analogue Performance | |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Circuitry | Solid-State |
| Polar Pattern | Cardioid |
| Frequency Range | 40 Hz to 20 kHz |
| Equivalent Noise Level | 29 dB A-Weighted, 39 dB CCIR |
| Maximum SPL | 140 dB SPL |
| Pad | None |
| Impedance | 200 Ohms |
| Sensitivity | 10 mV/Pa |
| Dynamic Range | 111 dB A-Weighted |
| General | |
| Output Connectors | 1 x 3-Pin XLR |
| Cable Length | 3 m |
| Operating Current Consumption | 1.5 mA |
| Operating Voltage | 24 to 48 V |
| Operating Temperature | -10 to 50°C |
| Dimensions (W x H x D) | 85 x 25 x 100 mm |
| Weight | 291 g |
What's Included
- Sennheiser MEB 114 Cardioid Table Boundary Microphone (Black)
- 3-meter Mini XLR to 3-Pin XLR Cable
- Barcode: 83327
- UPC Barcode: 615104230330
- Supplier Code: 505612
