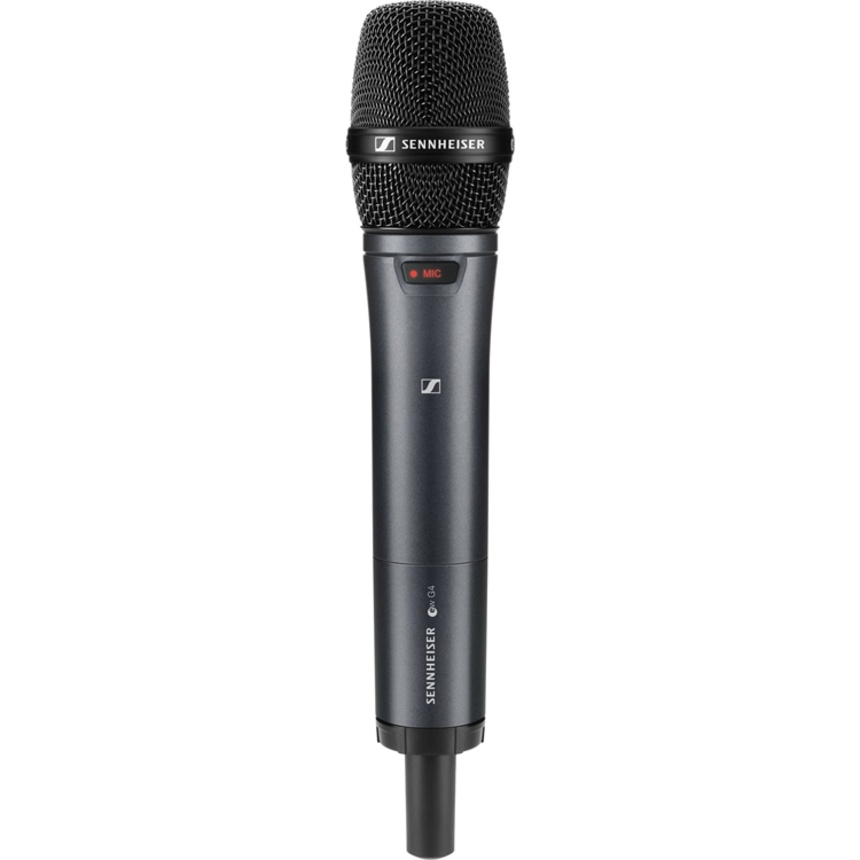

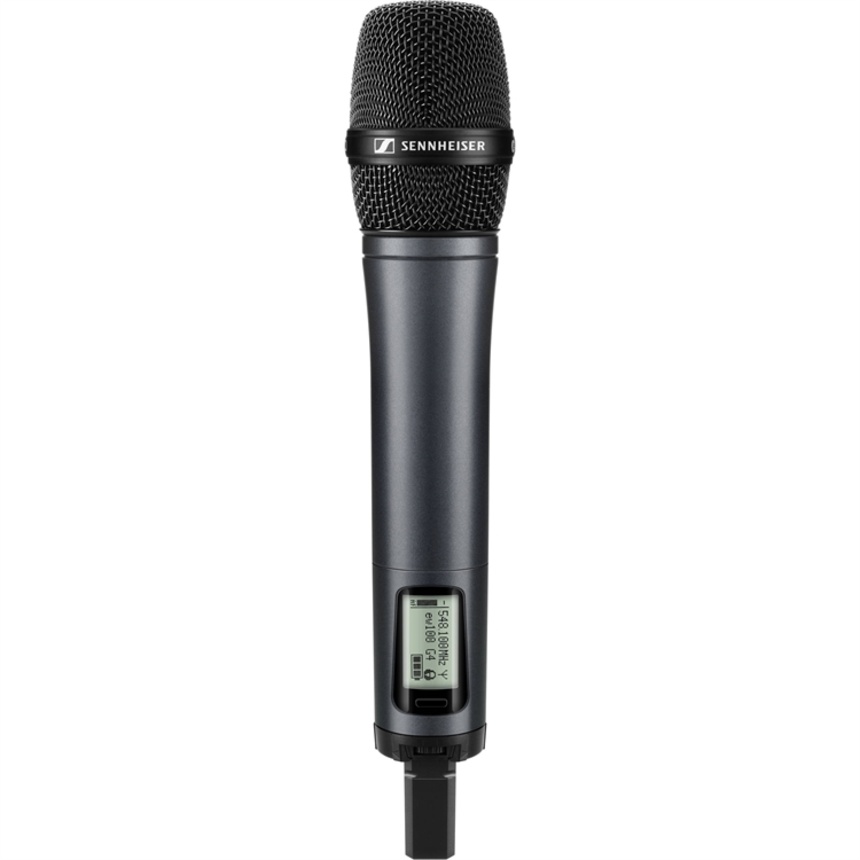

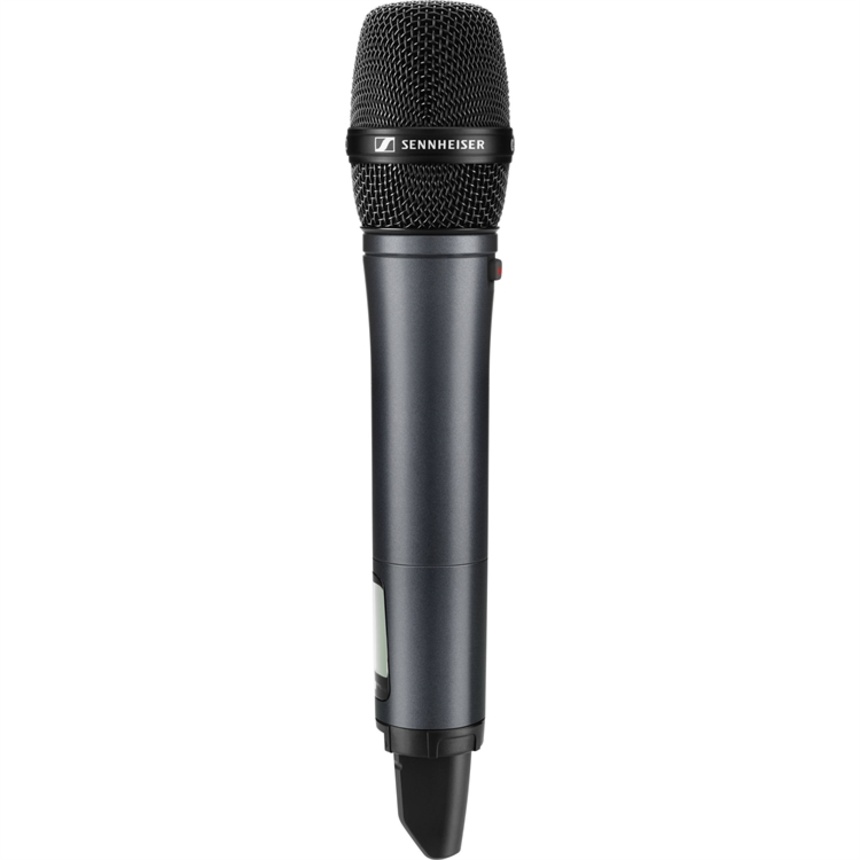

Sennheiser SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule (A: 516 - 558 MHz)

Sennheiser SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule (A: 516 - 558 MHz)

SKU:
SKM 100 G4-S-A

Key Features

  • A Band (516 to 558 MHz)
  • No Microphone Capsule
  • 1680 Tunable Frequencies Across 42 MHz
  • Pilot Tone Squelch
  • 20 Banks with 12 Channel Presets Each

Sennheiser

$609.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

The SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule from Sennheiser is designed for use with the G4 series of wireless receivers and a microphone capsule (available separately). It features infrared-sync for quick channel syncing, a lightweight and rugged aluminium housing, and delivers pristine audio for both speech and performance vocals. Powered by two AA batteries, it includes contacts for recharging the optional BA 2015 accupack battery without removal.

Core Features

  • Sleek design and fully compatible with all previous series
  • Improved User Interface: High-contrast LCD display and a dedicated escape button
  • Lightweight: Aluminium housing SKM handheld transmitter
  • Added functionality: Programmable mute switch added to SKM handheld transmitter
  • 1680 tunable frequencies within 1785-1800 MHz range for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible channels
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronisation of transmitter via infrared interface
  • User-friendly menu operation with more control options
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter features battery indication in 4 steps
  • Handheld transmitter compatible with easy-exchangeable microphone capsules from evolution series
  • Contacts for recharging BA 2015 accupack battery directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Specifications

Modulation Wideband FM
Frequency Range A: 516 - 558 MHz
Transmission Frequencies Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Switching Bandwidth Up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
Frequency Stability = ±15 ppm
RF Output Power Maximum 30 mW at 50 Ohms
Pilot Tone Squelch Can be switched off
Compander Sennheiser HDX
AF Frequency Response 80 Hz to 18 kHz
Signal to Noise Ratio = 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD) = 0.9%
Maximum Input Voltage 3 V eff
Input Impedance 40 kOhms
Input Capacitance Switchable
Input Sensitivity Range 48 dB, adjustable in 6 dB steps
Temperature Range -10 to 55°C
Power Supply 2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage 3 V battery / 2.4 V rechargeable battery
Current Consumption At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: = 25 µA
Operating Time Typically 8 hours
Dimensions (W x L x H) 50 x 265 mm
Weight 450 g

What's Included

  • Sennheiser SKM 100 G4-S Handheld Transmitter with Mute Switch, No Capsule (A: 516 - 558 MHz)
  • MZQ 1 Microphone Clip
  • 2 x AA Batteries
  • Barcode: 83449
  • UPC Barcode: 615104368392
  • Supplier Code: 509750
