Overview
The SR IEM G4 Stereo Transmitter from Sennheiser is part of their evolution series of wireless systems. It features wideband FM stereo modulation and is designed for use in live stage, theatre, and rehearsal applications as part of a wireless RF monitoring system.
Core Features

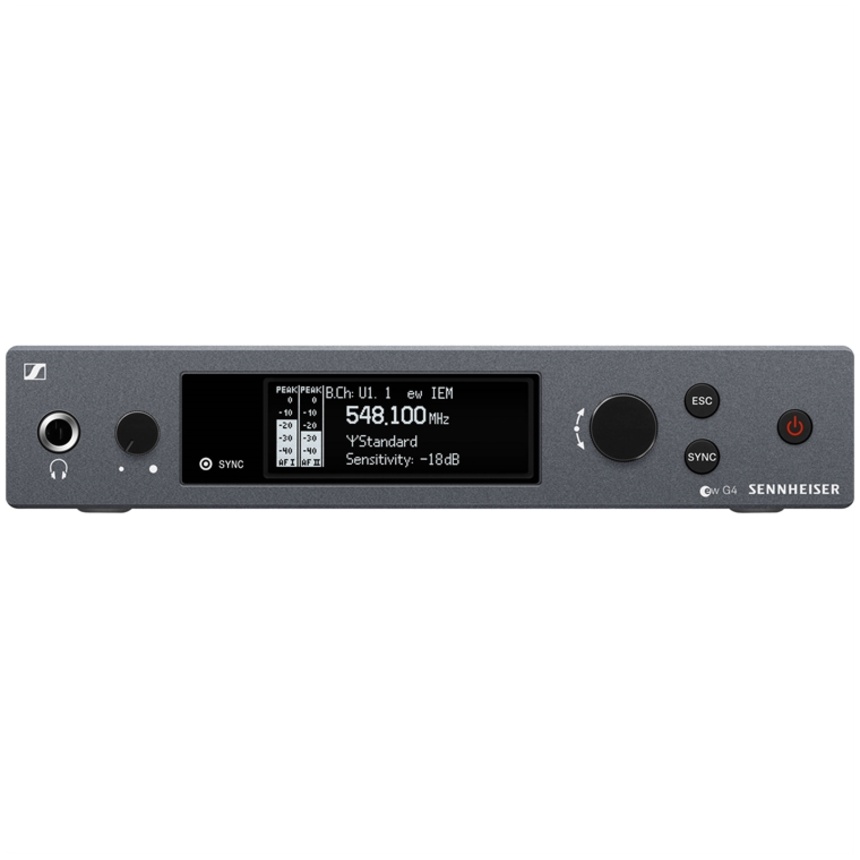

The stereo transmitter offers 1680 frequencies tunable in 25 kHz steps, 20 fixed frequency banks with up to 16 compatible frequency presets, and 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit OLED display provides information on current frequency, frequency bank and channel number, AF level metering, transmission status, equaliser settings, lock status, and input sensitivity. An auto-lock feature prevents accidental setting changes.

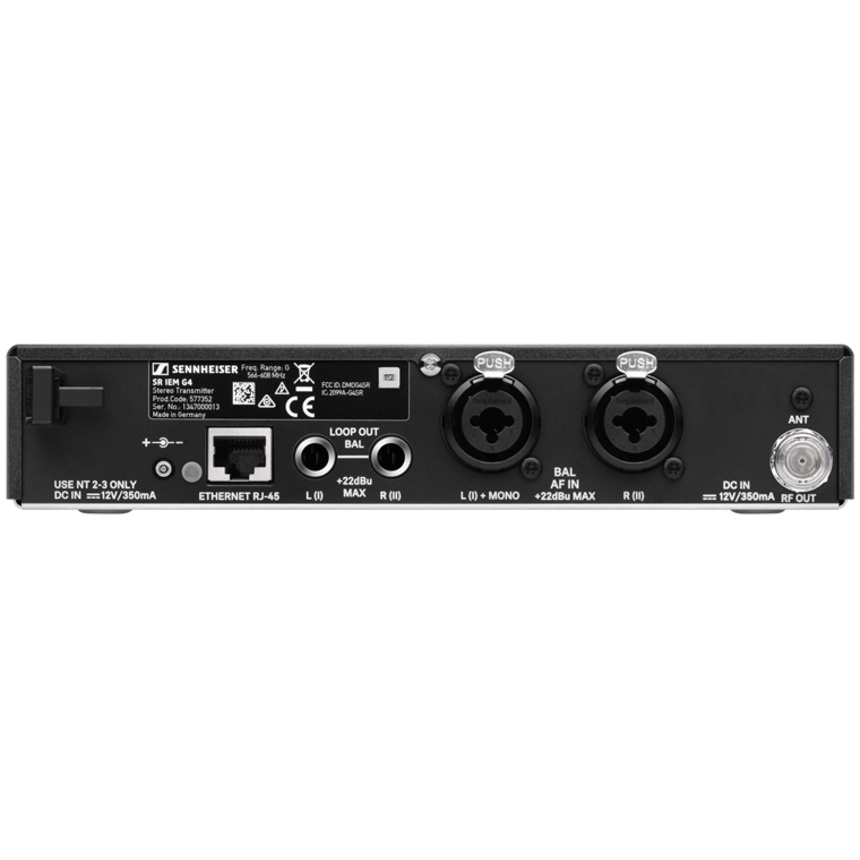

Receivers can be synchronised with the transmitter via an integrated infrared interface. The transmitter includes two electronically balanced XLR/6.35 mm combo sockets, a 6.35 mm headphone output with volume control, an Ethernet port (RJ-45 for remote network-based monitoring), and a 50 Ohm BNC-type antenna input. It has a rugged metal housing and comes with a 12 V power supply and a GA 3 rackmount kit.
Features

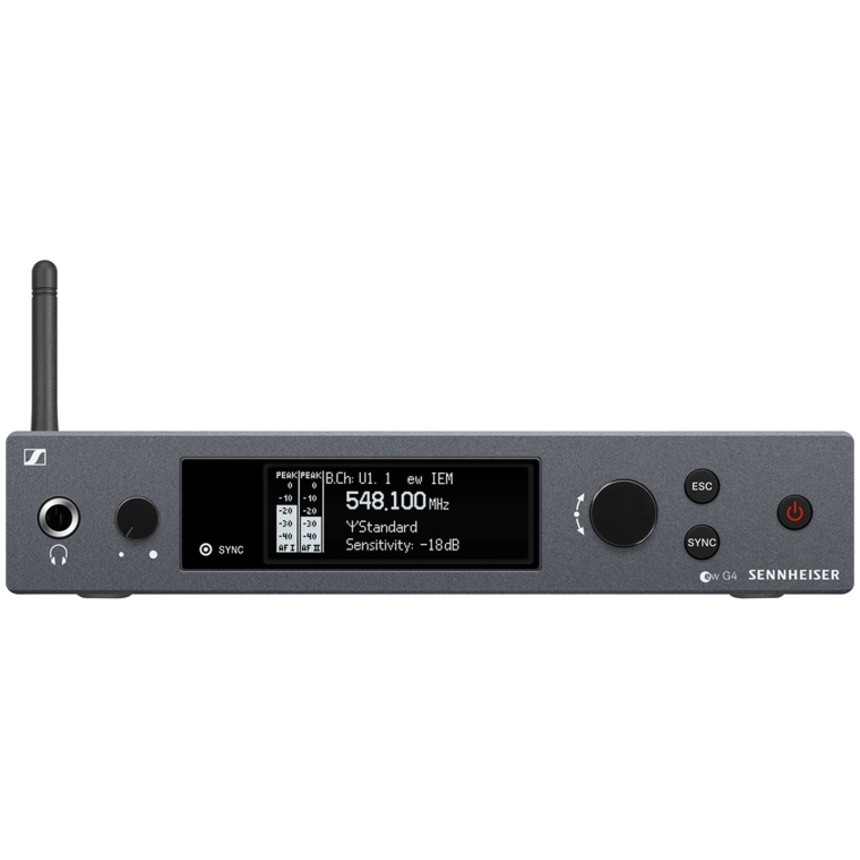

- Half-rack stereo transmitter in a full-metal housing with OLED display for full control.
- Easy and flexible wireless synchronisation between transmitter and receiver via infrared.
- Compatible with Sennheiser WSM control software for flexible frequency allocation.
- Up to 16 compatible channels.
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
- Transmission Range: up to 100 metres.
- High RF output power (up to 50 mW) depending on country regulations.
Specifications
| Modulation | Wideband FM stereo (MPX pilot tone) |
| Frequency Band | B: 626 to 668 MHz |
| Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels |
| Switching Bandwidth | up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| MPX Pilot Tone | 19 kHz/ ±5 kHz (frequency/deviation) |
| Frequency Stability | ±10 ppm |
| Antenna Output | BNC socket, 50 Ohms |
| RF Output Power | @ 50 Ohms Switchable: Low: Typical 10 mW Standard: Typical 30 mW High: Typical 50 mW |
| Compander | Sennheiser HDX |
| AF Frequency Response | 25 Hz to 15 kHz |
| AF Input | Electronically Balanced 2 x XLR-1/4" / 6.3 mm balanced combo jack Balanced AF in L +Mono Balanced AF in R |
| Maximum Input Level | +22 dBu |
| Total Harmonic Distortion (THD) | = 0.9 % |
| Signal to Noise Ratio | Approximately >90 dB (nominal load and peak deviation) |
| AF Output | 1/4" / 6.3 mm stereo jack socket balanced Loop out balanced L, loop out balanced R |
| Temperature Range | -10 to 55°C |
| Power Supply | 12 VDC |
| Current Consumption | Maximum 350 mA |
| Dimensions (W x L x H) | 202 x 212 x 43 mm |
| Weight | 980 g |
What's Included
- Sennheiser SR IEM G4 Stereo Transmitter (B: 626 - 668 MHz)
- Rod Antenna
- Power Supply
- GA 3 Rackmount Kit for G3 100/300/500 Series
- Barcode: 83487
- UPC Barcode: 615104365926
- Supplier Code: 509620
