Overview
The XSW 2-865-A Wireless Handheld Microphone System with e865 Capsule features a true diversity receiver and a handheld transmitter with an intuitive LCD display. It offers 12 compatible channels and is designed as an easy-to-use, all-in-one wireless system for singers and presenters.
Core Features
Features

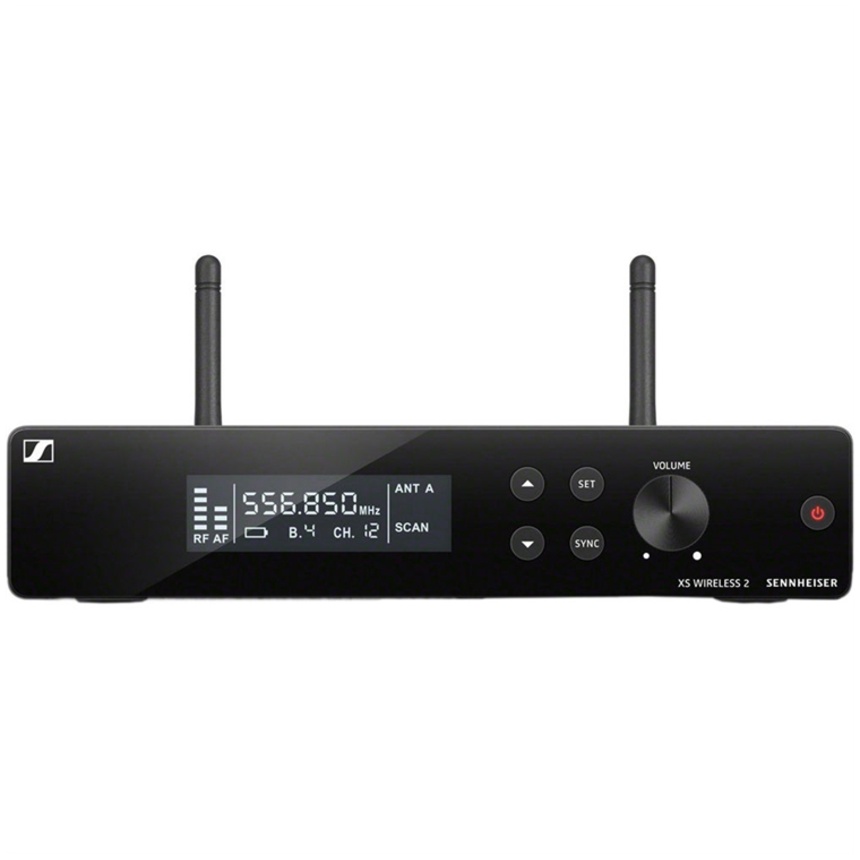

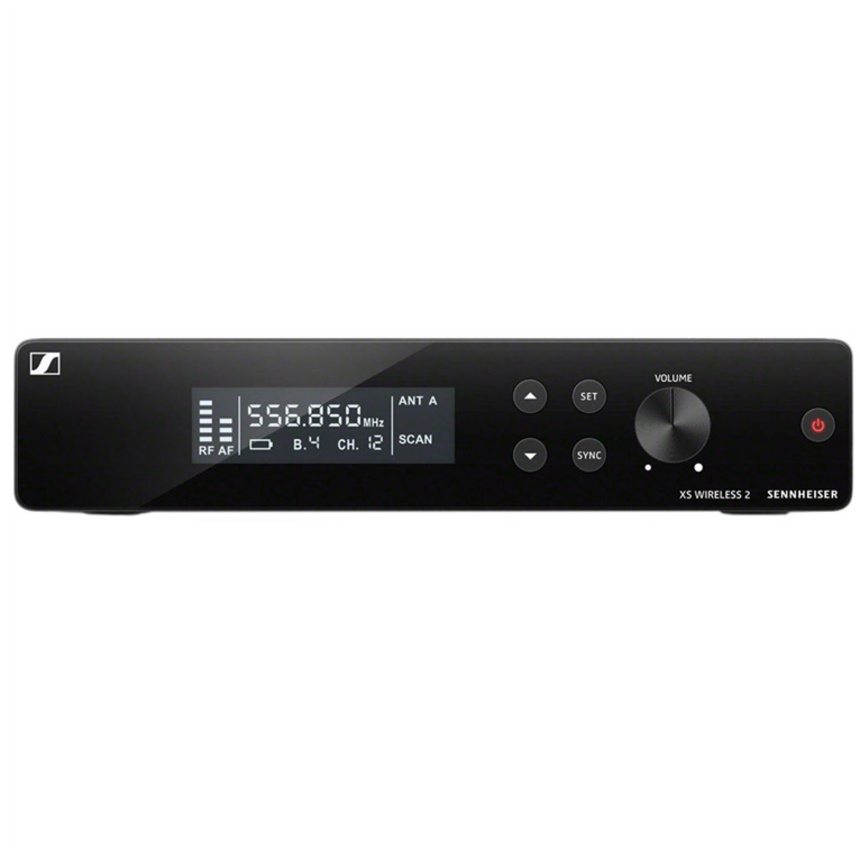

- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronisation
- Remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Technical Details
The unit has automatic frequency management and synchronization, eliminating the need to scramble for an available channel. The transmitter's e865 capsule uses a supercardioid polar pattern, part of the evolution series, designed to withstand tougher, live-stage conditions.
Specifications
| System | |
| Modulation | Wideband FM |
| Frequency Range | A: 548 - 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Frequencies | Adjustable in 25-kHz steps, 8 frequency banks, each with up to 12 factory-preset channels |
| Signal to Noise Ratio | = 103 dBA |
| Total Harmonic Distortion (THD) | = 0.9% |
| Temperature Range | Operation: 0 to +40°C, Storage: -20 to +70°C |
| Transmitter Synchronisation | 2.4 GHz, low power OQPSK (only active during synchronisation) |
| Receiver | |
| Principle of Operation | Double superheterodyne |
| Diversity Method | True diversity |
| Sensitivity | < 3 µV at 52 dBA rms S/N at (peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Maximum AF Output Voltage | At peak deviation, 1 kHz AF, 1/4" (6.3 mm) Jack Socket (Unbalanced): +6 dBu, XLR Socket (Balanced): +12 dBu |
| Adjustment Range | Audio: 40 dB, adjustable in 5-dB steps |
| Power Supply | Nominal Input: 100 to 240 VAC 50/60 Hz, Input Current: 200 mA (Max.), Nominal Output: 12 VDC 300 mA |
| Squelch | Adjustable from 3 dBµ V to 28 dBµ V (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Housing Material | Rugged metal housing |
| Dimensions (W x H x D) | 200 x 42 x 127 mm |
| Weight | 680 g |
| Transmitter | |
| RF Output Power | 10 mW |
| AF Frequency Response | 80 Hz to 16 kHz |
| Power Supply | 2 x AA size batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Microphone Type | Condenser, pre-polarised |
| Input Sensitivity | Capsule: 1.8 mV/Pa |
| Polar Pattern | Supercardioid |
| Sensitivity Adjustment | Range: 0 to -30 dB, adjustable in 10-dB steps |
| Housing Material | Rugged ABS housing |
| Dimensions (L x Diam) | 260 x 50 mm approximate |
| Weight | 245 g approximate |
What's Included
- EM-XSW 2 Receiver
- SKM 865-XSW Handheld Transmitter
- MZQ1 Microphone Clamp
- NT 12-5 CW Power Supply
- Rackmount Kit
- Protective Pouch
- 2 x AA Batteries
- Barcode: 83507
- UPC Barcode: 615104279971
- Supplier Code: 507150
