Cine 24 brings 4K monitoring everywhere. 1350nits of sustained brightness enables clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. Small4K™ Video Processing Architecture offers a total 4K Input / Output workflow with 4x 12G-SDI hardware and PageOS 4 Quad-View* for multiple 4K-input viewing. Lightweight for faster setup & teardown, this monitor is the all-around solution as a director’s monitor or for production & broadcast video villages. Cine 24 is SmallHD’s ultimate production workhorse.
Product Highlights
- 23.8in/60cm IPS LCD
- 1350nits
- 3840x2160 Resolution
- 100% DCI-P3 Color
- Weight: 16.5lbs / 7.5kg (with handle & feet)
Key Platform Highlights
- PageOS 4 software platform
- 4K HDR waveform and scopes*
- Dual & Quad-view*
- Color Pipe HDR color rendering
- Monitor Calibration Wizard
- Small4K™ Video Processing Architecture
- Inputs: 4x 12G-SDI , 1x HDMI 2.0
- Outputs: 4x 12G-SDI, 1x HDMI 2.0*
- Unibody Smart Chassis
- Smartrail for battery and accessory mounting
- Interchangeable mounting points
- 2x 2-pin accessory power outputs
- Power: Hot-swappable dual inputs: 1x 3-pin XLR, 1x Dual-GM/VM Battery Plate (sold separately)
Environmental
Item Weight (oz)
264
Display
Panel Type
IPS LCD
Diagonal Size
24.1
Resolution
3840x2160
Brightness
1350nits
Contrast
1000:1
Gamut
100% DCI-P3
Color Depth
10-bit (8+2)
Backlight Type
Edgelit
Input Signal
12G-SDI Input Types
4x 12G-SDI
HDMI Input Types
1x HDMI 2.0 (4K60)
Output Signal
12G-SDI Output Types
4x 12G-SDI
HDMI Output Types
Coming Soon
Audio Output Types
1x 3.5mm 3-pin Stereo Headphone Jack
Data I/O
Connector Type
1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI
Power
Input
1x 3-pin XLR (12-34V/12A)
Output
2x 2pin (12V / 2A combined) 2x USB (5V / 2.4A) (Front/Rear) 1x USB-C (5V / 1.5A)
Consumption
128w (monitor only) 209w (w/max access. power draw)
Batter Plate Included
No
Battery Types
1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

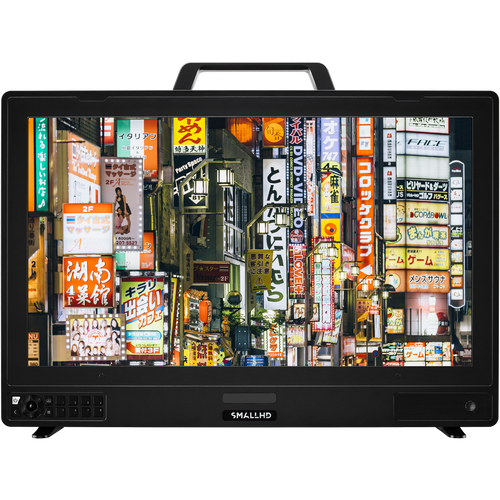

SmallHD 24" Cine High Bright Production Monitor
- Barcode: 50159
- Supplier Code: 33.1.MON-CINE-24
