Aputure CF7 Fresnel and Barndoors Kit for Storm 400x

SKU:
AP0F055A3A
Key Features
  • For STORM 400x.
  • 15 to 40° Variable Beam Angle
  • Intensifies Output by up to 53,900 Lux
  • Dual-Expanding Focusing System
$369.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment
Adding to cart… The item has been added

CF7 Fresnel and Barn Doors Kit Overview

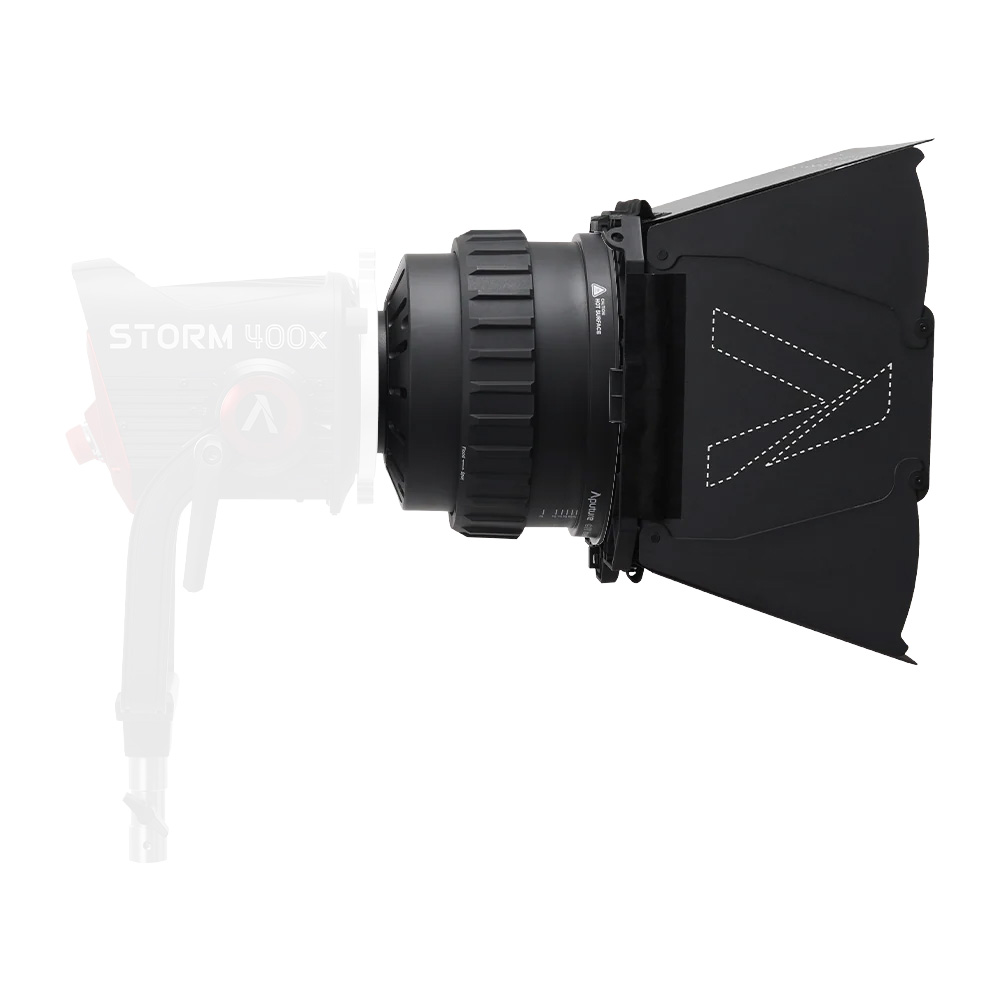

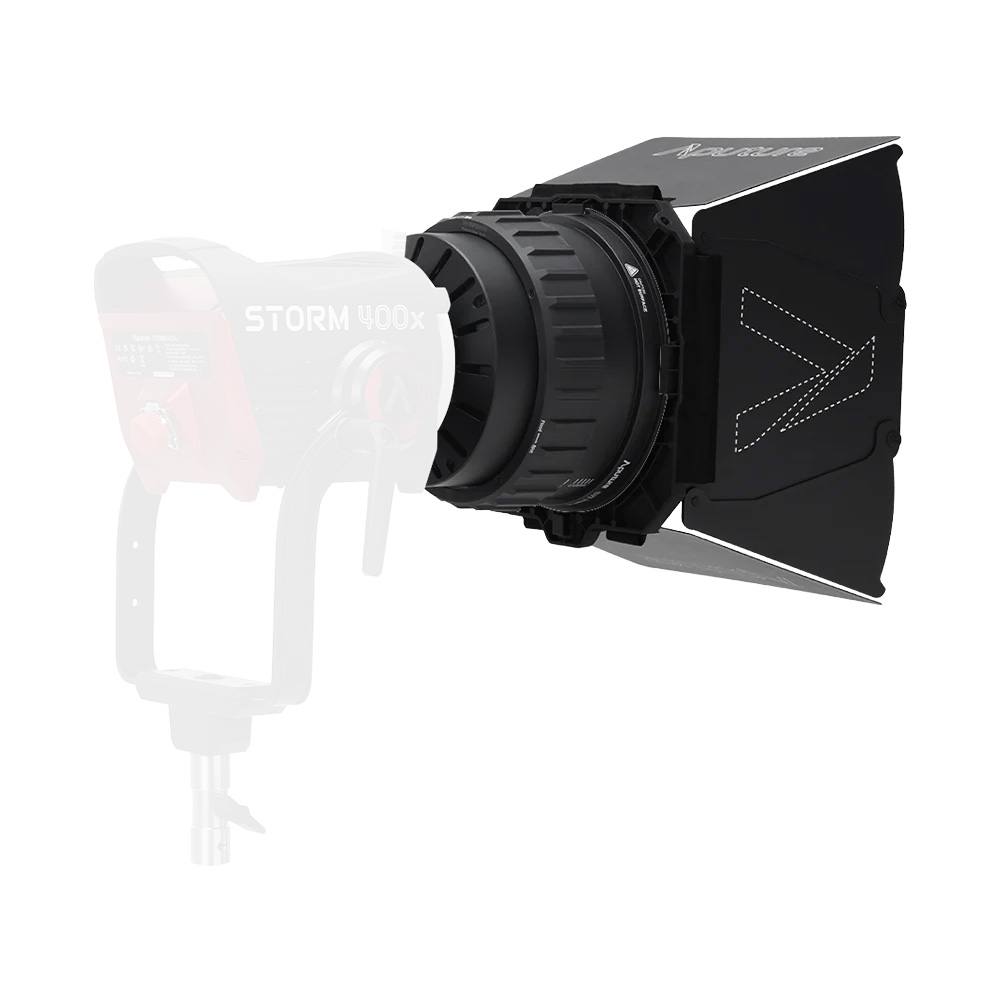

The CF7 Fresnel with Barn Doors Kit is a 7 inch Bowens Mount fresnel with included 8-leaf barn doors. It offers a beam range of 15º to 40º while maintaining a compact profile. The dual-expanding focusing system with multiple lens elements drastically reduces size and weight without compromising optical performance. The compact design is optimized for use with the STORM 400x.

Product Specifications

Name Beam Angle CF7 Fresnel CF7 Barn Doors CF7 Carrying Case CF7 Fresnel CF7 Barn Doors CF7 Carrying Case Packing Dimensions Net Weight Gross Weight Product Dimensions Product Weight CF7 Fresnel and Barn Doors Kit 15-45° ?22.4*10.5cm / ?8.81×4.13 in 27.6 ×25.9 ×4.48cm / 10.9×10.2×1.76 in 34.5×21×32.2cm / 13.6×8.26×12.8 in 1.35Kg / 2.98lbs 0.95Kg / 2.09lbs 1.39Kg / 3.06lbs 34.5×21×32.2cm / 13.6×8.26×12.8 in 2.21Kg / 4.87lbs 4.08Kg /8.99lbs



CF7 Fresnel and Barn Doors Kit Photometrics

CCT Dis. 15º Spot 40º Flood
1,800K 1m 179,800 lux 16,703 fc 40,600 lux 3,772 fc
1,800K 3m 17,700 lux 1,644 fc 4,780 lux 444 fc
3,200K 1m 225,200 lux 20,921 fc 51,000 lux 4,738 fc
3,200K 3m 22,210 lux 2,063 fc 6,020 lux 559 fc
4,300K 1m 237,300 lux 22,045 fc 53,900 lux 5,007 fc
4,300K 3m 23,470 lux 2,180 fc 6,400 lux 595 fc
5,600K 1m 236,700 lux 21,989 fc 53,900 lux 5,007 fc
5,600K 3m 23,260 lux 2,161 fc 6,380 lux 593 fc
6,500K 1m 228,700 lux 21,246 fc 52,700 lux 4,896 fc
6,500K 3m 22,690 lux 2,108 fc 6,240 lux 580 fc
10,000K 1m 225,200 lux 20,921 fc 4,784 fc
10,000K 3m 22,110 lux 2,054 fc 6,100 lux 567 fc
20,000K 1m 212,600 lux 19,751 fc 48,500 lux 4,506 fc
20,000K 3m 20,760 lux 1,929 fc 5,740 lux 533 fc

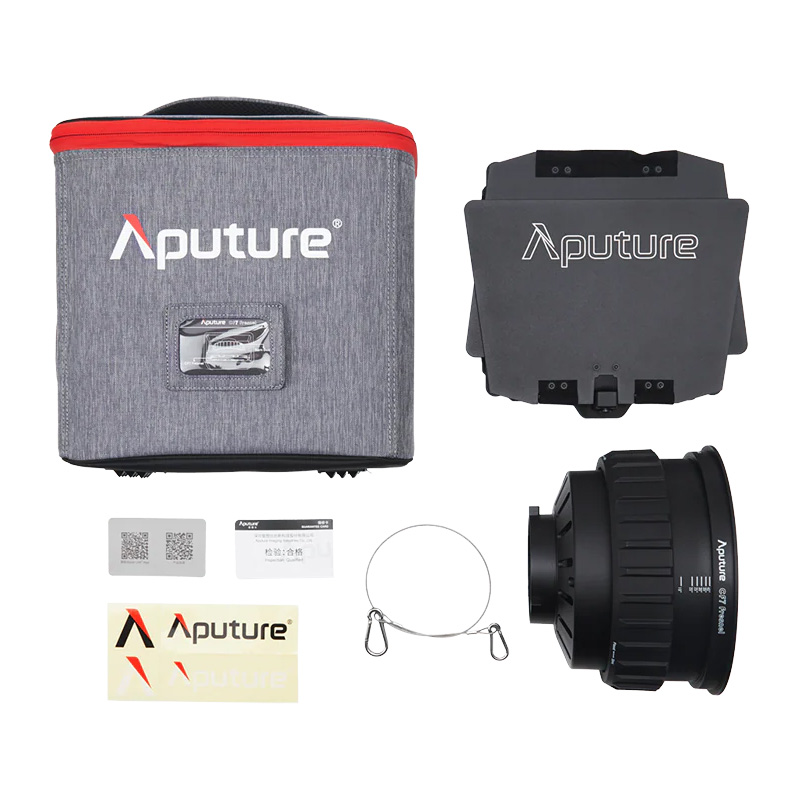

In the Box

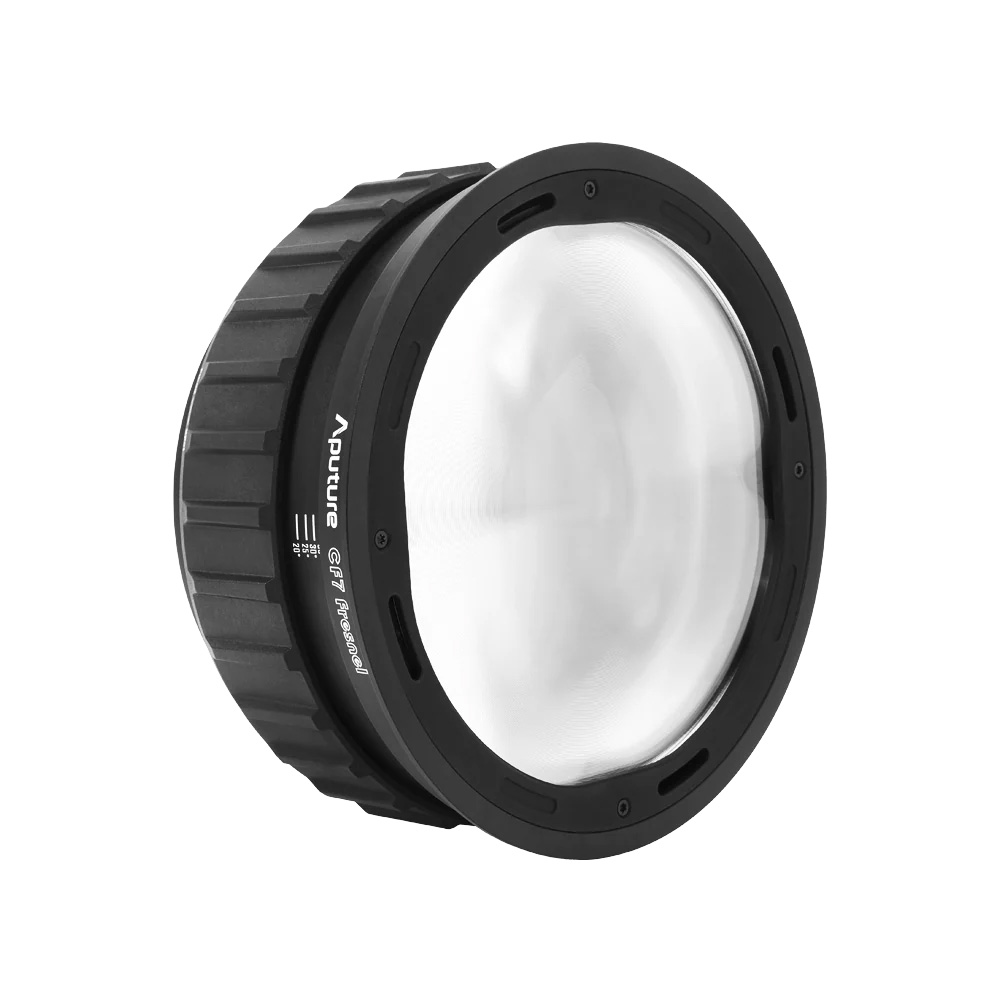

  • 1x CF7 Fresnel

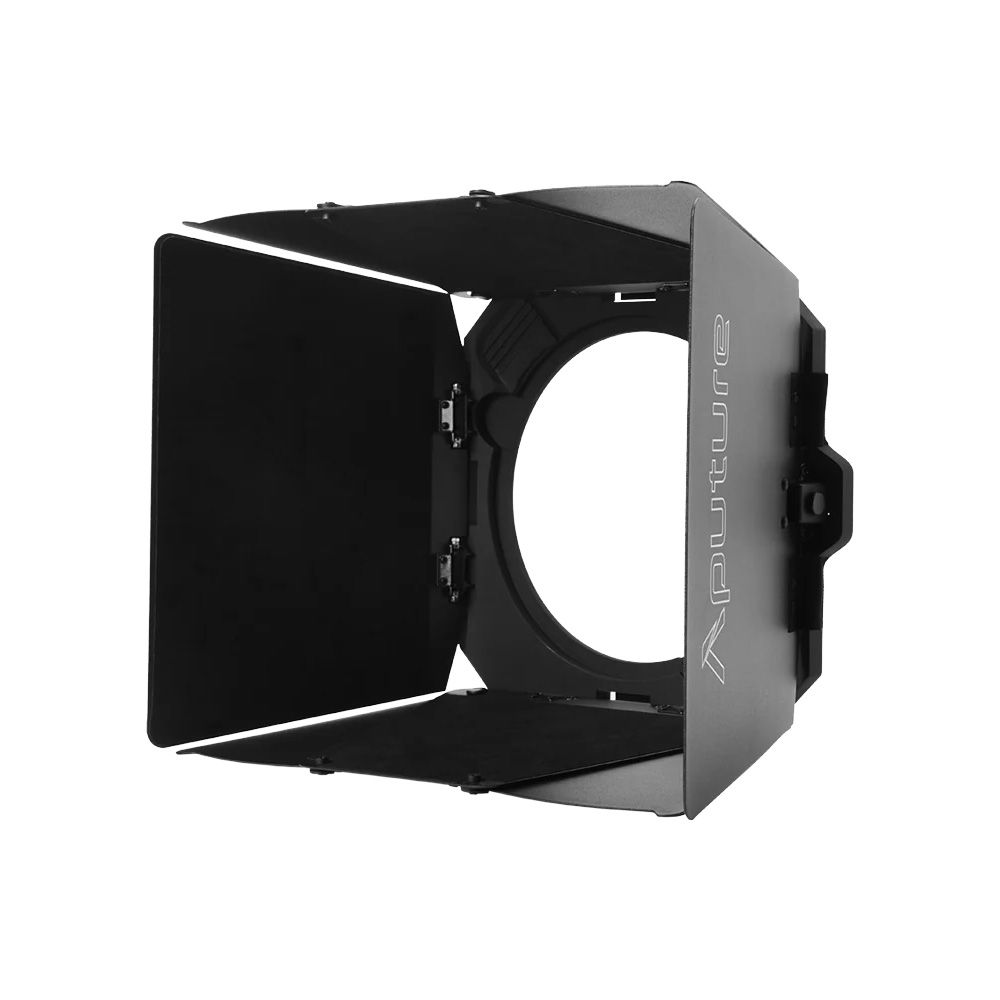

  • 1x CF7 Barn Doors



  • 1x Safety Chain



  • 1x Carrying Case

  • Barcode: 82612
  • UPC Barcode: 6977162457017
  • Supplier Code: AP0F055A3A
