Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher

Overview

The Atomos SHOGUN AV-19 is a 19" rackmount 4K HDR monitor-recorder-switcher designed for studio, broadcast, and live event productions. Combining monitoring, recording, and multicamera switching in a single unit, it features a bright capacitive touchscreen, 12G-SDI and HDMI connectivity, and NDI|HX3 support via Gigabit Ethernet, making it a versatile hub for modern production workflows.

Whether you are capturing cinema-quality footage, live streaming multicamera events, or integrating into existing NDI networks, the SHOGUN AV-19 provides real-time HDR monitoring, precise color management, and robust recording capabilities, all on a large UHD display for clear and detailed visual evaluation on set.

Core Features

• 19" UHD 3840 x 2160 touchscreen display with 1200 cd/m² brightness for accurate monitoring.
• Multicamera switching with one HDMI, two 12G-SDI, and two 3G-SDI inputs and live quad-view.
• NDI|HX3 input/output via Gigabit Ethernet for low-latency streaming and PTZ camera integration.
• HDR I/O and color management with real-time LUT preview and 10-bit HDR monitoring.
• Supports ProRes, ProRes RAW, and DNxHR recording up to 6K30 via SDI and DCI 4K60 via HDMI.
• User-definable function buttons provide quick access to monitoring tools, LUTs, and playback modes.
• Extensive built-in monitoring tools including focus peaking, false color, waveform, vectorscope, and anamorphic desqueeze.
• 7 RU rackmount design with dual XLR power inputs, LTC input, and redundant power options for live and studio setups.

Bright UHD 4K Screen

• Large 3840 x 2160 resolution display with 1200 cd/m² brightness
• Capacitive touchscreen for intuitive control and navigation
• Quad- or full-screen display setup for multicamera monitoring
• Playback of recently captured footage on the same display for immediate review

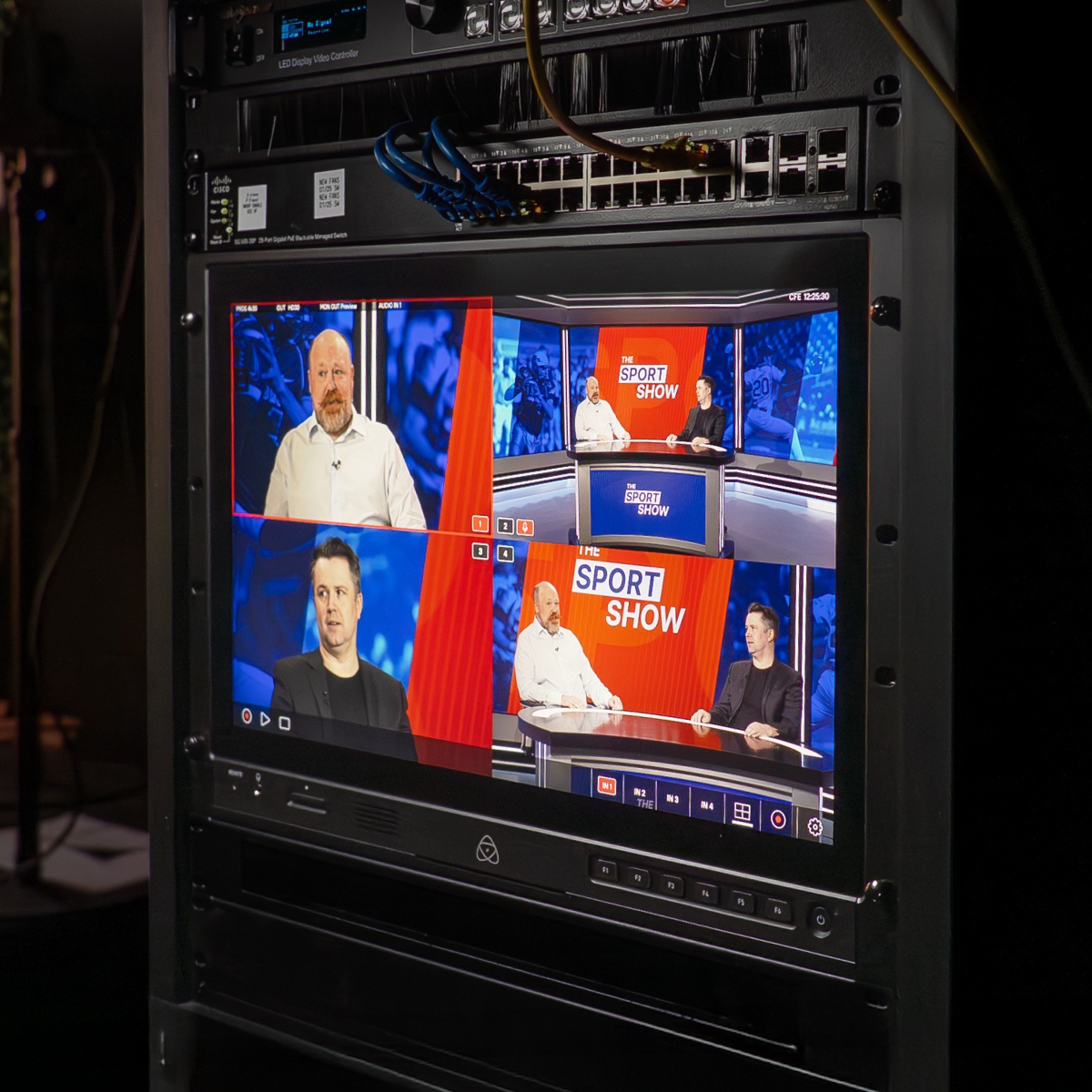

Multicamera Switching

The SHOGUN AV-19 can act as a live quad-view switcher, monitoring up to five channels simultaneously. Switching is asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras, while recording a fifth program channel of your mixed feed live.

NDI Support

NDI|HX3 protocol enables low-latency, high-quality program input and output via the Gigabit Ethernet port. The SHOGUN integrates easily with existing NDI networks and PTZ camera systems for seamless live production workflows.

HDR I/O and Color Management

Supports HDR monitoring and delivery via HDMI or SDI, displaying real-time 10-bit HDR from compatible cameras. Log signals are received from cinema cameras, with LUT preview for Rec.709 grading while recording high-quality ProRes, ProRes RAW, or DNxHR.

Recording and Custom LUTs

• Records main program up to 6K30 via 12G-SDI and DCI 4K60 via HDMI
• Simultaneously records up to four 1080p60 ISO streams while switching in real time
• Records to CFexpress slot or external media via USB-C output
• Custom LUTs (.cube files) can be loaded and applied for precise exposure control

User-Definable Function Buttons

Six customizable front-panel buttons provide instant access to frequently used features, including monitoring tools, LUTs, playback modes, and anamorphic desqueeze, enabling faster and more efficient workflow on set.

Monitoring Tools

• Custom 3D LUTs
• False color and HDR exposure
• Focus peaking and pixel magnification (1:1, 2:1)
• RGB parade, vectorscope, waveform, and frame guides
• Zebra, safe areas, markers, and vertical flip
• Atomos Calibrator compatibility with Display Pro HL and Display Plus HL
• Downscaling to HD, interlaced/PSF to progressive, and anamorphic de-squeeze

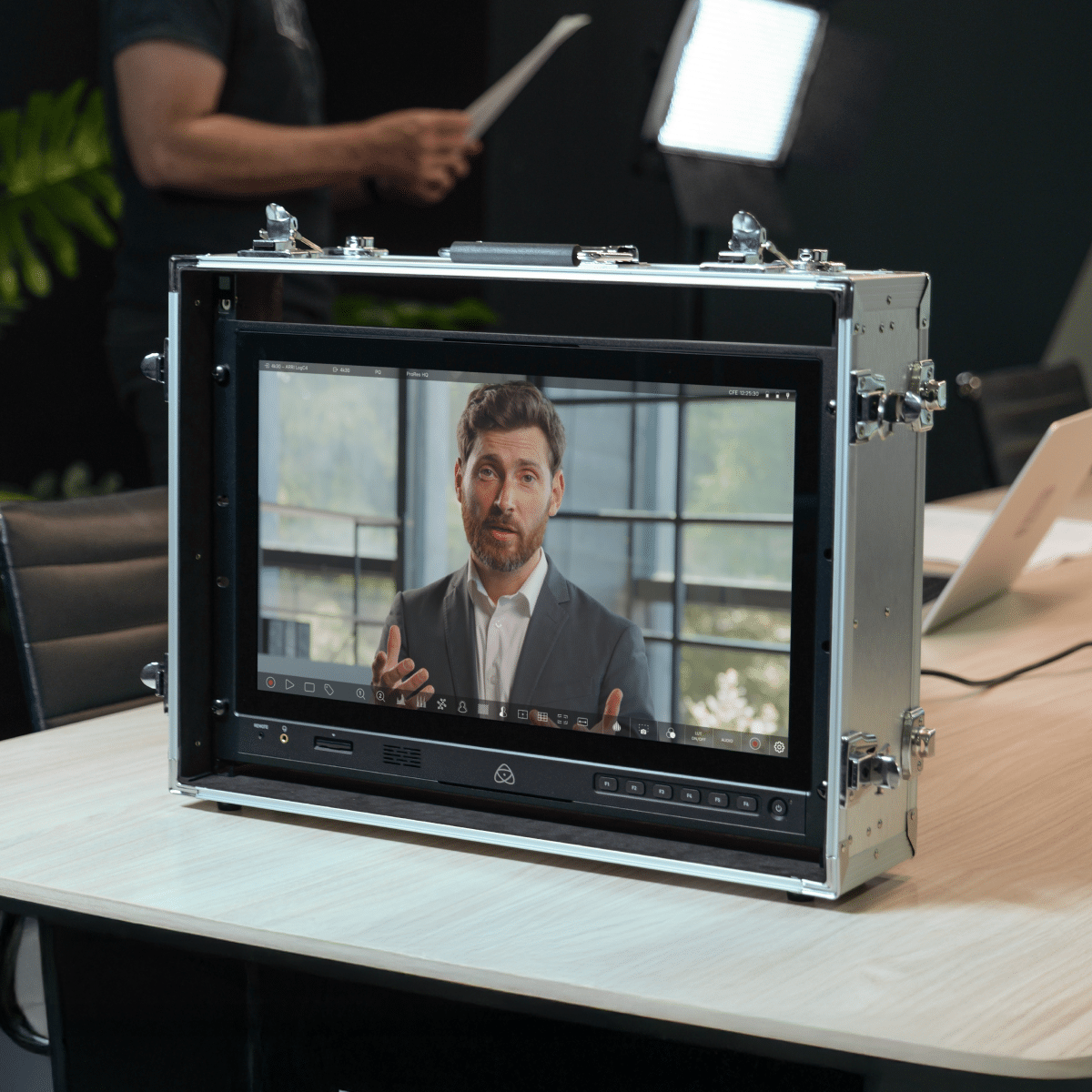

Powerful Live and On-Set Use

Provides a bright, color-accurate reference display for directors, DITs, and crew. Quick playback of recorded takes and full suite of monitoring, switching, and graphics tools ensure confidence in exposure, focus, color, and framing during live or studio production.

Additional Features

• LTC input via BNC and 3-pin XLR audio input for 2-channel input/output
• 7 RU rackmount size with dual 4-pin XLR power inputs for redundancy
• Remote start/stop trigger via 2.5mm LANC jack on front
• 3.5mm headphone output and front-facing tally light
