Overview
The Bluetti Charger 1 is a 560W alternator charger designed to efficiently charge portable power stations using your vehicle's alternator while driving. It is ideal for road trips, RVing, and off-grid adventures, ensuring your power station remains charged without relying on traditional outlets.
Core Features
Advanced Safety Features
With adjustable voltage output, the Charger 1 works seamlessly with all BLUETTI power stations and 95% of other major brands. For added protection, it can be paired with optional DC input cables featuring a 60A circuit breaker (cables sold separately).
Smart Auto On/Off
The Charger 1 automatically powers on when your vehicle starts and shuts down when it stops using a voltage monitoring algorithm, protecting your starter battery from unnecessary drain.
Superior Temperature Control
Even at 40°C and above, the Charger 1 maintains stable power output, ensuring reliable charging regardless of conditions.
6x Faster Charging
Delivering up to 560W of power, the Charger 1 can charge a 1kWh power station in just 2.5 hours, up to six times faster than standard car cigarette lighter chargers.
Multi-Layer Protection
Protect Your Vehicle Battery
Prevents drain on your vehicle’s battery, keeping you ready to start anywhere.
Protect the Charger 1
Built-in smart circuitry and auto on/off functionality maintain safe, efficient operation, extending charger lifespan.
Protect Your Power Station
Customizable output voltage delivers the perfect charge for your power station, reducing wear and maximizing lifespan.
Monitor and Control
With the BLUETTI app, you can check charging status, adjust voltage settings, and monitor performance in real time from your smartphone.
Output
| Default Output Voltage | 27V |
| Adjustable Voltage Range (12V Battery) | 15.0V – 56.0V (via app) |
| Adjustable Voltage Range (24V Battery) | 27.0V – 56.0V (via app) |
| Output Current | 10A |
| Maximum Output Power | 560W |
Input
| Input Voltage | 12V – 14V / 22.5V – 28V |
| Input Current | 50A @ 12V / 25A @ 24V |
General
| Function | Boosts voltage output for efficient power station charging |
| Compatibility | Works with all BLUETTI power stations and 95% of other models |
| Protection Features | Short Circuit, Reverse Polarity, Under-voltage, Over-temperature |
| Cooling Method | Active fan cooling |
| Surge Protection | Optional 60A circuit breaker |
| Operating Temperature | -20°C to 60°C |
| Protection Rating | IP20 |
| Noise Level | = 50 dB |
| Weight | 1.2 kg |
| Dimensions | 14.5 × 11 × 6 cm |
| App Control | Bluetooth-enabled |

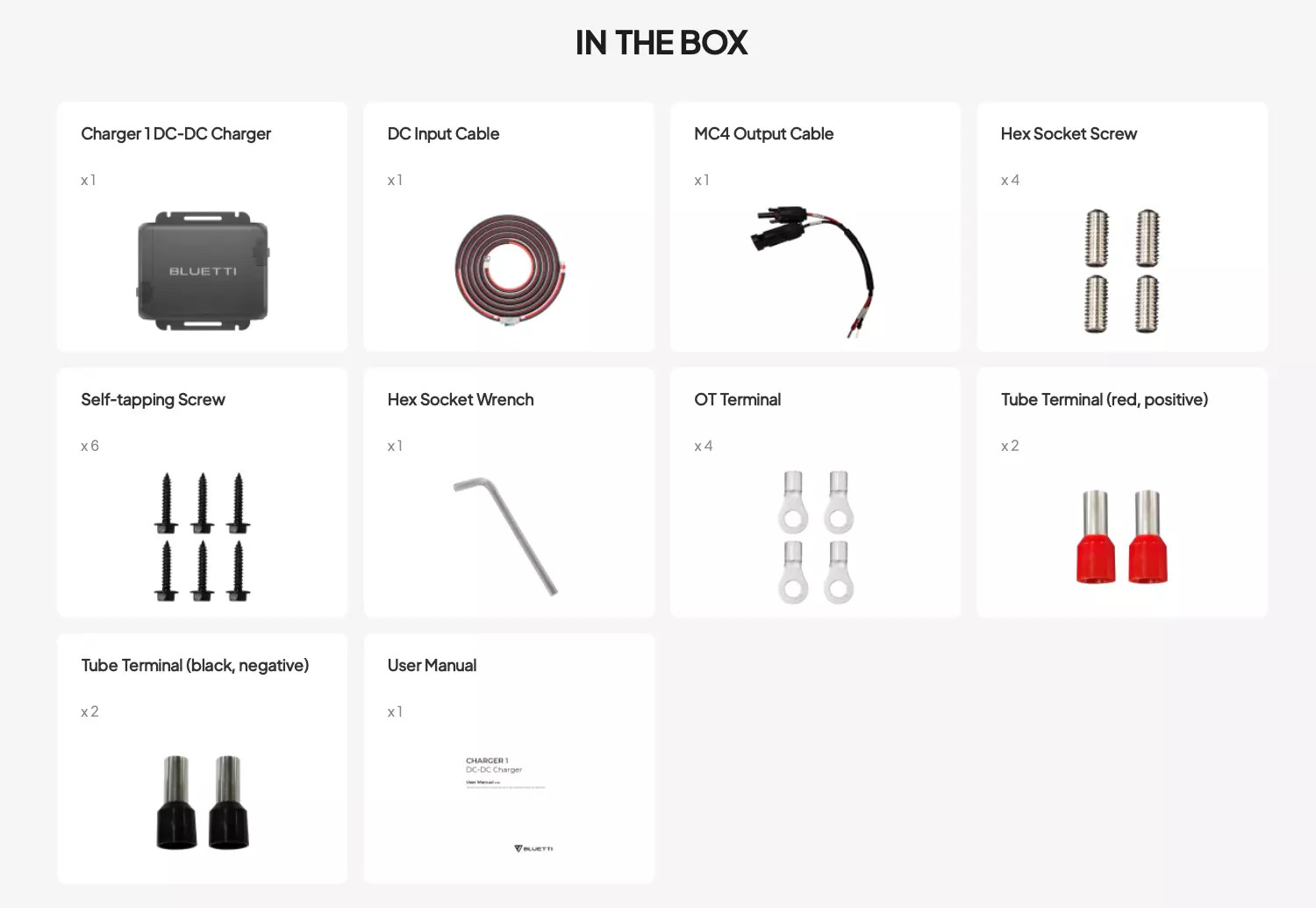

What's Included
- 1 x Charger 1 DC-DC Charger
- 1 x DC Input Cable
- 1 x MC4 Output Cable
- 4 x Hex Socket Screws
- 6 x Self-tapping Screws
- 1 x Hex Socket Wrench
- 1 x User Manual
- Barcode: 84153
- Supplier Code: A-CG-D60L-UF-0364
