Overview

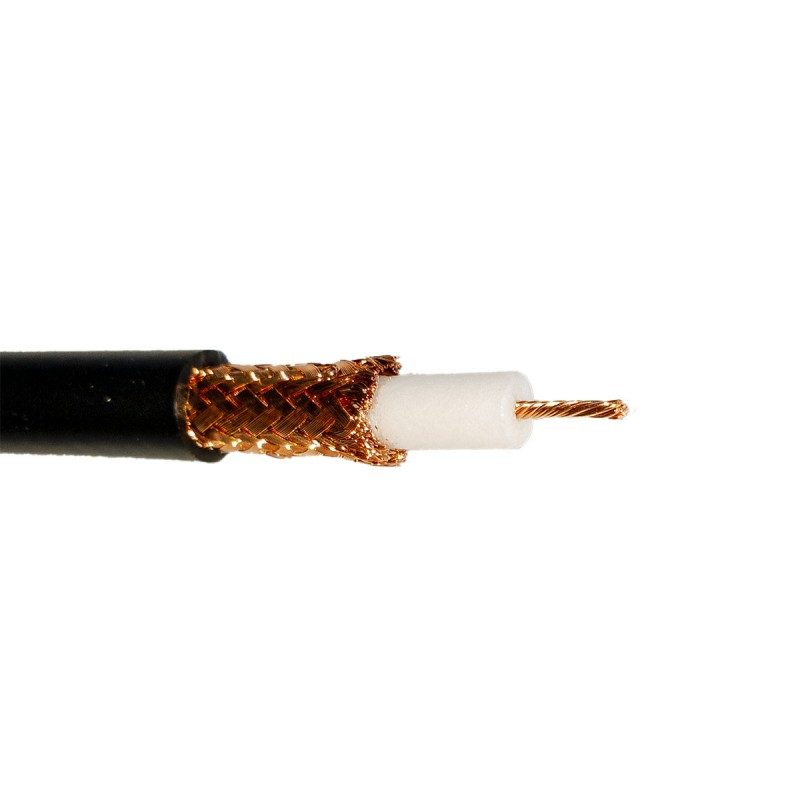

The Canare L-4.5CHWS Extra Flexible RG6 18AWG Stranded HD-SDI Coax (Black, 10 m) is a high-performance, flexible coaxial cable designed for professional 3G-SDI and HD-SDI mobile applications. Its stranded center conductor and double-braided shield deliver excellent flexibility and durability, making it ideal for broadcast and mobile use.
Core Features
- 18 AWG stranded center conductor

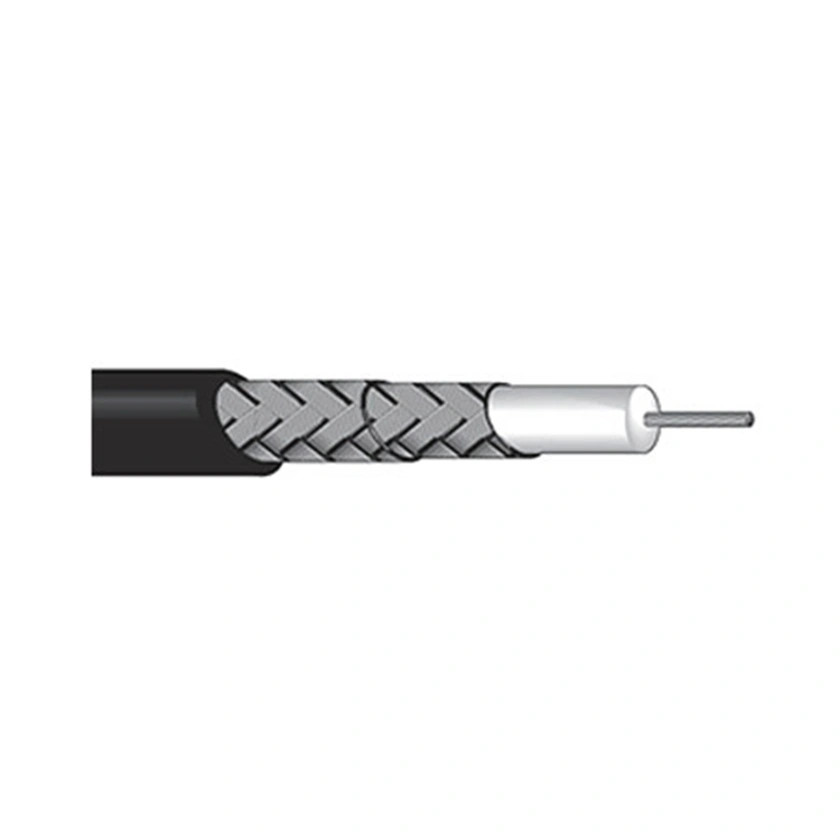

- Double-braided shield construction
- Outer diameter: 7.2 mm
- Highly flexible with minimal bend memory
- Optimized for use on cable reels
Applications
- HDTV upgrades
- Broadcast and broadband facilities
- Mobile production environments
Performance
- 3G-SDI (SMPTE 424, 2.97 Gbps): 90 m max
- HD-SDI (SMPTE 292, 1.485 Gbps): 87 m max
- 12G-SDI (SMPTE 2082-1, 11.88 Gbps): 50 m max
Specifications
| Model | L-4.5CHWS |
| Cable Type | Extra Flexible RG6 HD-SDI Coax |
| Center Conductor | 18 AWG stranded |
| Shield | Double braided |
| Outer Diameter | 7.2 mm |
| Colour | Black |
| Length | 10 m |
| 3G-SDI Transmission Distance | 90 m max |
| HD-SDI Transmission Distance | 87 m max |
| 12G-SDI Transmission Distance | 50 m max |
What's Included
- Canare L-4.5CHWS HD-SDI Coax Cable (Black, 10 m)
- Barcode: 85890
- UPC Barcode: L-45CHWS10M
- Supplier Code: L-45CHWS10M
