E-Image GAM360 Motorized Elevation System (375 cm)

E-Image GAM360 Motorized Elevation System (375 cm)

SKU:
GAM360

Key Features

  •  Motorized 375 cm lift
  •  15 kg load capacity
  •  Remote with memory presets
  •  Height readout display
  •  Optional 2.4G wireless control
  •  V-mount battery capable
  •  Mono-lock for fast adjust
  •  Quick-release QR adapter

E-Image

$2,799.00
$2,799.00
$1,932.00
(You save $867.00 )

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

E-Image GAM360 Motorized Elevation System Overview

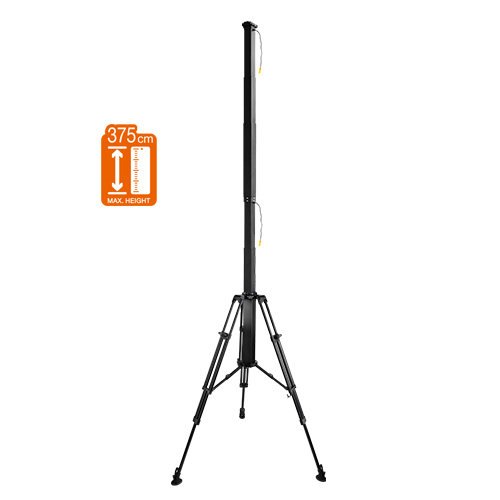

The E-Image GAM360 Motorized Elevation System is a high-performance elevation column tailored for PTZ camera setups, offering smooth, remote-controlled height adjustments up to 375 cm. Designed for versatility, it features a 6-section column with a motorized lift system and a remote controller with memory presets, allowing users to store and recall up to three positions for maximum efficiency. Its 15 kg load capacity supports heavy camera systems, while a height readout display and mono-lock feature enable precise and easy operation. The system includes a quick-release middle spreader, standard accessory mounting points, and optional wireless and battery power for on-the-go adaptability. Ideal for studios and live event setups, this column provides the stability and flexibility needed for dynamic productions.

Features at a Glance

  • Motorized 6-section elevation up to 375 cm
  • Supports payloads up to 15 kg
  • Remote control with height display and 3 memory presets
  • Optional 2.4G wireless control (10 m range)
  • Optional 26V V-mount battery support
  • Standard 1/4" and 3/8" accessory screw holes
  • Quick-release P6 QR adapter for fast camera mounting
  • Mono-lock system for swift height adjustments

E-Image GAM360 Motorized Elevation System Specifications

General

Max. Payload 15 kg
Net Weight 22.3 kg
Height Range 145–375 cm
Footprint Diameter 182 cm
Stroke 196 cm
Raising/Lowering Speed 40 mm/s
Temperature Range 10°C–40°C
Camera Attachment 1/4" and 3/8"
Bubble Level Available
Column Interface P6 (QR adapter with plate)
Column Section 6 sections (2 columns, each 3 sections)
Column Size 70 x 70 mm
Noise Level ≤38 dB
Controller Cable 2 m
Motor Cable 2.5 m
Motor Cable Extension 2.5 m

What's in the box

  • 1 x E-Image GAM360 Motorized Elevation System (375 cm)
  • 1 x Power Supply Unit with Cable (3 m)
  • 1 x Wired Remote Controller (2 m)
  • 1 x GAM360 Motorized Elevation Tripod
  • 2 x Extension Cables (2.5 m)
  • 2 x Motor Cables (2.5 m)
  • Barcode: 80346
  • Supplier Code: GAM360
