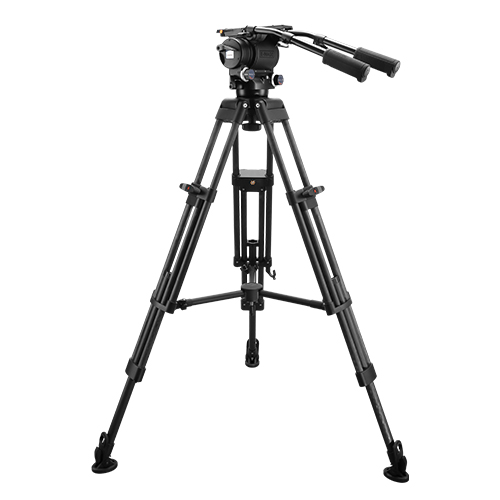

Overview
The E-Image MOTUS22 Lite Tripod Kit stands out for its durability, stability, and precision, making it ideal for demanding professional productions. The robust carbon fiber design ensures reliable performance even with heavy equipment and offers great versatility and ease of use in any shooting environment.

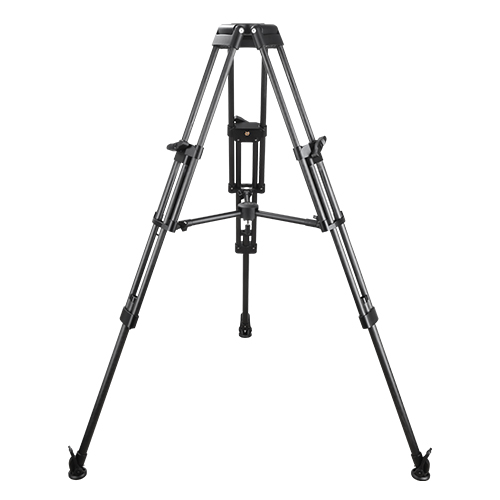

Tripod Legs
The E-Image GC202 is a heavy-duty carbon fiber tripod with a 100mm bowl. It supports up to 100 kg of payload and offers a height range of 62 to 164 cm in two-stage legs. Each leg features a mono-lock twist knob, allowing you to lock and unlock all three sections using one lever.
The tripod includes an adjustable mid-level spreader for enhanced rigidity and spiked feet with removable rubber feet for added adaptability. It folds down to a transport length of 77 cm and comes with a padded carrying bag.
- 100mm bowl size
- Mono-lock rotating lever design
- Adjustable middle spreader
- Spiked feet with removable rubber feet
- High-quality carbon fiber tube
- Retractable tie cable
Fluid Head
The E-Image Motus MH22 100mm Pro Fluid Head is designed for professional use, offering smooth motion support for ENG and cinema rigs. With a 100mm half-ball mount, 4-step drag control, and continuous counterbalance, it handles payloads up to 22 kg with precision.
Dual pan handles and illuminated bubble level enhance control and usability, while its 501-type quick release plate with 4.7" sliding range ensures fast, secure camera mounting. The base interfaces with industry-standard 100mm tripod systems.
Key Features
- Pro fluid head with 100mm ball mount
- Supports up to 22 kg
- Continuous counterbalance adjustment
- 4-step pan/tilt drag settings
- 4.7" sliding quick release plate
- Dual rosette pan handles
- Illuminated bubble level
Advanced Features
- 501-type plate system with top-loading design
- Dual-locking system for secure mounting
- Hand-crank counterbalance tuning with visual display
- Independent drag controls (grades 1–8)
- Quick-locking knobs for pan and tilt
- Pan range: 360°; Tilt range: -67° to +90°
Head Specifications
| Head Type | Fluid Head |
| Base Mount | 100 mm Half Ball |
| Camera Mounting | Dual 3/8"-16 & Dual 1/4"-20 Screws (501-Type Quick Release Plate) |
| Counterbalance | Continuous (0 to 22 kg) |
| Pan Range | 360° |
| Tilt Range | +90° to -67° |
| Pan/Tilt Drag | 4-Step Drag Control |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Accessory Mounting | 2× Pan Handle Fittings |
| Bubble Level | Yes (Illuminated) |
| Weight | 6.3 kg |
| Maximum Load Capacity | 22 kg |
Tripod Legs Specifications
| Material | Carbon Fiber |
| Sections | 3 |
| Bowl Size | 100 mm |
| Height Range | 62 to 164 cm |
| Transport Length | 77 cm |
| Net Weight | 8.7 kg |
| Payload Capacity | 100 kg |
| Foot Type | Spiked with Removable Rubber Feet |
| Locking Mechanism | Mono-Lock Twist Knob |
| Spreader | Mid-Level Adjustable Spreader |
What's Included
- E-Image Motus MH22 100mm Pro Fluid Head
- 2 × GB4 Telescoping Pan Handle
- GP4 Quick Release Plate
- Bowl Locking Knob
- E-Image GC202 Carbon Fiber Tripod Legs
- Adjustable Mid-Level Spreader
- Removable Rubber Feet
- Padded Carry Bag
- Barcode: 84076
- UPC Barcode: 6948229801630
- Supplier Code: MOTUS 22 Lite
