Overview

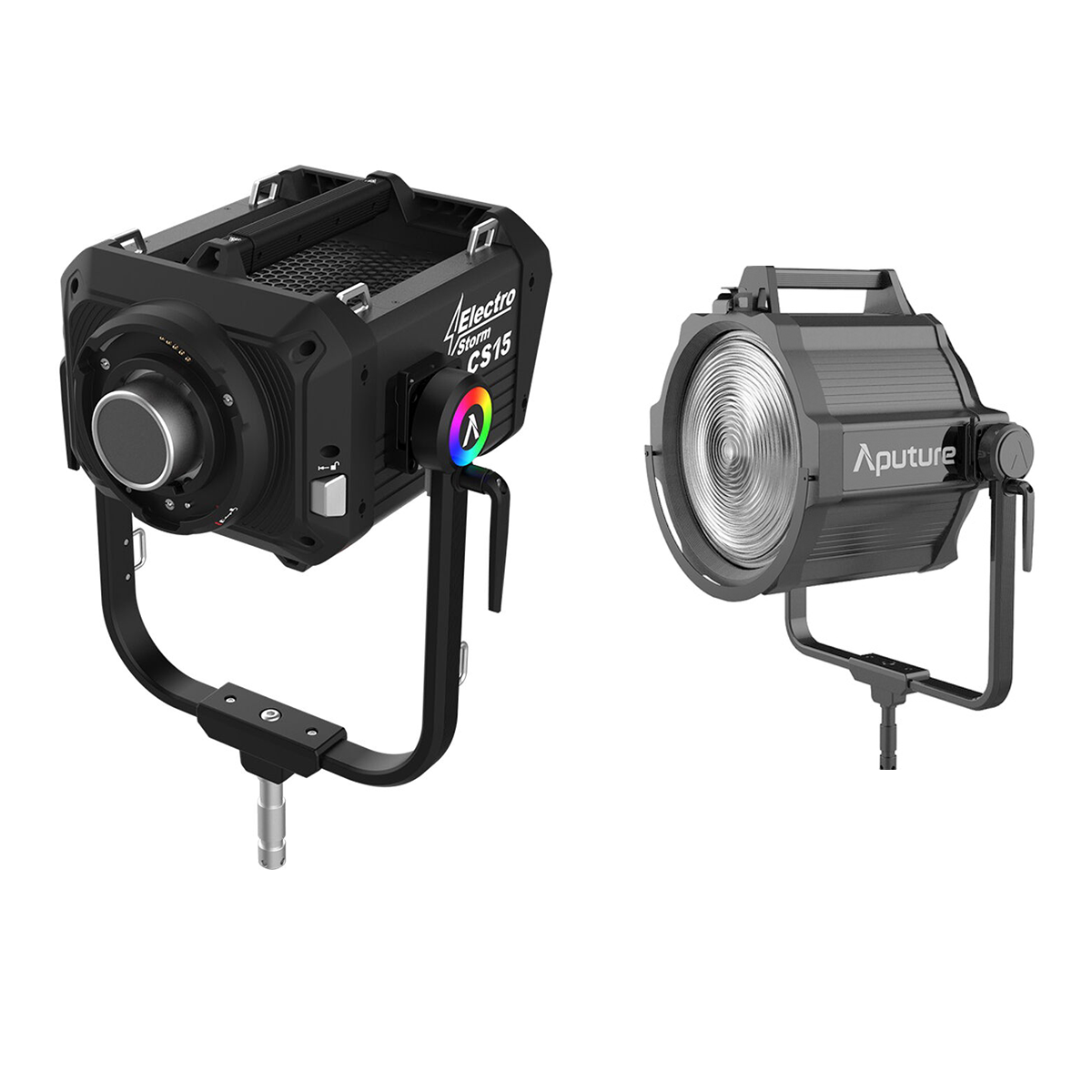

The Aputure Electro Storm CS15 RGB LED Monolight is a powerful, full-color point-source lighting fixture designed for professional film and TV production. Delivering 1500W of ultra-high output with advanced color accuracy, the CS15 is ideal for illuminating large sets. It includes dual mounting systems, wide color control, and advanced connectivity. This kit includes the Aputure Motorized F14 Fresnel for enhanced beam control and compatibility with Aputure’s Electro Storm fixtures.
Core Features
- 32,600 lux at 3 meters with 35° reflector
- 2000–10,000K CCT with green-magenta adjustment
- SSI scores: 86 (Daylight), 89 (Tungsten)
- IP65-rated weather resistance
- Advanced liquid-cooling system
Color & Output Performance
The CS15 features a dual-blue LED chipset offering expanded spectral reproduction and over 90% Rec. 2020 color space coverage. With up to 32,600 lux at 3 meters using its 35° reflector, it delivers performance comparable to traditional 1800W HMIs.
Control & Connectivity
The fixture supports Sidus Link app control, LumenRadio CRMX, Art-Net & sACN via etherCON, and 16-bit DMX512. These protocols ensure seamless integration with industry-standard lighting setups.
Mounting Options
The CS15 supports both Bowens S-Mount and the proprietary electronic A-Mount. The A-Mount ensures compatibility with high-load modifiers like the included F14 Fresnel and enables motorized focus control.
F14 Fresnel Features
The Aputure Motorized F14 Fresnel features a 14" lens and an 18–45° beam range with motorized focus control. It communicates with the CS15 via the A-Mount, optimizing light engine calibration for peak accuracy. Includes a yoke, barndoors, safety chain, and flight case.
Special Effects & Dimming
The CS15 supports 15 built-in effects, XY color control, advanced HSI, and over 300 gel presets. Stepless dimming from 0.1 to 100% is supported, with PWM and flicker-free high-speed dimming modes.
Power & Portability
Supports AC and dual 48 VDC battery power. The included control box features multiple port orientations and is paired with a handcart for mobility. An optional motorized yoke enables remote tilt and pan operation.
Aputure Electro Storm CS15 Specifications
| Output | 32,600 lux at 3 m (35° reflector) |
| Color Temperature | 2000–10,000K (CCT mode) |
| Color Accuracy | CRI: 98, TLCI: 98, SSI: 86 (D56), 89 (Tungsten) |
| Dimming | 0.1% to 100%, PWM & flicker-free modes |
| Mount | Bowens S, Electronic A-Mount |
| Cooling | Advanced Liquid-Cooling |
| Connectivity | DMX512, Art-Net, sACN, LumenRadio CRMX, Sidus Link App |
| Power Input | 48 VDC, 33.5 A / 100–240 VAC |
| Power Consumption | 2600–3500 W |
| IP Rating | IP65 Dust and Water Resistant |
| Dimensions (Fixture) | 45.7 x 35.2 x 28.1 cm |
| Weight (Fixture) | 18 kg |
| Control Box Dimensions | 55 x 27.3 x 26.2 cm |
| Control Box Weight | 20.5 kg |
Aputure F14 Fresnel Specifications
| Compatibility | Electro Storm CS15 / XT26 |
| Beam Angle | 18° to 45° (Motorized) |
| Mount | Aputure A-Mount |
| Control | Motorized via Fixture |
| Mobile App | Sidus Link (iOS & Android) |
| Dimensions | 50 x 47.25 x 35.5 cm |
| Weight | 13 kg (base), 20.5 kg (with yoke and barndoors) |
What's Included
- Aputure Electro Storm CS15 RGB LED Monolight
- Removable Yoke
- Control Box
- Control Box Handcart
- Head Cable (7.5 m)
- AC Power Cable (6 m)
- 35° Reflector
- Barndoors
- Protection Cover
- Aputure Motorized F14 Fresnel
- Fresnel Yoke
- Fresnel Sled
- Barndoors
- Safety Chain
- Fresnel Flight Case
- Barcode: 84336
- Supplier Code: CS15-F14
