Overview

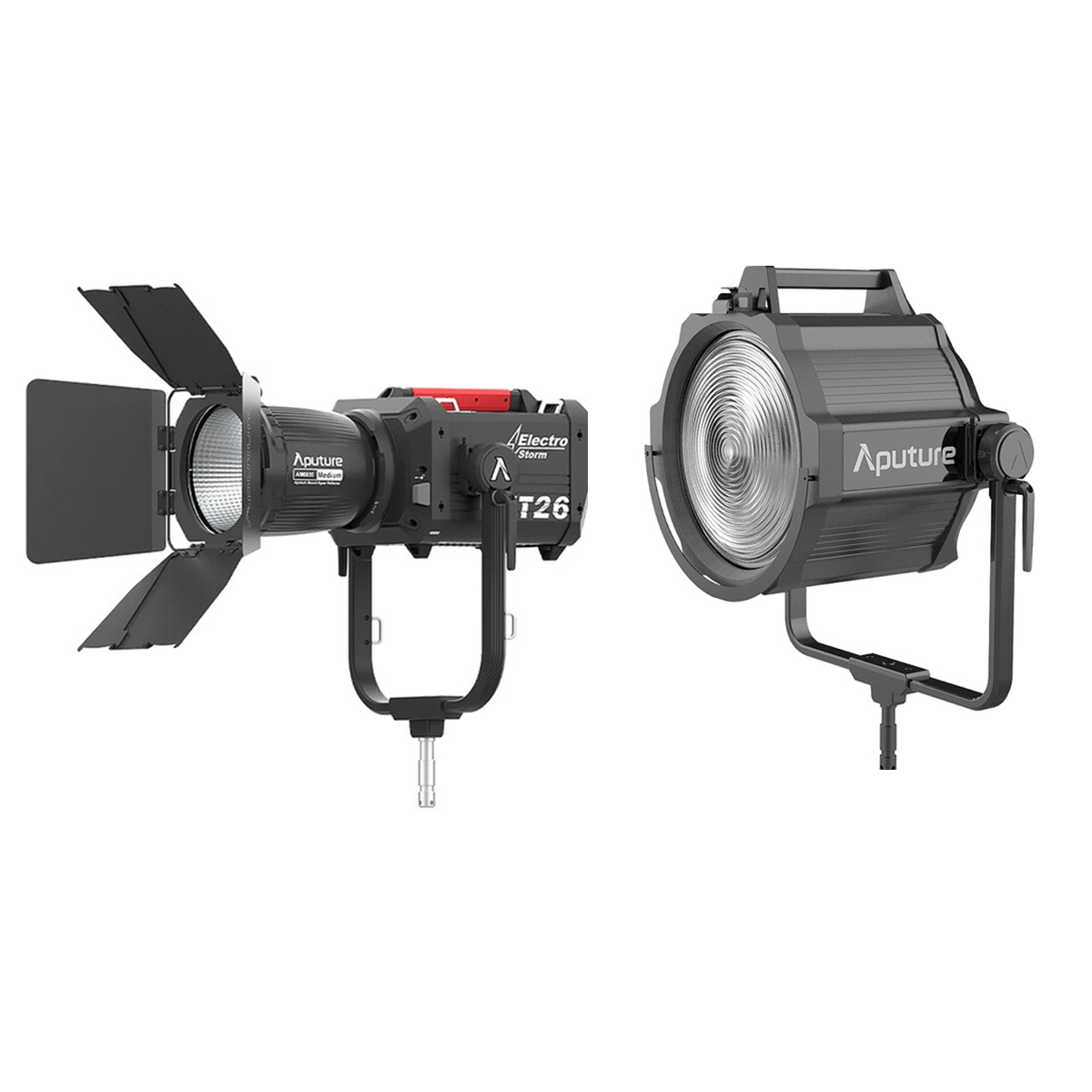

Designed for professional film and television production, the Aputure Electro Storm XT26 Bi-Color LED Monolight delivers a powerful 2600W output with a tunable CCT range of 2700 to 6500K. Its advanced connectivity, liquid-cooling system, and IP65 rating make it a rugged solution for demanding environments. Bundled with the Aputure Motorized F14 Fresnel, this kit offers enhanced light shaping capabilities and remote spot-flood control for precise lighting control on set.
Core Features
- 2600W bi-color output (2700-6500K)
- CRI 98, TLCI 98, SSI 74/85
- Advanced liquid-cooling system
- IP65 dust and water resistance
- 0.1–100% stepless dimming with PWM/high-speed flicker control
- Includes 35° reflector and barndoors
- Optional motorized yoke supported
Professional Connectivity
The XT26 offers extensive control through Sidus Link App, LumenRadio CRMX, Art-Net, sACN, and 16-bit DMX512 via etherCON. These tools ensure seamless integration into professional lighting systems.
Power & Operation
While the XT26 includes a 60A Bates connector for full power performance, it can operate on dual 48 VDC battery inputs or AC power where available. It consumes up to 2600W nominally and up to 3500W at peak.
Mounting & Modifiers
With a dual-mount system, the XT26 supports both the standard Bowens S mount and Aputure’s electronic A-Mount. The A-Mount allows motorized modifier control and greater stability for large light shapers like the included F14 Fresnel.
F14 Fresnel Highlights
The Aputure Motorized F14 Fresnel features a large 14" lens and motorized 18–45° spot-flood range. Designed for Electro Storm XT26 and CS15 fixtures, it communicates directly with the light for accurate beam calibration. The included yoke improves mounting balance, while barndoors enhance beam control.
Additional Features
- Nine built-in lighting effects
- Dust/waterproof design for outdoor use
- Control box with handcart for mobility
- Temperature operating range: -20 to 45°C
Lighting Specifications
| Color Temperature | 2700 to 6500K (CCT Mode) |
| CRI / TLCI | 98 / 98 |
| SSI (5600K / 3200K) | 74 / 85 |
| TM-30 Rf / Rg | 93 / 101 |
| Dimming | 0.1 to 100%, stepless |
| Beam Angle (Unmodified) | 62° |
| Lighting Effects | 9 Built-in effects |
Photometrics (with Reflector)
| 2700K (3 m) | 36,300 lux |
| 3200K (3 m) | 46,000 lux |
| 4300K (3 m) | 61,400 lux |
| 5600K (3 m) | 65,200 lux |
| 6500K (3 m) | 56,000 lux |
Power & Control
| Input Power | 48 VDC @ 33.5 A, 100–240 VAC, 50/60 Hz |
| Power Consumption | 2600 W (Nominal), 3500 W (Max) |
| Control | Onboard, DMX512, Bluetooth, CRMX, Art-Net, sACN |
| Wireless Range | 100 m |
Mounting & Construction
| Mounts | Bowens S, Aputure A-Mount |
| Environmental Rating | IP65 Dust/Water-Resistant |
| Cooling | Advanced Liquid Cooling |
| Display | Yes |
| Operating Temp | -20 to 45°C |
Dimensions & Weight
| XT26 Fixture | 45.7 x 35.2 x 28.1 cm, 18 kg |
| Power Supply | 55 x 27.3 x 26.2 cm, 20.5 kg |
| F14 Fresnel | 50 x 47.25 x 35.5 cm, 13 kg (no yoke), 16.5 kg (with yoke) |
What's Included
- Aputure Electro Storm XT26 Bi-Color LED Monolight
- Removable Yoke
- Control Box
- Control Box Handcart
- Head Cable (7.5 m)
- AC Power Cable (6 m)
- Reflector (35°)
- Barndoors for XT26
- Protection Cover
- Aputure Motorized F14 Fresnel
- Fresnel Yoke
- Barndoors for F14
- Fresnel Sled
- Safety Chain
- Fresnel Flight Case
- Barcode: 84337
- Supplier Code: XT26-F14
