FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs

FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs

SKU:
T7S PRO

Key Features

  • 7" 1920 x 1200 IPS LCD Monitor
  • Up to UHD/DCI 4K60 HDMI Input/Output
  • Up to 1080p60 3G-SDI Input/Output
  • 2000 cd/m² Brightness
  • L-Series/NP-F Battery Plate
  • 1200:1 Contrast Ratio, 3D LUT Support
  • 160° Viewing Angle

Feelworld

$449.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

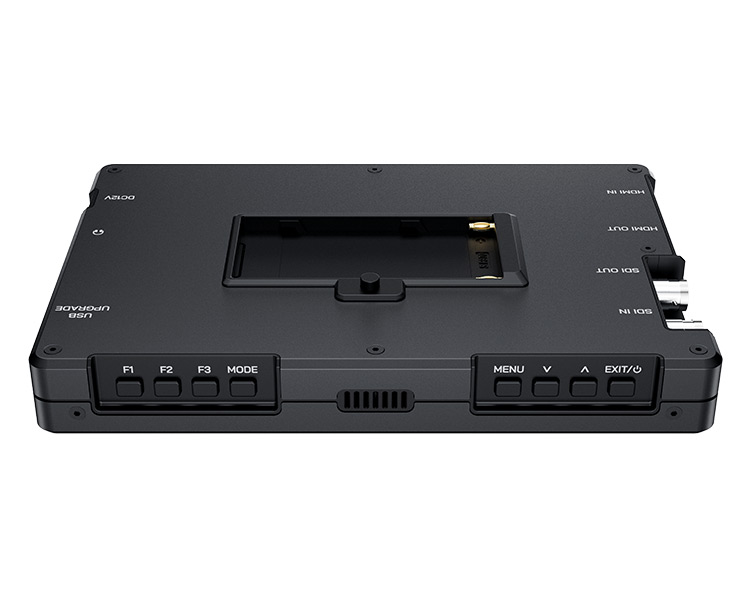

FeelWorld T7S Pro Overview

Monitor your 4K video signals with clarity in the field with the T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs from FeelWorld. This compact, 7" touchscreen field monitor with a durable aluminum chassis features HDMI input and output that supports up to UHD/DCI 4K60 and 3G-SDI input and output up to 1080p60. The LCD panel features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and high 2000 cd/m² brightness for a crisp viewing experience, even in sunlight. You can apply internal 3D LUTs or import up to 32 custom 3D LUTs. Numerous professional imaging tools are built-in for accurate monitoring, including waveform, vectorscope, histogram, and more. It is powered via a separately available power adapter or the rear L-series battery mount.

Quick Features

  • 1920 x 1200 IPS LCD
  • Intuitive button operation, easy to use
  • 2000 cd/m² ultrabrightness, daylight viewable
  • Rugged and durable aluminum housing
  • Up to UHD/DCI 4K60 HDMI input and output
  • Up to 3G-SDI 1080p60 input and output
  • Load custom 3D-LUTs; preview film looks
  • HDR monitoring support
  • Waveform, vectorscope, histogram, and audio meter can move horizontally and vertically onscreen
  • Four-group user switching, quickly access the set menu
  • 3.5mm headphone output for real-time monitoring

FeelWorld T7S Pro Specifications

Key Specs

Display Size 7" / 17.8 cm
Native Resolution 1920 x 1200
Touchscreen No
HDR Support Yes
Video I/O 1x HDMI 2.0 Input
1x HDMI 2.0 Output
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
Media/Memory Card Slot No
Video Format HDMI:
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p, 576i, 480p, 480i
SDI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Battery 1x L-Series Mount on Fixed Plate
Power Consumption 18 W (Maximum)

Display

Panel Type IPS-Type LCD
Display Size 7" / 17.8 cm
Native Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen No
Maximum Brightness 2000 cd/m²
Contrast Ratio 1200:1
HDR Support Yes
LUT Support Yes
Image Controls Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Histogram, Image Flip, Image Freeze, Marker Color, Overscan, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

Inputs/Outputs

Video I/O 1x HDMI 2.0 Input
1x HDMI 2.0 Output
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
Embedded Audio HDMI
Audio I/O 1x 3.5 mm Headphone Output
Built-In Speaker Mono
Power I/O 1x Barrel Input
Other I/O 1x Mini-USB (Firmware/LUT Upload) Input
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Mobile App Compatible No

Format Support

Video Format HDMI:
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p, 576i, 480p, 480i
SDI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
Gamma Curve ARRI Log C, Sony S-Log 2, Sony S-Log 3, V-Log

Power

Input Power 7 to 24 VDC
Battery 1x L-Series Mount on Fixed Plate
Power Consumption 18 W (Maximum)

Mounting

Tripod/Accessory Mounting Bottom
1x Anti-Twist 1/4"-20 Female

General

Environmental Resistance No
Operating Conditions -20 to 50°C
Storage Conditions -30 to 65°C
Material of Construction Aluminum
Dimensions 182.8 x 122.8 x 24 mm
Weight 370 g

What's in the box

  • 1 x FeelWorld T7S PRO 7" HDMI/SDI High-Bright On-Camera Monitor with 3D LUTs
  • 1 x Mini-USB Cable
  • 1 x HDMI Cable
  • 1 x Sun Hood
  • 1 x Shoe Adapter Mount
  • 1 x L-Series Battery Plate
  • Barcode: 80374
  • UPC Barcode: 6971863819105
  • Supplier Code: T7S PRO
