Overview
The Hollyland Vcore Wireless Video Transmission System transforms your phone or tablet into a professional on-camera monitor. Delivering 4K 30 fps clarity with low-latency wireless transmission, Vcore merges HD monitoring, proxy recording, image transfer, and editing features into one compact, creator-ready device. Whether on set or outdoors, it simplifies your workflow and keeps you in perfect sync with your vision.
Seamless Mobile Monitoring
Connect Vcore to your camera via HDMI and your phone via USB-C — your mobile instantly becomes a real-time 4K 30 fps monitor through the HollyView app. It supports wired and wireless monitoring across iOS and Android devices, extending viewing up to 100 m line of sight with approximately 65 ms latency.
Vcore is also compatible with the Pyro series receivers for multi-device setups, offering flexible and collaborative monitoring solutions.
Versatile Recording Capabilities
Pro-Grade Proxy Recording
Record proxies up to 1080p 60 fps in H.264 for smooth post-production. Frame rate and timecode are automatically detected, ensuring seamless linking in software such as Premiere Pro and DaVinci Resolve.
Simultaneous Recording
Vcore stores proxy files to its internal SD card while your linked phone records synchronized MP4 clips through the HollyView app — perfect for instant social sharing or quick edits.
ProRes Excellence on iOS
Unlock Apple ProRes recording on your iPhone or iPad, with codec options including ProRes 422, 422 HQ, 422 LT, and 422 Proxy, supporting 4K 30 fps / 1080p 60 fps capture.
High-Resolution Image Transfer
Using the USB connection, Vcore captures uncompressed RAW or JPEG images directly from your camera and transfers them wirelessly to your mobile or desktop via HollyView or HollyLink (Capture One plugin). Enjoy fast, lossless file delivery for instant review or editing.
Smarter Clip & Storage Management
Tag, name, and organize clips on set with the HollyView app. Footage from the transmitter and your phone share synchronized file names for efficient sorting and editing. View clips side-by-side, mark favourites, and auto-categorize into folders — saving valuable post time.
Local photos downloaded to the HollyView album can also be tagged and automatically organized into labeled folders.
Wireless Camera Control
Start and stop camera recording remotely via the HollyView app — no need to touch the camera mid-take.
Effortless Live Streaming
Stream anytime, anywhere through RTMP or directly via the built-in SDK. Compatible with major platforms such as YouTube and Twitch, Vcore offers a lightweight, cable-free solution for creators on the move.
Real-Time Green Screen Preview
Preview keying effects live within the HollyView app to ensure perfect results before post-production.

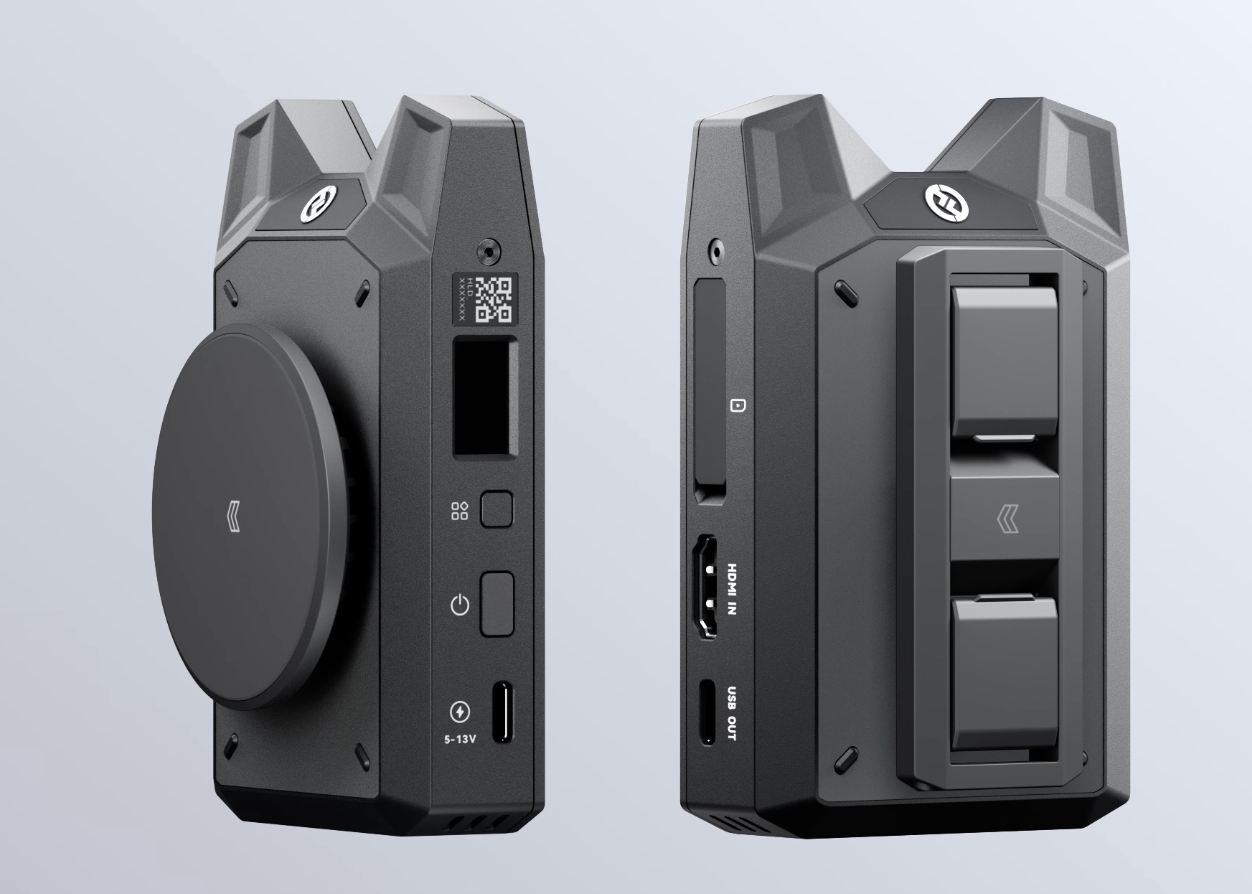

Design & Connectivity
- HDMI 1.4 Input
- USB-C Output & Power Input
- SD Card Slot
- Front & Rear Cold Shoe Mounts
- 1/4″ Mounting Thread
- Multi-Function Button & Display Screen
- Flexible Installation via Magnetic Mount or Phone Holder
Emergency Charging & Power
The built-in 5150 mAh battery provides up to 6 hours of operation and can simultaneously charge your iPhone or iPad while monitoring. Stay powered and ready wherever you shoot.
Interface
| HDMI IN | HDMI 1.4b |
| POWER IN | USB-C |
| USB OUT | USB 3.0 |
| SD Card Slot | Yes |
Video Input / Output
| HDMI Input Resolution | 720p50/59.94/60; 1080p23.98–60; 3840×2160 23.98–30 fps |
| USB-C Output Resolution | 720p50/59.94/60; 1080p23.98–60; 3840×2160 23.98–30 fps |
| Wireless Transmission Resolution | 720p50/59.94/60; 1080p23.98–60; 4K 30 fps (with Pyro receiver) |
Power
| USB-C Output Voltage | 5 – 13 V |
| Built-in Battery | 3.4 – 4.2 V Li-ion (5150 mAh) |
| Working Time | Approx. 6 hours |
| Power Consumption | < 4.5 W |
Wireless Transmission
| Frequency Band | 5.15 – 5.85 GHz |
| Range (Line of Sight) | Up to 100 m |
| Transmit Power | = 21.5 dBm |
| Receiver Sensitivity | -93 dBm |
| Latency | = 80 ms |
| Bandwidth | 20 MHz |
Physical
| Dimensions | 110 × 70 × 27.2 mm (4.33 × 2.76 × 1.07 in) |
| Weight | 220 g |
| Operating Temperature | -10 °C to 45 °C |
| Storage Temperature | -40 °C to 60 °C |
What's Included
- Hollyland Vcore Wireless Video Transmission System
- USB-C to USB-C Cable
- Magnetic Mount
- Phone Holder
- Cold Shoe
