Overview

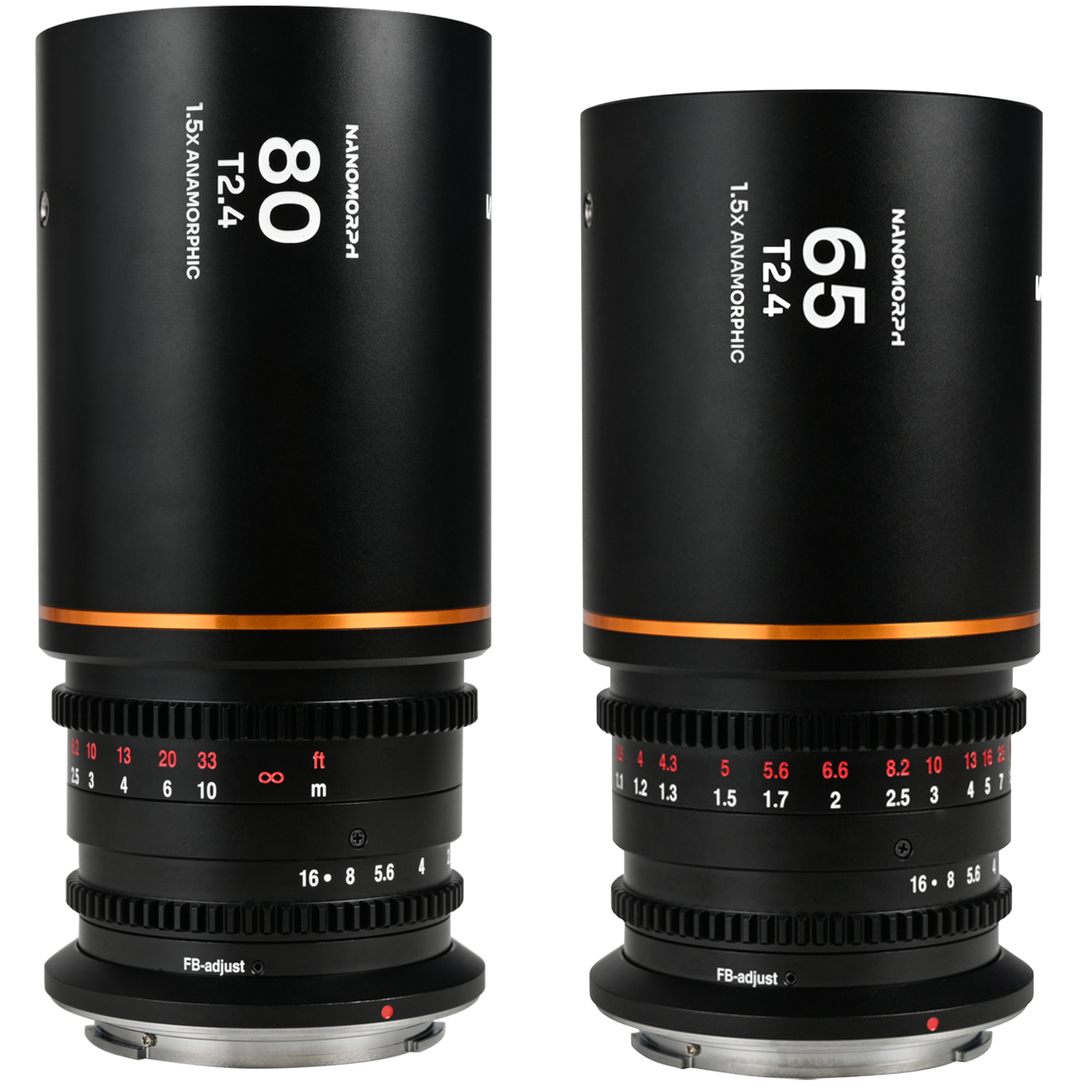

The Venus Optics Laowa Nanomorph 65 & 80mm Anamorphic Primes are compact, lightweight S35 lenses delivering a consistent 1.5× anamorphic squeeze with amber color flare and cinematic oval bokeh. Both primes feature telephoto compression ideal for close-ups, an aperture range of T2.4 to T16, and 13-blade irises for soft, organic rendering.
Designed for handheld, slider, gimbal, car-rig, and run-and-gun work, each lens includes dual focus scales (feet and meters), industry-standard 0.8 MOD cine gears, a unified gear position for quick swaps, and a 62 mm front filter thread. Optional 1.33× front adapters can be used to obtain a 2× squeeze ratio.
Core Features
- 1.5× anamorphic squeeze with oval bokeh
- T2.4 to T16 aperture with 13-blade iris
- Telephoto compression ideal for close-ups
- Amber anamorphic flare for a cinematic look
- Dual focus scales in feet and meters
- 0.8 MOD gears on focus and aperture
- Unified gear position for quick swaps
- 62 mm front filter thread
- Optional 1.33× adapter for 2× squeeze
- Compact, lightweight build for S35
Specifications
| Focal Length | Nanomorph 65 mm T2.4 | Nanomorph 80 mm T2.4 |
| Maximum Aperture | T2.4 | T2.4 |
| Minimum Aperture | T16 | T16 |
| Format Coverage | Super35 / APS-C (28.8 × 18 mm) | |
| Anamorphic Squeeze | 1.5× | 1.5× |
| Flare Color | Amber | Amber |
| Optical Design | 15 elements in 13 groups | 14 elements in 13 groups |
| Angle of View | Horizontal 36.8°, Vertical 15.8° | Horizontal 30.2°, Vertical 12.8° |
| Minimum Focus Distance | 70 cm (27.5 in) | 70 cm (27.5 in) |
| Aperture Blades | 13 | 13 |
| Focus Rotation | 270° | 274° |
| Iris Rotation | 78.6° | 81° |
| Gearing | 0.8 MOD on focus and aperture | |
| Filter Thread | 62 mm | 62 mm |
| Front Diameter | 67 mm | 67 mm |
| Length | 132 mm (5.2 in) | 141 mm (5.6 in) |
| Weight | 690 g (1.5 lb) | 710 g (1.6 lb) |
| Image Stabilization | No | No |
| Electronic Communication | No | No |
| Lens Support Foot | 3/8"-16 (via included support foot) | 3/8"-16 (via included support foot) |
What's Included

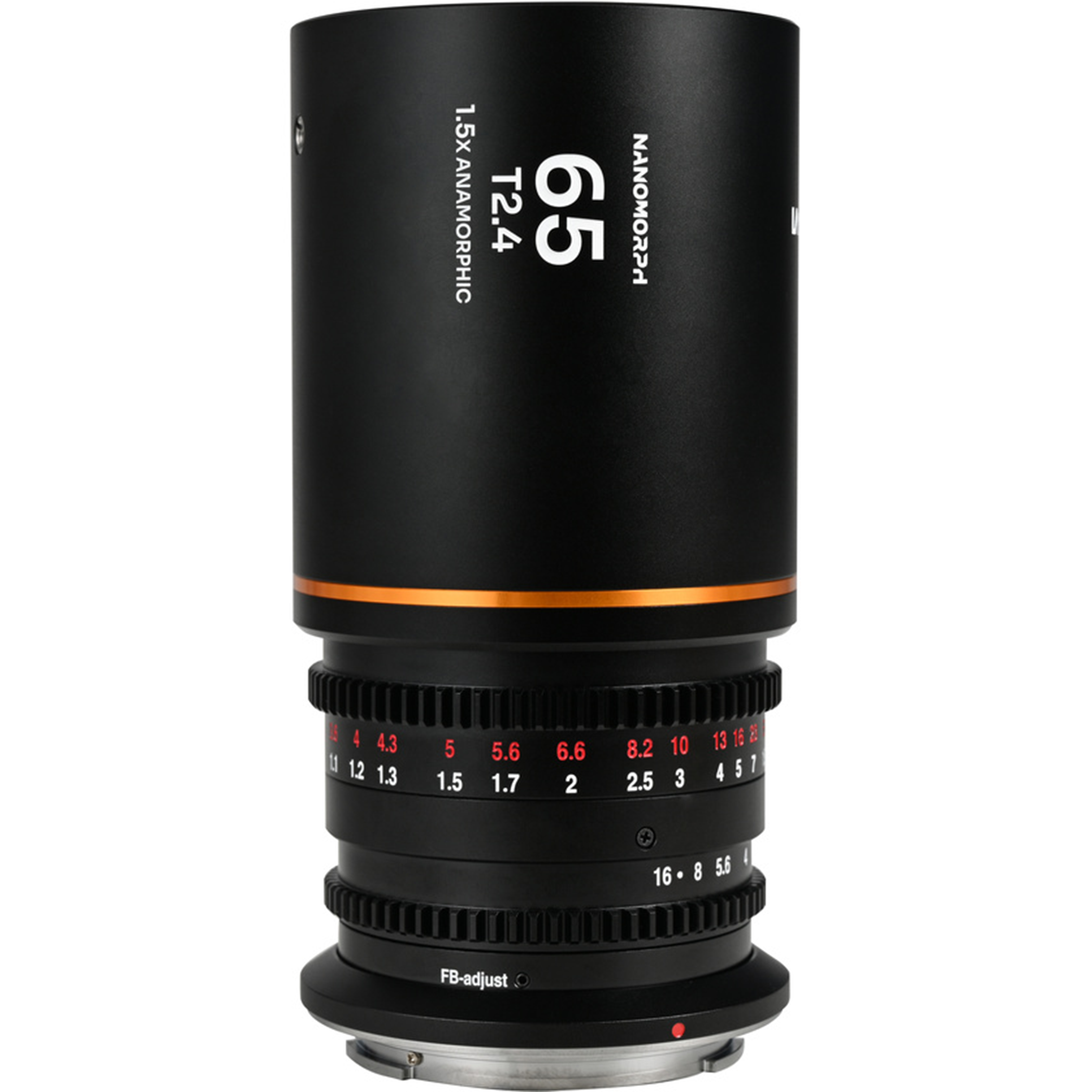

- Venus Optics Laowa Nanomorph 65 mm T2.4 1.5× S35 Anamorphic Lens (Sony E, Amber Flare)

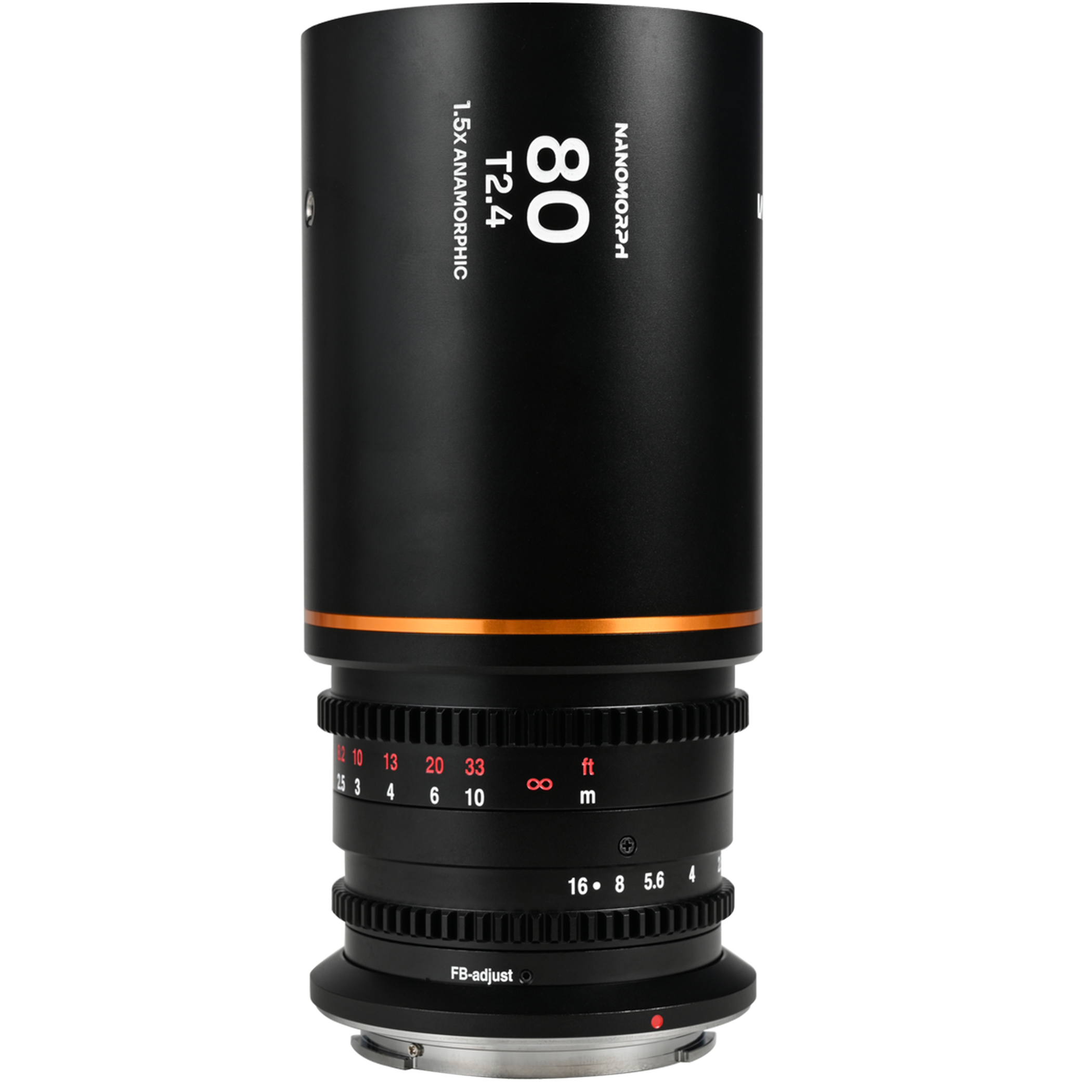

- Venus Optics Laowa Nanomorph 80 mm T2.4 1.5× S35 Anamorphic Lens (Sony E, Amber Flare)
- 2 x Front Cap
- 2 x Rear Cap
- 2 x Shim Set
- 2 x 3/8"-16 Support Foot
- Hard Case
- Barcode: 87286
- UPC Barcode: 6940486706949
- Supplier Code: VE6580SEA
