Overview

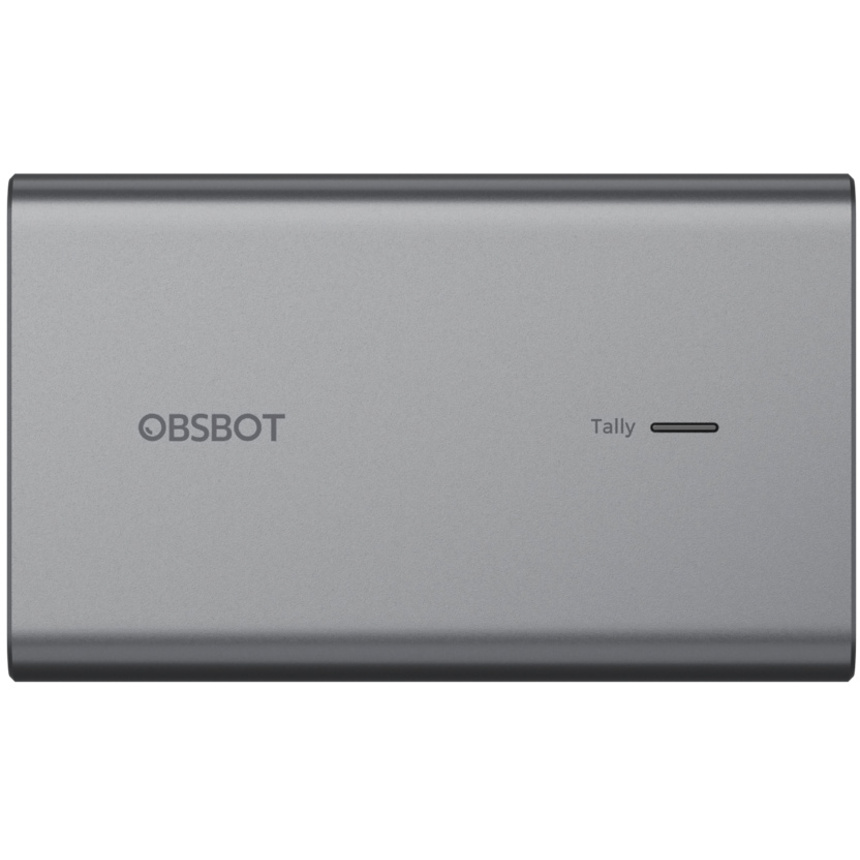

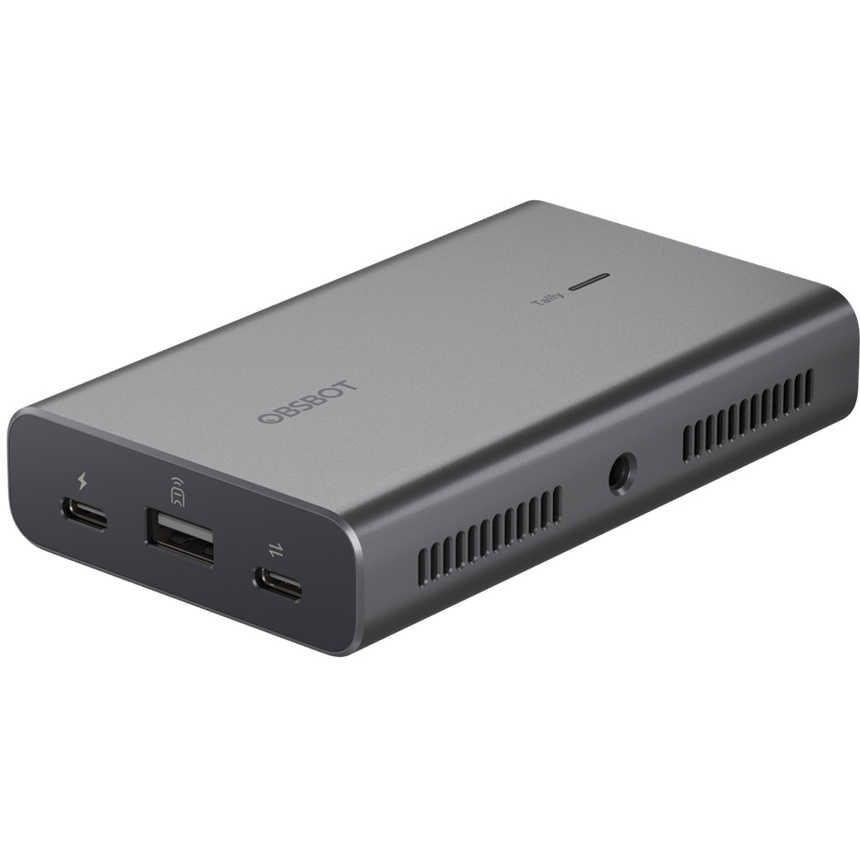

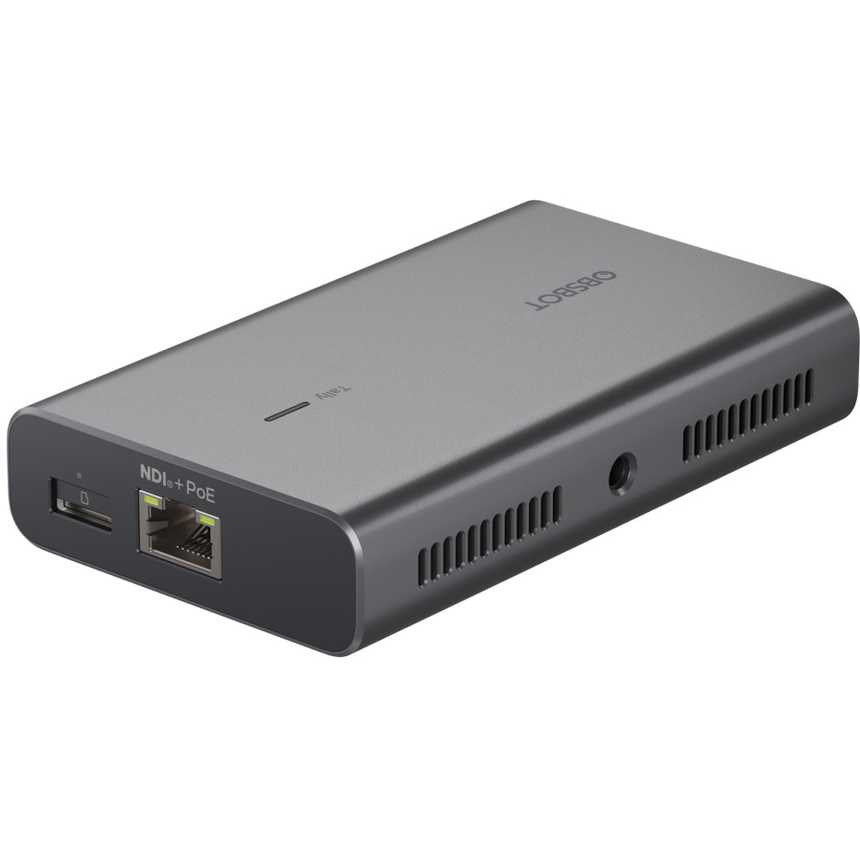

The OBSBOT UVC to NDI Adapter transforms OBSBOT Tiny & Meet series webcams into NDI capture terminals by converting UVC signals to NDI. It features a Tally light and Micro SD card recording for efficient, real-time livestreaming, enhancing webcam versatility in diverse scenarios.
Core Features
The adapter includes an NDI License, allowing webcams to connect to the NDI network for high-quality, low-latency transmission. With Power over Ethernet (PoE) support, it eliminates the need for separate power supplies, reducing cable clutter.
Specifications
| Decoding Formats | MJPEG/H264 |
| Compatibility | UVC 1.0/1.1/1.5 protocol |
| Encoding Formats | H264/H265 |
| Resolution | 3840 x 2160 @[60 59.94 50 30 29.97 25 24 23.98] 2560 x 1440 @[60 59.94 50 30 29.97 25 24 23.98] 1920 x 1080@ [60 59.94 50 30 29.97 25 24 23.98] 1280 x 720@ [60 59.94 50 30 29.97 25 24 23.98] |
| Power | USB-C 2.0, 9V/2A, 5V/3A, 12/2A or 20V/1A (depends on the adapter), support PD 3.0 |
| Control | USB-A 2.0, 5V/0.5A |
| Data | USB-C 3.0, 5V/2A |
| Network | 1*RJ45 10/100/1000Mbps Ethernet port (with PoE) IEEE 802.3 af/at, Max power 25W |
| Rating | 5-20VDC, Up to 15W |
| Memory Card Type | Micro SD (Up to 512 GB) |
| Operating Environment | Working Environment Temperature: 0°C-40°C |
| Colour | Black |
| Dimensions | 116 x 70 x 22.5mm |
| Weight | 395.5g |
What's Included
- USB-C to NDI Adapter
- USB-C Cable
- USB-C to USB-A Adapter
- User Guide
- Barcode: 81895
- UPC Barcode: 6971889230427
- Supplier Code: ONB-2209-CW
