Overview

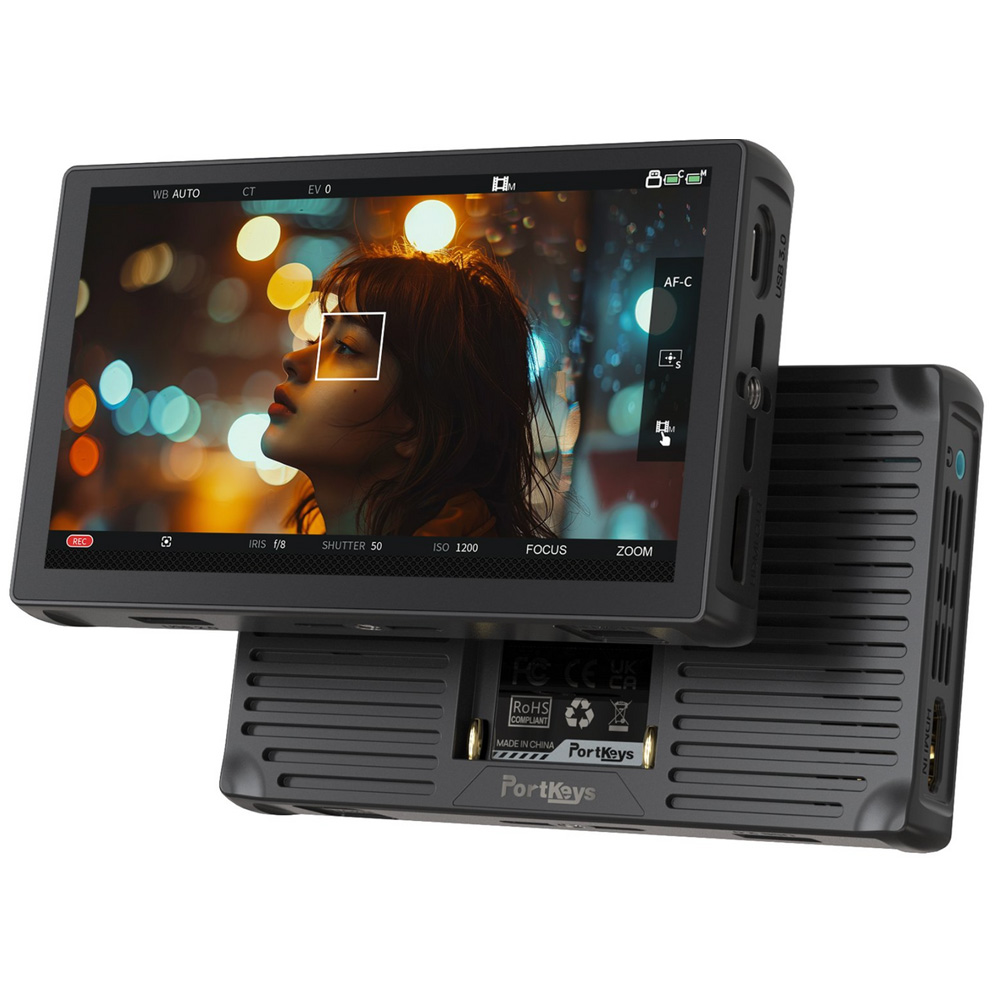

Portkeys LH5C 5.4" Camera Control Monitor is a professional on-camera monitor featuring an HD IPS touchscreen, 800 nits brightness, 10-bit (8+2 FRC) color, Rec.709 and 85% DCI-P3 coverage, 3D-LUT monitoring with HDMI LUT output, extensive exposure/focus tools, and wired camera control for select models from Sony, Canon, Panasonic, Z CAM, and Blackmagic Design. With low 7.5 W power draw, a built-in Sony L-Series battery plate, and rugged ABS+PC housing, it delivers powerful monitoring and control in a compact, lightweight form.
Core Features
- 13.7 cm HD IPS touchscreen (1920 × 1152), 1000:1 contrast, wide 178° viewing
- 800 nits brightness with included sunshade
- 10-bit (8+2 FRC) color; 100% Rec.709 and 85% DCI-P3 coverage
- HDMI input up to DCI 4K30; HDMI output up to 1080p60
- 3D-LUT monitoring and real-time LUT output via HDMI; load up to 20 LUTs via USB-A
- Wired camera control (micro/mini-USB, USB-C, or LANC) for supported cameras
- Comprehensive tools: waveform (RGB/Luma), histogram, zebra, ARRI false color, peaking, grids, guides, crop, check field
- Anamorphic de-squeeze (10 presets) + custom 0.25×–4.00×; vertical extension with HDMI pass-through
- Freeze Frame capture/compare; 360° color grader for hue/saturation selection
- Built-in Sony NP-F plate; USB-C 5 V power input; 7–24 V operating range
- Lightweight 162 g ABS+PC housing; 135.1 × 82.5 × 22 mm
Display & Color
Screen Characteristics
HD IPS panel (13.7 cm) at 1920 × 1152 with 1000:1 contrast and wide 178° viewing. The 10-bit (8+2 FRC) engine minimizes banding for accurate monitoring, while 800 nits brightness and the included sunshade support comfortable outdoor viewing.
Color Management
Covers 100% Rec.709 and 85% of DCI-P3. Supports 3D-LUT monitoring with real-time LUT output over HDMI. Load up to 20 custom LUTs via the bottom USB-A interface.
Monitoring Tools
Exposure & Analysis
- Waveform (RGB & Luma), Luma Histogram
- Zebra and customizable False Color (13 colors), including ARRI scale
- Audio meters
Focus & Framing Utilities
- Peaking with customizable peaking frame; gesture zoom
- Crosshair, guides, grids, rectangle crop, check field
- Freeze Frame to capture and compare stills via USB-A
Anamorphic & Vertical Tools
De-squeeze presets: 1.00×, 1.33×, 1.42×, 1.50×, 1.60×, 1.66×, 1.80×, 1.85×, 2.00×, 2.35×, plus custom 0.25×–4.00×. Vertical extension/stretch for portrait capture with effect passed to HDMI output.
Color Utilities & Quick Adjustments
360° color grader for targeted hue/saturation edits. Quick controls include backlight, contrast, color temperature, sharpness, chroma, brightness, tint, HDR/HLG, and H/V image flip with persistent on-screen adjustments.
Camera Control
Dedicated CAMERA REMOTE interface enables wired control via micro/mini-USB, USB-C, or LANC for compatible cameras from Sony, Canon, Panasonic, Z CAM, and Blackmagic Design (e.g., Sony FX3/FX30/FX6; Canon EOS C80/C400). Adjust aperture, shutter speed, ISO, and white balance directly on the touchscreen. Touch Focus is available on supported models, and a Focus Tracking frame (currently for Sony) lets you position the camera’s tracking box from the monitor.
Connectivity & Power
Left side: HDMI input (up to DCI 4K30) and 3.5 mm headphone out. Right side: HDMI output (up to 1080p60), USB-C 3.0 5 V power input, and a 1/4″-20 mount with anti-twist grooves. Bottom: USB-A (LUTs & Freeze Frame), micro-USB camera remote, and a second 1/4″-20 mount. Back: integrated Sony L-Series (NP-F) battery plate.
Low 7.5 W consumption enables hours of use with compact NP-F batteries (e.g., NP-F550). USB-C input supports external power (e.g., power banks). Operating voltage range: 7–24 V.
Build & Handling
ABS + PC construction at 162 g with a slim 135.1 × 82.5 × 22 mm footprint. Top panel includes main menu/UI lock, power indicator, and power switch. Built-in silent fan aids cooling. Includes sunshade for glare reduction.
Operating System
MOVNORM OS provides a minimalist, responsive interface tailored for fast on-set operation.
Display
| Screen Size | 13.7 cm (diagonal) |
| Panel Type | HD IPS touchscreen |
| Resolution | 1920 × 1152 |
| Color Depth | 10-bit (8+2 FRC) |
| Brightness | 800 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80/80/80/80 (≈178°) |
| Sunshade | Included |
Color & LUT
| Color Gamut | 100% Rec.709; 85% DCI-P3 |
| 3D LUT Monitoring | Supported |
| 3D LUT Output | Follows HDMI output in real time |
| Custom LUT Capacity | Up to 20 via USB-A |
| 360° Color Grader | Hue and saturation adjustment for selected range |
Monitoring Tools
| Exposure Tools | Waveform (RGB/Luma), Luma Histogram, Zebra, False Color (13 colors) incl. ARRI |
| Focus Tools | Peaking, customizable peaking frame, gesture/touch zoom |
| Framing Tools | Crosshair, guides, grids, rectangle cropping, check field |
| Freeze Frame | Capture and compare via USB-A |
| Quick Adjustments | Backlight, contrast, color temperature, sharpness, chroma, brightness, tint, HDR/HLG, H/V flip |
Anamorphic & Vertical
| De-Squeeze Presets | 1.00×, 1.33×, 1.42×, 1.50×, 1.60×, 1.66×, 1.80×, 1.85×, 2.00×, 2.35× |
| Custom De-Squeeze | 0.25×–4.00× |
| Vertical Extension | Stretch effect for portrait; effect passes to HDMI output |
Camera Control
| Interface | Dedicated CAMERA REMOTE (micro/mini-USB, USB-C, or LANC; model-dependent) |
| Brands | For select Sony, Canon, Panasonic, Z CAM, Blackmagic Design |
| Adjustable Parameters | Aperture, shutter speed, ISO, white balance |
Interfaces & Connectivity
| HDMI Input (Left) | Up to DCI 4K30; adjacent 3.5 mm headphone out |
| HDMI Output (Right) | Up to 1080p60 |
| USB-C Power | USB-C 3.0, 5 V input |
| USB-A | Bottom port for LUTs and Freeze Frame storage |
| Camera Remote Port | Bottom micro-USB (model-dependent control) |
| Headphone Out | 3.5 mm stereo jack |
Supported HDMI Input Formats
| DCI 4K | 4096 × 2160p at 23.97/24/25/29.97/30 |
| Full HD Progressive | 1920 × 1080p at 23.97/24/25/29.97/30/50/59.94/60 |
| Full HD PsF | 1920 × 1080psf at 23.97/24/25/29.97/30 |
| Full HD Interlaced | 1920 × 1080i at 50/59.94/60 |
| HD | 1280 × 720p at 50/59.94/60 |
HDMI Output Formats
| Output | 1920 × 1080p at 60 |
| LUT Output | 3D-LUT follows HDMI output |
| Adjustment Output | Brightness, tint, contrast adjustments can be output; vertical stretch supported |
Power
| Battery Plate | Sony NP-F (NP-F550/750/960/970) |
| Operating Voltage | 7–24 V |
| USB-C Input | 5 V (extends runtime via power bank, V-Mount/Gold-Mount adapters) |
| Maximum Power Consumption | 7.5 W |
Physical
| Material | ABS + PC |
| Overall Dimensions | 135.1 × 82.5 × 22 mm |
| Weight | 162 g |
| Cooling | Built-in silent fan |
| Mounting Points | Bottom 1/4″-20 ×1; Side 1/4″-20 ×1 (right side with anti-twist grooves) |
What's Included
- Portkeys LH5C 5.4" 4K HDMI Touchscreen Monitor with Wired Camera Control
- Safety Box
- Sunshade with Protective Rubber Covers
- MH-2 Cold Shoe Mount
- LANC Control Cable
- USB-C (Type-C) Control Cable
- Mini Flash Drive
- Customer Feedback Card
- Barcode: 80780
- Supplier Code: LH5C
