Overview

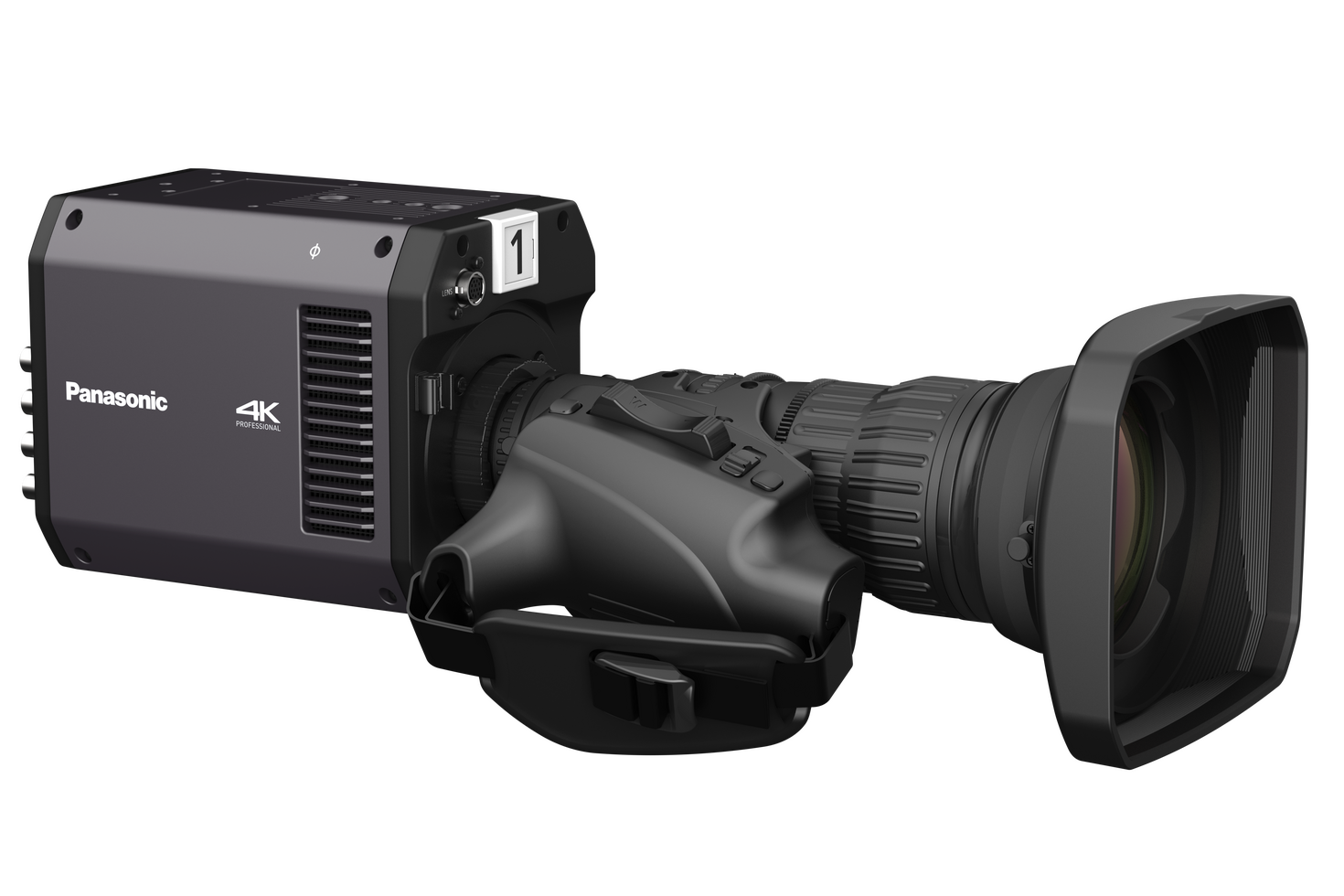

The Panasonic AK-UBX100 4K Multi Purpose Camera is a next-generation box-style broadcast system designed for studio production, sports, live event capture, and robotic workflows. Featuring a 2/3" bayonet mount, advanced oversampling 4K MOS sensor, and Panasonic’s unified operating platform, it delivers exceptional image performance, flexible IP production, and seamless interoperability with the AK-UCX100 and AW-UE160.
With up to 2,000 TV lines of horizontal and vertical resolution, support for simultaneous HLG (BT.2020) and SDR (BT.709), and robust connectivity including dual 12G-SDI and dual SFP+/28 interfaces, the AK-UBX100 ensures reliable, high-quality output for demanding broadcast environments. Its ultra-lightweight 1.9 kg design, flat mounting surfaces, and robotic-friendly layout make it ideal for specialty rigs, cranes, and gimbal applications.
Core Features
- 2/3" bayonet lens mount for broadcast optics
- Up to 2,000 TV lines horizontal and vertical
- HLG (BT.2020) & SDR (BT.709) simultaneous output
- SMPTE ST 2110, NDI High Bandwidth & SRT support
- Dual SFP+/28 and dual 12G-SDI 4K redundant outputs
- Integrated control & tally via single LAN line
- Unified GUI shared with AK-UCX100 platform
- High-precision focus assist & PDAF autofocus*
- Ultra-lightweight approx. 1.9 kg body
- Moiré reduction with selectable HD/4K OLPF
- Designed for robotic, gimbal & crane mounting
Image Quality & Processing
The camera’s oversampling MOS sensor produces exceptional clarity with 2,000 TV lines of detail. Sensitivity reaches F10 (59.94 Hz) / F11 (50 Hz) in low-light mode, supported by a 62 dB or higher signal-to-noise ratio for clean, low-noise imagery even at high gain.
Hybrid Log Gamma (HLG) with BT.2020 primaries provides a wide dynamic range with accurate color reproduction. Simultaneous HDR/SDR workflows ensure compatibility across live broadcast and mixed-delivery environments.
System Integration & Unified Operation
The AK-UBX100 features unified operability with the AK-UCX100 and AW-UE160 through a shared GUI and Remote Operation Panel (ROP). Color matching, camera switching, and multi-camera operation are streamlined thanks to identical menu structures and control logic.
Integrated LAN-based control and tally simplify cabling, reduce on-site setup time, and allow efficient remote operation, log monitoring, and batch firmware updates.
IP Workflow & Redundant Connectivity
Supporting SMPTE ST 2110, NDI High Bandwidth, and SRT, the AK-UBX100 delivers flexible IP production options. Network redundancy under ST 2110 ensures consistent, uninterrupted 4K signal delivery in mission-critical production environments.
Dual SFP+/28 slots and dual 12G-SDI outputs enable optical/IP and baseband redundancy, as well as simultaneous clean/dirty or HDR/SDR output configurations.
Moiré Reduction Options
The AK-UBX100 provides two methods for moiré mitigation:
HD Optical Low-Pass Filter Replacement
The standard UHD OLPF can be swapped for an HD OLPF when working with fine patterns or LED screens, though UHD resolution is reduced.
Add-On HD Low-Pass Filter via Turret
This approach keeps the UHD OLPF in place while allowing selection of the HD OLPF via the turret. This configuration disables concurrent ND filtering.

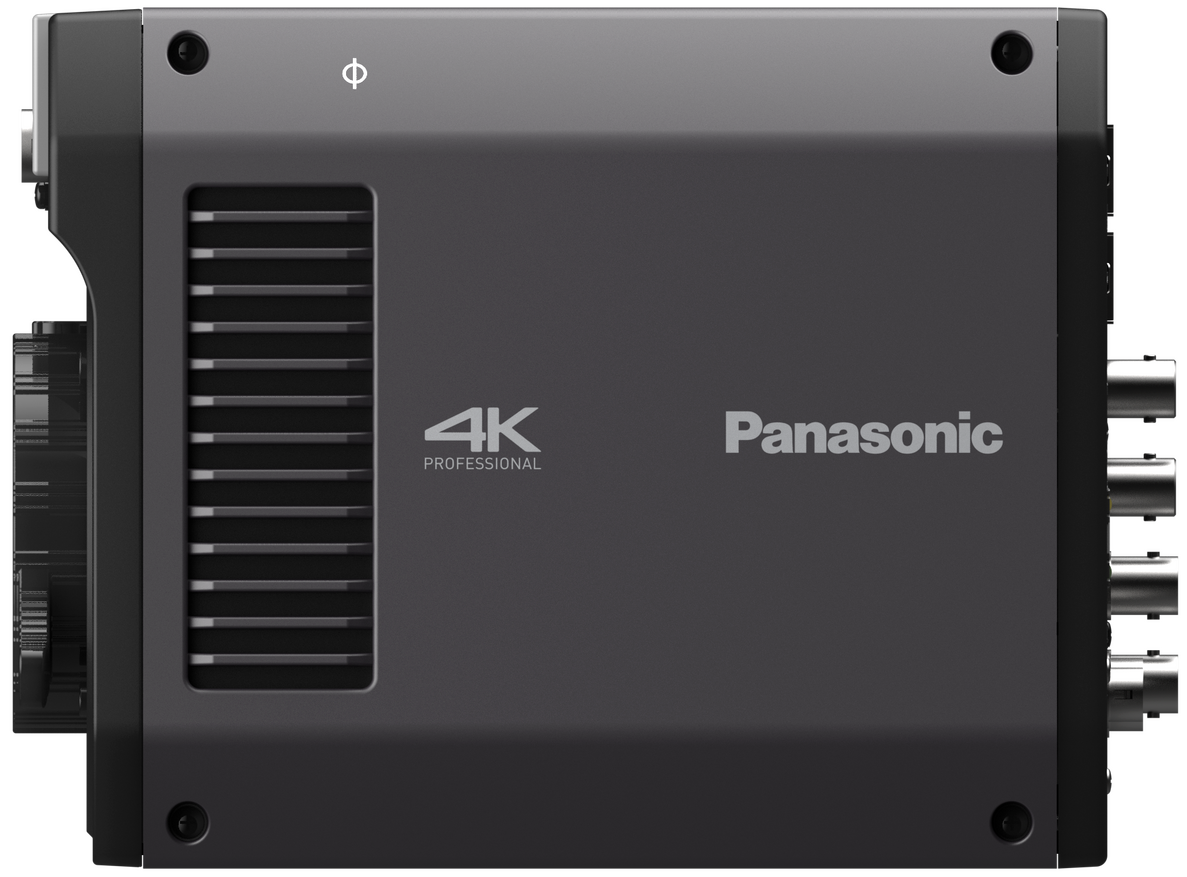

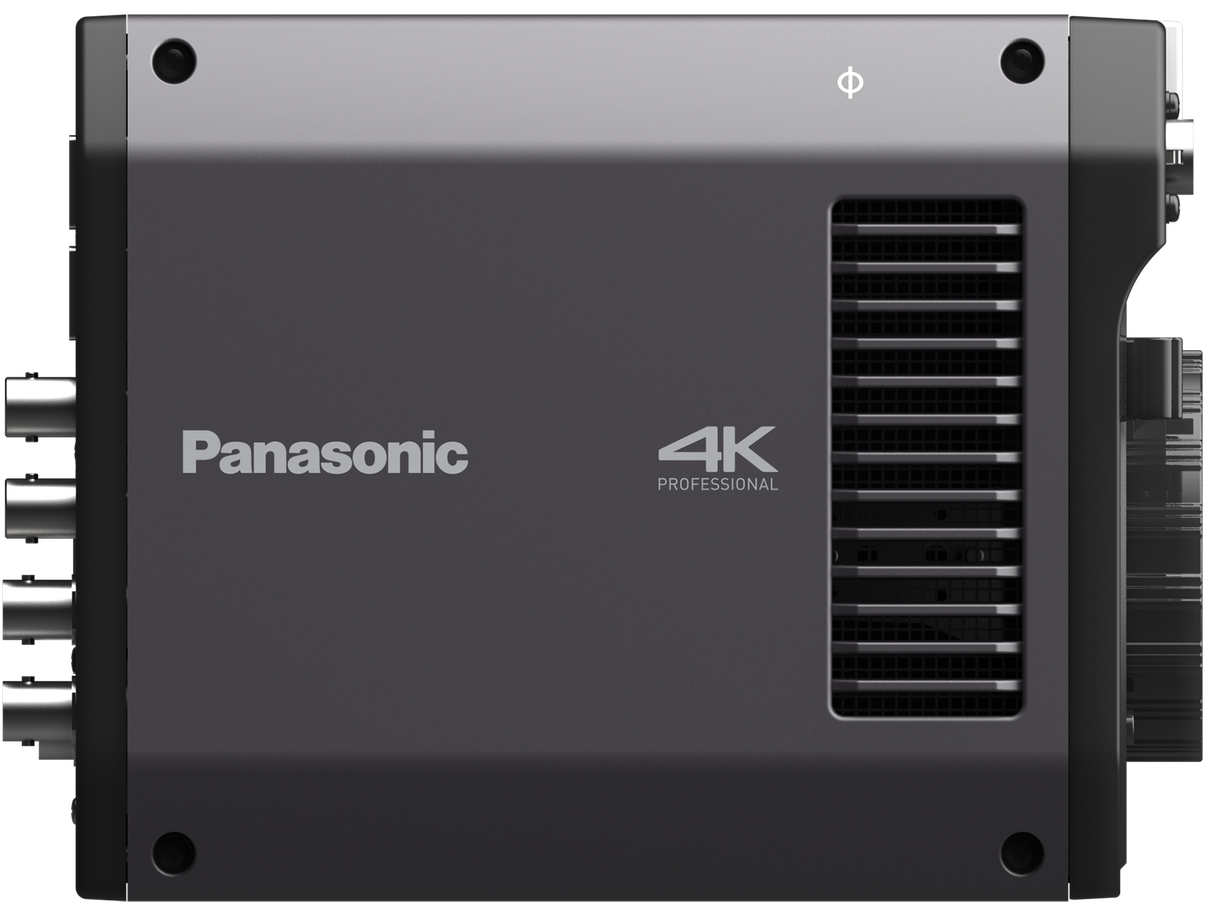

Robotic & Specialty Mounting

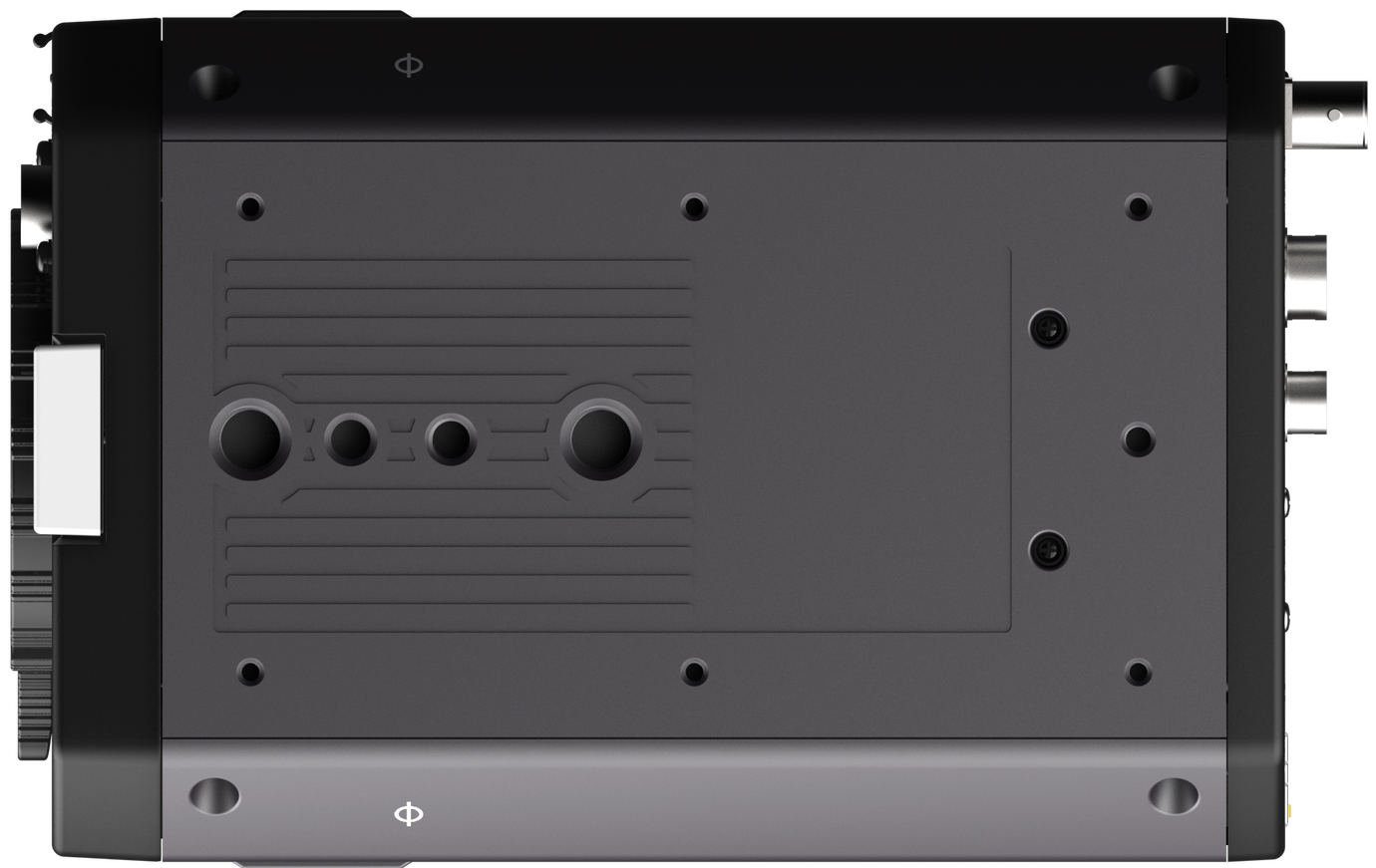

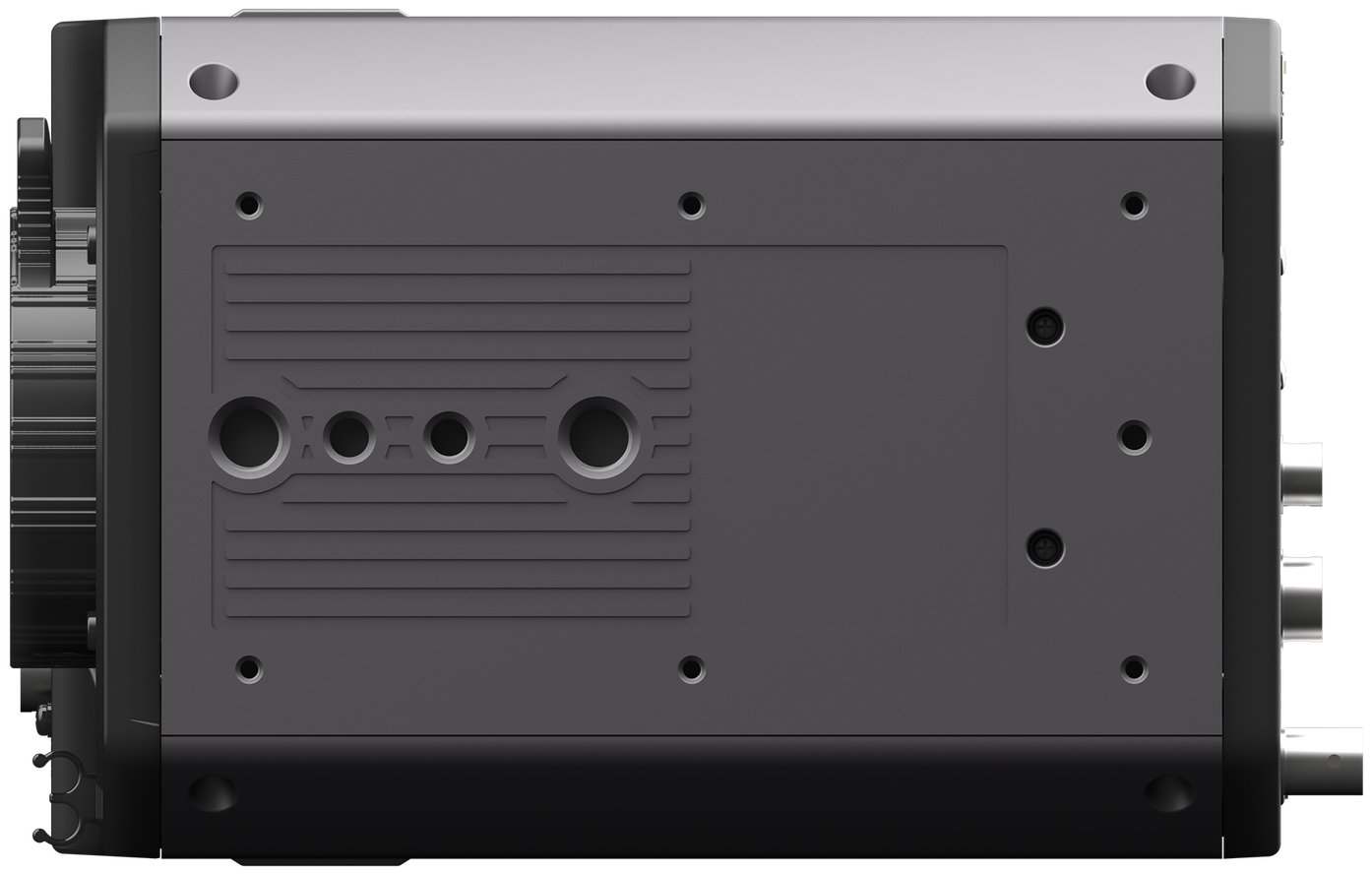

The flat, tool-free mounting surfaces on all four sides, along with multiple 1/4" screw holes, make the AK-UBX100 ideal for cranes, gimbals, ceiling mounts, and robotic heads. Its lightweight 1.9 kg design reduces counterbalance requirements and expands lens and accessory compatibility.
Focus Functions
High-Precision Focus Assist
A focus indicator and image-plane phase-detection guide help operators maintain critical focus during fast-paced productions. VF Shadow Boost enhances visibility in dark areas of the frame.
Note: Built-In PDAF Autofocus*
Phase detection autofocus ensures rapid, reliable focus regardless of lens type. Target size, speed, and area selection can be customized for dynamic scenes. Manual override allows instant fine-tuning when needed. *AF support planned for future update.
General
| Power Supply | DC 12 V (DC 11–17 V) |
| Power Consumption | 40 W (body only, 12G-SDI out); 60 W max with accessories |
| Operating Temperature | -10 °C to 45 °C |
| Operating Humidity | 85% or less |
| Storage Temperature | -20 °C to 60 °C |
| Weight | Approx. 1.9 kg (body only) |
| Dimensions (W × H × D) | 118 × 140 × 175 mm (excluding protrusions) |
Camera Unit
| Pickup Device | 19.29-megapixel MOS sensor |
| Optical Filters (ND) | CLEAR, 1/4, 1/16, 1/64 |

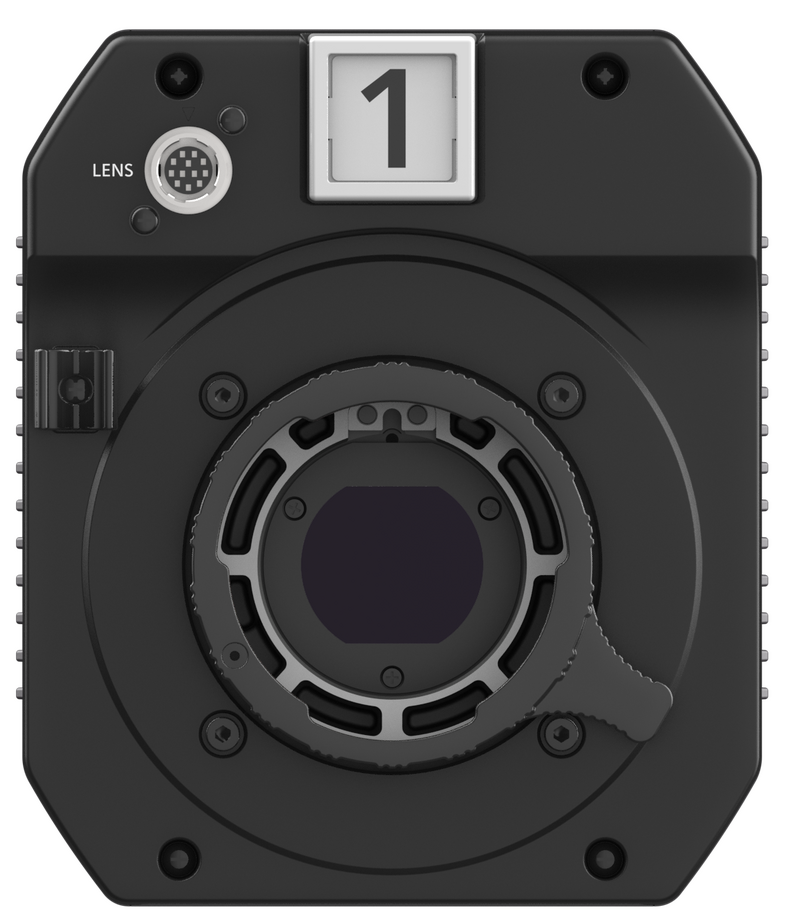

| Lens Mount | 2/3-type bayonet |
| Sensitivity (Low Light) | F10 (59.94 Hz) / F11 (50 Hz) |
| Sensitivity (Normal) | F6 (59.94 Hz) / F7 (50 Hz) |
| Reference Conditions | 2000 lx, 3200 K, 89.9% white reflectivity |
| Horizontal Resolution (UHD) | 2000 TV lines or above (center) |
| Horizontal Resolution (HD) | 1000 TV lines or above (center) |
| S/N Ratio | 62 dB or above |
| Gain Settings | -6, -3, 0, 3, 6, 9, 12, 15, 18 dB |
| Shutter Speeds (59.94p/59.94i) | 1/100–1/2000 |
| Shutter Speeds (50p/50i) | 1/60–1/2000 |
| Shutter Speeds (29.97p) | 1/48–1/2000 |
| Shutter Speeds (25p) | 1/48–1/2000 |
| Shutter Speeds (23.98p) | 1/48–1/2000 |
| Synchro Scan (59.94p/59.94i) | 60.0–7200 Hz |
| Synchro Scan (50p/50i) | 50.0–7200 Hz |
| Synchro Scan (29.97p) | 30.0–7200 Hz |
| Synchro Scan (25p) | 25.0–7200 Hz |
| Synchro Scan (23.98p) | 24.0–7200 Hz |
| System Format | 3840×2160 (59.94p/50p/29.97p/25p/23.98p), 1920×1080 (same frame rates) |

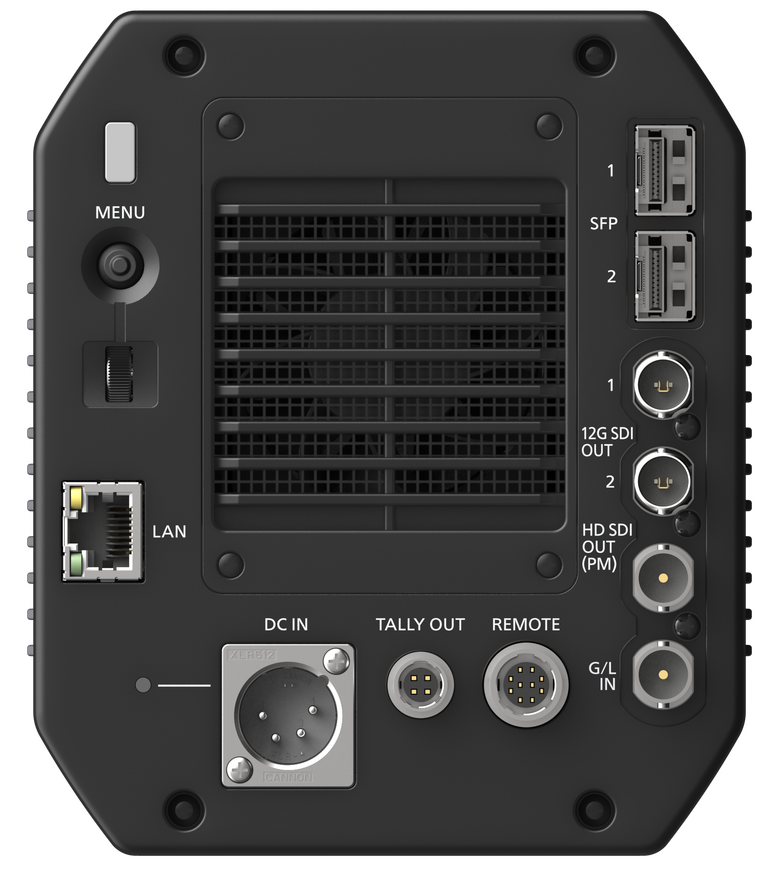

Video Input / Output
| 12G-SDI OUT 1 | BNC ×1, 12G/6G/3G/1.5G-SDI, 0.8 V p-p, 75 O |
| 12G-SDI OUT 2 | BNC ×1, 12G/6G/3G/1.5G-SDI, 0.8 V p-p, 75 O |
| HD-SDI OUT | BNC ×1, 3G/1.5G-SDI, 0.8 V p-p, 75 O |
| G/L IN | BNC ×1, 1 V p-p, 75 O |
Other Input / Output
| SFP 1 | SFP+/28 transceiver slot ×1 |
| SFP 2 | SFP+/28 transceiver slot ×1 |
| LENS Port | 12-pin ×1 |
| DC IN | XLR 4-pin, DC 12 V (DC 11–17 V) |
| REMOTE | 10-pin ×1 |
| TALLY OUT | 4-pin ×1 |
| LAN | RJ-45 ×1 |
What's Included
- Panasonic AK-UBX100 4K Multi Purpose Camera (Body Only)
- Barcode: 86912
- Supplier Code: AK-UBX100GJ
