Sennheiser AB 3700 Broadband Antenna Booster

Sennheiser AB 3700 Broadband Antenna Booster

SKU:
AB 3700

Key Features

  • Compatible with EM3731 & EM3732 Receivers
  • Up to 15 dB Amplification
  • Includes Bypass Switch
  • Standard 9.5 mm or 15.9 mm Mount

Sennheiser

$1,219.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

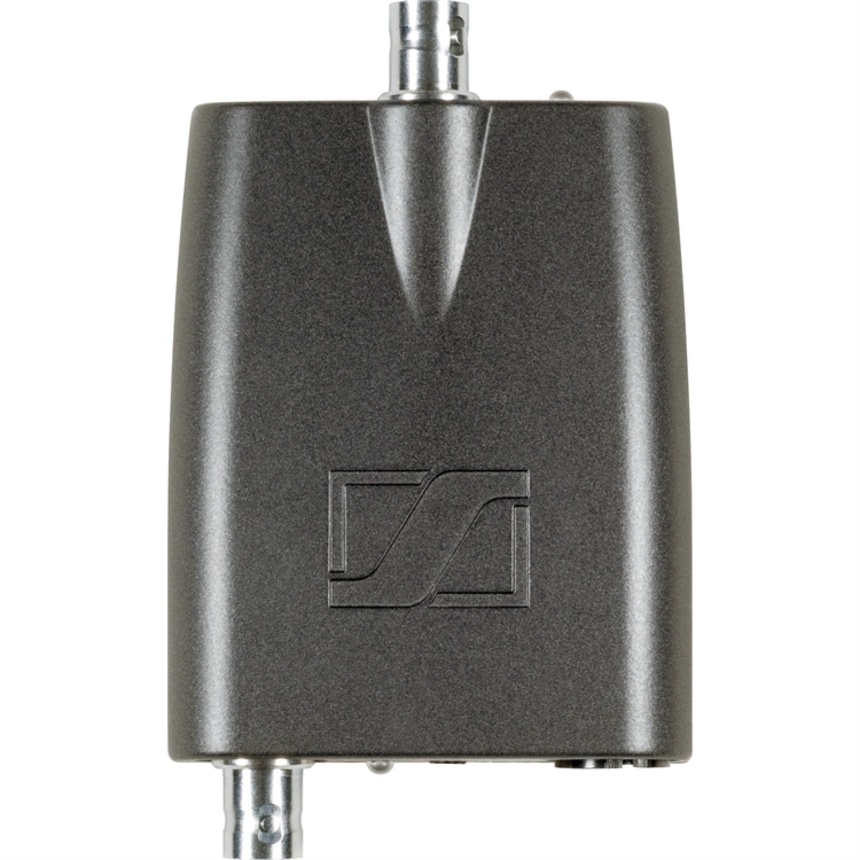

The Sennheiser AB 3700 Broadband Antenna Booster is an inline RF signal booster designed for the Sennheiser EM3731, EM3732, and EM3732 Command receivers. It significantly boosts RF strength and gain during long BNC cable runs, featuring up to 15dB of amplification and compatibility with standard 9.5 mm or 15.9 mm studs.

Core Features

Features

  • Amplification adjustable in 4 steps (up to 15 dB) to compensate for cable losses
  • DC powered from the receiver via the antenna cable
  • Bypass switch in case of power failure
  • LED operation indicator
  • Antenna booster housed in a rugged, splash-proof all-metal housing
  • Standard 9.5 mm or 15.9 mm mounting thread

Specifications

Frequency Range 470-866 MHz
Amplification Bypass (-3 dB), 5 dB, 10 dB, 15 dB adjustable, without DC feed: -6 dB
Impedance 50 Ohms OIP3: >= 32 dBm
Connection 2x BNC Sockets
Power Supply 9-15 V DC / 160-100 mA, DC feed via antenna cable (RF OUT socket)
Mount 3/8" or 5/8" thread
Dimensions 80 x 64 x 24 mm
Weight 265 g

What's Included

  • Sennheiser AB 3700 Broadband Antenna Booster
  • Adjustment Tool
  • Instructions
  • Barcode: 83053
  • UPC Barcode: 615104136762
  • Supplier Code: 502196
