Overview

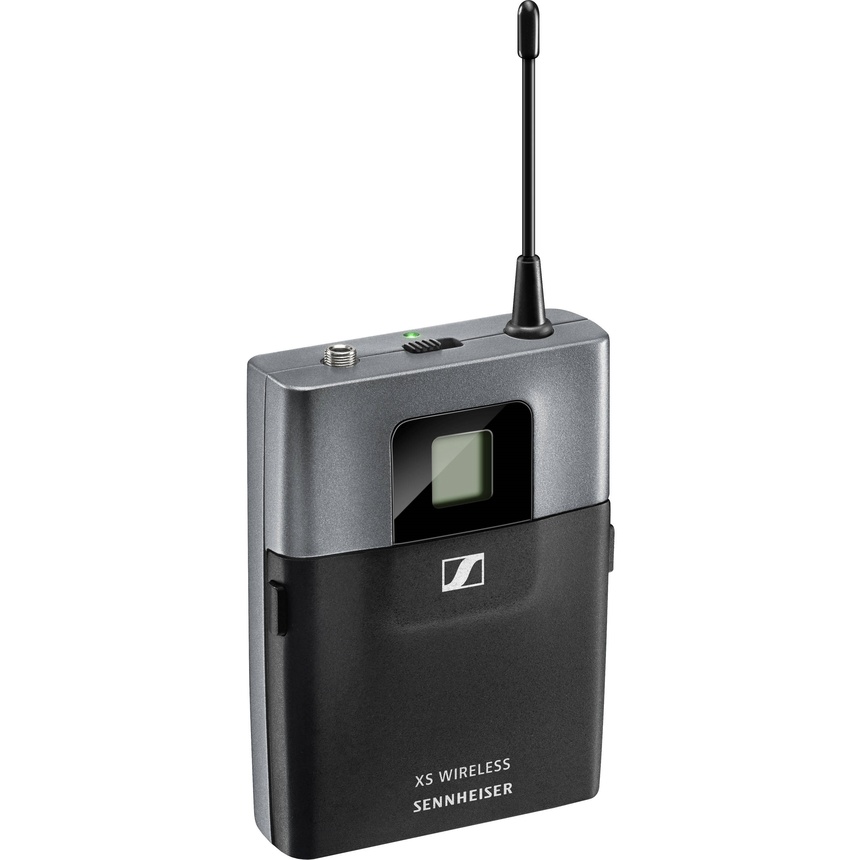

The SK-XSW-A Bodypack Transmitter from Sennheiser is designed to be paired with an EM-XSW1-A receiver (sold separately). It is ideal for capturing audio in live stage applications, featuring automatic frequency management with up to ten coordinated frequency presets for wireless connections. The transmitter is sweat-resistant and built to withstand the toughest stress in everyday on-stage use.
Core Features
Great Performance and Price
The XS Wireless 1 allows you to focus on your talent rather than the microphone equipment. Simply switch it on, and its automatic frequency management takes care of the rest. You can operate up to ten wireless connections simultaneously.
Live Sound
The transmitter delivers an open, natural sound with no lengthy setup required—just go!
Reliable Transmission
On stage, both you and your equipment must endure a lot. The XS Wireless 1 is built to last: Transmitters are sweat-resistant and can withstand even the toughest stress in everyday on-stage use.
Specifications
| System | |
| Modulation | Wideband FM |
| Frequency Range | A: 548 to 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Frequencies | 8 frequency banks, each with up to 10 factory-preset channels |
| Signal to Noise Ratio | = 103 dBA |
| Total Harmonic Distortion | = 0.9% |
| Temperature Range | Operation: 0 to +40°C |
| Storage | -20 to 70°C |
| Transmitter Synchronisation | 2.4 GHz, Low Power OQPSK (only active during synchronisation) |
| Bodypack Transmitter | |
| Output Power | 10 mW |
| Frequency Response | Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz |
| Audio Input | 3.5 mm jack socket |
| Input Voltage | Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS lineat -30 dB gain |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions (W x H x D) | 71 x 96 x 28 mm |
| Weight | 95 g |
What's Included
- Sennheiser SK-XSW-A Bodypack Transmitter (A: 548 to 572 MHz)
- Barcode: 83445
- UPC Barcode: 615104281998
- Supplier Code: 507322
