Overview
The Sennheiser XSW-D VOCAL SET is an easy entry point into the world of wireless microphone audio for singers, vocalists, and presenters. It offers a stage-ready system that's both cost-effective and simple to use, featuring world-renowned Sennheiser wireless sound quality in a miniaturized, plug-and-go, 1-button digital system.
Core Features
Unboxing the System

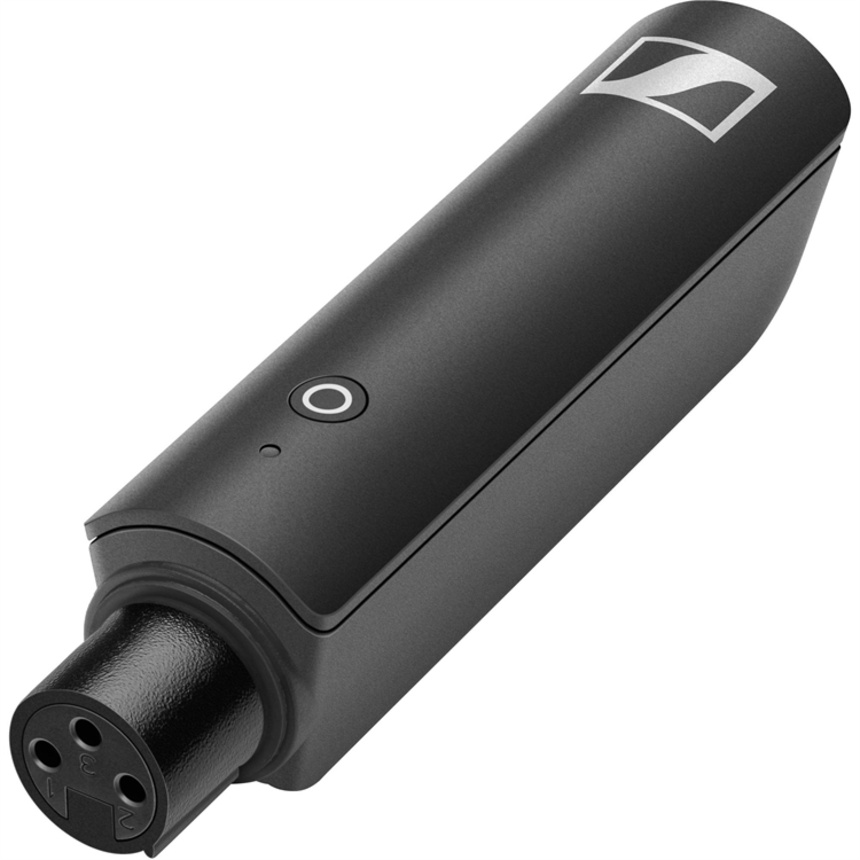

- The XS 1 handheld microphone plugs into the XLR input on the lightweight plug-on transmitter, designed to transmit signal from a mic only.

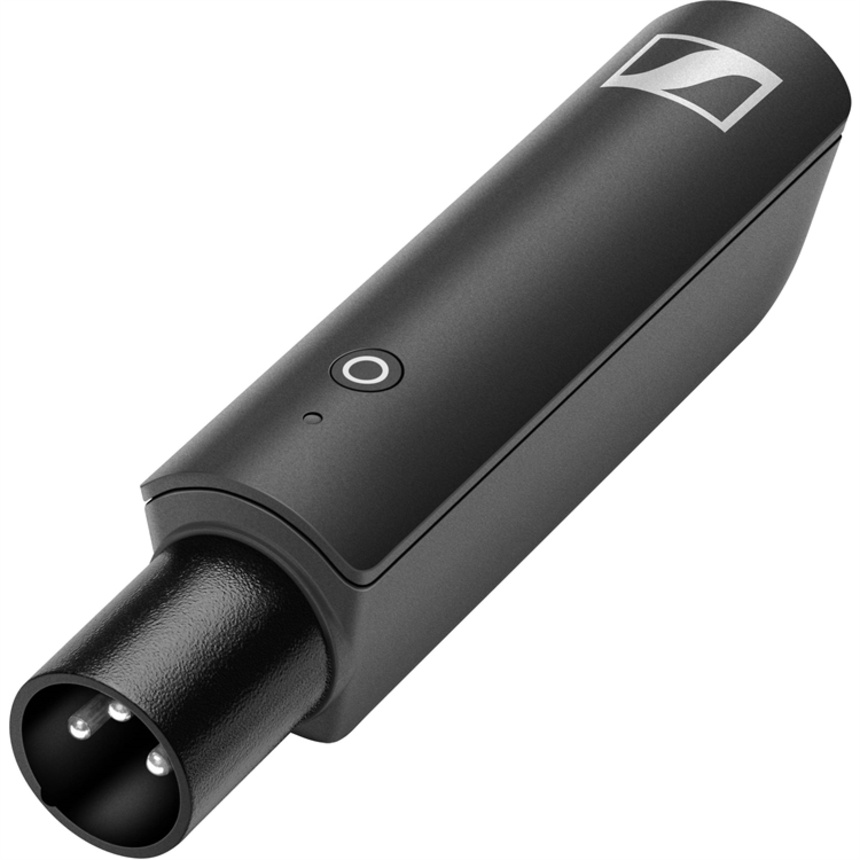

- Plug the compact receiver directly into the XLR input of your audio mixer or PA. The receiver needs to be charged ahead of time or used while being charged via USB.
Plug In, Turn On: It Works
- The 1-button, 1-LED concept with single-button interface and status indicator handles power and linking tasks effortlessly.
- The receiver and transmitter are pre-paired at the factory for immediate use.
Step Up to Sennheiser Sound Quality
- Sennheiser wireless mic systems are an industry standard, prized for clarity and reliability. The XS 1 dynamic vocal microphone delivers upfront vocal presence and is ideal for singers, presenters, or entertainers.
Control & Connectivity
Easy 2.4 GHz Digital Wireless
- The XSW-D digital system operates in the 2.4 GHz ISM band, avoiding interruptions and dropouts caused by TV and radio channel interference.
- Sennheiser's channel allocation and interference management technology ensures reliable transmission up to 76 meters line of sight.
Expand your System as Your Needs Grow
- The XSW-D VOCAL SET can be expanded by adding XSW-D Series transmitters.
- Adding the XSW-D 3.5mm bodypack transmitter allows connection of a lavalier or headset mic for hands-free presentations.
Additional Features
- Eco-friendly USB-rechargeable lithium-ion batteries—1-hour charging to reach 50% of battery time
- 5-hour total battery life
- Recharge batteries via USB while in operation or during breaks
- Up to five systems can be operated simultaneously
- Low 3.9 ms latency with aptX Live codec
- Mute from either transmitter or receiver
- Multi-pairing allows quick switching between multiple transmitters linked to one receiver
Specifications
| System | |
| Frequency Range | 2.400 to 2.483 GHz |
| Latency | <4 ms with aptX Live Codec |
| Transmission Range | 76.2 m (Line of Sight) |
| Simultaneous Operation of Units | Up to 5 Systems Simultaneously |
| Frequency Response | 80 Hz to 18 kHz |
| Signal-to-Noise Ratio | =106 dB |
| THD | <0.1 % |
| Modulation | GFSK with TDMA |
| Operating Temperature | -10 to 55° C |
| Relative Humidity | 95% (Non-Condensing) |
| Transmitter | |
| Type | Plug-On Transmitter |
| Input Connector | XLR-Female |
| Phantom Power | No |
| RF Output Power | 10 mW |
| Microphone Max Input Level | Mic-Level Input Only: 1.2 dBu (Typ. 0 dBu) |
| Battery | Type: Built-In, USB-Rechargeable, Lithium-Ion Battery Life: 5 Hours Charging Time: 3 Hours (Typical) Charging Cycles: Up to 1000 Cycles Nominal Voltage: 3.7 V Cell Capacity: 850 mAh Input Voltage: 5.0 V (Typical) Charging Temperature: 0 to 60° C |
| Dimensions | 102 x 24 x 28 mm |
| Receiver | |
| Type | Plug-In |
| Output Connector | XLR-Male |
| Audio Output Level | Consumer Line-Level Output Only: -12 dBu (Maximum) |
| Battery | Type: Built-In, USB-Rechargeable, Lithium-Ion Battery Life: 5 Hours Charging Time: 3 Hours (Typical) Charging Cycles: Up to 1000 Cycles Nominal Voltage: 3.7 V Cell Capacity: 850 mAh Input Voltage: 5.0 V (Typical) Charging Temperature: 0 to 60° C |
| Dimensions | 109 x 24 x 28 mm |
| Weight | Not Specified by Manufacturer |
| Microphone | |
| Type | Handheld |
| Polar Pattern | Cardioid |
| Transducer Principle | Dynamic |
| Frequency Response | 55 Hz to 16 kHz |
| Connector | XLR-Male |
| Impedance | Nominal Impedance: 300 Ohms (At 1 kHz) Terminating Impedance: 1 kOhm (Minimum) |
| Sensitivity | 1.8 mV/Pa (Free Field, No Load at 1 kHz) |
| Temperature Range | 0 to 40° C |
| Dimensions (Ø x L) | 48 x 180 mm |
| Weight | 330 g (Without Cable) |

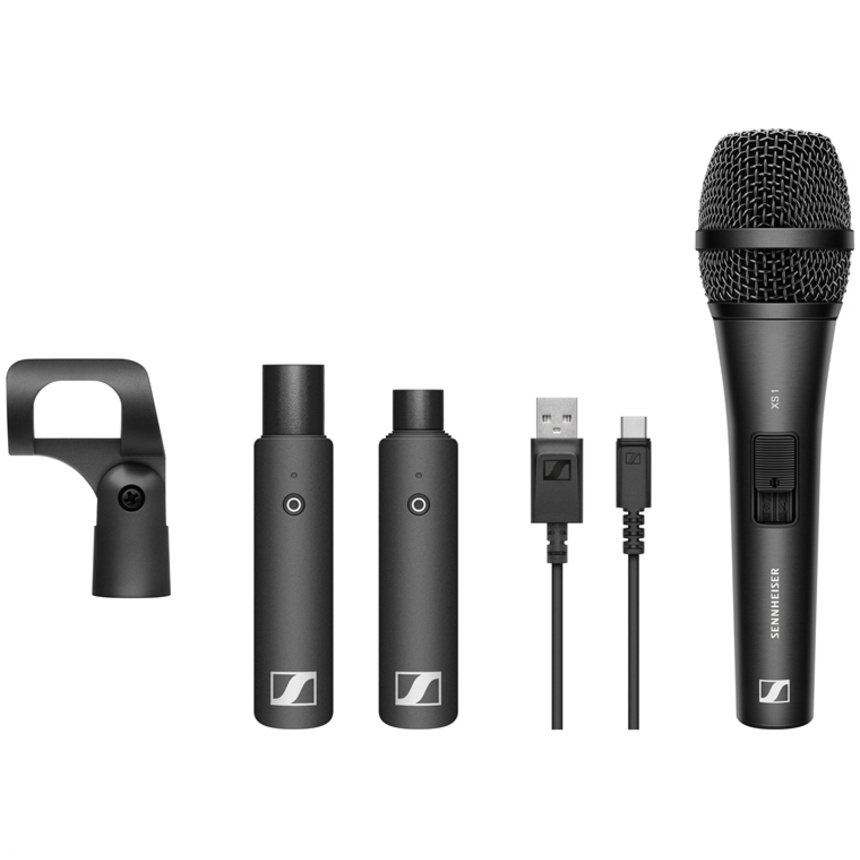

What's Included
- XS 1 cardioid dynamic mic
- XSW-D XLR Female Transmitter
- XSW-D XLR Male Receiver

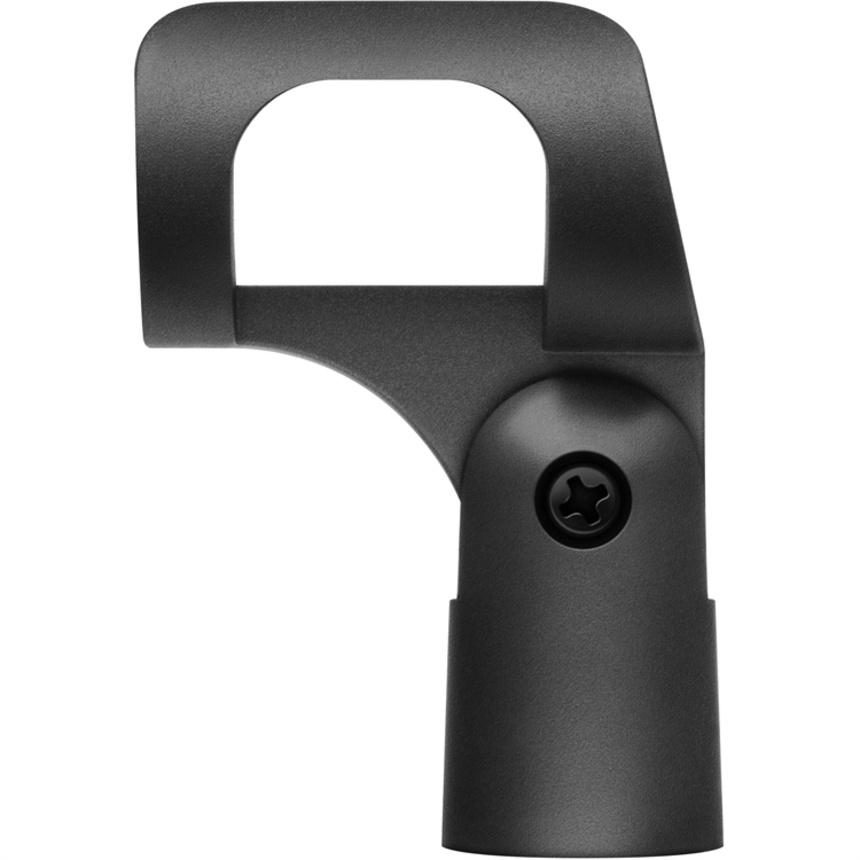

- Mic clip
- USB-A to USB-C charging cable
- Barcode: 83532
- UPC Barcode: 615104317734
- Supplier Code: 508484
