SmallRig 4463 AD-120 Heavy-Duty Carbon Fiber Tripod Kit

SKU:
4463

Key Features

  • Professional 75mm Ball Fluid Head
  • Heavy-Duty Carbon Fiber Tripod Legs
  • Manfrotto Touch-&-Go Quick Release Plate
  • 58.4 to 197 cm Height Range
  • Ground & Mid-Level Spreaders
  • Interchangeable Spiked & Wide Feet
  • 360° Panning, +90/-60° Tilting
  • 6-Step Counterbalance, Stepless Drag
  • Adjustable Pan Bar, 8 kg Maximum Load
  • Includes Carry Bag, Smartphone Holder
$995.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment
Adding to cart… The item has been added

SmallRig AD-120 Overview

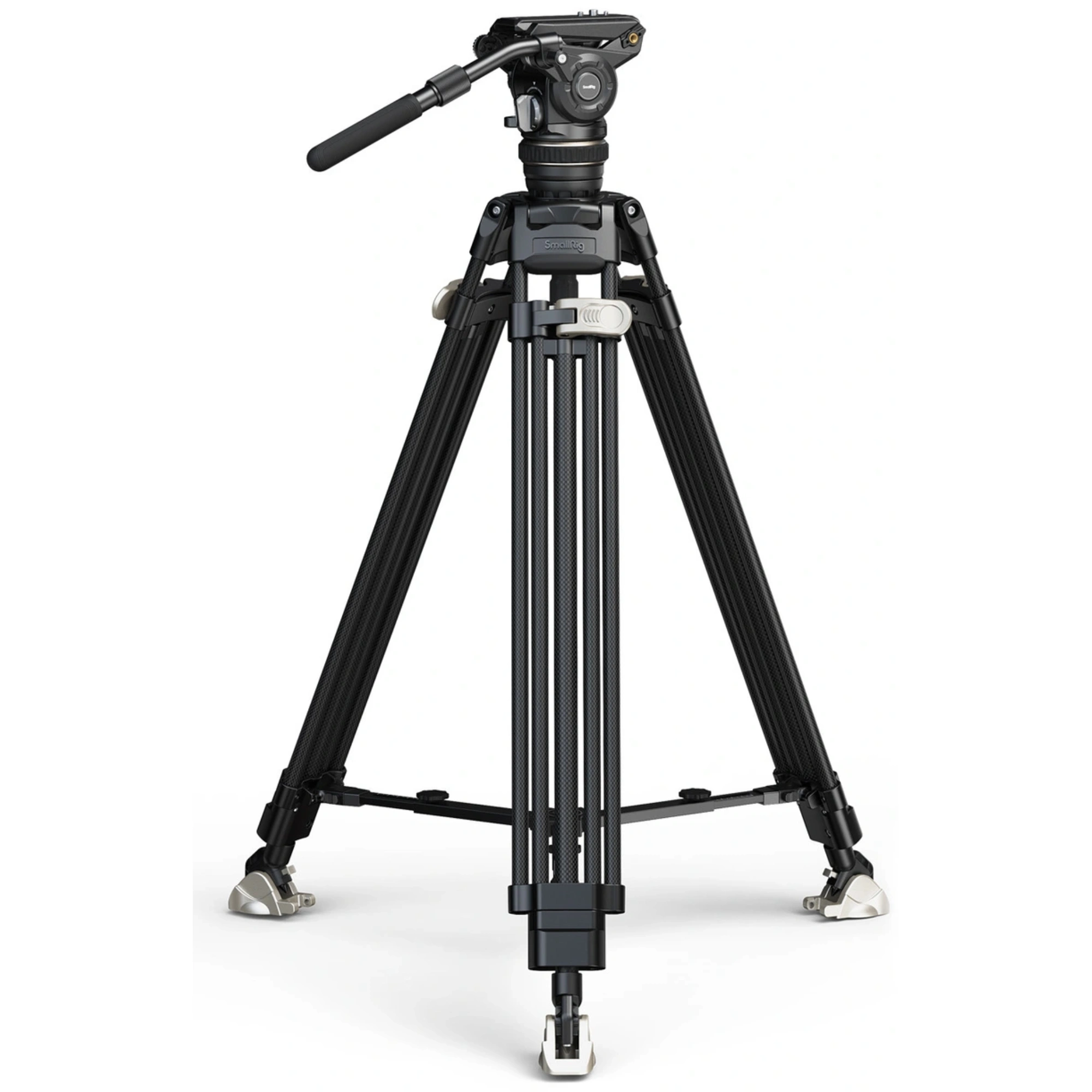

The AD-120 Heavy-Duty Carbon Fiber Tripod Kit from SmallRig is a durable and portable video tripod system for professional photographers, videographers, and vloggers. The system includes the DH12 professional fluid head and heavy-duty carbon fiber tripod legs. A carry bag is included to store and transport the entire system, and a smartphone holder to conveniently mount your phone.

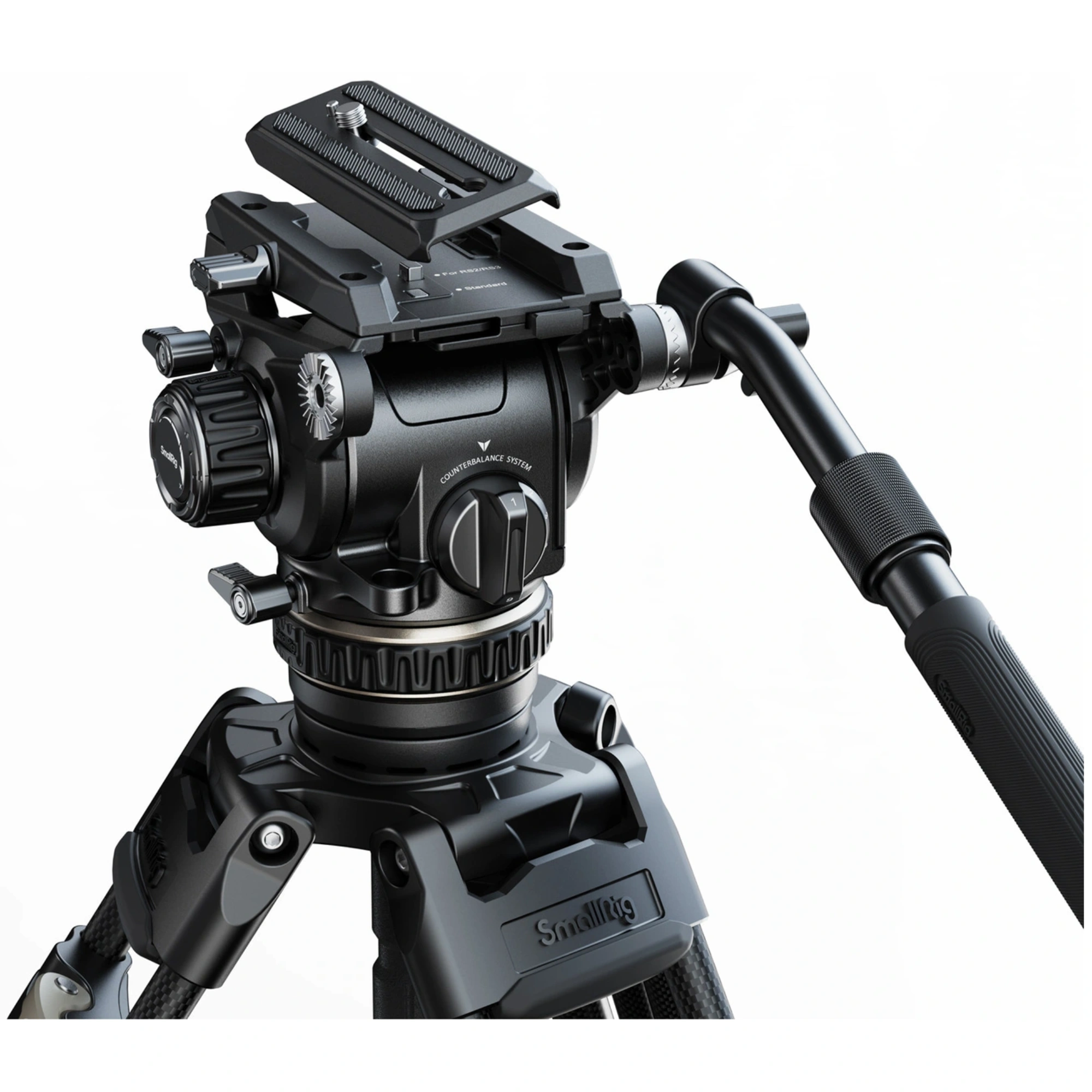

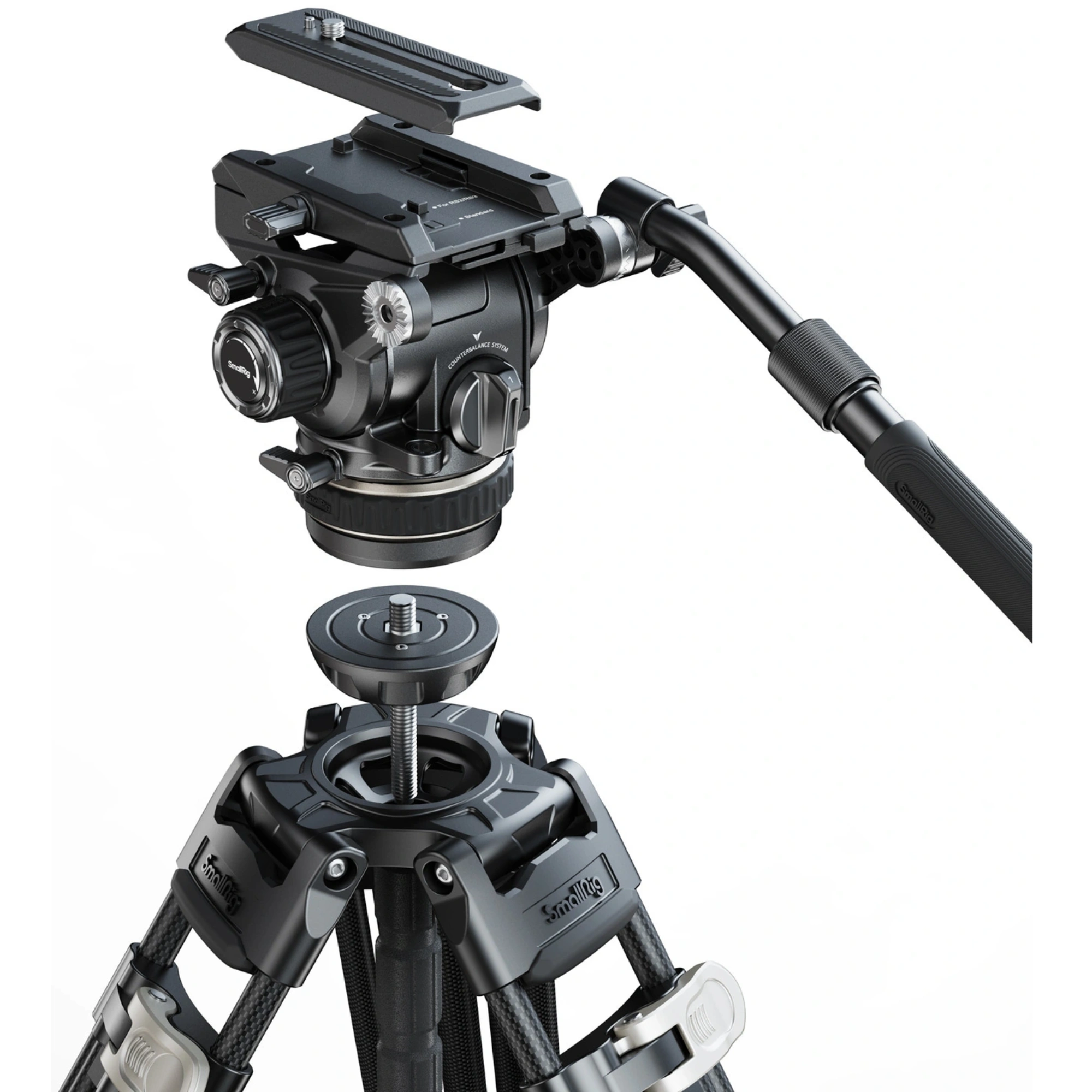

The durable fluid head features a Manfrotto 501PL-type quick release plate with a Touch-and-Go design, a 75mm half ball base that can support up to 8 k, a 6-step counterbalance, stepless pan/tilt drag settings, 360° panning, and +90/-60° tilting. A telescoping pan handle extends from 35.1 to 53.1 cm in length, and it can rotate 360° on the right or left rosette.

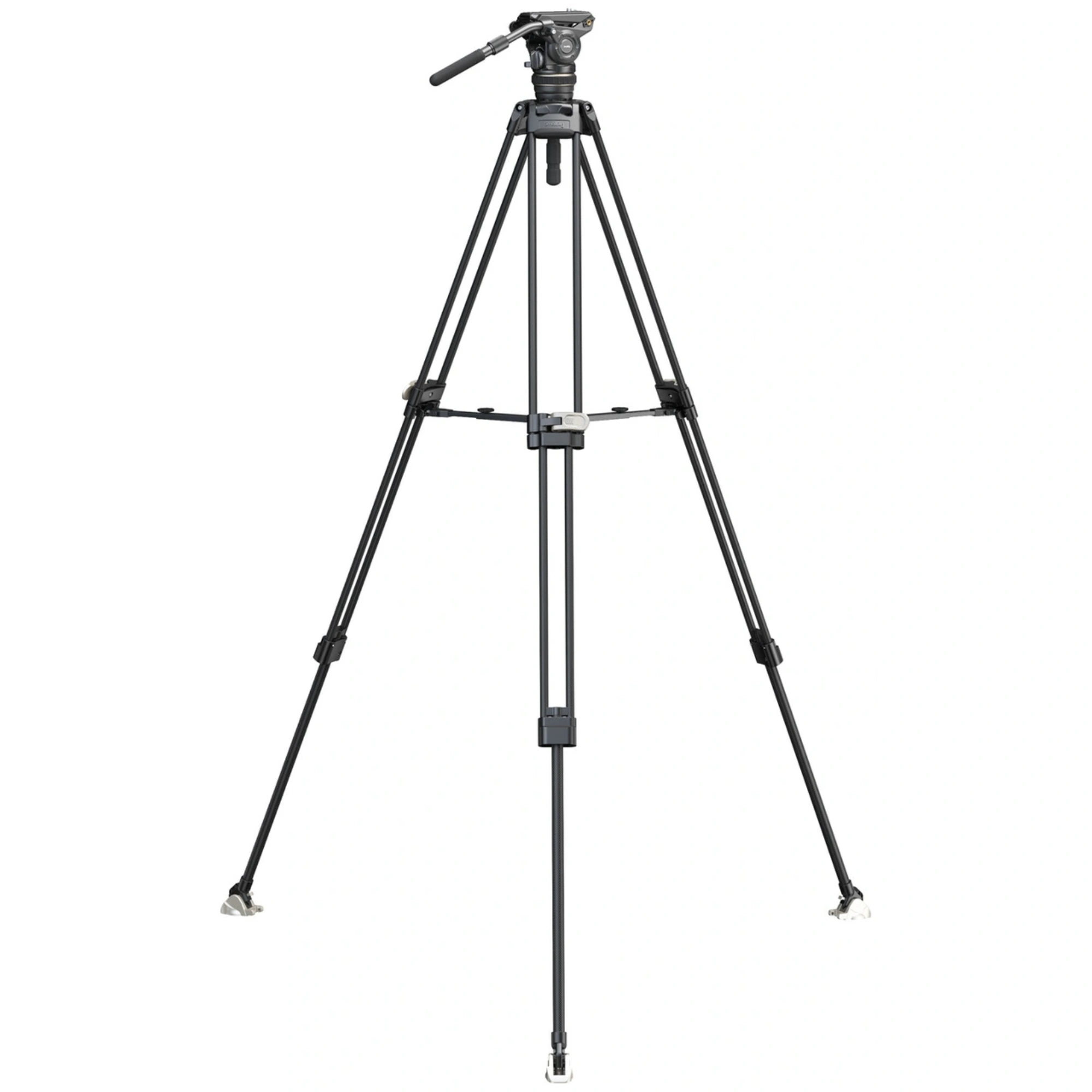

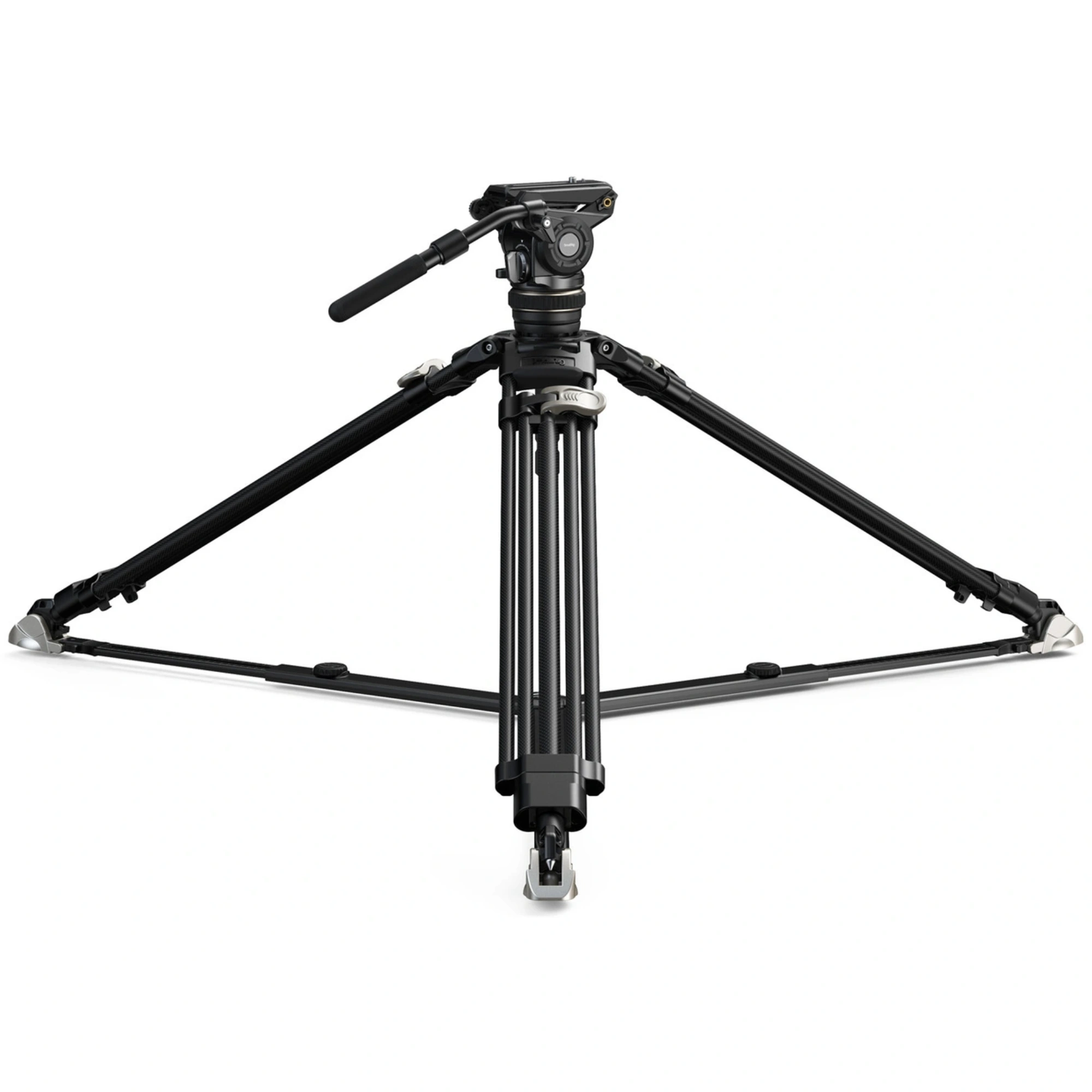

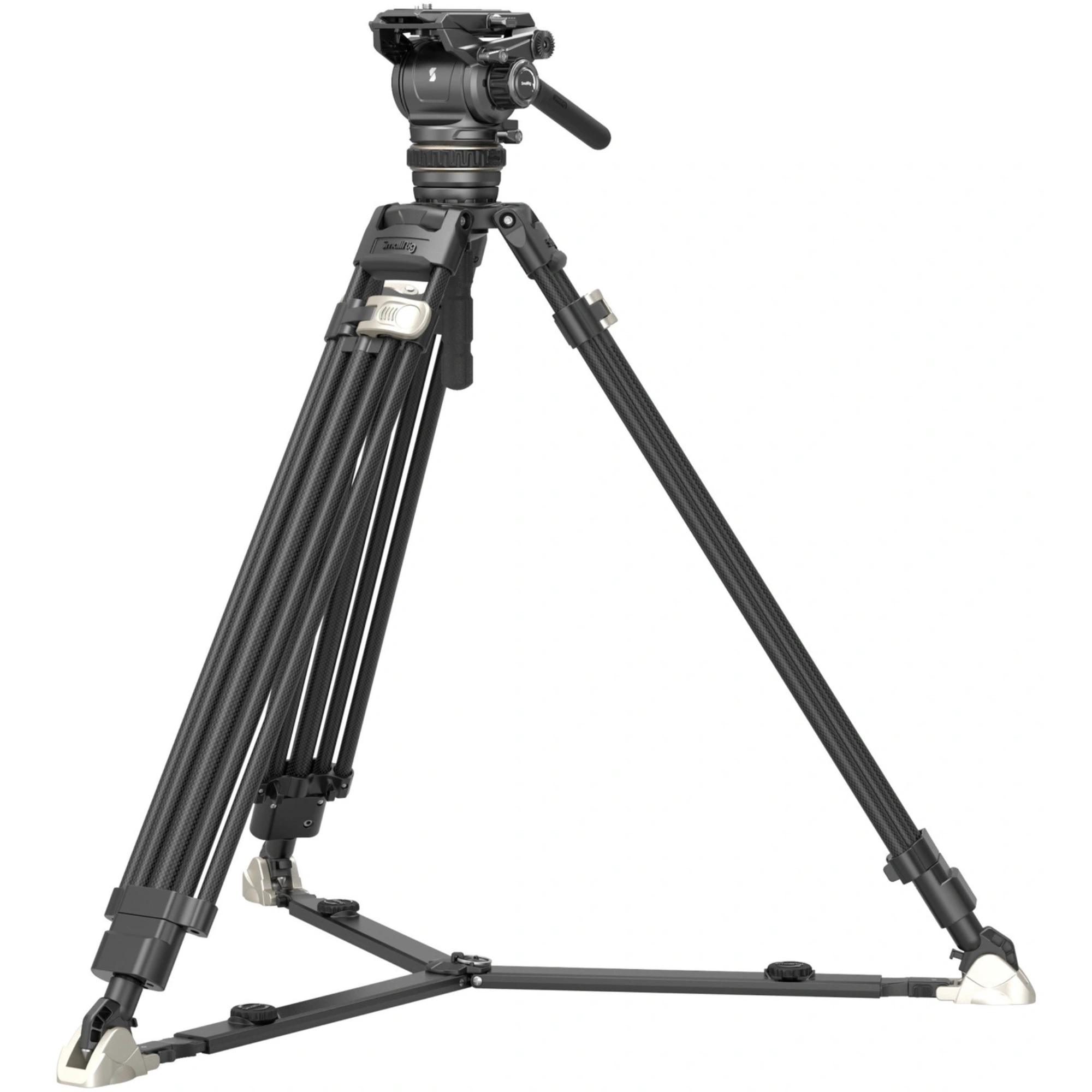

The carbon fiber legs feature removable spiked feet, a mid-level spreader, and a ground spreader for added stability options. It allows you to extend your camera rig from 58.4 to 197 cm in height. It folds down to 98 cm in length for transport.

SmallRig AD-120 Specifications

Key Specs

Camera Mounting 1/4"-20 & 3/8"-16 Screws (Quick Release Plate: 501PL)
Head Type Fluid Head
Drag Control Yes
Primary Material Carbon Fiber
Load Capacity 8 kg
Maximum Working Height 197 cm
Minimum Working Height 58.2 cm
Closed Length 98 cm
Weight 5.8 kg

Head

Camera Mounting 1/4"-20 & 3/8"-16 Screws (Quick Release Plate: 501PL)
Head Type Fluid Head
Base Mount 75 mm Half Ball
Counter Balance Incremental 6-Step
Base Diameter 75 mm

Pan & Tilt

Drag Control Yes
Independent Pan Lock Yes
Independent Tilt Lock Yes
Vertical Tilt +90° to -60°
Lateral Tilt No

Legs

Primary Material Carbon Fiber
Leg Lock Flip Lock
Leg Sections 3
Independent Leg Spread Yes
Foot Features Wide Feet, Spiked, Removable

General

Load Capacity 8 kg
Maximum Working Height 197 cm
Minimum Working Height 58.2 cm
Closed Length 98 cm
Accessory Mounting 2x Pan Handle Fitting
Bubble Level Yes
Spreader Support Ground/Mid-Level (Included)
Weight 5.8 kg

Packaging Info

Package Weight 8.5 kg
Box Dimensions (LxWxH) 111.8 x 29.2 x 19 cm

What's in the box

  • 1 x SmallRig AD-120 Heavy-Duty Carbon Fiber Tripod Kit
  • 1 x SmallRig DH12 Heavy-Duty Video Head
  • 1 x AD-120 Carbon Fiber Tripod Legs
  • 1 x Mid-Level Spreader
  • 1 x Ground Spreader
  • 1 x Smartphone Holder
  • 1 x Allen Wrench
  • 1 x Carry Bag
  • Barcode: 75048
  • UPC Barcode: 6941590015828
  • Supplier Code: 4463
