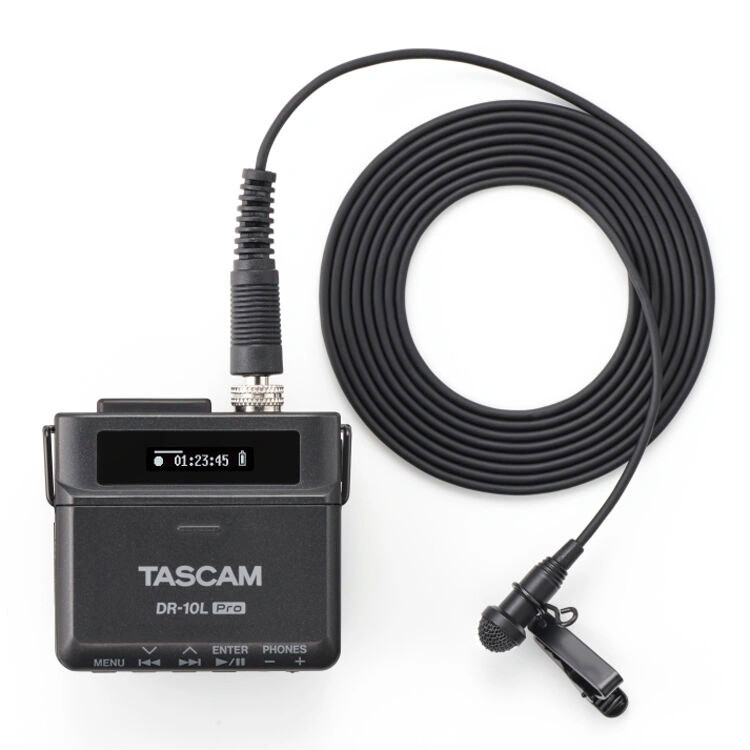

TASCAM DR-10L Pro Overview
Videographers love the TASCAM DR-10L Pro Field Recorder and Lavalier Microphone as a simple and stealthy solution for capturing audio for video. Combining the clip-on convenience of a lavalier mic with an ultra-compact portable recorder this form factor solves many problems content creators often have. It’s a superior solution for busy events like weddings and on-location film shoots where traditional wireless lav systems can pose concerns for your workflow, and the rock-solid capability of a TASCAM wired lavalier recorder is proven and assured.
The DR-10L Pro can also be an easy backup system for your typical audio recording setup thanks to simple plug-and-go operation. With the DR-10L Pros 32-bit float recording technology, you can capture a whisper, a scream, and everything in-between with impeccable fidelity, ultra-low noise, and no need to fine-tune gain levels. Support for wireless time code with Atomos products, the ability to control up to 5 units wirelessly via the app, and long battery life and generous storage capacity optimize the DR-10L Pro for professional applications.
Key Features
- Lightweight Belt Pack Recorder with Lav
- 32-Bit Float & Dual ADC Avoids Clipping
- microSDXC Support for up to 512GB
- 24.5 Hours on Two AAA Lithium Batteries
- Screw Lock Mechanism Secures Microphone
- Safe & Reliable Sliding Recording Switch
Specifications
| Portable Recorder | |
| Form Factor | Field Recorder |
| Primary Use Applications | Audio-for-Video |
| Number of Tracks | 1 |
| Number of Input Channels | 1 |
| Maximum Sampling Rate | 48 kHz / 32-Bit Float |
| Microphone | Interchangeable Lavalier |
| Number of Microphone Preamps | 1 Preamp |
| Built-In Speaker | No |
| Display | Monochrome OLED |
| Memory Card Support | microSD, microSDHC, microSDXC (512 GB) |
| Internal Storage | None |
| Special Features | None |
| Recording | |
| Audio File Formats | MP3, PCM |
| Sample Rates | 44.1 / 48 kHz |
| Bit Depth | 16 / 24-Bit 32-Bit (Floating Point) |
| Bit Rates | 128 to 192 kb/s (MP3, Record) 32 to 320 kb/s (MP3, Playback) |
| Signal Processing & FX | Auto Gain, Limiter, Low-Cut Filter |
| Timecode Support | Yes |
| Connectivity | |
| Analogue I/O | 1 x 1/8" / 3.5 mm TRS Female Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Headphone Output |
| Digital I/O | None |
| Phantom Power | None |
| Plug-In Power | Yes |
| System Connection | 1 x USB-C |
| Audio Interface Capability | None |
| Wireless | Bluetooth *Via Optional Adapter |
| Mobile App Compatible | Yes: Android & iOS App Name: DR-10L Pro CONNECT Functionality: Access Stored Files, Adjust Settings, Remote Control *As of June, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz |
| Max Input Level | 1/8" / 3.5 mm Mic Inputs: 38 dB |
| Headphone Output Power | 10 mW per Channel into 32 Ohms |
| Dynamic Range | A/D Convertors: 105 dB |
| Impedance | Mic Inputs: 2 Kilohms |
| THD+N | 0.01% |
| Microphone Sensitivity | -42 dBV/Pa |
| Microphone Max SPL | 115 dB SPL |
| Power | |
| Power Options | Battery, USB Bus Power |
| Battery Type | 2 x AAA (Not Included) |
| Approximate Battery Life | WAV 48 kHz/32-Bit: 24.5 Hours (AAA Lithium-Ion, Plug-In Power On, Recording) 16.5 Hours (AAA Alkaline, Plug-In Power On, Recording) 11.5 Hours (AAA NiMH, Plug-In Power On, Recording) |
| AC/DC Power Adapter | VDC Not Included |
| Physical | |
| Included Accessories | Audio/Mic Cable, Microphone, USB Cable, Windscreen |
| Mounting Options | Belt Clip (with Included Hardware) |
| Dimensions | 2.1 x 2 x 0.8" / 5.3 x 5.1 x 2 cm |
| Weight | 2.3 oz / 65 g (with Batteries) 1.5 oz / 43 g (without Batteries) |
In The Box
- TASCAM DR-10L Pro Field Recorder and Lavalier Microphone
- Belt Clip
- USB-C Cable
- TM-10L Lavalier Mic
- Microphone Clip
- Microphone Windscreen
- iZotope RX Elements 10 Audio Restoration and Enhancement Software (Download)
- Barcode: 71112
- UPC Barcode: 4907034134793
- Supplier Code: TASCAMDR10LPRO
