Overview

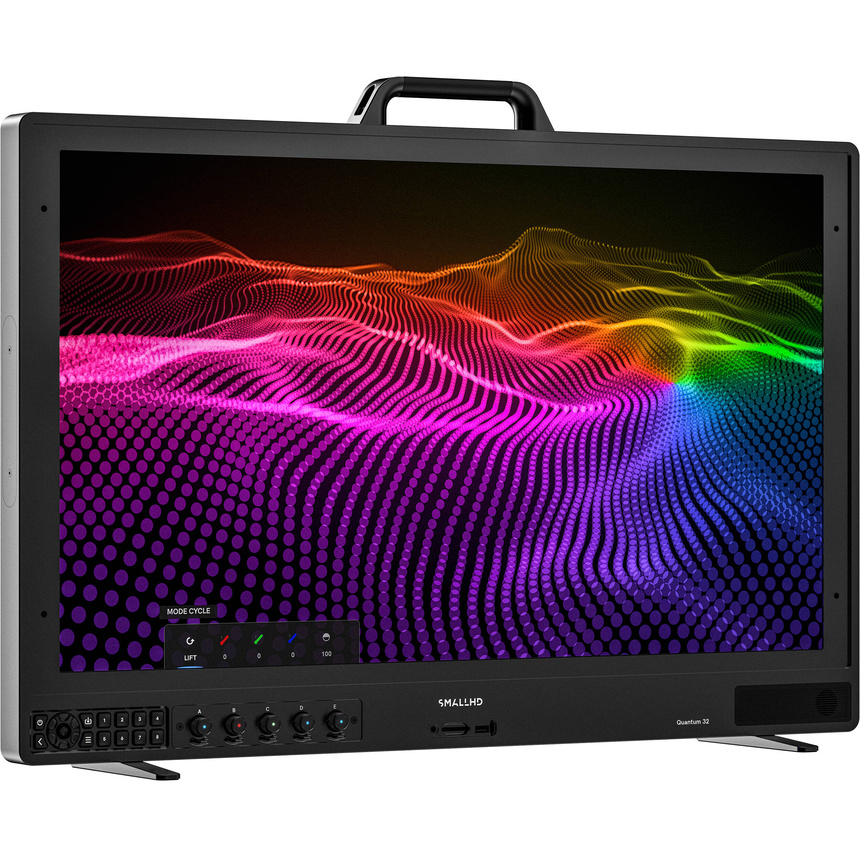

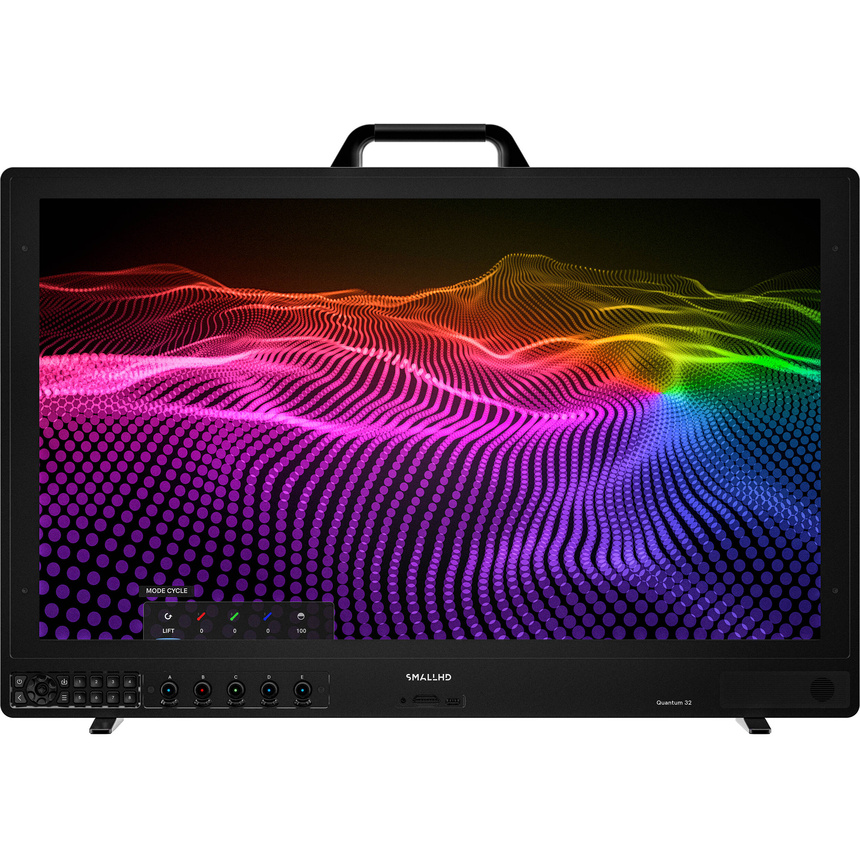

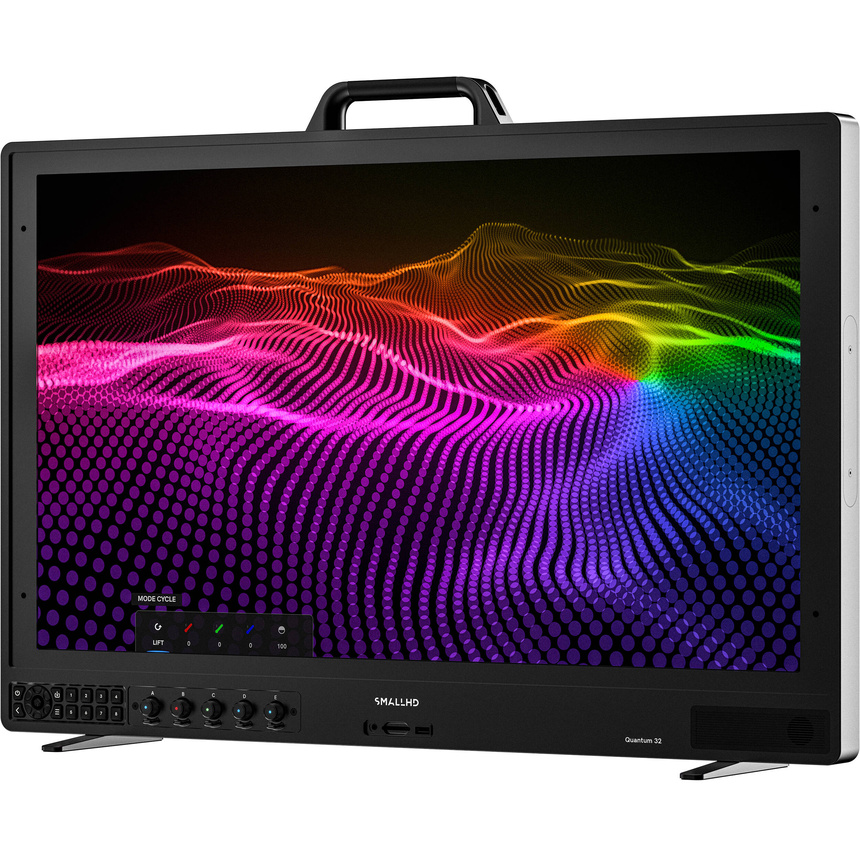

Add a professional DCI/UHD 4K OLED display to your production or colour grading studio with the SmallHD 31.5" Quantum 32 True Reference OLED Display. This 31.5" display utilizes QD-OLED panels to provide a crisp image with high brightness, high contrast, and HDR support. The QD-OLED technology enables uniform luminance up to 1000 cd/m², extends color gamut coverage to 99% of DCI-P3, and offers an ultra-wide viewing angle. With Quantum-dot OLED, you can expect exceptional color expressions that closely resemble human vision.
Core Features
The SmallHD 31.5" Quantum 32 True Reference OLED Display is equipped with multiple input and output options, including four 12G/6G/3G/HD-SDI inputs and outputs for DCI/UHD 4K content. Additionally, there is one HDMI 2.0 input and output that supports up to DCI/4K60. Video with applied 3D LUTs can be sent downstream to other devices. The display also includes an RJ45 GPI port for tally triggering.
Control & Connectivity
Running on SmallHD's unique operating system called PageOS, the Quantum 32 features a new, powerful central processor with a custom-designed architecture. PageOS offers an intuitive and highly customizable page-based monitoring interface with extensive tools for video engineering workflows and third-party software integrations. With this operating system, you have full control over integrated tools, color, exposure, camera settings, LUTs, and much more.
Specifications
| Key Specs | |
| Display Size | 80.0 cm |
| Native Resolution | 3840 x 2160 |
| Touchscreen | No |
| HDR Support | Yes |
| Video I/O | 4x BNC (12G-SDI) Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only] |
| Video Format | SDI (10-Bit 4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 30/25/24/23.98 1080PsF: 25/24/23.98 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 100/50 480p: 120/119.88/100/60/59.94 576i: 100/50 480i: 120/119.88/60/59.94 HDMI (8/10/12-Bit 4:2:2 RGB, YCC) DCI 4K: 60 |
| Power Consumption | 186 W (Typical) 267 W (Maximum) |
| Mounting | 1/4"-20 Female (Bracket) 3/8"-16 Female (Bracket) |
| Display | |
| Panel Type | Quantum Dot OLED |
| Display Size | 80.0 cm |
| Screen Area | 699.48 x 394.73 mm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 180° |
| Touchscreen | No |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1,500,000:1 |
| Colour Support | 1.07 Billion Colours (10-Bit) |
| HDR Support | Yes |
| Pixels Per Inch (ppi) | 140 ppi |
| Colour Gamut | 99% DCI-P3 80% Rec. 2020 |
| LUT Support | Yes |
| Image Controls | False Colour, Focus Assist, Focus Peaking, Pixel Zoom, Waveform |
| Inputs / Outputs | |

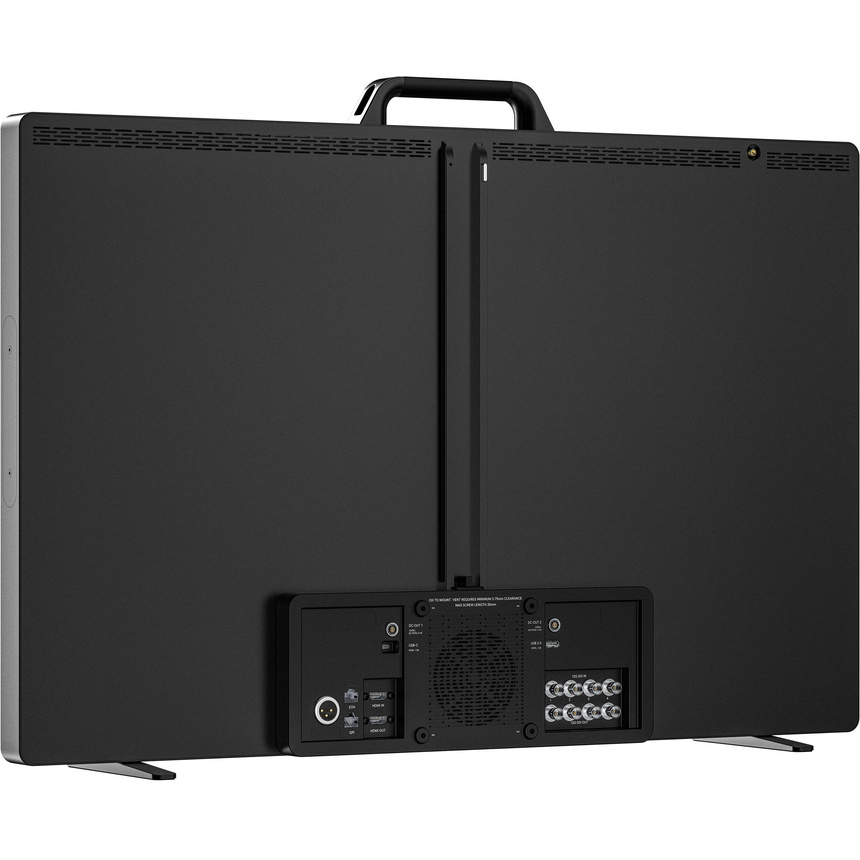

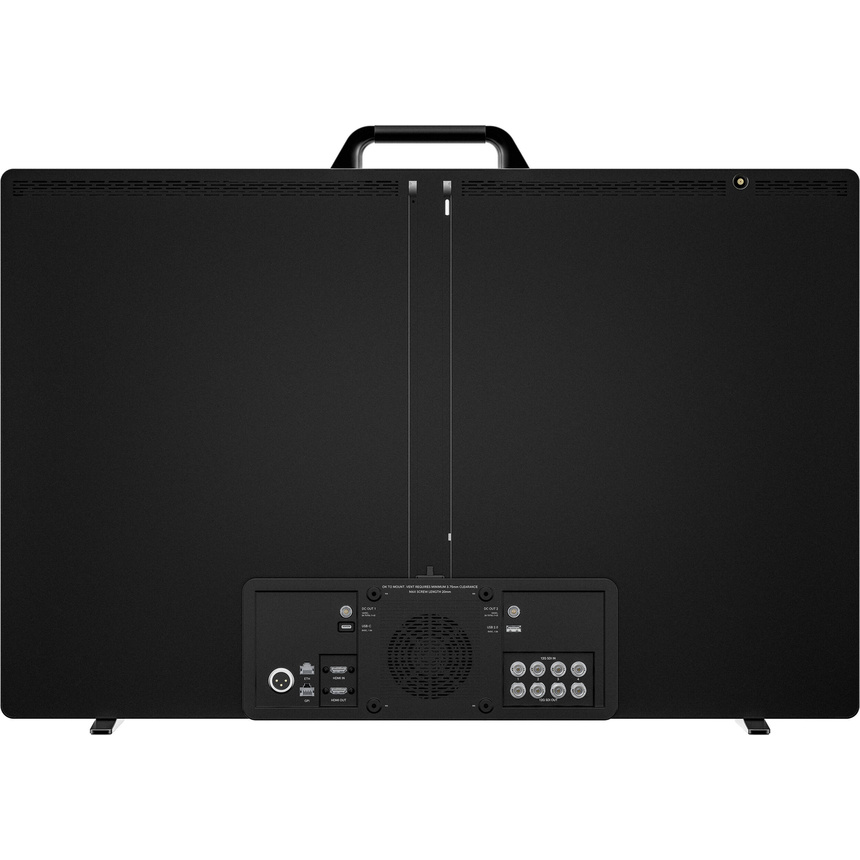

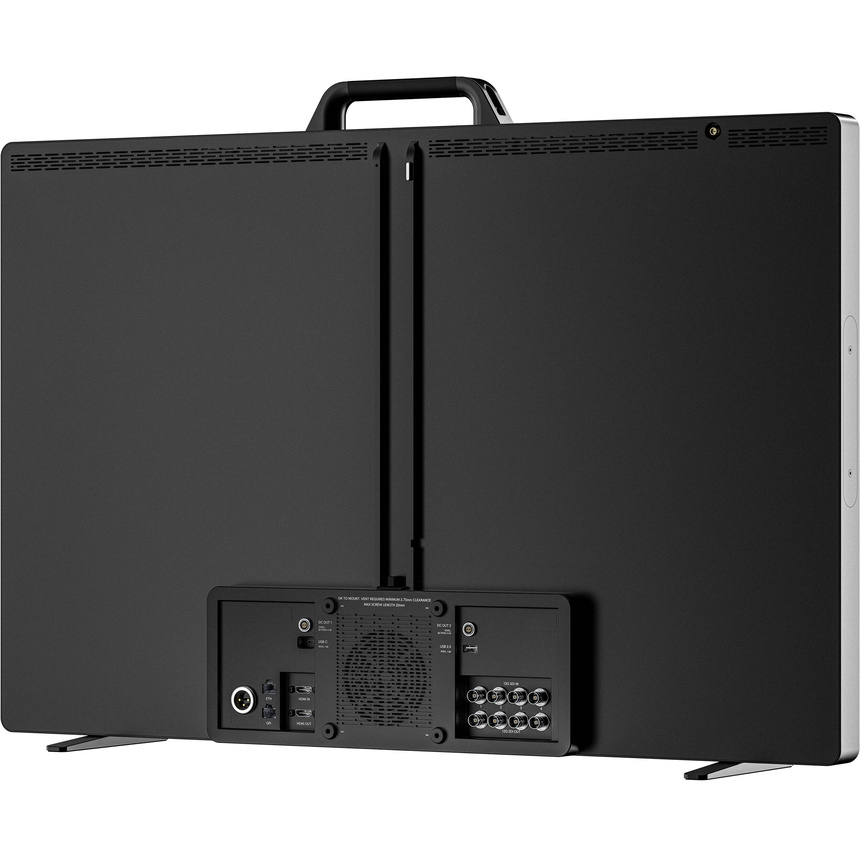

| Video I/O | 4x BNC (12G-SDI) Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x XLR 3-Pin (12 A / 34 VDC) Input 2x LEMO 2-Pin (2 A / 12 VDC) Output 2x USB-A (2.4 A / 5 VDC) Output 1x USB-C (1.5 A / 5 VDC) Output |
| Other I/O | 1x RJ45 (GPI) Input/Output |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only] |
| Wi-Fi | Yes |
| Bluetooth | No |
| Mobile App Compatible | Yes: Android & iOS App Name: Fleet Functionality: Adjust Settings |
| Format Support | |
| Video Format | SDI (10-Bit 4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 30/25/24/23.98 1080PsF: 25/24/23.98 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 100/50 480p: 120/119.88/100/60/59.94 576i: 100/50 480i: 120/119.88/60/59.94 HDMI (8/10/12-Bit 4:2:2 RGB, YCC) DCI 4K: 60 |
| Gamma Curve | DCI-P3, Rec2020 |
| Power | |
| Input Power | 25 to 34 VDC at 12 A |
| Power Consumption | 186 W (Typical) 267 W (Maximum) |
| Mounting | |
| Mounting | 1/4"-20 Female (Bracket) 3/8"-16 Female (Bracket) |
| General | |
| Operating Conditions | 0 to 37°C |
| Storage Conditions | -17 to 40°C |
| Material of Construction | Aluminium, Glass, Plastic |
| Dimensions | 77.3 x 49.5 x 7 cm (Excluding Feet, Handle) |
| Weight | 8.3 kg |
What's Included
- SmallHD 80 cm Quantum 32 True Reference OLED Display
- Desktop Feet Set
- Handle
- Power Supply
- SmallHD Cheese Stick for SmallHD 4K Monitors (1/4"-20 & 3/8"-16)
- SmallHD Cheese Stick for SmallHD 4K Monitors (1/4"-20)
- Barcode: 82030
- UPC Barcode: 811786034017
- Supplier Code: 33.1.16-3201
