Overview

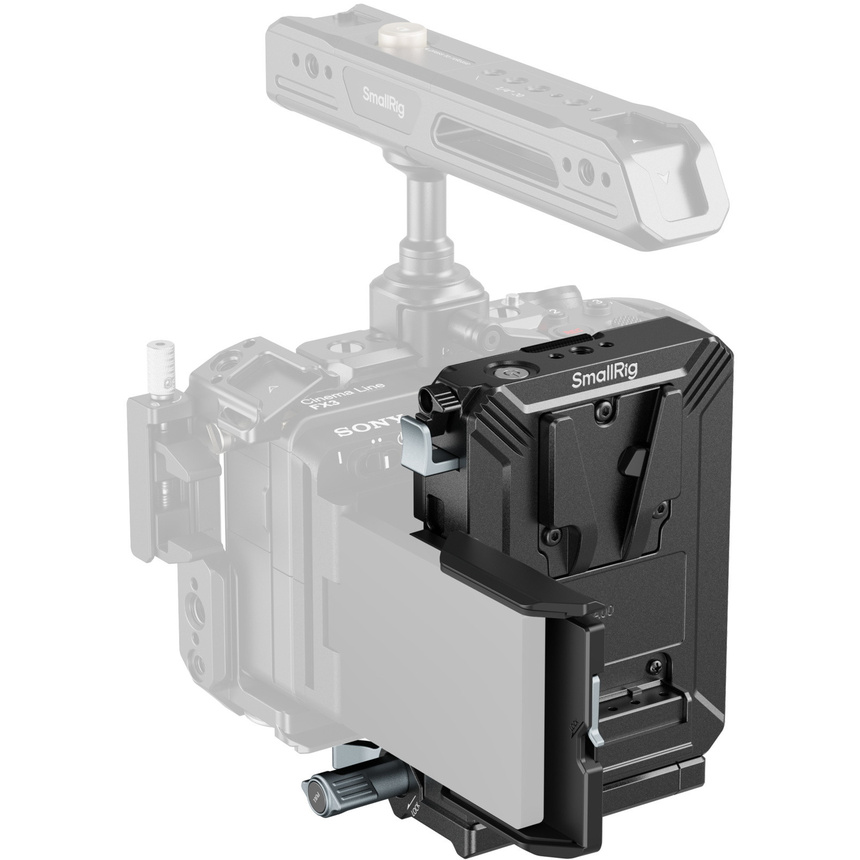

The SmallRig 5227 V-Mount Battery Mount Plate Kit provides a compact, lightweight, and efficient all-in-one power supply solution. This kit includes a V-mount battery plate, an Arca-Swiss quick release plate, and an LCD screen protector.
Core Features

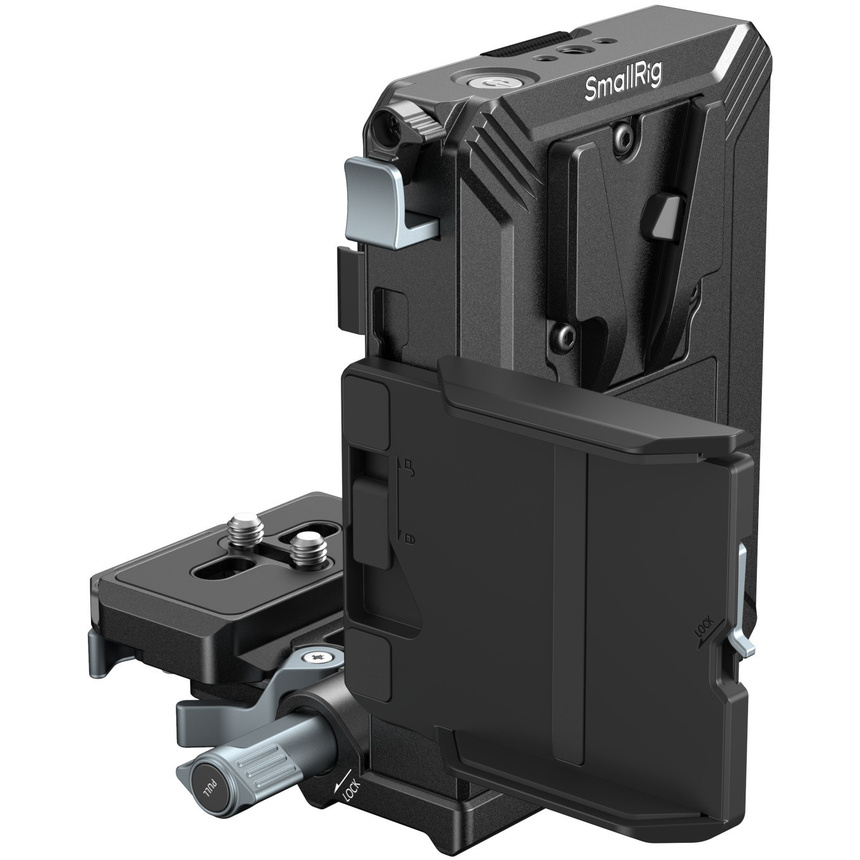

The V-mount battery plate features an Arca-Swiss quick release mechanism, allowing for quick attachment to cameras with tool-free locking and adjustment for rapid battery installation. The Arca-Swiss baseplate features an adjustable locking lever, ensuring compatibility with most Arca-Swiss quick release plates on the market and enabling direct slide-in attachment of cages and L-shaped handles equipped with built-in Arca-Swiss plates. Additionally, the baseplate is retractable to accommodate mirrorless cameras of varying sizes.
Power & Connectivity

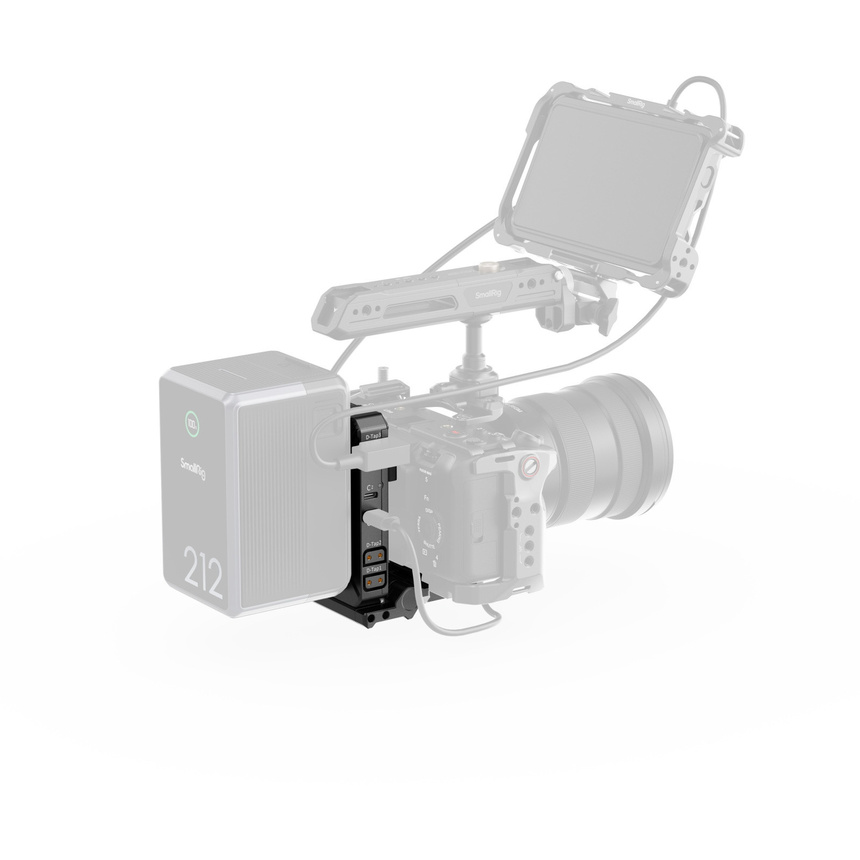

Strategically positioned power outputs on the V-mount battery plate, including D-Tap and USB-C, enable simultaneous power supply to multiple devices without interfering with camera or top handle operation. The USB-C port supports up to 65W PD input, allowing it to function as a V-mount battery charger.
LCD Screen Protection
The modular LCD screen protector features tool-free height and width adjustment, fitting most flip-screen mirrorless cameras while protecting against impacts.
Design & Safety

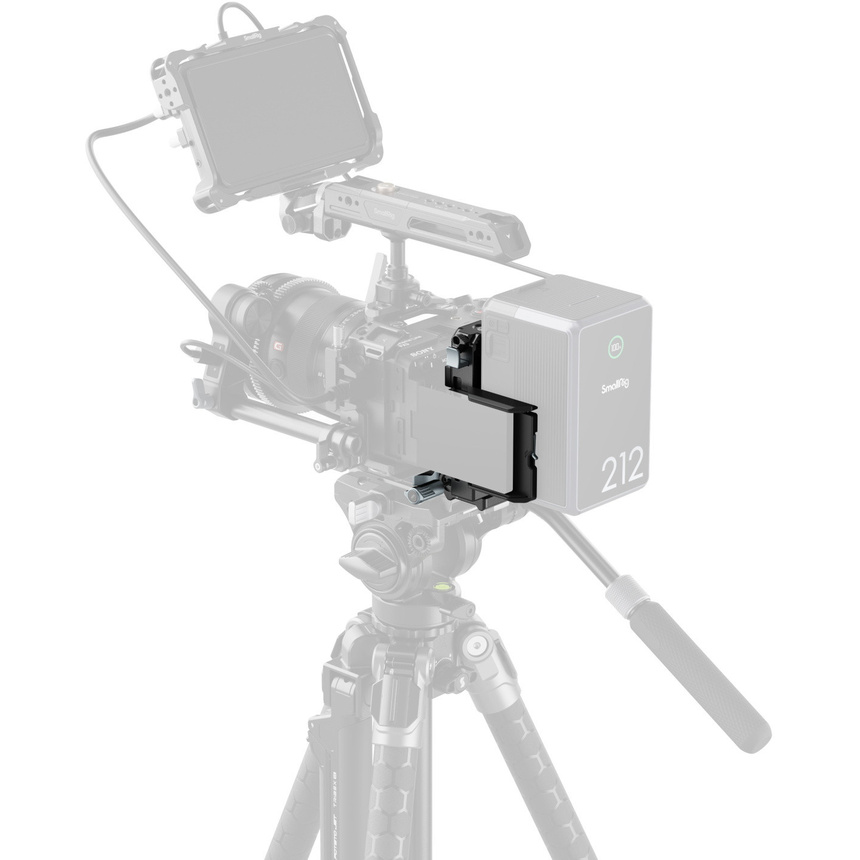

The V-mount battery plate also boasts a 180° rotatable design: 0° for compact storage, 90° for low-profile camera mounting, and 180° for easy LCD screen access. Its stainless steel gear-lock mechanism ensures a secure hold for wobble-free footage, while a damping system prevents the battery from dropping during rotation, guaranteeing the safety of your equipment. The battery release button features a trigger safety lever with customizable engagement, preventing accidental disengagement for secure operation.
Cable Management & Accessory Attachment
The kit also includes cable clips and an elastic Velcro strap for organized cable management, minimizing the risk of snags during shooting. The V-mount plate offers multiple cable clip mounting holes for customized routing. Equipped with multiple 1/4"-20 threaded and locating holes, the V-mount plate allows for the attachment of accessories such as magic arms for wireless transmitters and professional setups.
Specifications
| External V-Mount Battery Voltage | 11.0V–16.8V |
| Recommended Battery Rated Capacity | 3500mAh–20000mAh / 14.8V (Nominal) |
| Discharge Cut-off Voltage | 11.2V (Prioritize battery's own cutoff voltage for protection to avoid over-discharge) |
| Operating Temperature | Charging: 0°C–45°C |
| Discharging: -15°C–60°C | |
| Storage Temperature & Humidity | Stored for one month: -20°C–60°C Stored for three months: -20°C–45°C Stored for one year: -20°C–20°C (Humid environment) |
| Product Dimensions | 121.5 x 103.5 x 98.0mm |
| Package Dimensions | 180.0 x 129.5 x 75.0mm |
| Product Weight | 452.8 ± 5.0g |
| Package Weight | 560.2 ± 5.0g |
| Material(s) | Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass |
What's Included
- V-Mount Battery Mount Plate
- Arca-Swiss Plate
- LCD Screen Protector
- Allen Wrench
- Barcode: 85872
- UPC Barcode: 6941590024752
- Supplier Code: 5227
