SWIT CREW MAX 3km/10000ft Pro Wireless Video Transmission System

Overview

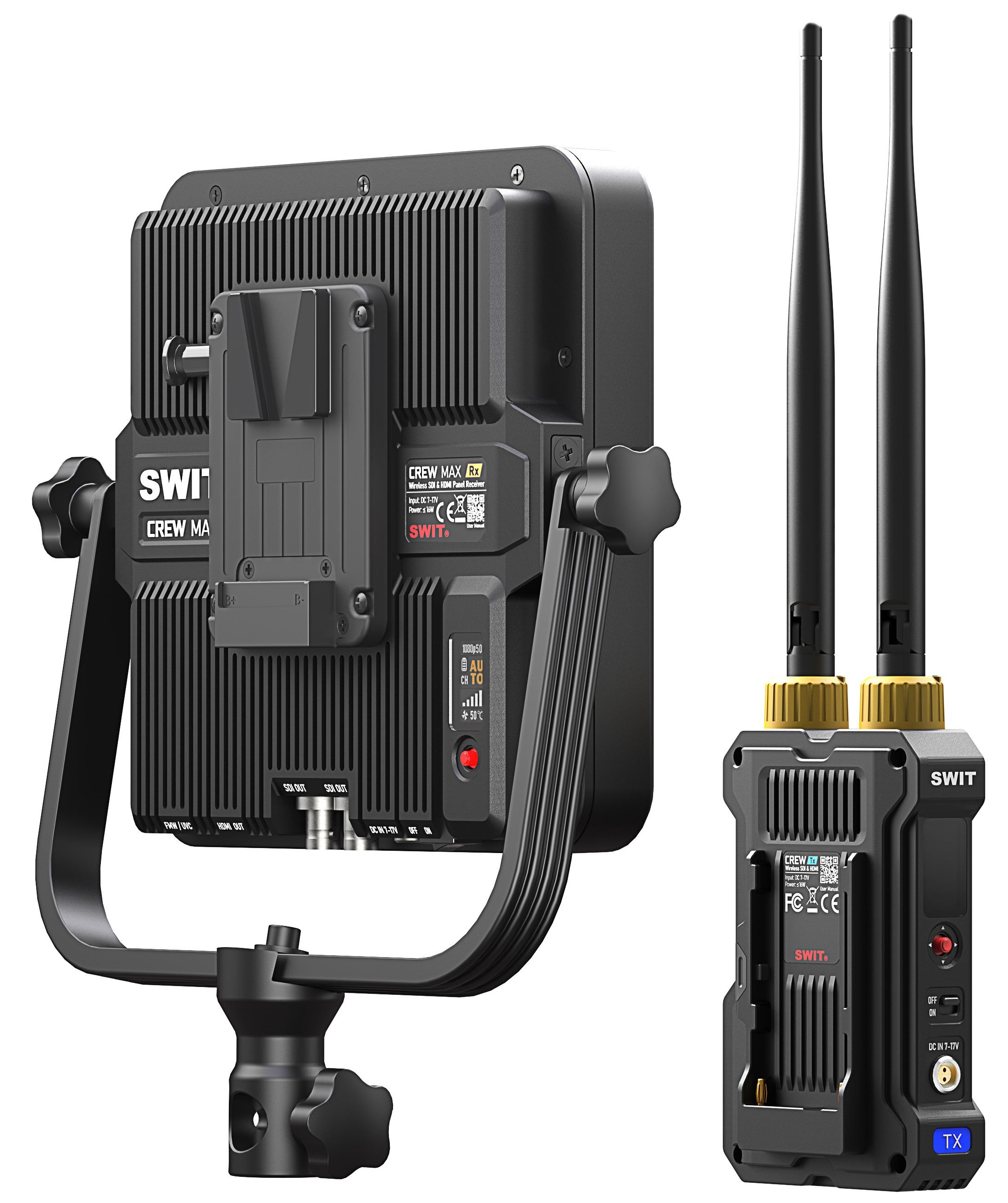

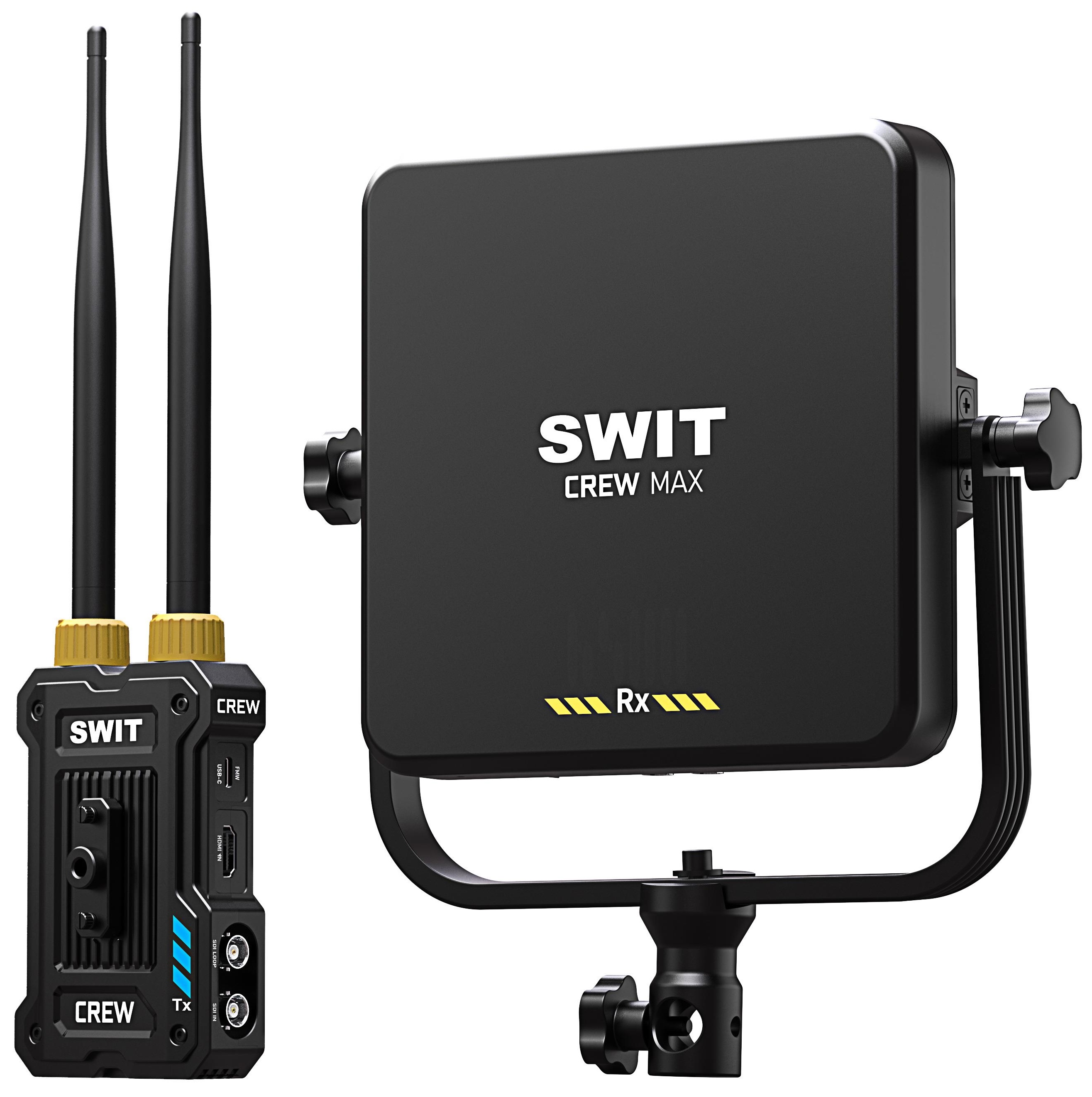

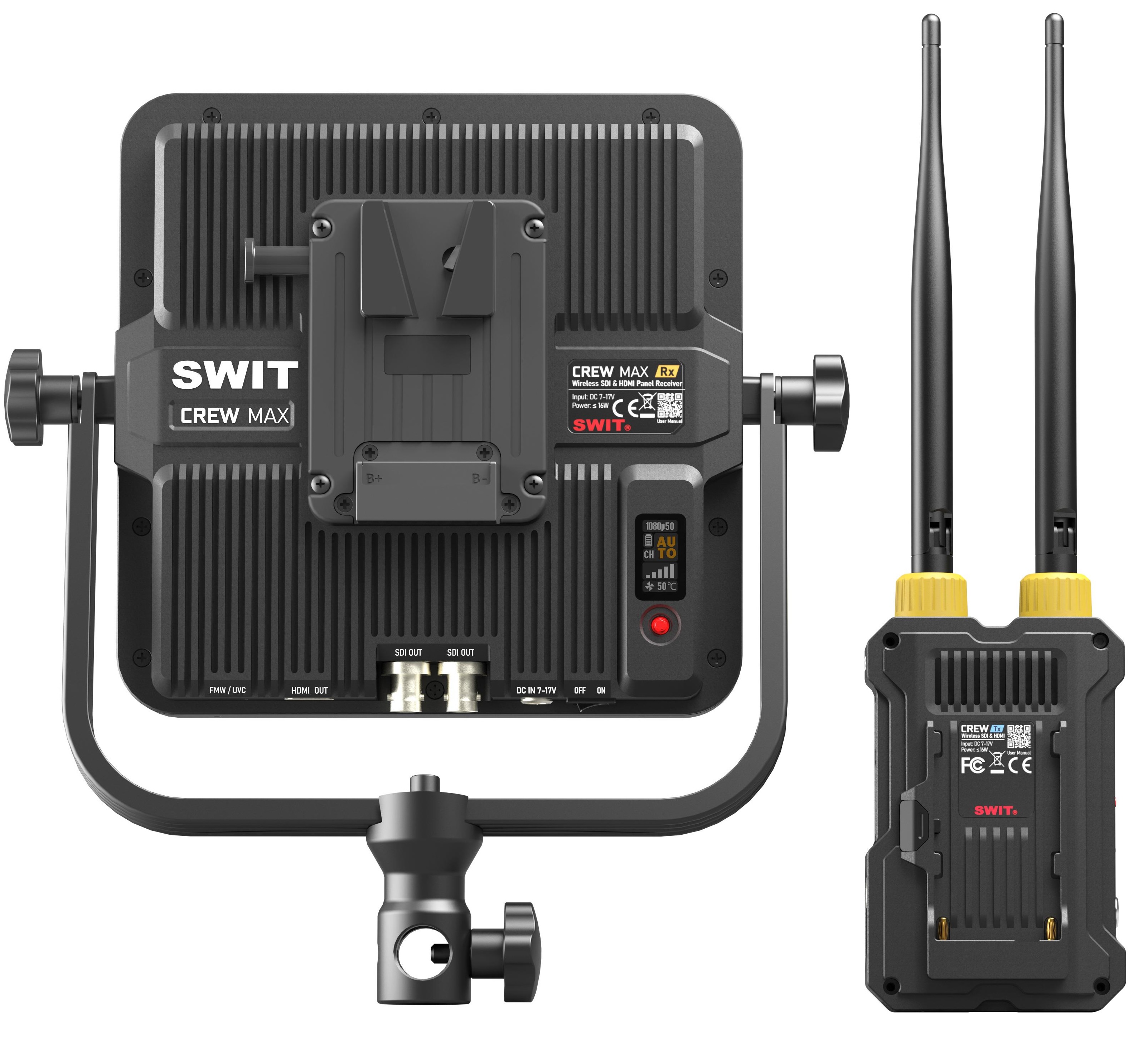

The SWIT CREW MAX 3km/10000ft Pro Wireless Video Transmission System is a professional 3km (10,000 ft) wireless video transmission system designed for broadcast, film, and high-end event productions. It features KUWI 2.0 Pro RF technology (not Wi-Fi), delivering stable, low-latency, and visually lossless HD video transmission. This system includes a transmitter (Tx) and panel receiver (Rx) and supports 3G-SDI, HDMI, and USB-C video capture outputs, with built-in AES-256 encryption for data security.

Core Features

• KUWI 2.0 Pro wireless tech, NOT WIFI
• Proprietary anti-interference RF
• 5.1–5.9GHz license-free DFS compliant
• Auto-scan and select optimal channel
• 3km / 10,000 ft (line-of-sight) range
• 3G-SDI & HDMI® HD video transmission
• USB-C video capture out for PC/Mac
• H.265 encoding up to 26.8Mbps
• 32ms ultra-low consistent latency
• 1T to 4R uncompromised multicast
• MetaData & Timecode trigger transmission
• High-bright 450nits OLED display
• AES-256 dual encryption protection
• NP-F plate Tx and V-mount Rx
• 2-pin LEMO / USB-C power supply

Transmission Performance

Equipped with high-gain directional panel antenna, the CREW MAX delivers stable transmission up to 3km line-of-sight. Even in obstructed environments, it ensures excellent wall penetration for large-scale productions.

The KUWI 2.0 chip ensures robust signal quality in complex RF environments. Latency is as low as 32ms, ideal for professional follow-focus operations and synchronized multi-camera setups.

Multicast Capability

Supports 1 Transmitter to 4 Receivers simultaneously with no compromise in performance. All CREW Tx and Rx units are fully cross-compatible, ensuring flexible and scalable setup for production teams.

Inputs & Outputs

Transmitter

• 3G-SDI input ×1, loop out ×1
• HDMI® input ×1

Panel Receiver

• 3G-SDI output ×2
• HDMI® output ×1
• USB-C video capture output ×1

All outputs are active simultaneously, regardless of SDI or HDMI input.

Live Streaming Support

The receiver’s USB-C output enables direct connection to PC/Mac for livestreaming in up to 1080p60 quality, without the need for additional drivers.

Display & Configuration

Both Tx and Rx feature high-bright 450 nits OLED displays for easy visibility outdoors. An intuitive joystick allows control of all settings including pairing, channel selection, fan control, and firmware updates.

MetaData & Timecode

Supports SDI-embedded metadata and timecode/trigger signals, ensuring compatibility with professional camera workflows including DIT livegrading and synchronized recording.

Security & Reliability

The CREW system integrates AES-256 encryption alongside its proprietary KUWI chip to ensure that sensitive video signals are fully protected from interception.

Power Options

The transmitter is compatible with NP-F batteries, D-tap to 2-pin LEMO, and USB-C input. The receiver supports V-mount batteries, D-tap to LEMO, and USB-C input.

Package Contents

The standard package includes 1 Transmitter, 1 Panel Receiver, essential accessories, and a protective carrying case.
