Overview
Receive lossless HD video from distances of up to 230 meters by utilizing the Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas. This receiver is capable of wirelessly capturing UHD 4K30 video with 10-bit HDR and outputting it through an HDMI or 3G-SDI port.
Design & Display
Designed with a sleek form factor, all antennas are neatly integrated within the receiver. It also boasts a vivid OLED display.
Wireless Technology
Support for the 6 GHz wireless band enhances connectivity and performance.
Power Options

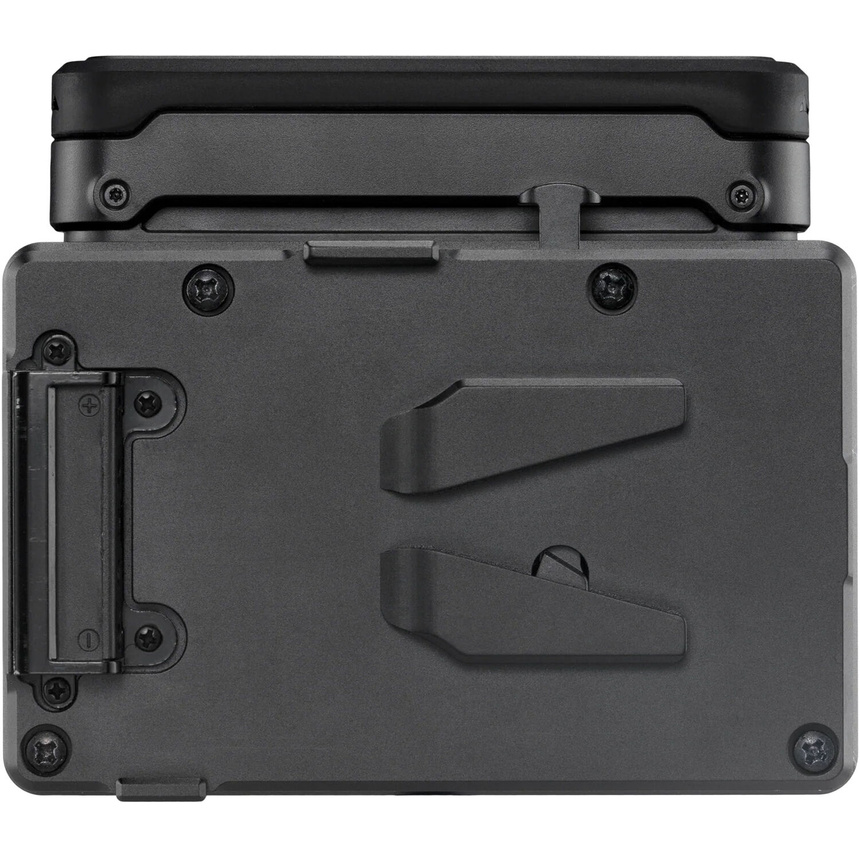

The receiver is equipped with a V-mount battery plate, allowing it to be powered by a high-capacity battery.
Specifications
| Display Size | Not Specified by Manufacturer |
| Touchscreen | No |
| Video I/O | 1x HDMI 1.4b Output 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Latency | < 0.01 ms |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Power Consumption | 11 W |
| Mounting | 1x 1/4"-20 Female 1x 3/8"-16 Female |
| Panel Type | LCD |
| Antenna I/O | 5x RP-SMA Female |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| RF Power | 21 dBm |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS App Name: Bolt App |
| Cellular Support | No |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 6 to 28 VDC |
| Environmental Protection | No |
| Certifications | FCC 15, CAN, IC, ICES |
| Operating Temperature | 0 to 40°C |
| Material of Construction | Aluminium, Polycarbonate |
What's Included
- Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (V-Mount)
- V-Mount Battery Plate
- 2-Pin to D-Tap Power Cable (45 cm)
- USB-A to Micro-USB-B Cable (91 cm)
- Ultrathin HDMI Type A Cable (45 cm)
- BNC SDI Cable (25 cm)
- AC Adapter with Cable (183 cm)
- Barcode: 82197
- UPC Barcode: 810156140396
- Supplier Code: 53.10-2264-V
