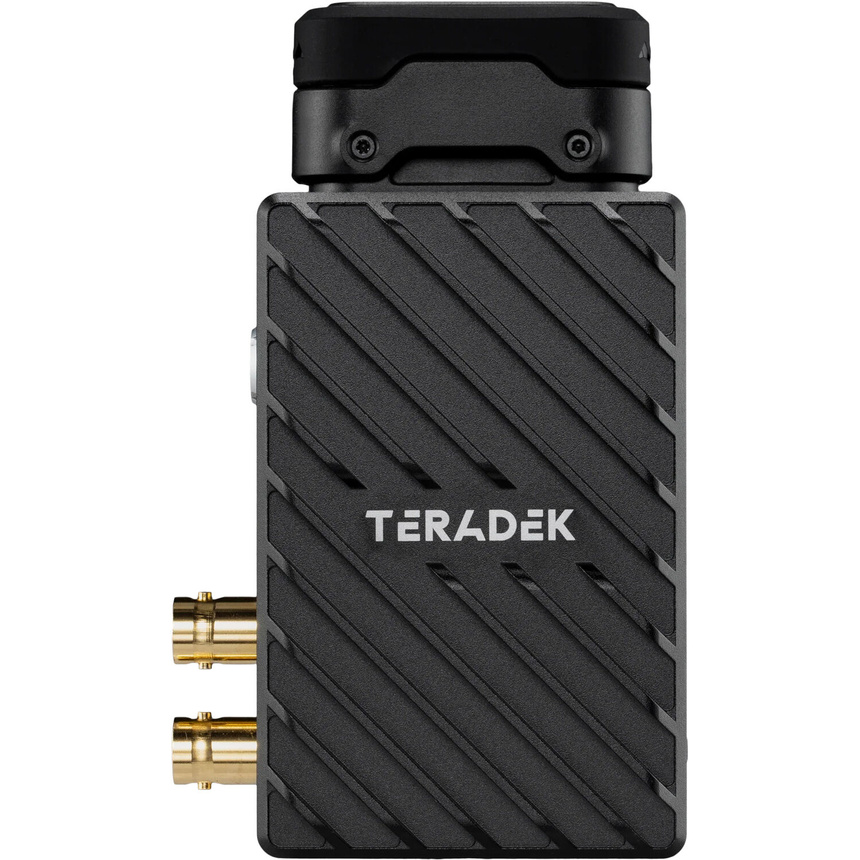

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas

SKU:
53.10-2263-I

Key Features

  • Sleek Design with Internal Antennas
  • Supports 6 GHz Frequency Band
  • Transmit Video up to 228.6 m Line of Sight
  • 3G-SDI and HDMI Input, SDI Output
  • Transmit to up to 6 Receivers
  • 10-Bit 4:2:2 HDR Support

Teradek

$3,723.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

Transmit HD video without loss at distances of up to 229 meters with the Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas. This versatile transmitter supports 10-bit 4:2:2 HDR and operates on the 6 GHz wireless band, ensuring a strong and reliable signal.

Core Features

The transmitter accepts video input via HDMI or 3G-SDI, featuring an internal antenna design and a sleek form.

Additional Features

  • Bright OLED display
  • SDI loop output for added convenience

Specifications

Display Size Not Specified by Manufacturer
Touchscreen No
Video I/O 1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Loop Output
Embedded Audio HDMI: 2-Channel
SDI
Latency < 0.01 ms
Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Power Consumption 9 W
Mounting 1x 1/4"-20 Female
Panel Type LCD
Antenna I/O No
Audio I/O No
Power I/O 1x LEMO 2-Pin (28 VDC) Input
Other I/O 1x Micro-USB Input
Encryption 256-Bit AES
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
RF Power 23 dBm
Wi-Fi No
Bluetooth Yes
Mobile App Compatible Yes: Android & iOS
App Name: Bolt App
Cellular Support No
Video Standard Compliance SMPTE 424M
Audio Format 2-Channel 24-Bit 48 kHz
Wireless Video Compression Uncompressed
Timecode Support Yes
Input Power 6 to 28 VDC
Environmental Protection No
Certifications FCC-15, CAN, EU, IC, ICES
Operating Temperature 32 to 72°F / 0 to 40°C
Material of Construction Aluminium

What's Included

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
  • 2-Pin to D-Tap Power Cable (45.7 cm)
  • USB-A 2.0 Male to Micro-USB Male Cable (99 cm)
  • HDMI Type A Male to HDMI Type A Male Cable (45.7 cm)
  • BNC to BNC SDI Cable (25.4 cm)
  • AC Adapter with Cable (1.8 m)
  • Barcode: 82195
  • UPC Barcode: 810156140365
  • Supplier Code: 53.10-2263-I
