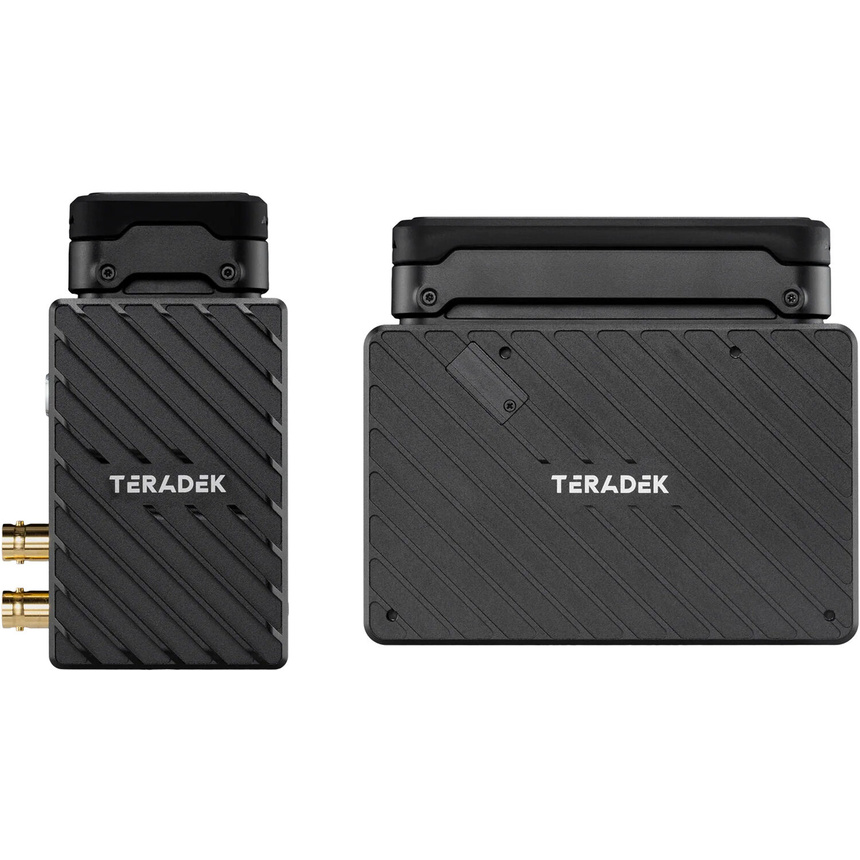

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas

SKU:
53.10-2260-II

Key Features

  • 3G-SDI/HDMI Transmitter & Receiver Set
  • Internal Antennas Transmitter & Receiver
  • Supports 6 GHz Frequency Band
  • Transmits up to 228 meters Line of Sight
  • Supports up to 4K30 Resolution Input
  • 3G-SDI/HDMI Inputs & Outputs

Teradek

$7,254.00

Or buy now, pay later with:

zip after qcard-payment credit-capable-payment

If the product is showing in stock, we'll ship it out the same day if the order is placed before 12pm.

The estimated shipping timeframe is based on the assumption that the supplier has this item in stock. We'll contact you to communicate the actual shipping timeframe after the order is placed.

If you need the item before a certain date, please contact us to confirm before ordering.

Adding to cart… The item has been added

Overview

Transmit and receive lossless HD video at ranges up to 230 meters line of sight with the Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas. This kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and receiver, both with internal antennas, supporting the 6 GHz wireless frequency and capable of receiving up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

Core Features

The transmitter accepts video input via 3G-SDI or HDMI and offers 3G-SDI and HDMI loop outputs. The receiver provides video output through 3G-SDI and HDMI.

Compatibility & Convenience

These units are compatible with all Bolt 4K models that utilize the 5 GHz wireless band. For convenient storage and transport, a carry case is provided with the kit.

Specifications

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter With Internal Antennas
Key Specs
Display Size Not Specified by Manufacturer
Touchscreen No
Video I/O 1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Loop Output
Embedded Audio HDMI: 2-Channel
SDI
Latency < 0.01 ms
Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Power Consumption 9 W
Mounting 1x 1/4"-20 Female
Display
Panel Type LCD
Display Size Not Specified by Manufacturer
Touchscreen No
Inputs / Outputs
Antenna I/O No
Video I/O 1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Loop Output
Embedded Audio HDMI: 2-Channel
SDI
Audio I/O No
Power I/O 1x LEMO 2-Pin (28 VDC) Input
Other I/O 1x Micro-USB Input
Encryption 256-Bit AES
Wireless
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi No
Bluetooth Yes
Mobile App Compatible Yes: Android & iOS
App Name: Bolt App
Cellular Support No
Format Support
Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Video Standard Compliance SMPTE 424M
Audio Format 2-Channel 24-Bit 48 kHz
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
Input Power 6 to 28 VDC
Power Consumption 9 W
Mounting
Mounting 1x 1/4"-20 Female
Environmental
Environmental Protection No
Certifications FCC-15, CAN, EU, IC, ICES
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminium
Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver With Internal Antennas
Key Specs
Display Size Not Specified by Manufacturer
Touchscreen No
Video I/O 1x HDMI 1.4b Output
1x BNC (3G-SDI) Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Latency < 0.01 ms
Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Power Consumption 11 W
Mounting 1x 1/4"-20 Female
1x 3/8"-16 Female
Display
Panel Type LCD
Display Size Not Specified by Manufacturer
Touchscreen No
Inputs / Outputs
Antenna I/O 5x RP-SMA Female
Video I/O 1x HDMI 1.4b Output
1x BNC (3G-SDI) Output
Embedded Audio HDMI: 2-Channel
SDI: 2-Channel
Audio I/O No
Power I/O 1x LEMO 2-Pin (28 VDC) Input
Other I/O 1x Micro-USB Input
Encryption 256-Bit AES
Wireless
Wireless Range 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 21 dBm
Wi-Fi Wi-Fi 6 (802.11ax)
Bluetooth Yes
Mobile App Compatible Yes: Android & iOS
App Name: Bolt App
Cellular Support No
Format Support
Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
Input Power 6 to 28 VDC
Power Consumption 11 W
Mounting
Mounting 1x 1/4"-20 Female
1x 3/8"-16 Female
Environmental
Environmental Protection No
Certifications FCC 15, CAN, IC, ICES
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminium, Polycarbonate

What's Included

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas
  • Barcode: 82193
  • UPC Barcode: 810156140358
  • Supplier Code: 53.10-2260-II
