Overview
The Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver is a versatile and reliable solution for transmitting high-quality HD video over long distances. It supports lossless HD video transmission up to 1500 meters, making it ideal for broadcast, event, drone, and handheld applications.
Core Features
This receiver supports video output up to 1080p60 over HDMI or 3G-SDI and offers 10-bit HDR support. It operates within a wide wireless range of 4.9 to 6.4 GHz, including both licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum.
Signal Strength & Security

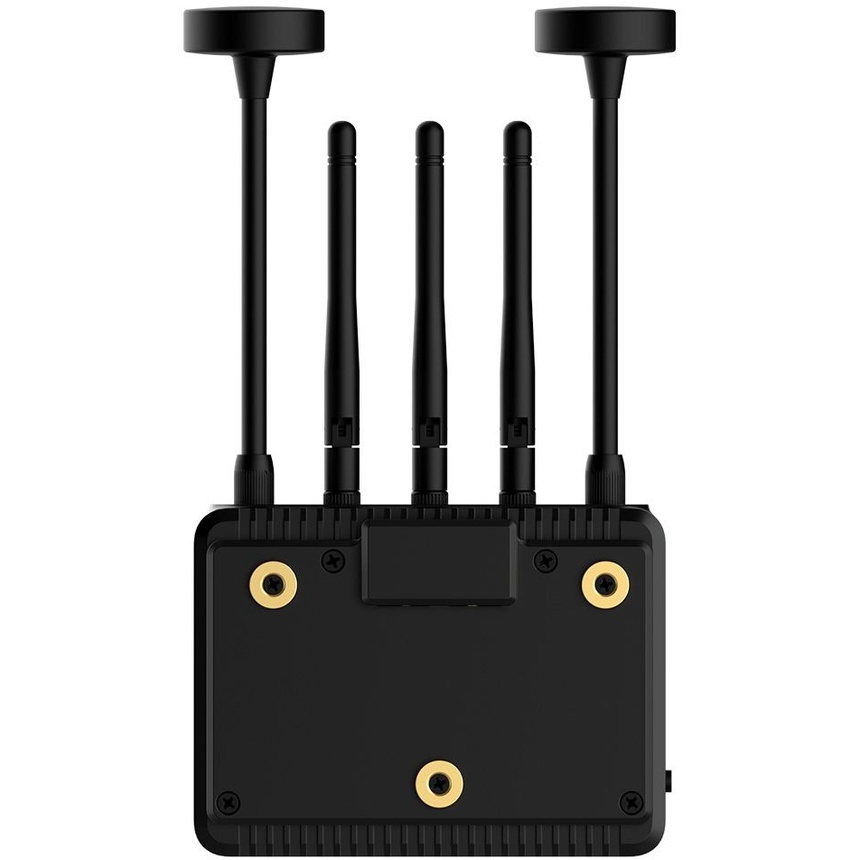

The Ranger Micro 5000 delivers a powerful signal that can travel up to 1500 meters line of sight. It features five external antennas to enhance performance. Security is ensured with built-in AES-256 encryption, protecting your video from unauthorized access.
Control & Connectivity
Users can control and configure the receiver via the desktop Launchpad software or the Launchpad app for iOS or Android. Both options connect via Bluetooth 5 and offer tools such as a spectrum analyzer, channel selection features, and remote configuration.
Power & Mounting Options

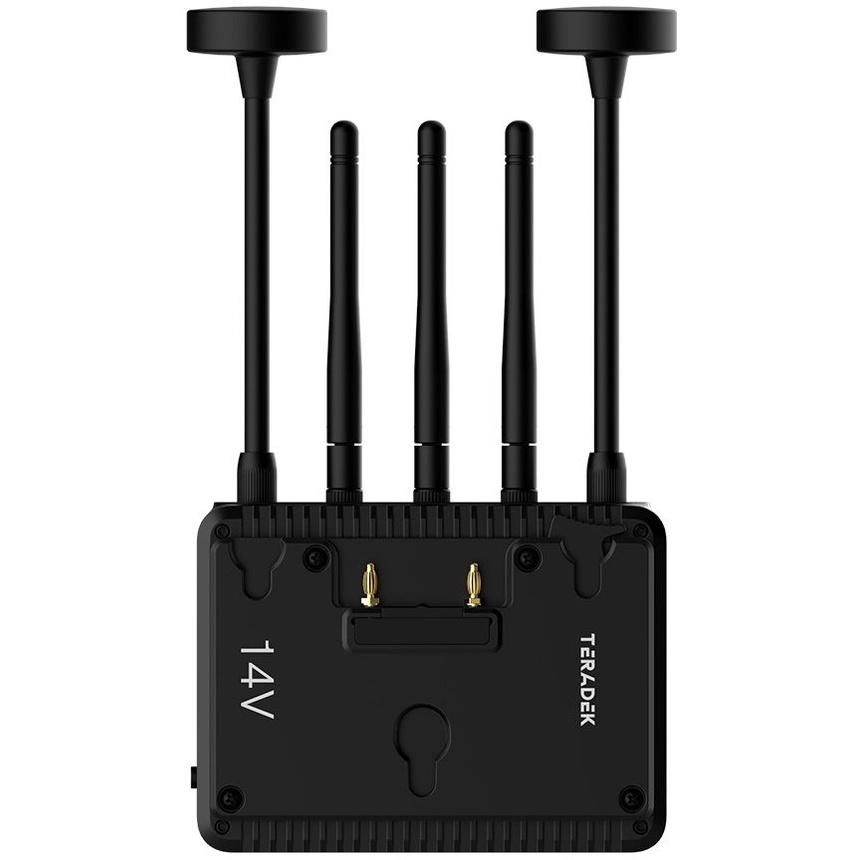

The unit can be powered using a 2-pin DC input or the included V-mount battery plate. It offers easy mounting to cameras, cages, or rigs with 1/4"-20 and M3 mounting threads.
Specifications

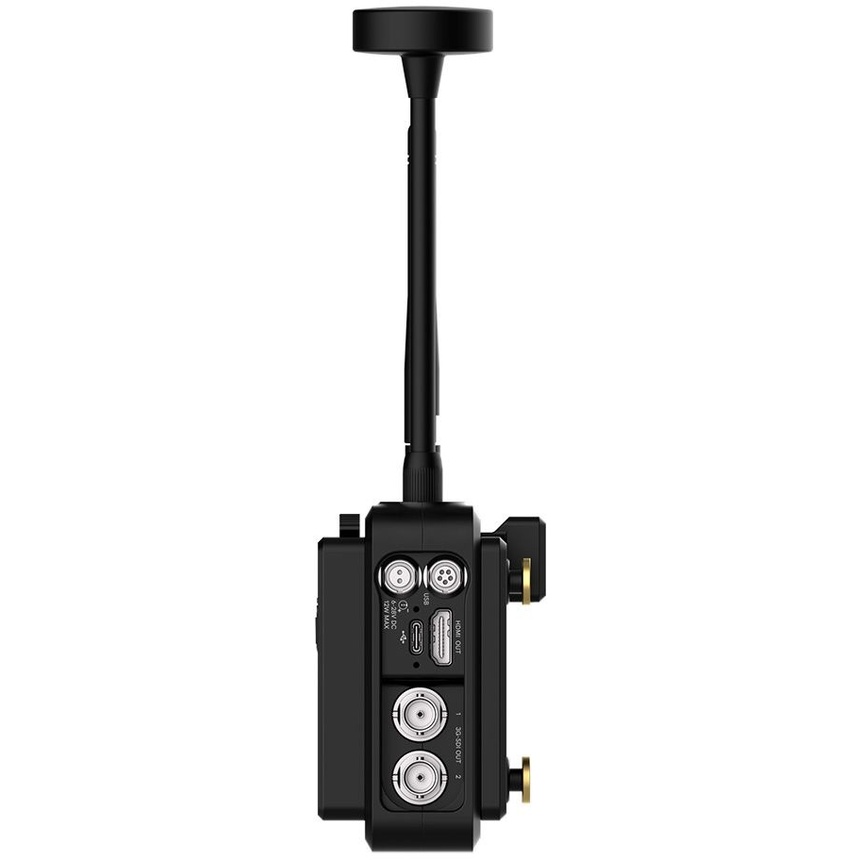

| Inputs / Outputs | |
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 1524 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance | SMPTE 424M |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 7 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 11 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 122 x 94 x 27 mm |
| Weight | 292 g |
What's Included
- Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver (V-Mount)
- 2 dBi Antenna
- V-Mount Battery Plate
- Barcode: 82221
- UPC Barcode: 818264029879
- Supplier Code: 53.10-2557-V
