Overview

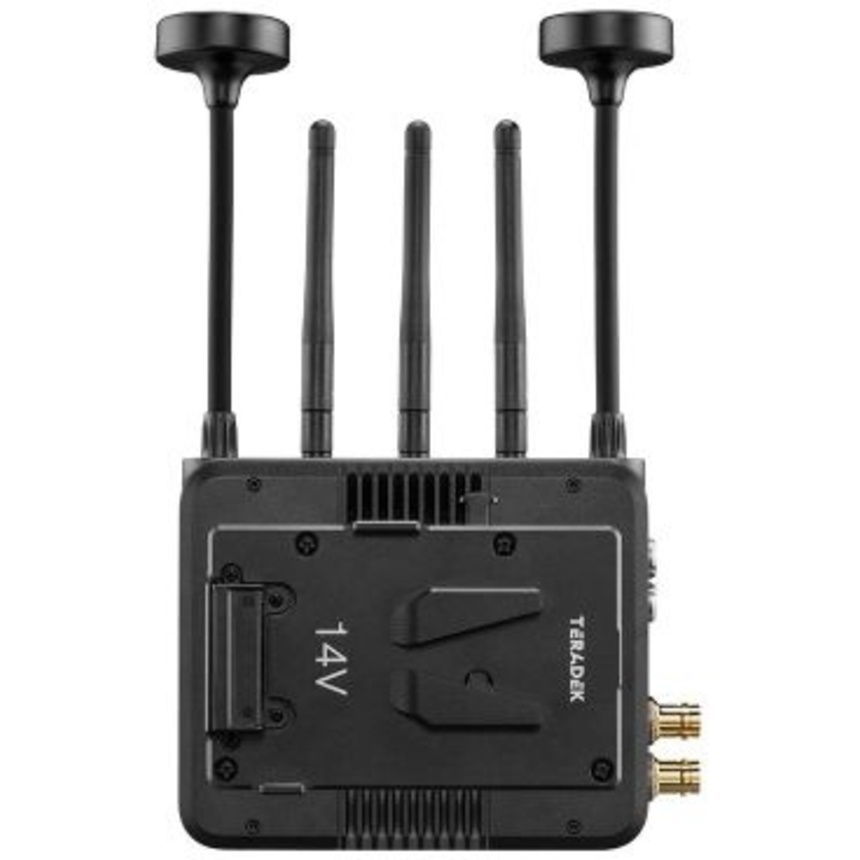

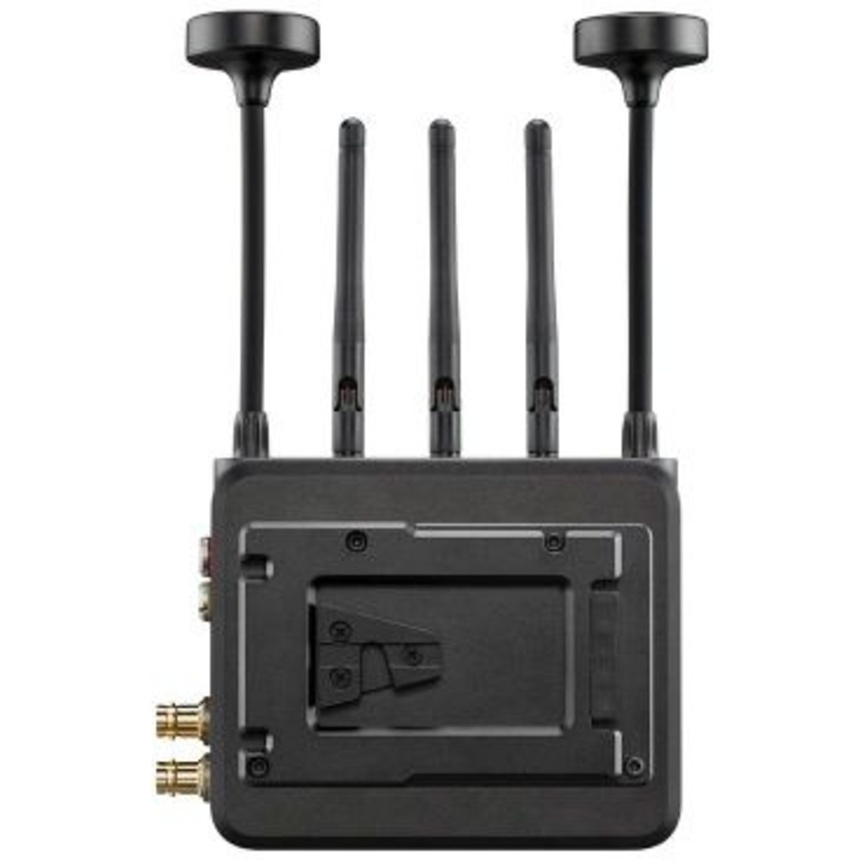

Experience uncompromising wireless performance with the Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Receiver, featuring true zero-delay (<1ms) transmission, visually lossless image quality, and wide spectrum operation over licensed and unlicensed bands. Now with support for 6GHz (U-NII-5), Ranger offers 12 additional RF channels free of interference.
Core Features
State-of-the-art hardware designed for professional video production. The Ranger Series is powered by Emmy® & Academy Award-winning technology for zero-delay wireless video transmission. It boasts a maximum range of 762 meters and works seamlessly within a variety of professional broadcast, sports, and ENG applications, including hand-held gimbals, drones, and shoulder-mounted production cameras.
Zero-Delay Technology
When a delay in audio and video transmission is noticeable, it’s nearly impossible to give your fans a lifelike experience. Ranger’s patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency – even in 4K60 – providing a visually lossless and engaging experience for your viewers.
Scalability & Compatibility
Pair any combination of Ranger TX and RX together – regardless of model. This means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range.
Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.
Specifications

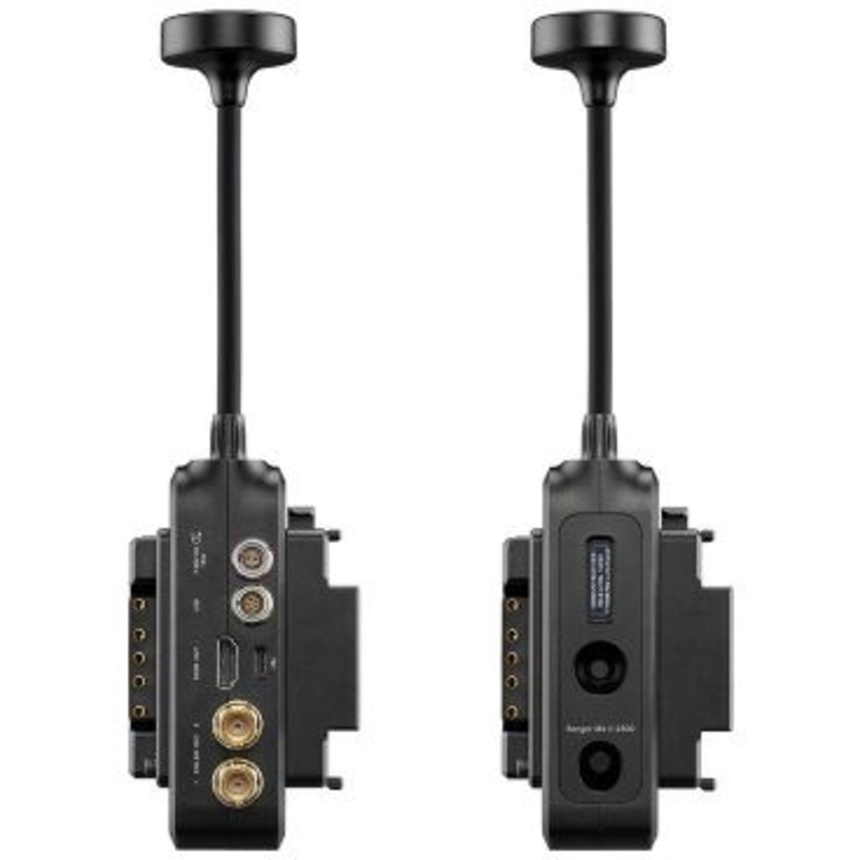

| Inputs / Outputs | |
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (12G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 762 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance | SMPTE ST-2082-1 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 18 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 140 x 133 x 30 mm |
| Weight | 658 g |
What's Included
- Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Receiver (V-Mount)
- 2 dBi Antenna
- V-Mount Battery Plate
- Barcode: 82239
- UPC Barcode: 818264029305
- Supplier Code: 53.10-2592-V
