Overview

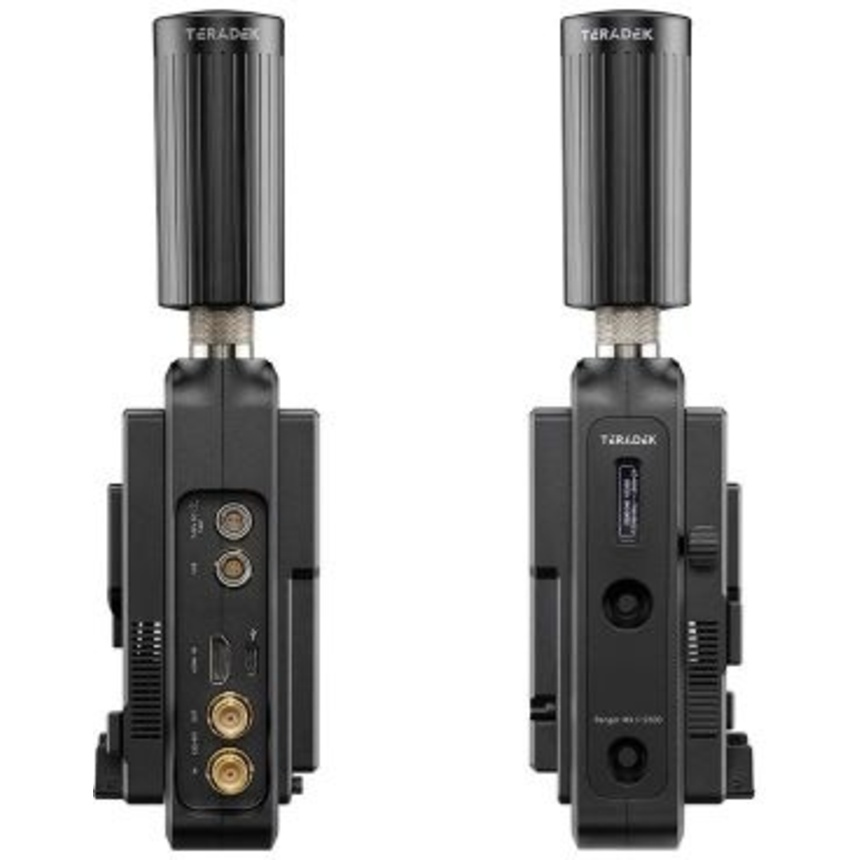

The Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter offers the ability to transmit lossless HD video up to 762 meters. It is designed for various applications such as broadcast, event, drone, and handheld. The transmitter supports up to 4K60 video over HDMI or 12G-SDI, with 10-bit HDR capability, operating within a wide 4.9 to 6.4 GHz wireless range.
Core Features
Featuring a strong signal, the transmitter can travel up to 762 meters in a line of sight scenario. It includes an SDI loop output for local monitoring and supports transmission of up to 4K60 video to six receivers. The transmitter provides built-in AES-256 encryption for secure video transmission, ensuring visually lossless video with zero delay when using any Ranger series receiver.
Control & Connectivity
The transmitter can be easily configured using the Launchpad software application on your desktop or the Launchpad app available for iOS and Android devices. Both options connect via Bluetooth 5 and offer a spectrum analyser, channel selection tools, and remote configuration capabilities.
Power & Mounting Options

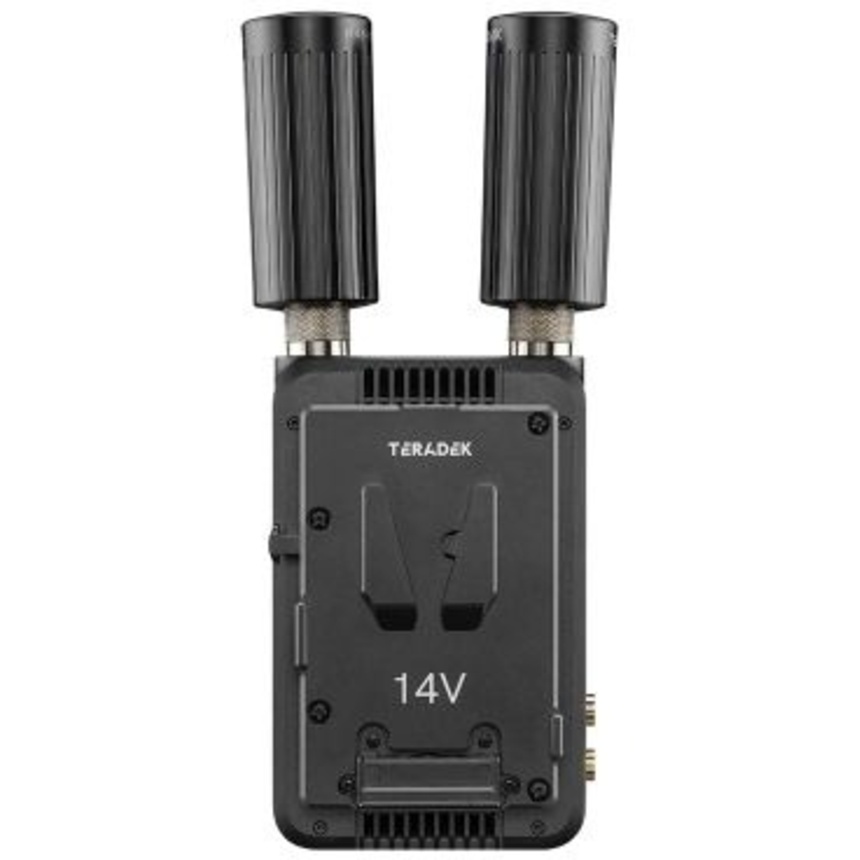

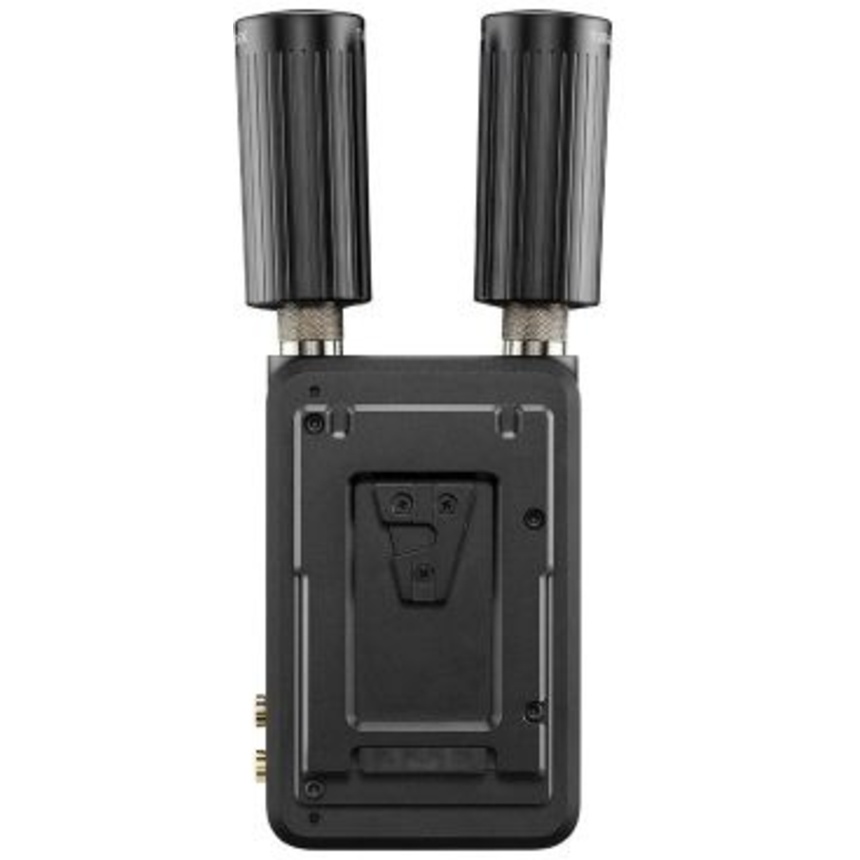

The unit can be powered using a 2-pin DC input or the included V-mount battery plate. It includes 1/4"-20 and M3 mounting threads for securely attaching the transmitter to cameras, cages, or rigs.
Specifications
| Inputs / Outputs | |
| Antenna I/O | 2 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Input 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 762 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance | SMPTE 424M |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 12 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female |
| Environmental | |
| Operating Temperature | 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 149 x 91 x 30 mm |
| Weight | 544 g |
What's Included
- Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter (V-Mount)
- N-Type Antenna
- V-Mount Battery Plate
- Barcode: 82236
- UPC Barcode: 818264029275
- Supplier Code: 53.10-2591-V
