Overview
Transmit lossless 4K video up to 228 meters with the Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver. Ideal for broadcast, events, drones, and handheld devices, it supports 4K60 video over a wide wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum.
Core Features

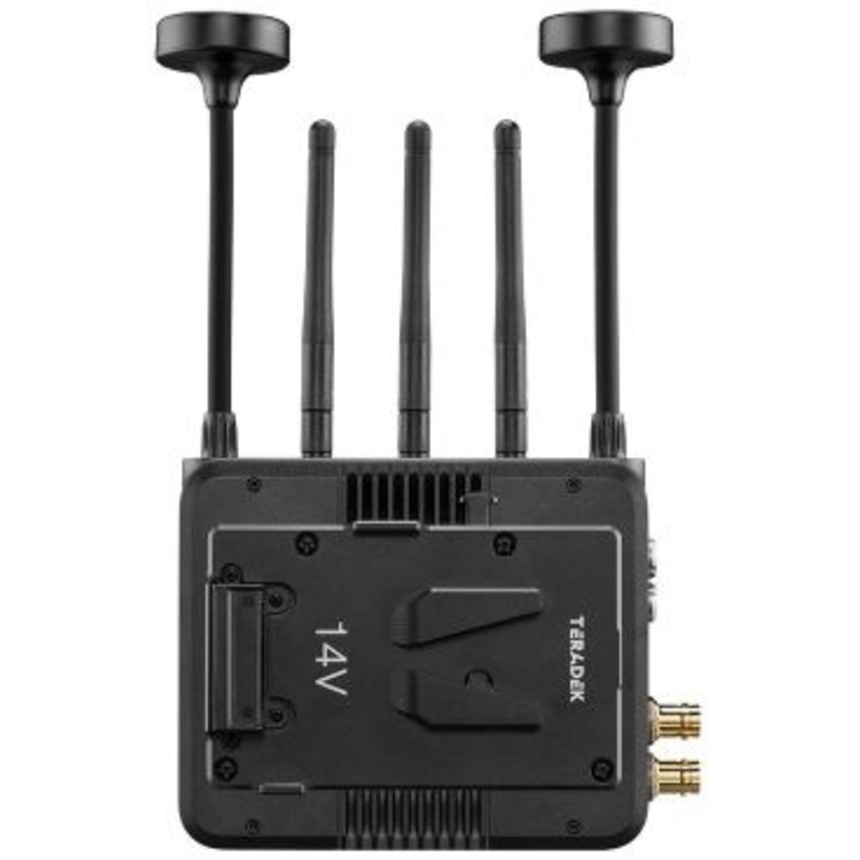

The receiver supports HDMI or 12G-SDI output and 10-bit HDR, delivering high-quality 4K60 video. It includes five external antennas for enhanced performance and can travel up to 228 meters in a direct line of sight.
Security & Compatibility
With built-in AES-256 encryption, the receiver ensures video security against unauthorized access. It can receive visually lossless video without delay from any Ranger series receiver.
Control & Connectivity
Supports the desktop Launchpad software application and the Launchpad app for iOS and Android. These tools allow for easy connection via Bluetooth 5 and provide features such as a spectrum analyzer, channel selection tools, and remote configuration.
Power & Mounting Options

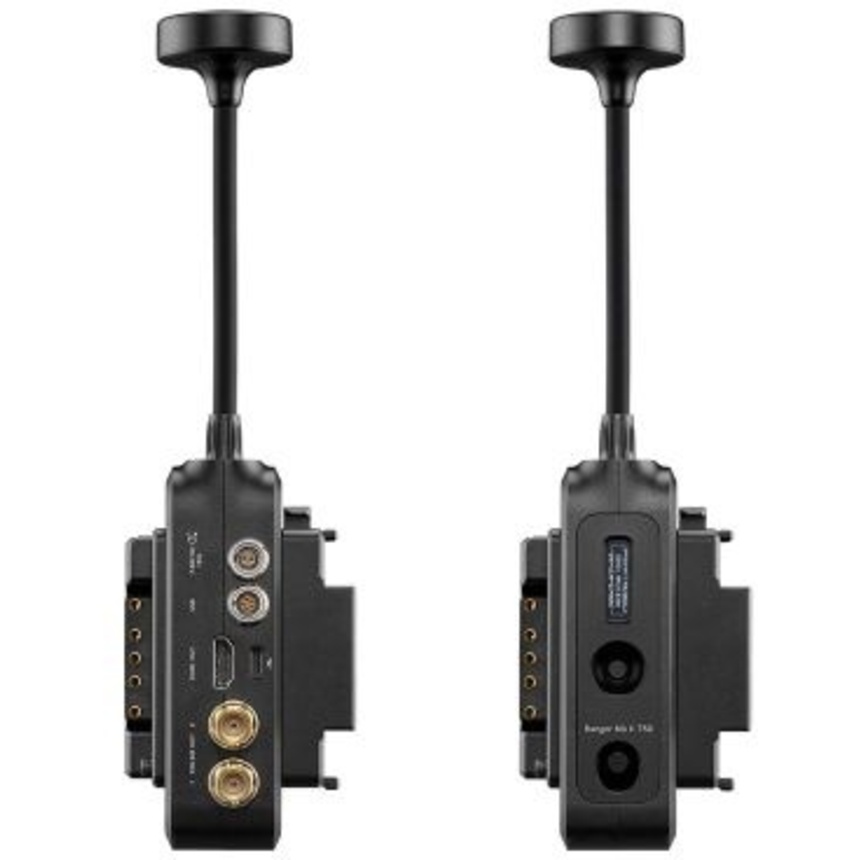

The unit can be powered using a 2-pin DC input or the included V-mount battery plate. It offers versatile mounting options with 1/4"-20 and 3/8"-16 mounting threads, enabling attachment to cameras, cages, or rigs.
Specifications
| Inputs / Outputs | |
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (12G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance | SMPTE ST-2081-1 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 18 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 5.5 x 5.2 x 1.2" / 140 x 133 x 30 mm |
| Weight | 23.2 oz / 658 g |
What's Included
- Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Receiver (V-Mount)
- 2 dBi Antenna
- V-Mount Battery Plate
- Barcode: 82230
- UPC Barcode: 818264029213
- Supplier Code: 53.10-2582-V
