Overview
The Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter enables high-definition video transmission without loss, supporting up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR. It is ideal for broadcasting, events, drones, and handheld devices, offering a robust signal over a wide wireless range.
Core Features
The transmitter can handle input of up to 4K60 video and effectively transmit video over a wireless range of 4.9 to 6.4 GHz, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. It has a line of sight range of 228 meters and is equipped with an SDI loop output for local monitoring.
- Transmits to up to six receivers at 4K60 quality
- AES-256 encryption for security
- Zero delay for visually lossless video
Control & Connectivity
The transmitter offers multiple options for seamless control and configuration, including the desktop Launchpad software application or the Launchpad app for iOS or Android. These options connect to the transmitter using Bluetooth 5 and provide a spectrum analyzer, channel selection tools, and remote configuration.
Power & Mounting

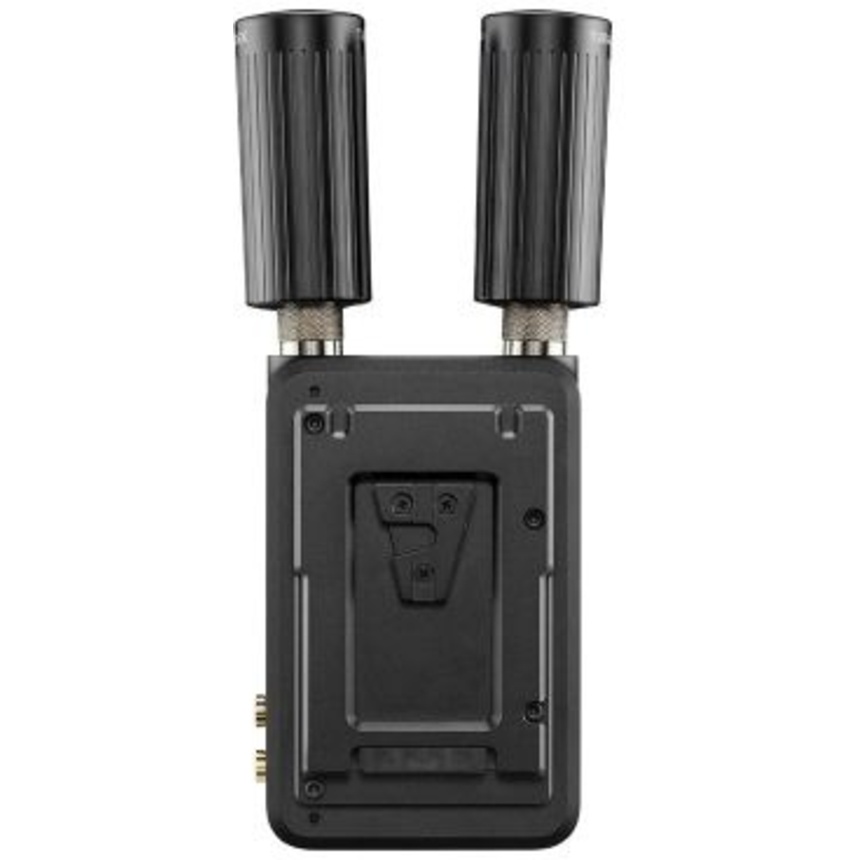

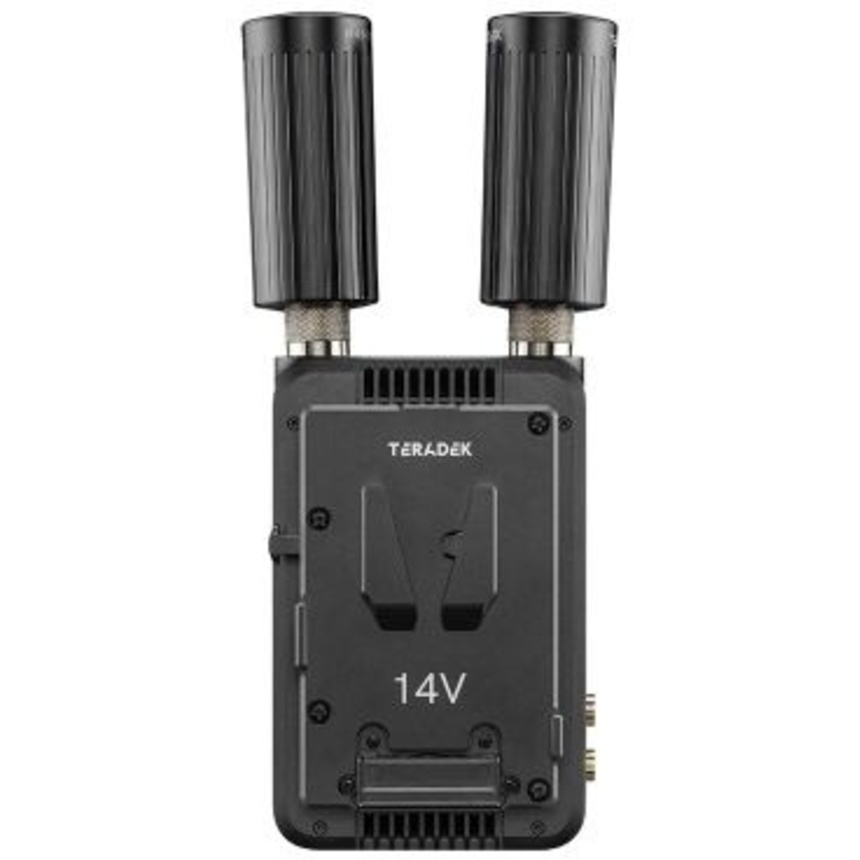

Powering the unit is easy with either a 2-pin DC input or the included V-mount battery plate. The transmitter offers versatility in mounting options, featuring 1/4"-20 and M3 mounting threads to securely attach it to a range of cameras, cages, or rigs.
Specifications
| Inputs / Outputs | |

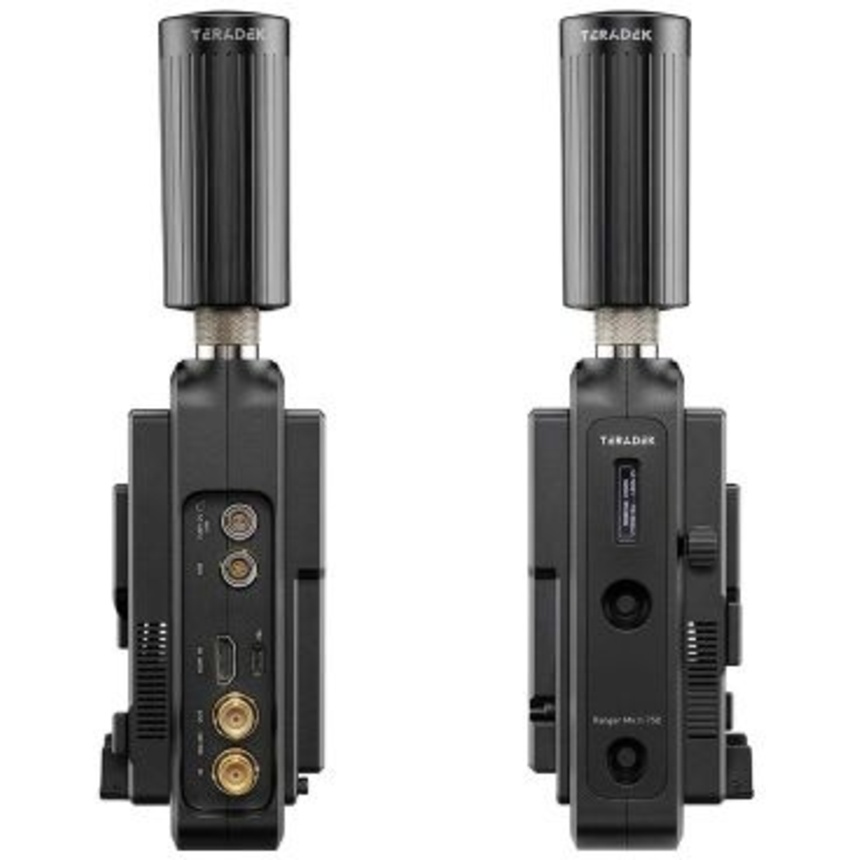

| Antenna I/O | 2 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Input 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 60/59.94/50 480p: 60/59.94/50 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 60/59.94/50 576i: 50 480p: 60/59.94/50 480i: 59.94 |
| Video Standard Compliance | SMPTE 424M |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Power | |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 12 W |
| Mounting | |
| Mounting | 1 x 1/4"-20 Female |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| General | |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 5.9 x 3.6 x 1.2" / 149 x 91 x 30 mm |
| Weight | 19.2 oz / 544 g |
What's Included
- Teradek Ranger MK II 750 12G-SDI/HDMI Wireless Transmitter (V-Mount)
- N-Type Antenna
- V-Mount Battery Plate
- Barcode: 82227
- UPC Barcode: 818264029930
- Supplier Code: 53.10-2581-V
